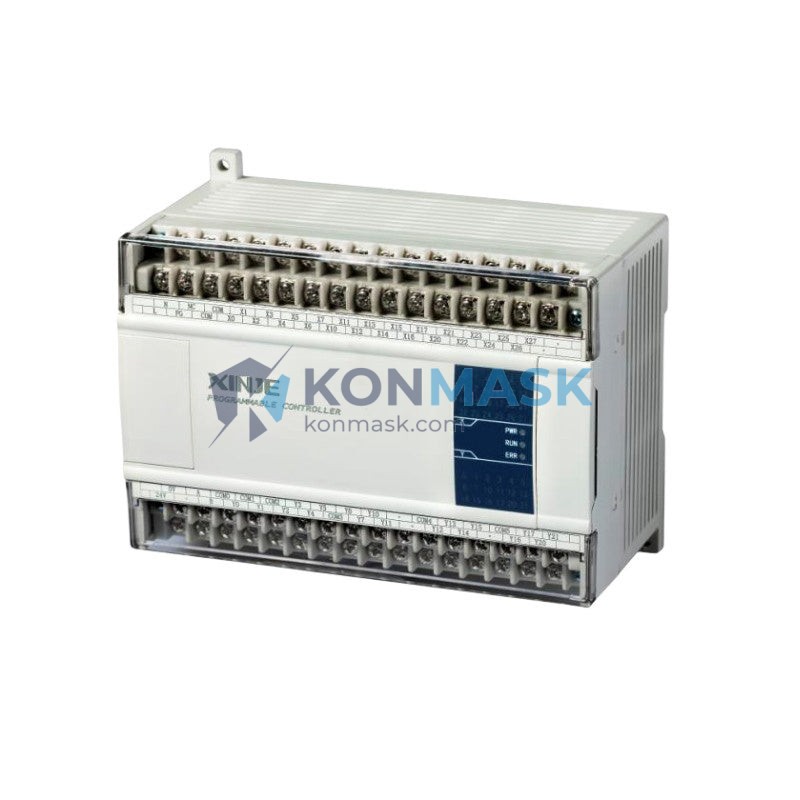

Packaging & Machine Automation Solution – XINJE XC3-60R-E | XC3 Series
Where This Product Is Used
The XINJE XC3-60R-E is a mid-range programmable logic controller engineered for demanding industrial environments. Engineers and system integrators specify this model across a wide range of automation applications:
- Packaging Machinery – Coordinating filling, sealing, labeling, and conveying sequences with precise relay-driven outputs.
- HVAC & Building Automation – Controlling fans, pumps, compressors, and damper actuators in commercial and industrial HVAC systems.
- Conveyor & Material Handling – Managing multi-zone conveyor lines, sorters, and accumulation systems in warehouses and production floors.
- Machine Tools & CNC Peripherals – Handling auxiliary I/O for spindle control, coolant, tool changers, and safety interlocks.
- Water Treatment & Pump Stations – Automating pump sequencing, level control, and alarm management in municipal and industrial water systems.
- Food & Beverage Processing – Controlling mixers, conveyors, and dosing systems in hygienic production environments.
- Textile & Printing Equipment – Synchronizing multi-axis motion and tension control on looms, winders, and printing presses.
Technical Specifications
| Model | XC3-60R-E |
| Brand | XINJE (信捷电气) |
| Series | XC3 |
| Total I/O Points | 60 (36 DI / 24 DO) |
| Output Type | Relay (R) |
| Power Supply | AC 100–240 V (E-type) |
| CPU Processing Speed | 0.2 μs / basic instruction |
| Program Memory | 16 K steps |
| Data Memory | 10 K words |
| Communication Ports | RS-232 × 1, RS-485 × 1 (built-in) |
| Expansion Modules | Supports XC3 series I/O, analog, and communication expansion |
| Relay Output Rating | 2 A / 250 VAC (resistive load) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Protection Rating | IP20 |
| Programming Software | XDPPro (free, Windows-based) |
| Dimensions (W×H×D) | Approx. 302 × 90 × 75 mm |
| Weight | Approx. 800 g |
| Certifications | CE, RoHS |
Why Engineers Specify This Model
- High I/O Density at Mid-Range Cost – 60 points in a compact DIN-rail housing eliminates the need for an additional expansion unit in most small-to-medium machine builds.
- Relay Output Versatility – Relay outputs switch AC and DC loads without external interface relays, simplifying panel wiring and reducing BOM cost.
- Dual Serial Ports Built-In – RS-232 and RS-485 onboard enable simultaneous HMI communication and field device networking (Modbus RTU, XINJE protocol) without add-on modules.
- Fast Scan Cycle – 0.2 μs per basic instruction ensures deterministic response for time-critical interlock and sequencing logic.
- Wide AC Input Range – 100–240 VAC tolerance accommodates global power grid variations and simplifies international machine export.
- XDPPro Ecosystem – Free programming software with IEC 61131-3 ladder, FBD, and SFC support; compatible with XINJE HMI for seamless project integration.
Complete System Bill of Materials
A typical XC3-60R-E control panel build includes the following components. Konmask stocks all major line items:
- XINJE XC3-60R-E – Main CPU unit (this listing)
- XINJE XC-E8X / XC-E8YR – Digital I/O expansion modules (if additional points required)
- XINJE XC-E2AD / XC-E2DA – Analog input/output expansion modules
- XINJE TG465-MT / TG765-MT – 4.3″ / 7″ HMI touch panels
- 24 VDC DIN-rail power supply (e.g., MEAN WELL DR-60-24)
- DIN rail, terminal blocks, cable ducts, and panel enclosure
- Shielded RS-485 cable (Belden 9841 or equivalent) for field bus wiring
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU.
- RoHS – Restriction of Hazardous Substances compliant; suitable for export to EU and UK markets.
- IEC 61131-2 – Hardware design conforms to programmable controller equipment standard.
- Modbus RTU – Native support for the most widely adopted industrial serial protocol.
Quality Assurance & Sourcing
Konmask sources the XC3-60R-E exclusively through authorized XINJE distribution channels. Every unit shipped from our warehouse undergoes the following verification process:
- Visual inspection of housing, label, and firmware version against XINJE factory specifications.
- Power-on functional test confirming CPU boot, I/O status LEDs, and communication port response.
- Anti-static packaging with humidity indicator card for safe long-distance transit.
- Original manufacturer documentation and warranty card included.
We maintain traceability records for every unit sold. Counterfeit or grey-market product is never knowingly stocked or shipped.
How to Source This Part
- In-Stock Orders – Add to cart and check out. Orders placed before 18:00 CST ship same business day via SF Express or DHL.
- Project Quantity / BOM Inquiry – Email support@konmask.com with your BOM for a consolidated quote and lead-time confirmation.
- Technical Pre-Sales – Our engineers can review your application and confirm compatibility before purchase. Contact us via email or WhatsApp (+0086 19859288691).
- International Shipping – We ship to 50+ countries. DDP (Delivered Duty Paid) terms available for select destinations. Inquire for details.
Application-Specific FAQ
Q: Can the XC3-60R-E control a servo drive directly?
A: The relay output version is not suitable for high-speed pulse output to servo drives. For servo/stepper axis control, specify the XC3-60T-E (transistor output) variant instead. The XC3-60R-E is ideal for auxiliary I/O and logic control alongside a dedicated motion controller.
Q: How many expansion modules can be connected?
A: The XC3 series supports up to 8 expansion modules on the right-side bus, allowing up to 128 additional I/O points depending on module type.
Q: Is XDPPro compatible with Windows 10/11?
A: Yes. XDPPro v3.x and later are fully compatible with Windows 10 and Windows 11 (64-bit). Download is free from the XINJE official website.
Q: Can this PLC communicate with a SCADA system via Modbus TCP?
A: The base unit supports Modbus RTU over RS-485. For Modbus TCP/Ethernet connectivity, add the XC-NET-E Ethernet communication module.
Q: What is the warranty period?
A: XINJE provides a 12-month manufacturer warranty from the date of purchase. Konmask offers additional after-sales support for the lifetime of the product.
