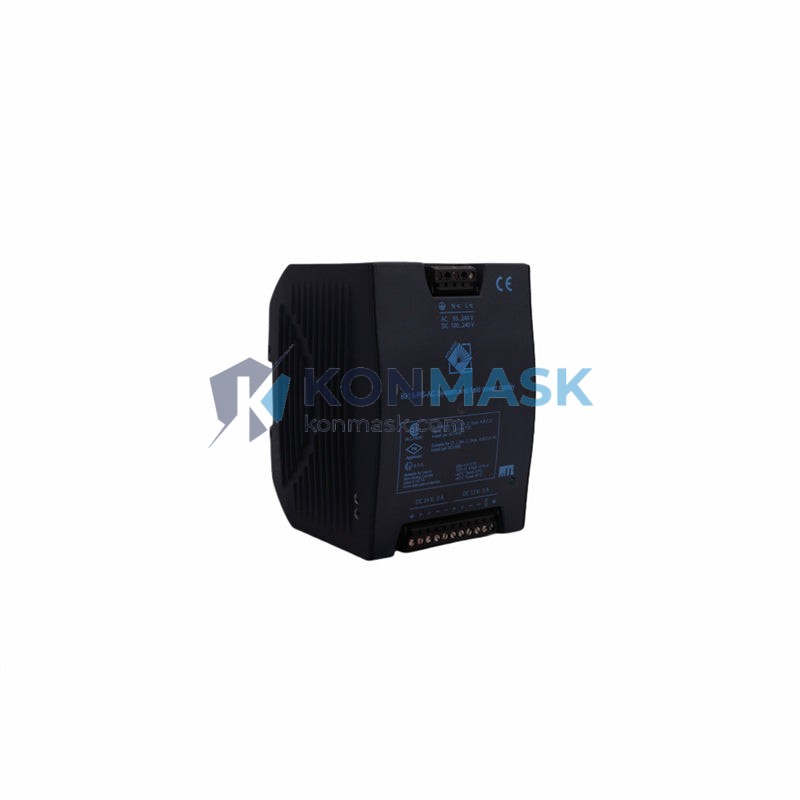

MTL 8913-PS-AC – AC Mains Power Supply Module | MTL8000 Series Platform
Engineering Background
The MTL 8913-PS-AC is a dedicated AC mains power supply module engineered for the MTL8000 series of Zener barriers and galvanic isolators, manufactured by MTL Instruments (now part of Eaton’s MTL product line). This module delivers stable, regulated DC bus power to the MTL8000 backplane, enabling safe and reliable signal conditioning in hazardous-area installations across oil & gas, chemical processing, and power generation facilities worldwide.
Product Positioning
As the primary power source for MTL8000 DIN-rail-mounted safety barrier systems, the 8913-PS-AC eliminates the need for external DC power supplies. Its wide-range AC input (85–264 V AC) ensures universal compatibility with global mains voltages. The compact plug-in form factor enables rapid field replacement without disturbing adjacent barrier modules — a critical advantage in live process environments where uptime is non-negotiable. Procurement engineers specifying MTL8000 system power infrastructure will find the 8913-PS-AC the definitive solution for AC-powered installations.
MTL 8913-PS-AC Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MTL 8913-PS-AC |
| Product Series | MTL8000 |
| Module Type | AC Mains Power Supply Module |
| Input Voltage Range | 85 – 264 V AC (universal) |
| Input Frequency | 47 – 63 Hz |
| Output Voltage | Regulated DC bus for MTL8000 backplane |
| Output Current | Rated for full MTL8000 backplane load |
| Mounting | DIN rail (35 mm EN 50022), plug-in to MTL8000 backplane |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
| Protection Class | IP20 (module body) |
| Weight (net) | Approx. 1,780 g |
| Certifications | CE, ATEX (associated apparatus), IECEx |
| Safety Standard | IEC 60079, IEC 61511 (SIS compatible) |
| Country of Origin | United Kingdom |
| Manufacturer | MTL Instruments / Eaton MTL |
| Compatible Platform | MTL8000 backplane only |
MTL 8913-PS-AC Proven Application Environments
- Oil & Gas Upstream: Wellhead control panels and SCADA RTU cabinets requiring IS-certified power distribution to field instruments in Zone 1 / Zone 2 hazardous areas.
- Petrochemical & Refining: DCS marshalling cabinets where MTL8000 barriers interface 4–20 mA transmitters, thermocouples, and discrete I/O from classified locations.
- Power Generation: Turbine control systems and boiler management panels demanding high-availability power supply with wide AC input tolerance.
- Water & Wastewater: Remote pump station control panels with variable mains quality benefiting from the 85–264 V AC universal input range.
- Pharmaceutical Manufacturing: Clean-room process control systems requiring IEC 61511 SIL-rated safety instrumented system (SIS) power infrastructure.
MTL 8913-PS-AC Engineering Advantages
- Universal AC Input (85–264 V AC): Eliminates the need for separate transformers or voltage selectors across global installations.
- Hot-Swap Compatible: Plug-in module design allows replacement under live backplane conditions, minimising process downtime.
- Redundancy Ready: Supports dual power supply configurations on the MTL8000 backplane for N+1 redundancy in critical SIS applications.
- Compact DIN-Rail Footprint: Integrates directly into the MTL8000 system without additional panel space or external wiring.
- Decades of Field Reliability: MTL8000 platform has an extensive installed base in IEC 60079 hazardous-area applications worldwide.
- ATEX / IECEx Certified: Fully compliant for use as associated apparatus in Zone 1 and Zone 2 classified installations.
MTL 8913-PS-AC System Architecture & Signal Flow
The MTL 8913-PS-AC mounts into the dedicated power supply slot of the MTL8000 backplane. AC mains is connected to the module’s screw terminals; the module converts and regulates this to the DC bus voltage distributed across the backplane to all installed barrier and isolator modules. In a redundant configuration, a second 8913-PS-AC (or the DC variant 8913-PS-DC) occupies the secondary power slot, with automatic load sharing and failover. The backplane’s internal bus architecture ensures that a single power supply failure does not interrupt signal conditioning to field instruments.
Sourcing & Quality Verification
- All MTL modules supplied by Konmask.com are sourced from authorised distributors and verified OEM channels.
- Each unit undergoes incoming inspection: visual check, label verification (part number, date code, country of origin), and functional power-on test where applicable.
- Original manufacturer documentation, certificates of conformity, and test reports are available upon request.
- Konmask.com maintains full traceability records for all stocked MTL components to support customer audit requirements.
Procurement Process
- Confirm Compatibility: Verify your MTL8000 backplane model and available power supply slot before ordering.
- Request a Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time confirmation, and export documentation.
- Place Order: Orders accepted via the online store, purchase order (PO), or bank transfer (T/T). Minimum order quantity: 1 unit.
- Shipping & Export: Ships from China warehouse. Export documentation (commercial invoice, packing list, CO) provided for customs clearance. DHL / FedEx / sea freight options available.
- After-Sales Support: 12-month warranty against manufacturing defects. Technical support via email within 24 hours on business days.
Technical FAQ – MTL 8913-PS-AC
Q: Can the 8913-PS-AC be used with the MTL8500 or MTL4000 series?
A: No. The 8913-PS-AC is designed exclusively for the MTL8000 backplane. For MTL8500 or MTL4000 systems, different power supply modules are required — contact us for the correct part number.
Q: Is redundant power supply supported?
A: Yes. The MTL8000 backplane supports dual power supply modules. A second 8913-PS-AC or the DC equivalent (8913-PS-DC) can be installed for N+1 redundancy.
Q: What is the maximum number of barrier modules the 8913-PS-AC can power?
A: This depends on the specific barrier modules installed and their individual power consumption. Refer to the MTL8000 system power budget calculation in the MTL8000 System Manual (INM8000).
Q: Does this module carry SIL certification?
A: The MTL8000 system is designed for use in IEC 61511 safety instrumented systems. SIL capability data (PFD, λD, λS) for the power supply module is available in the MTL8000 SIL data sheet — request from our technical team.
Q: What is the lead time for out-of-stock units?
A: Standard lead time for factory-fresh units is 4–8 weeks. Konmask.com maintains buffer stock for common MTL8000 components — contact us to confirm current availability.
