Pump & Fan Speed Control Solution — OMRON 3G3EV-AB007M-E | 3G3EV Series

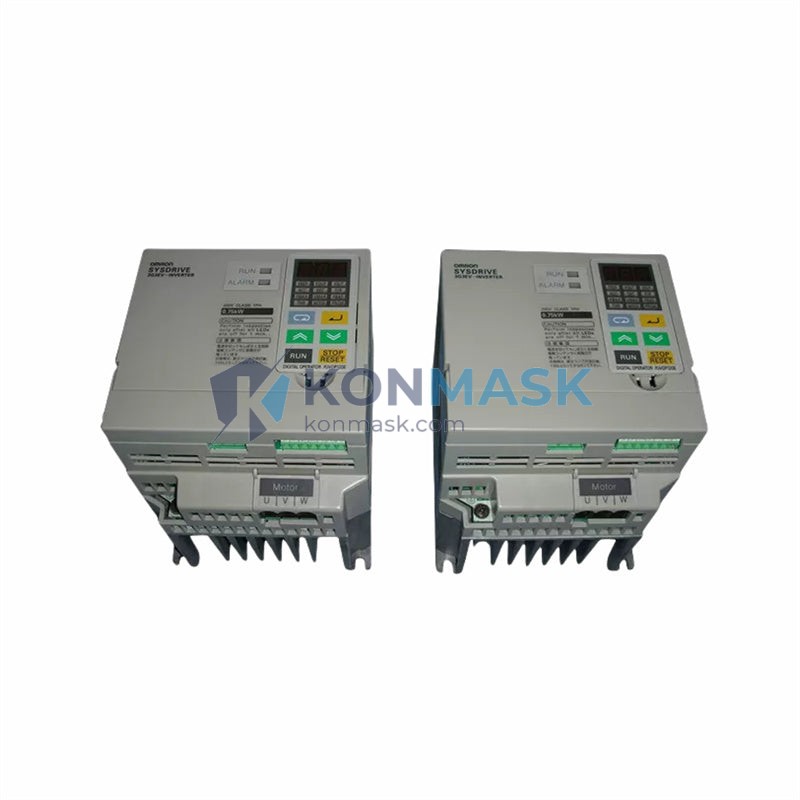

The OMRON 3G3EV-AB007M-E is a 0.75 kW (1 HP) single-phase 200 V AC compact low-noise variable frequency drive (VFD) from OMRON’s proven 3G3EV series. Engineered for space-constrained industrial environments, it delivers precise motor speed control with minimal electromagnetic interference — making it the preferred choice for OEM machine builders, facility engineers, and system integrators across Asia-Pacific and global markets.
Where This Product Is Used
The 3G3EV-AB007M-E is specified across a wide range of light-to-medium industrial applications:
- HVAC Systems — Variable-speed control of air handling unit (AHU) fans and chilled-water circulation pumps in commercial buildings and cleanrooms.
- Water & Wastewater — Booster pump stations, pressure-constant water supply systems, and small sewage lift stations requiring soft-start and energy savings.
- Conveyor & Material Handling — Speed-adjustable belt conveyors in food processing, packaging lines, and logistics sorting systems.
- Textile & Printing Machinery — Tension-sensitive winding/unwinding drives where low-noise operation is critical to product quality.
- Machine Tools & OEM Equipment — Spindle drives, coolant pumps, and auxiliary axes in CNC machining centers and special-purpose machines.
- Agricultural & Irrigation — Variable-flow irrigation pump control for greenhouses and precision agriculture installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3G3EV-AB007M-E |
| Brand | OMRON |
| Series | 3G3EV |
| Rated Output Power | 0.75 kW (1 HP) |
| Input Voltage | Single-Phase 200–240 V AC, 50/60 Hz |
| Output Voltage | Three-Phase 200–240 V AC |
| Output Frequency Range | 0.1 – 400 Hz |
| Control Method | V/f Control (Sinusoidal PWM) |
| Carrier Frequency | Up to 12 kHz (low-noise operation) |
| Applicable Motor | Standard 3-phase induction motor, 0.75 kW |
| Protection Class | IP20 |
| Ambient Temperature | -10°C to +50°C (operating) |
| Weight | Approx. 1.32 kg |
| Communication | RS-422/485 (optional) |
| Braking | Built-in braking transistor |
| Certifications | CE, UL (refer to nameplate) |
Why Engineers Specify This Model
- Ultra-Compact Footprint — Fits into tight control panels without sacrificing performance; ideal for retrofit projects with limited enclosure space.
- Low Acoustic Noise — High carrier frequency PWM reduces motor audible noise, critical for office-adjacent HVAC and medical facility applications.
- Single-Phase Input → Three-Phase Output — Enables three-phase motor operation from single-phase supply, eliminating the need for a phase converter in sites without three-phase infrastructure.
- Built-in EMC Filter — Reduces conducted emissions, simplifying CE compliance for machine builders exporting to European markets.
- Simple Parameter Setup — Intuitive digital operator with copy function accelerates commissioning and reduces downtime during replacement.
- OMRON Ecosystem Compatibility — Seamlessly integrates with OMRON PLCs (CP1, CJ2, NX series) via RS-485 Modbus RTU for centralized SCADA control.
Complete System Bill of Materials
For a complete drive system using the 3G3EV-AB007M-E, engineers typically specify:
- VFD: OMRON 3G3EV-AB007M-E (this unit)
- Digital Operator: OMRON 3G3EV-DZOP (remote keypad, optional)
- Input AC Reactor: 3G3EV-PLKEB (harmonic mitigation)
- Output Filter: 3G3EV-PFO (motor cable dV/dt protection)
- Braking Resistor: 3G3EV-BUDA (for high-inertia loads)
- PLC Controller: OMRON CP1L-M30DR-A or CP1E series
- Motor: Standard IEC/NEMA 3-phase induction motor, 0.75 kW, 4-pole
- Circuit Breaker: OMRON J7MN or equivalent, rated for VFD input current
Contact support@konmask.com for complete BOM sourcing assistance.
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU.
- UL Listed — Recognized under UL 508C (Power Conversion Equipment) for North American markets.
- RoHS Compliant — Manufactured without restricted hazardous substances per EU RoHS 2 Directive 2011/65/EU.
- IEC 61800-3 — Meets EMC requirements for adjustable speed electrical power drive systems (Category C2).
Quality Assurance & Sourcing
Konmask.com sources the OMRON 3G3EV-AB007M-E exclusively through authorized distribution channels and verified industrial surplus networks. Every unit undergoes:
- Visual inspection for physical damage, label authenticity, and seal integrity.
- Verification of serial number against OMRON’s production records where applicable.
- Functional power-on test prior to shipment (upon request).
- Anti-static packaging with humidity indicator cards for long-distance freight.
We do not sell counterfeit, refurbished-as-new, or grey-market product. All units are supplied with original OMRON documentation where available.
How to Source This Part
- Add to Cart — Place your order directly on this page. We accept T/T bank transfer, PayPal, and major credit cards.
- Request a Quote — For quantities ≥ 3 units or project BOM sourcing, email support@konmask.com for volume pricing.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock units: 7–21 business days depending on origin warehouse.
- Global Shipping — DHL Express, FedEx International, and sea freight (LCL/FCL) available. Export documentation (CO, packing list, commercial invoice) provided.
- Technical Support — Pre-sales application engineering support available via WhatsApp/WeChat: +0086 19859288691.
Application-Specific FAQ
Q: Can the 3G3EV-AB007M-E run a 0.75 kW three-phase motor from a single-phase 220 V supply?
A: Yes. The AB007M-E variant accepts single-phase 200–240 V input and outputs three-phase voltage to the motor. This is one of its primary design advantages for sites without three-phase infrastructure.
Q: Is this inverter suitable for constant-torque loads like conveyors?
A: Yes, with proper derating. For continuous constant-torque duty below 30 Hz, ensure adequate motor cooling (forced ventilation or a motor with a separate cooling fan) and verify the drive’s thermal overload settings.
Q: What is the difference between 3G3EV-AB007M-E and 3G3EV-AB007?
A: The “-E” suffix denotes the export/international version with built-in EMC filter and CE/UL certification. The base model without “-E” may lack the integrated filter and is intended for the Japanese domestic market.
Q: Can I connect this drive to an OMRON PLC via Modbus?
A: Yes. With the optional RS-485 communication card, the 3G3EV supports Modbus RTU protocol, enabling speed reference, run/stop commands, and fault monitoring from any OMRON or third-party PLC/SCADA system.
Q: What spare parts should I stock for preventive maintenance?
A: Recommended spares include the cooling fan (if fan-cooled variant), electrolytic capacitors (service life ~10 years at 40°C), and the digital operator. Contact us for a preventive maintenance kit quote.
