Machine Automation Solution – OMRON CPM2AE-60CDR-A | CPM2A Series
Where This Product Is Used

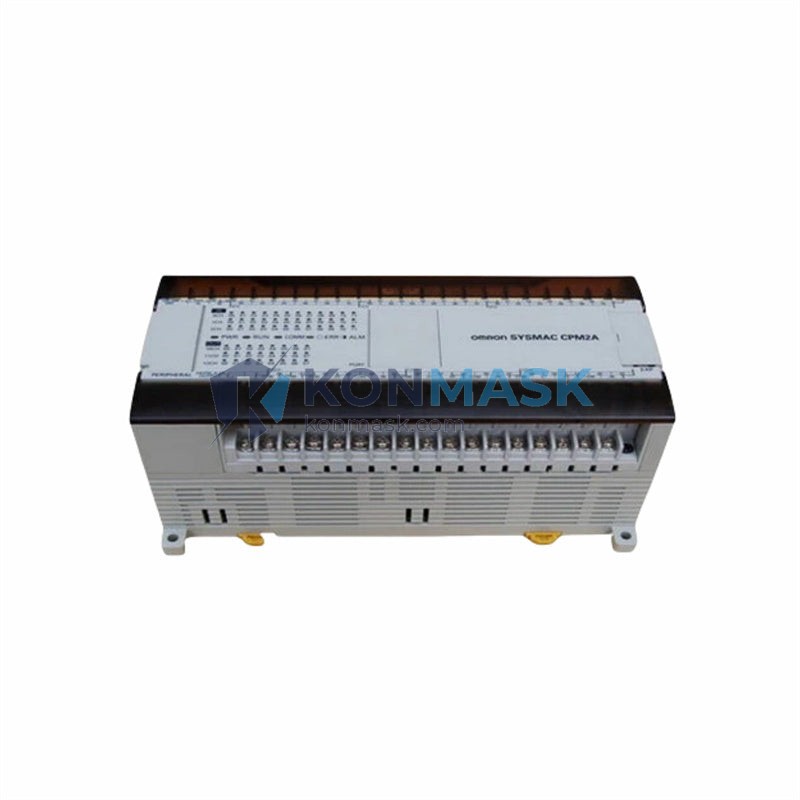

The OMRON CPM2AE-60CDR-A is a high-density, compact programmable logic controller engineered for demanding industrial environments. Its 60-point I/O capacity and relay output configuration make it the preferred choice across a wide range of application sectors:
- Packaging Machinery: Sequence control for filling, sealing, labeling, and conveyor indexing lines requiring reliable relay-driven actuators.
- Textile & Weaving Equipment: Coordinating multi-axis loom operations, tension control, and fault detection with deterministic scan cycles.
- Plastic Injection Molding: Managing mold open/close sequences, ejector timing, and temperature interlock signals.
- Food & Beverage Processing: Hygienic-environment machine control where relay outputs drive solenoid valves, pumps, and conveyor motors.
- HVAC & Building Automation: Fan coil unit sequencing, chiller staging, and alarm annunciation panels.
- Assembly & Test Fixtures: Automated go/no-go test rigs, press-fit stations, and end-of-line functional testers.
- Water Treatment & Pumping Stations: Pump alternation, level control, and dosing sequences in remote or panel-mounted installations.
Technical Specifications
| Part Number | CPM2AE-60CDR-A |
| Brand | OMRON |
| Series | CPM2A / CPM2AE |
| Total I/O Points | 60 (36 Inputs / 24 Outputs) |
| Output Type | Relay (R) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Input Voltage | DC 24 V (internal supply) |
| Program Capacity | 4,096 steps |
| Data Memory | 2,048 words |
| Instruction Set | Basic + Special (193 instructions) |
| Scan Time | 0.64 ms / 1,000 steps (typical) |
| Communication Ports | 1 × RS-232C peripheral port |
| Expansion Units | Up to 3 expansion I/O units |
| Analog Option | Supported via CPM2A-MAD expansion |
| Mounting | DIN rail or panel surface |
| Operating Temperature | 0 to 55 °C |
| Humidity | 10 to 90% RH (non-condensing) |
| Weight | Approx. 2,130 g |
| Country of Origin | Japan |
Why Engineers Specify This Model
- High I/O Density in Compact Form: 60 I/O points in a single CPU unit eliminates the need for an additional base unit, reducing panel footprint and wiring complexity.
- Relay Output Versatility: Relay contacts switch AC and DC loads without external interface relays, simplifying BOM and improving MTBF for mixed-voltage systems.
- Proven CPM2A Architecture: Millions of units deployed globally; extensive third-party documentation, ladder logic libraries, and trained technician base.
- Expandable to 120 I/O: Three expansion slots allow the system to grow with the machine without replacing the CPU.
- Integrated RS-232C Port: Direct connection to HMI panels, barcode readers, and SCADA gateways without additional communication modules.
- CX-Programmer Compatible: Full support under OMRON’s CX-One suite for online monitoring, forced-set/reset, and program upload/download.
Complete System Bill of Materials
Typical CPM2AE-60CDR-A control panel BOM for a mid-size machine application:
- CPM2AE-60CDR-A — CPU unit (this item)
- CPM2A-20EDR1 — 20-point relay expansion I/O unit (optional)
- CPM2A-MAD11 — Analog I/O expansion unit (optional)
- CQM1-PRO01-E — Programming console (handheld, optional)
- CS1W-CN226 — RS-232C peripheral cable (CPU to PC)
- CX-Programmer v9.x — Programming software (CX-One suite)
- NT31C-ST141-EV3 — OMRON NT-series HMI (compatible)
- PFP-100N — DIN rail (1 m, standard 35 mm)
- 24 VDC SMPS (S8VS-06024) — Sensor supply power unit
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL 508 — Industrial Control Equipment (cULus listed)
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- RoHS Compliant — Restriction of Hazardous Substances
- IP20 — Ingress protection (panel-mounted installation)
Quality Assurance & Sourcing
Every CPM2AE-60CDR-A unit offered by Konmask.com undergoes a structured verification process before dispatch:
- Visual Inspection: Housing integrity, label legibility, connector pin condition, and seal verification.
- Functional Power-On Test: Unit powers up, self-diagnostic LED sequence confirmed, and I/O status verified where applicable.
- Traceability: Serial number and production date code recorded against each order for full supply-chain traceability.
- Sourcing: Units sourced from authorized distributors, OEM overstock, or verified industrial surplus channels. Counterfeit-screening applied per internal SOP.
- Packaging: Anti-static bag + foam-lined carton; double-boxed for international freight.
How to Source This Part
To place an order or request a quotation for the OMRON CPM2AE-60CDR-A:
- Online: Add to cart directly on this page. Secure checkout with T/T wire transfer, PayPal, and major credit cards accepted.
- RFQ / Bulk Orders: Email [email protected] with quantity, required delivery date, and destination port.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock international orders typically arrive within 5–12 business days via DHL / FedEx.
- Export Documentation: Commercial invoice, packing list, and certificate of origin available upon request for customs clearance.
Application-Specific FAQ
Q: Can the CPM2AE-60CDR-A control servo drives directly?
A: The relay output version is not suited for high-speed pulse output to servo drives. For servo/stepper applications, specify the CPM2AE-60CDP-A (transistor output) instead. The CDR-A variant excels in relay-load applications such as contactors, solenoids, and indicator lamps.
Q: Is the CPM2AE-60CDR-A still in production?
A: OMRON has transitioned newer designs to the CP1 and CJ2 series. The CPM2AE remains widely available as new-old-stock and is fully supported by CX-Programmer. Replacement parts and expansion units are readily available through Konmask.com.
Q: What is the maximum expansion I/O?
A: With 3 expansion units of 20 points each, total system I/O reaches 120 points (60 CPU + 60 expansion).
Q: Can I connect this PLC to a SCADA system via Modbus?
A: Yes, using OMRON’s CompoWay/F or a third-party RS-232C Modbus RTU gateway connected to the peripheral port. Alternatively, the CPM2A-CIF11 RS-422/485 adapter enables multi-drop network topologies.
Q: What programming software is required?
A: OMRON CX-Programmer (part of CX-One suite) is the standard tool. Legacy SYSWIN software is also compatible for older installations.
