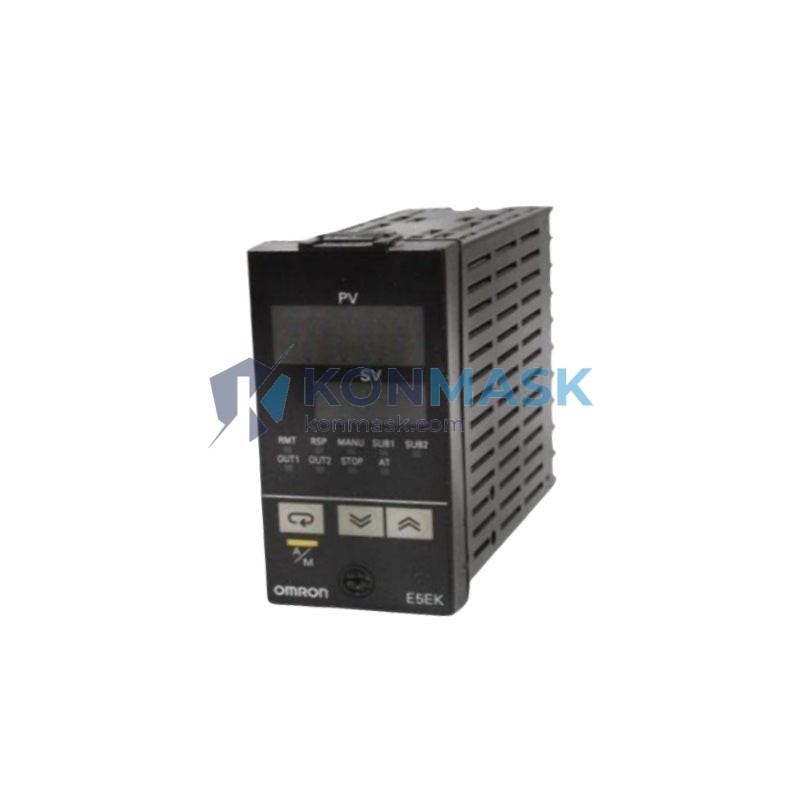

OMRON E5EK-PRR2-500 Digital Temperature Controller – E5EK Series
Imagine a critical thermal process running unattended — a plastic injection mold, a pharmaceutical drying oven, or a food-processing line — with no reliable temperature regulation. Without a precision controller like the OMRON E5EK-PRR2-500, temperature deviations go uncorrected, product quality collapses, equipment overheats, and costly production shutdowns follow. The E5EK-PRR2-500 eliminates that risk, delivering tight closed-loop PID control that keeps your process within specification around the clock.
Within OMRON’s E5EK series — a benchmark platform for DIN-rail-mounted digital temperature controllers — the E5EK-PRR2-500 occupies the relay-output, 100–240 VAC tier, making it the go-to choice for engineers who need robust switching capability without the added complexity of analog or SSR-drive outputs. Trusted by OEMs and system integrators across Asia, Europe, and the Americas, the E5EK series has earned its place as one of the most widely deployed temperature controllers in global industrial automation.
Technical Specifications
- Model: E5EK-PRR2-500
- Brand: OMRON
- Series: E5EK
- Output Type: Relay output (PRR2)
- Supply Voltage: 100–240 VAC, 50/60 Hz
- Control Method: PID / ON-OFF selectable
- Input Types: Thermocouple (K, J, T, E, L, U, N, R, S, B, W) / Platinum RTD (Pt100, JPt100)
- Display: Dual 4-digit LED (PV / SV)
- Mounting: DIN rail / panel mount (96 × 48 mm)
- Protection Rating: IP66 (front panel)
- Communication: RS-485 (CompoWay/F protocol)
- Weight: Approx. 200 g
Note: Always verify specifications against the official OMRON E5EK datasheet for your specific application.
Key Features & Benefits
- High-Precision PID Control — Auto-tuning algorithm minimizes overshoot and stabilizes temperature rapidly, reducing scrap rates in sensitive processes.
- Dual Relay Output (PRR2) — Independent control and alarm relay outputs provide flexible process protection without external relay modules.
- Universal Sensor Input — Accepts a wide range of thermocouples and RTDs, simplifying sensor selection and reducing spare-parts inventory.
- IP66 Front Panel — Sealed against dust and water jets, suitable for washdown environments in food & beverage and chemical plants.
- RS-485 Serial Communication — Enables SCADA/HMI integration via CompoWay/F, supporting remote monitoring and parameter management.
- Compact DIN-Rail Form Factor — 96 × 48 mm footprint fits standard control panels, minimizing cabinet space.
- Multi-SP Function — Up to 8 set-point groups switchable via external contact, ideal for multi-recipe production lines.
Industry & Equipment Applications
- Plastics & Rubber: Injection molding machines, extruders, hot runners
- Food & Beverage: Pasteurizers, ovens, fermentation tanks, packaging sealers
- Pharmaceutical: Sterilization autoclaves, lyophilizers, clean-room HVAC
- Chemical & Petrochemical: Reactors, distillation columns, heat exchangers
- Semiconductor & Electronics: Reflow ovens, burn-in chambers, wafer processing
- Textile: Dyeing machines, heat-setting frames, drying cylinders
System Integration & Compatible Parts
- Compatible Sensors: OMRON E52 series thermocouples; standard Pt100 RTDs
- Communication Adapters: OMRON CJ1W-SCU21-V1 RS-485 unit for PLC integration
- Related Controllers: OMRON E5CC, E5DC, E5GN series for alternative form factors
- PLCs: OMRON CJ2M, NX1P2, CP1H — direct CompoWay/F connectivity
- HMI: OMRON NB series, NA series touch panels
- Power Supply: OMRON S8VS series DIN-rail power supplies
Our Quality Assurance Process
- Every unit sourced from authorized distributors or verified OEM-grade supply chains.
- Pre-shipment inspection: visual check, label verification, and packaging integrity review.
- Batch traceability records maintained for all shipments.
- Secure anti-static packaging with moisture-barrier bags for long-distance export.
- Certificates of conformity available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on Konmask.com.
- Provide your required quantity, delivery destination, and any special requirements.
- Receive a formal quotation within 1 business day.
- Confirm order and arrange payment via T/T, L/C, or other agreed terms.
- Shipment arranged via DHL, FedEx, or sea freight — with full tracking provided.
Why Choose Konmask.com?
- ✅ Specialized in industrial automation components — PLC, DCS, HMI, drives, and controllers.
- ✅ Global B2B supply with export experience to 50+ countries.
- ✅ Fast response: RFQ replied within 24 hours on business days.
- ✅ Flexible MOQ — single units to bulk orders supported.
- ✅ Dedicated after-sales support and technical consultation.
Frequently Asked Questions
- Q: What does “PRR2” mean in the model number E5EK-PRR2-500?
- A: “PRR2” denotes the output configuration — P indicates PID control capability, and RR2 specifies dual relay outputs (control relay + alarm relay). “500” refers to the 100–240 VAC power supply version.
- Q: Is the E5EK-PRR2-500 compatible with both thermocouple and RTD sensors?
- A: Yes. The E5EK-PRR2-500 accepts a wide range of thermocouple types (K, J, T, E, L, U, N, R, S, B, W) and platinum RTD inputs (Pt100, JPt100), selectable via front-panel or communication settings.
- Q: Can this controller communicate with an OMRON PLC?
- A: Yes. The built-in RS-485 port supports OMRON’s CompoWay/F protocol, enabling direct integration with OMRON CJ, NX, and CP series PLCs for remote parameter read/write and process monitoring.
- Q: Do you supply original OMRON products?
- A: Konmask.com sources from authorized distributors and verified supply chains. All products are inspected before shipment. Please contact us for documentation if required for your procurement process.
- Q: What is the minimum order quantity?
- A: We support orders from a single unit. Contact us via the RFQ form for volume pricing on larger quantities.
