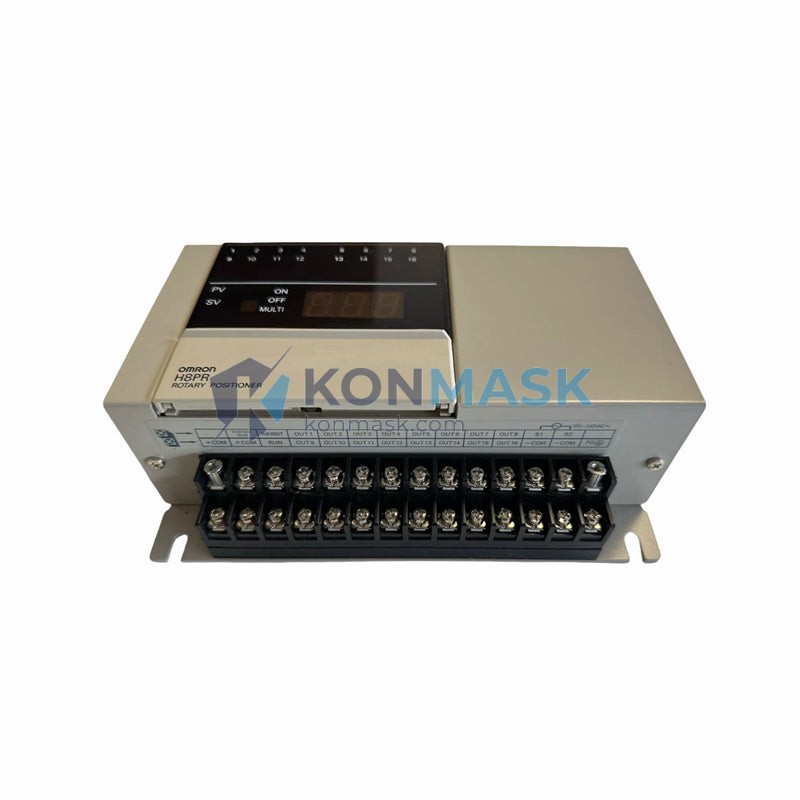

OMRON H8PR-16 Rotary Positioner – 16-Position Cam Switch Timer | H8PR Series
The OMRON H8PR-16 is a precision rotary positioner designed for demanding industrial automation environments where accurate, repeatable cam-based switching is critical. As part of OMRON’s proven H8PR Series, this unit delivers 16 independently programmable cam positions, enabling engineers to orchestrate complex multi-step machine sequences with a single compact device.
Product Positioning: Targeted at OEM machine builders, panel integrators, and MRO procurement teams requiring a reliable, standards-compliant rotary cam switch timer with direct PLC interface compatibility. The H8PR-16 is the preferred choice when sequence density, wiring simplicity, and long service life are non-negotiable.
Complete Technical Specifications
- Model: H8PR-16
- Manufacturer: OMRON Corporation
- Series: H8PR
- Type: Rotary Positioner / Cam Switch Timer
- Number of Cam Positions: 16
- Output Type: Relay output (SPDT per cam)
- Supply Voltage: 100–240 V AC / 12–24 V DC (confirm with datasheet for specific variant)
- Operating Temperature: –10 to +55 °C
- Storage Temperature: –25 to +65 °C
- Enclosure Rating: IP20 (panel-mount)
- Mounting: DIN rail / panel surface mount
- Weight: Approx. 4,460 g (packaged)
- Certifications: CE, UL, cUL (verify current listing)
- Country of Origin: Japan
Proven Application Environments
- Automated assembly lines requiring multi-step cam sequencing
- Packaging machinery with cyclic position control
- Injection molding and press machine interlocks
- Conveyor indexing and rotary table control
- Textile and printing machine phase control
- Retrofit upgrades replacing mechanical cam drums
Engineering Advantages
- 16 Independent Cam Channels: Eliminates the need for multiple discrete timers, reducing panel footprint and wiring complexity.
- Solid-State Reliability: Electronic cam switching eliminates mechanical wear, extending MTBF versus traditional drum switches.
- Direct PLC Integration: Output signals are PLC-compatible; no signal conditioning required for Siemens, Mitsubishi, Allen-Bradley, or OMRON PLCs.
- Front-Panel Programming: Intuitive rotary dial and LED indicators allow on-site cam angle adjustment without laptop or software.
- Compact DIN-Rail Form Factor: Minimizes panel space while supporting high channel density.
System Architecture & Signal Flow
The H8PR-16 accepts a shaft encoder or resolver input representing the mechanical angle of the driven axis. Internally, the unit compares the real-time position against 16 user-defined cam ON/OFF angle pairs stored in non-volatile memory. When the shaft angle enters a programmed cam window, the corresponding relay output energizes, driving downstream actuators, solenoids, or PLC digital inputs. The architecture supports both absolute and incremental position references, making it adaptable to new machine builds and retrofit projects alike.
Sourcing & Quality Verification
- Origin: Sourced directly from authorized OMRON distribution channels and verified OEM supply chains.
- Authenticity: Each unit ships with original OMRON packaging, holographic labels, and traceable lot codes.
- Inspection: Pre-shipment functional verification available on request; test reports provided for volume orders.
- Warranty: 12-month Konmask quality guarantee; OMRON OEM warranty terms apply where applicable.
- Lead Time: In-stock units ship within 1–3 business days; contact us for bulk allocation.
Procurement Process
- Confirm Part Number: Verify H8PR-16 against your BOM or OMRON datasheet to ensure voltage and output compatibility.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation.
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for NET terms.
- Receive & Inspect: Inspect packaging integrity and lot code upon receipt; report discrepancies within 48 hours.
- Technical Support: Post-installation commissioning support available via email or phone.
Technical FAQ
Q: Is the H8PR-16 compatible with 24 V DC PLC output modules?
A: Yes. The relay outputs are voltage-agnostic on the contact side; ensure your PLC output module can drive the relay coil voltage specified in the datasheet.
Q: Can cam angles be changed while the machine is running?
A: OMRON recommends programming cam angles with the machine at rest. Some firmware versions support online editing — consult the H8PR operation manual for your specific firmware revision.
Q: What encoder interface does the H8PR-16 accept?
A: The H8PR-16 accepts standard incremental encoder inputs. Verify pulse count per revolution compatibility with your encoder specification before installation.
Q: Do you provide OMRON certificates of conformance?
A: Yes, CoC documents are available for volume orders. Contact us at support@konmask.com.
Q: What is the minimum order quantity?
A: No minimum order quantity. Single units are available; volume discounts apply at 5+ units.
