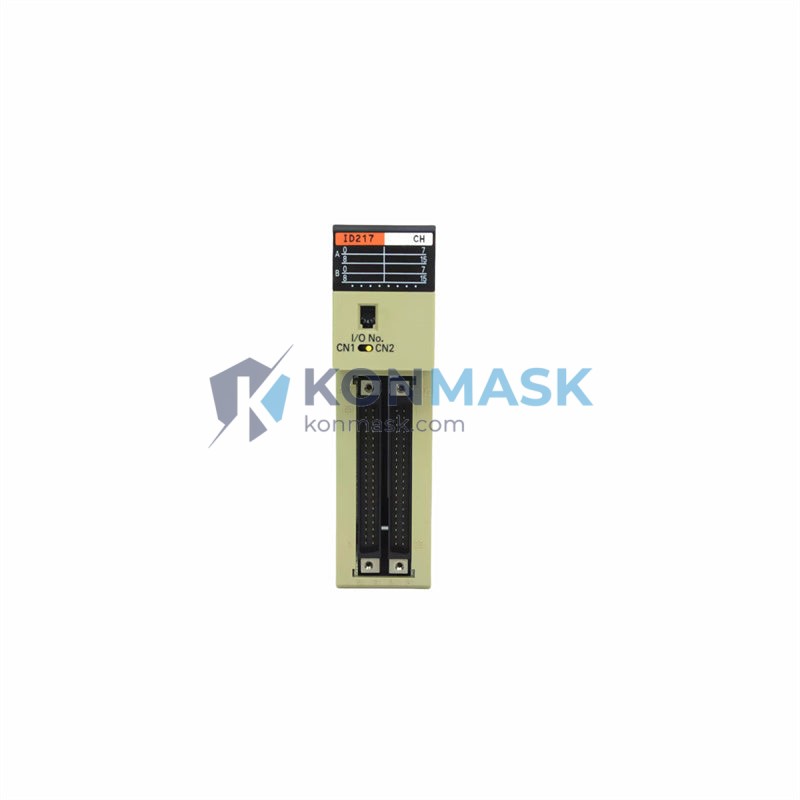

OMRON C200H-ID217 Digital Input Module | Replacement, Equivalent & Selection Guide
The OMRON C200H-ID217 is a 32-point DC digital input module designed for the OMRON C200H/C200HS/C200HX/C200HG/C200HE PLC series. It accepts 24 VDC signals and is widely used in discrete manufacturing, process control, and machine automation applications. This page provides full technical specifications, verified replacement options, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Model: C200H-ID217
- Manufacturer: OMRON Corporation
- Series: C200H I/O Units
- Module Type: Digital Input (DC)
- Number of Input Points: 32 points
- Input Voltage: 24 VDC
- Input Current: Approx. 7 mA per point
- ON Voltage: 14.4 V min.
- OFF Voltage: 5.0 V max.
- Response Time: 1.5 ms (ON), 1.5 ms (OFF)
- Isolation: Photocoupler isolation
- Connector Type: 40-pin connector
- Operating Temperature: 0 to 55°C
- Weight: Approx. 200 g
- Compatible Backplane: C200H series CPU racks and expansion racks
Compatible Replacement & Equivalent Models
When the C200H-ID217 is discontinued or unavailable, the following models may serve as functional replacements depending on your system configuration. Always verify electrical and mechanical compatibility before substitution.
- OMRON C200H-ID215 — 32-point DC input, same series, lower current rating; verify sensor compatibility
- OMRON C200H-ID216 — 32-point DC input, TTL-compatible variant; suitable for low-voltage sensor inputs
- OMRON C200HX/HG/HE-compatible I/O — Drop-in compatible when used with C200H expansion racks
- OMRON CJ1W-ID231 / CJ1W-ID232 — For system migration to CJ1/CJ2 platform; requires rack and wiring changes
- Third-party equivalents — Modules from Mitsubishi (AX40), Siemens (SM 321), or Schneider (140DDI35300) may offer functional equivalence in retrofitted panels; confirm I/O mapping and bus protocol before use
Why Choose the Original C200H-ID217
- ✅ Guaranteed compatibility with all C200H/C200HS/C200HX/C200HG/C200HE CPU units and expansion racks
- ✅ Plug-and-play installation — no firmware changes or re-mapping required
- ✅ Proven reliability in 24/7 industrial environments with photocoupler isolation
- ✅ Consistent signal integrity across all 32 input channels
- ✅ Full OMRON technical support and documentation availability
- ✅ Reduced commissioning risk — original hardware eliminates integration uncertainty
Typical Applications
- Discrete manufacturing lines — push-button, limit switch, and proximity sensor inputs
- Conveyor and material handling systems
- Packaging machinery and filling lines
- Injection molding and press control panels
- Building automation and HVAC control systems
- Water treatment and utility monitoring panels
System Compatibility
The C200H-ID217 is compatible with the following OMRON PLC platforms:
- C200H — Full native support
- C200HS — Full native support
- C200HX / C200HG / C200HE — Compatible via standard C200H expansion racks
- C200H Remote I/O — Compatible when used with C200H-RM201/RM001 remote I/O masters
Note: Not directly compatible with CS1, CJ1, CJ2, or NX/NJ series without an I/O adapter or system migration.
Selection Guide
Use the following criteria to confirm the C200H-ID217 is the right module for your application:
- Input signal type: 24 VDC sourcing or sinking sensors → C200H-ID217 ✅
- Point count required: Up to 32 discrete inputs per slot → C200H-ID217 ✅
- Existing PLC platform: C200H/C200HS/C200HX/HG/HE → C200H-ID217 ✅
- TTL/low-voltage inputs (5 VDC): Consider C200H-ID216 instead
- AC input signals (100–240 VAC): Consider C200H-IA121 or C200H-IA221
- Migrating to newer platform: Consider CJ2M + CJ1W-ID231 for a modern equivalent
Quality Assurance & Sourcing
At Konmask.com, all OMRON C200H-ID217 units are:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, connector condition, and label authenticity
- Tested for basic electrical function prior to dispatch where applicable
- Shipped with anti-static packaging and full traceability documentation
- Backed by our 30-day return policy for defective or misrepresented items
How to Order
- Confirm your PLC model and rack configuration (CPU rack or expansion rack)
- Verify the required input voltage (24 VDC) matches your field devices
- Add the C200H-ID217 to your cart or contact us for bulk/project pricing
- Provide your project timeline — we offer expedited sourcing for urgent requirements
- Request a datasheet, wiring diagram, or compatibility confirmation via email
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://konmask.com
Replacement & Compatibility FAQ
Q: Can I replace C200H-ID217 with C200H-ID215?
A: Yes, in most cases. Both are 32-point 24 VDC input modules in the C200H series. The ID215 has a slightly different input current rating — verify your sensor specifications before substituting.
Q: Is C200H-ID217 compatible with C200HX/HG/HE CPUs?
A: Yes. These CPUs use the same C200H I/O bus and accept all standard C200H I/O modules including the ID217.
Q: Can I use C200H-ID217 in a CJ1 or CJ2 system?
A: No, not directly. The CJ series uses a different backplane and bus architecture. A system migration with new I/O modules (e.g., CJ1W-ID231) is required.
Q: What is the difference between C200H-ID217 and C200H-ID216?
A: The ID216 is a TTL-compatible (5 VDC) input module, while the ID217 accepts 24 VDC signals. Choose based on your field device output voltage.
Q: Do you supply new, refurbished, or used units?
A: We supply both new-old-stock (NOS) and tested-used units. Condition is clearly stated on each listing. Contact us if you require a specific condition grade.
