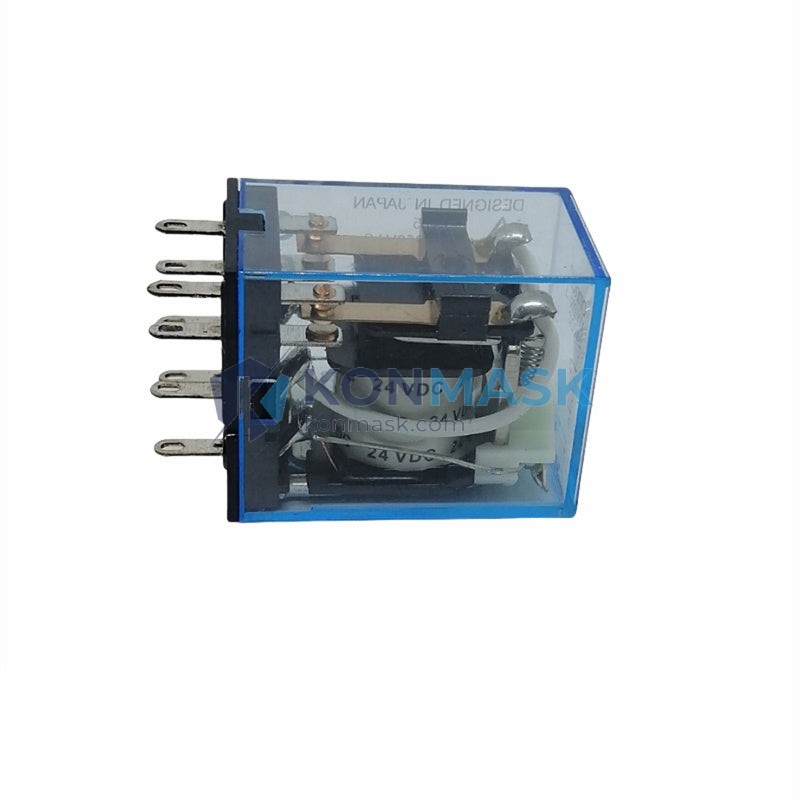

Industrial Control Solution – OMRON MY2N-J | MY Series General-Purpose Power Relay
Where This Product Is Used
The OMRON MY2N-J is a 2-pole, 8-pin general-purpose power relay engineered for demanding industrial control environments. Engineers and panel builders specify this relay across a wide range of applications:
- PLC Output Interface: Acts as an isolation buffer between PLC digital output cards and field devices, protecting sensitive I/O modules from inductive load spikes.
- Motor Starter & Contactor Control: Used as a pilot relay to energize motor contactors in conveyor systems, pumps, fans, and compressors.
- Machine Tool Control Panels: Integrated into CNC and lathe control cabinets for sequencing, interlocking, and safety logic.
- HVAC & Building Automation: Controls solenoid valves, damper actuators, and fan coil units in BMS (Building Management Systems).
- Process Control & DCS Systems: Serves as a field relay in distributed control architectures for chemical, oil & gas, and water treatment plants.
- Packaging & Material Handling: Deployed in pick-and-place machines, labeling equipment, and automated sorting lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | MY2N-J |
| Brand | OMRON |
| Series | MY Series |
| Relay Type | General-Purpose Power Relay |
| Pole Configuration | 2PDT (2 Pole Double Throw) |
| Pin Configuration | 8-Pin (Octal Base) |
| Contact Rating | 10A @ 250VAC / 10A @ 30VDC |
| Coil Voltage Options | 24VDC / 110VAC / 220VAC (specify at order) |
| Coil Power Consumption | Approx. 1.6W (DC) / 1.6VA (AC) |
| Operate Time | ≤ 20ms |
| Release Time | ≤ 20ms |
| Mechanical Life | 50,000,000 operations min. |
| Electrical Life | 500,000 operations min. (rated load) |
| Insulation Resistance | 1,000 MΩ min. (500VDC) |
| Dielectric Strength | 2,000VAC (coil to contact) |
| Ambient Temperature | -40°C to +70°C (operating) |
| Weight | Approx. 50g (relay only) |
| Mounting | Plug-in (requires MY2 or PYF08A socket) |
| Indicator | LED indicator + manual override (N-J suffix) |
Why Engineers Specify This Model
- N-J Suffix Advantage: The “N” denotes a built-in LED indicator for coil energization status; “J” indicates a manual test button — critical for commissioning and fault-finding without energizing the coil.
- Octal 8-Pin Socket Compatibility: Universal plug-in design compatible with OMRON PYF08A, PYF08A-E, and equivalent third-party sockets — enabling fast field replacement without rewiring.
- High Dielectric Strength: 2,000VAC coil-to-contact isolation ensures safe operation in mixed-voltage control panels.
- Wide Temperature Range: Rated to -40°C, suitable for outdoor enclosures and cold-storage automation.
- OMRON MY Series Reliability: Industry-proven platform with decades of field history in automotive, food & beverage, and semiconductor manufacturing.
Complete System Bill of Materials
For a complete relay control circuit, the following accessories are typically required:
- Socket: OMRON PYF08A or PYF08A-E (DIN rail or panel mount)
- Hold-down Clip: OMRON PTF08A (prevents relay from vibrating loose)
- Surge Suppressor: OMRON SY-SS (for AC coils) or SY-SD (for DC coils)
- DIN Rail: 35mm TS-35 aluminum rail (standard)
- Terminal Markers: Compatible with OMRON Y92A-48 marker strip
Compliance & Industry Standards
- UL Listed (File No. E41515)
- CSA Certified
- CE Marked (Low Voltage Directive & EMC Directive)
- RoHS Compliant
- IEC 61810-1 (Electromechanical Elementary Relays)
- GB/T 21711 (China National Standard equivalent)
Quality Assurance & Sourcing
All OMRON MY2N-J units supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit is:
- Inspected for original OMRON holographic labeling and date codes
- Tested for coil continuity and contact resistance prior to dispatch
- Packaged in original OMRON anti-static blister or box packaging
- Accompanied by a certificate of conformance upon request
We do not supply remarked, reconditioned, or counterfeit components. Bulk OEM orders (50+ pcs) are welcome — contact us for lead time and pricing.
How to Source This Part
- In Stock: Add to cart and check out directly — ships within 1–3 business days.
- Bulk / OEM Orders: Email support@konmask.com with quantity, coil voltage, and delivery destination.
- Urgent Requirements: Call/WhatsApp +0086 19859288691 for same-day quotation.
- Cross-Reference: Replacing a Siemens, Schneider, or Finder relay? Send us the part number — we’ll confirm compatibility.
Application-Specific FAQ
Q: Can the MY2N-J be used directly on a 24VDC PLC output?
A: Yes. The 24VDC coil version draws approximately 67mA, well within the source current of most PLC transistor output modules. Always verify your PLC output card’s maximum load current.
Q: What is the difference between MY2N and MY2N-J?
A: The MY2N-J adds a built-in LED coil indicator and a manual test/override button. The MY2N is the base model without these features.
Q: Is a socket included?
A: No. The MY2N-J is a plug-in relay and requires a separate socket (OMRON PYF08A recommended). Sockets are available separately on our store.
Q: Can I use this relay for 380VAC load switching?
A: No. The contact rating is 250VAC maximum. For 380VAC loads, use an appropriately rated contactor controlled by this relay as a pilot device.
Q: What is the typical lead time for large quantities?
A: Stock orders (≤20 pcs) ship within 1–3 days. For quantities above 50 pcs, lead time is typically 7–14 business days depending on coil voltage variant.
