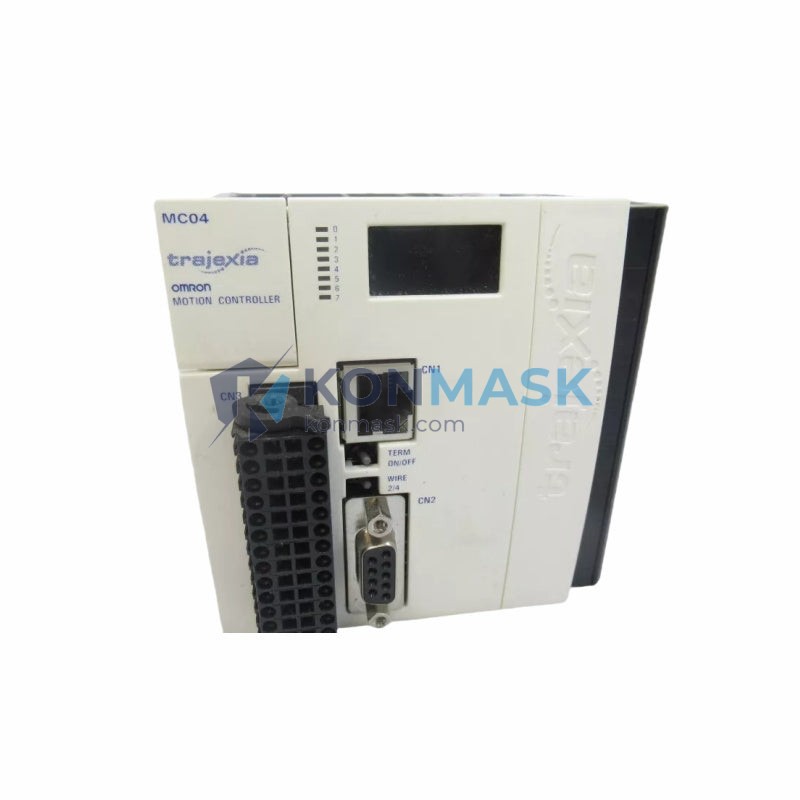

OMRON TJ1-MC04 Trajexia Motion Controller – 4-Axis CNC & Robotics Module

Q: Can you supply multiple TJ1-MC04 units for a production project?

Yes. We regularly fulfill bulk orders for OEM production lines and system integrators. Contact us with your project requirements for volume pricing.

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: TJ1-MC04 Category: OMRON Tags: Industrial Automation, motion controller, OMRON, TJ1-MC04, Trajexia

Description

OMRON TJ1-MC04 4-Axis Motion Controller – Trajexia Series

When a production line loses synchronization between servo axes, the consequences are immediate and costly: misaligned cuts, rejected assemblies, unplanned downtime, and cascading delays across the entire facility. In high-speed packaging, precision CNC machining, or multi-axis robotic cells, there is no margin for error in motion coordination. The OMRON TJ1-MC04 exists precisely to eliminate that risk — delivering deterministic, synchronized multi-axis control that keeps your machines running at peak performance.

The TJ1-MC04 is the 4-axis master controller within OMRON’s Trajexia motion control platform, one of the most widely deployed standalone motion systems in global industrial automation. Designed to operate independently of the PLC scan cycle, Trajexia controllers execute motion programs in real time with microsecond-level precision, making the TJ1-MC04 a benchmark solution for OEMs and system integrators across Asia, Europe, and the Americas.

Technical Specifications

Model: TJ1-MC04
Brand: OMRON
Series: Trajexia
Controlled Axes: Up to 4 axes
Communication: MECHATROLINK-II (connects to servo drives and I/O)
Programming Language: BASIC-based Motion BASIC (OMRON proprietary)
Program Tasks: Multiple concurrent motion tasks supported
Host Interface: Mounts on OMRON CJ-series PLC backplane
Motion Modes: Point-to-point, linear interpolation, circular interpolation, electronic cam, electronic gearbox
Power Supply: Supplied via CJ-series backplane
Operating Temperature: 0°C to 55°C
Standards: CE, UL compliant

Key Features & Benefits

Independent Motion Execution: Runs motion programs autonomously from the PLC CPU, eliminating scan-cycle jitter for deterministic axis control.
MECHATROLINK-II Network: High-speed serial bus connects up to 4 servo axes and distributed I/O with minimal wiring complexity.
Electronic Cam & Gearbox: Built-in cam profile and electronic gearing functions enable complex synchronized motion without mechanical linkages.
Multi-Task Programming: Execute multiple Motion BASIC programs simultaneously for parallel machine operations.
Seamless CJ-Series Integration: Plugs directly into the OMRON CJ-series backplane, sharing data with the PLC CPU via internal bus for unified machine control.
Compact Form Factor: Single-slot CJ-series module footprint minimizes panel space while delivering full 4-axis capability.
Proven Global Reliability: Trajexia platform has accumulated millions of operating hours across packaging, semiconductor, printing, and assembly industries worldwide.

Industry & Equipment Applications

Packaging Machinery: Synchronized pick-and-place, form-fill-seal, and cartoning lines requiring precise multi-axis coordination.
CNC Machining Centers: Coordinated axis interpolation for cutting, milling, and engraving applications.
Printing & Converting: Register control and tension management across web-fed printing and slitting machines.
Semiconductor & Electronics Assembly: High-speed, high-precision die bonding, dispensing, and inspection equipment.
Robotics & Handling: Gantry robots, SCARA arms, and custom multi-axis handling systems.
Textile Machinery: Winding, unwinding, and traverse motion control for yarn and fabric processing.

System Integration & Compatible Parts

The TJ1-MC04 is designed to operate within the broader OMRON Trajexia and CJ-series ecosystem. Compatible and complementary components include:

TJ1-ML04 / TJ1-ML16: MECHATROLINK-II slave I/O modules for distributed digital I/O expansion.
TJ1-FL02: Flexible axis module for encoder feedback and analog output axes.
OMRON G5 / R88D-KN Series Servo Drives: MECHATROLINK-II compatible servo drives for direct network connection.
CJ2M / CJ2H PLC CPUs: Host PLC units that share the backplane with the TJ1-MC04.
CX-Motion Pro Software: OMRON’s dedicated motion programming and commissioning environment for Trajexia controllers.

Our Quality Assurance Process

At Konmask.com, every OMRON TJ1-MC04 unit we supply undergoes a rigorous multi-stage verification process before shipment:

Authenticity Verification: Cross-referenced against OMRON’s official part numbering and date code standards to confirm genuine origin.
Visual & Physical Inspection: Examination of housing, connector pins, label integrity, and firmware version markings.
Functional Pre-Check: Where applicable, units are powered and communication interfaces are verified prior to dispatch.
Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing materials for safe international transit.
Full Traceability: Each shipment is documented with batch records available upon request for audit compliance.

How to Order

Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
Upon order confirmation, we arrange secure packaging and dispatch with full shipment tracking provided.
Post-delivery technical support is available via email or phone for integration assistance.

Minimum Order Quantity: 1 unit | Lead Time: Subject to stock availability — contact us for current status.

Why Choose Konmask.com?

✅ Specialized in Industrial Automation Components — PLC, DCS, motion control, and drives from leading global brands.
✅ B2B-Focused Supply Chain — Serving OEMs, system integrators, MRO buyers, and engineering firms worldwide.
✅ Rigorous Quality Control — Every unit inspected before shipment; no compromises on authenticity.
✅ Fast Global Logistics — Experienced in export documentation, customs compliance, and international freight.
✅ Technical Expertise — Our team understands the products we sell; we can assist with compatibility and application questions.
✅ Responsive Communication — Dedicated account support with rapid response to RFQs and technical inquiries.

Frequently Asked Questions

Q: What is the difference between TJ1-MC04 and TJ1-MC16?
A: The TJ1-MC04 controls up to 4 MECHATROLINK-II axes, while the TJ1-MC16 supports up to 16 axes. The TJ1-MC04 is ideal for compact machines with 2–4 servo axes, whereas the TJ1-MC16 suits larger, more complex multi-axis systems.

Q: Can the TJ1-MC04 operate without an OMRON CJ-series PLC?
A: No. The TJ1-MC04 is a backplane-mounted module that requires a CJ-series PLC rack and CPU to operate. It communicates with the host CPU via the internal CJ bus.

Q: Which servo drives are compatible with the TJ1-MC04?
A: The TJ1-MC04 communicates via MECHATROLINK-II protocol. Compatible drives include OMRON’s G5 series (R88D-KN/KT) and Yaskawa Sigma-II/III series with MECHATROLINK-II interface options.

Q: What programming software is required?
A: OMRON CX-Motion Pro is the dedicated programming and commissioning tool for Trajexia controllers including the TJ1-MC04. It runs on Windows and connects via USB or Ethernet through the host CJ CPU.

Q: Do you provide warranty or return support?
A: Yes. We offer a standard warranty period on all supplied units. Please contact [email protected] with your order details for warranty claims or technical issues.

Q: Can you supply multiple units for a production project?
A: Absolutely. We regularly fulfill bulk orders for OEM production lines and system integrators. Contact us with your project requirements for volume pricing and scheduled delivery.
