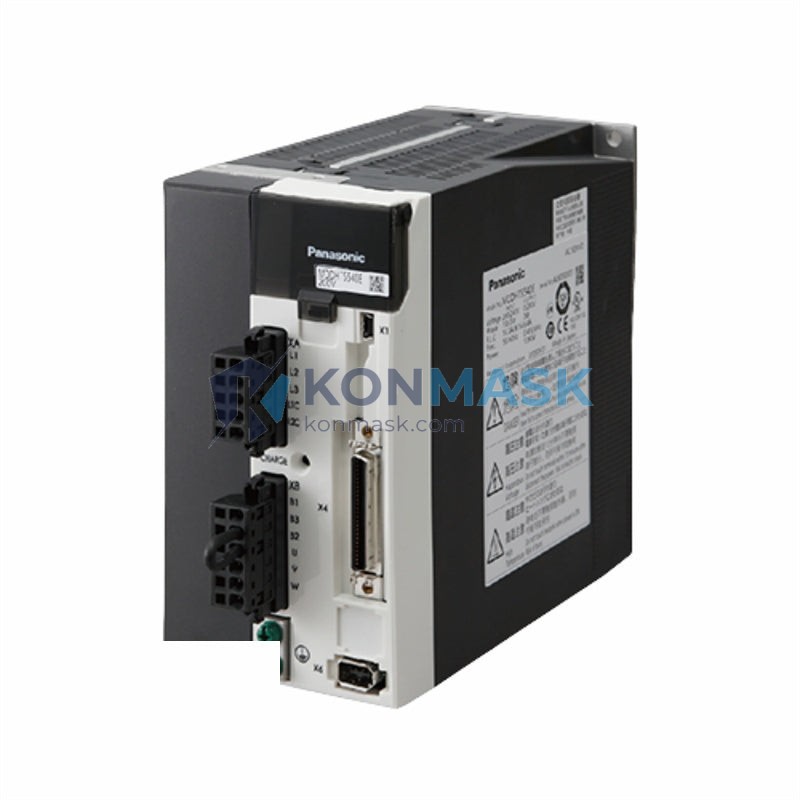

Panasonic MADKT1505E – High-Performance AC Servo Driver | MINAS A5 Series
The Panasonic MADKT1505E is a compact, high-response AC servo driver from the industry-proven MINAS A5 Series, engineered for precision motion control in demanding industrial automation environments. Rated at 750W continuous output with a single-phase 200–240 V AC input, this driver delivers exceptional torque response, low-vibration operation, and seamless integration with Panasonic MINAS A5 servo motors.
At Konmask.com, we supply the MADKT1505E directly sourced from authorized distribution channels, with full traceability documentation available upon request — giving procurement engineers the confidence to specify with certainty.
Complete Technical Specifications
- Part Number / SKU: MADKT1505E
- Series: MINAS A5
- Manufacturer: Panasonic Corporation (Panasonic Industry Co., Ltd.)
- Rated Output Power: 750 W
- Input Voltage: Single-phase 200–240 V AC, 50/60 Hz
- Control Method: IGBT PWM Sinusoidal Drive
- Command Interface: Pulse train (line driver / open collector), Analog speed/torque (±10 V DC)
- Encoder Feedback: 20-bit incremental / 17-bit absolute (compatible with MINAS A5 motors)
- Communication: RS-232 / RS-485 (PANATERM® compatible)
- Control Modes: Position, Velocity, Torque, Full-closed loop
- Max Speed: 6,000 rpm (motor dependent)
- Regenerative Braking: Built-in regenerative resistor circuit
- Protection Functions: Overcurrent, overvoltage, undervoltage, overheat, encoder error, overload
- Ambient Operating Temperature: 0–55 °C
- Storage Temperature: −20–65 °C
- Humidity: 20–85% RH (non-condensing)
- Vibration Resistance: 5.9 m/s² (10–60 Hz)
- Country of Origin: Japan
- Weight: Approx. 1.5 kg
- Certifications: CE, UL, RoHS compliant
Proven Application Environments
- CNC Machining Centers – Precise axis positioning with sub-micron repeatability
- Semiconductor & FPD Equipment – Ultra-low vibration for wafer handling and stage control
- Packaging Machinery – High-speed pick-and-place with synchronized multi-axis coordination
- Robotics & Articulated Arms – Smooth torque delivery for joint control
- Printing & Labeling Systems – Tension and registration control with analog command
- Conveyor & Material Handling – Reliable velocity control under variable load
Engineering Advantages
- Adaptive Vibration Suppression: Real-time notch filter auto-tuning eliminates mechanical resonance without manual intervention
- High-Resolution Feedback: 20-bit encoder interface provides 1,048,576 pulses/rev for ultra-precise positioning
- Rapid Auto-Gain Tuning: One-touch gain adjustment reduces commissioning time from hours to minutes
- Full-Closed Loop Ready: Supports external linear/rotary encoder for direct load-side feedback
- PANATERM® Software Integration: Real-time oscilloscope, parameter management, and diagnostic logging via PC
- Compact DIN-Rail Footprint: Space-efficient design for high-density control cabinet layouts
System Architecture & Signal Flow
The MADKT1505E operates within a closed-loop servo architecture. The host controller (PLC, CNC, or motion controller) issues position or velocity commands via pulse train or ±10 V analog signal. The driver’s DSP processes encoder feedback at 20-bit resolution, computes the error, and outputs a PWM-modulated current waveform to the servo motor windings. The adaptive notch filter continuously monitors mechanical resonance frequencies and applies real-time compensation, ensuring stable operation across varying load inertia ratios (up to 30:1 recommended).
For multi-axis systems, the MADKT1505E supports shared DC bus configurations to recover regenerative energy across axes, reducing overall power consumption in high-cycle applications.
Sourcing & Quality Verification
- Origin: Genuine Panasonic OEM product, manufactured in Japan
- Traceability: Lot number and date code documentation available upon request
- Inspection: Each unit undergoes incoming inspection including power-on functional verification
- Packaging: Ships in original Panasonic anti-static packaging with full accessory set
- Warranty: 12-month warranty against manufacturing defects
- Counterfeit Prevention: Holographic authenticity label verified prior to shipment
Procurement Process
- Submit Inquiry: Contact us at support@konmask.com or via the product page with your required quantity and delivery timeline
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment
- Quality Check & Dispatch: Unit inspected, packed, and dispatched with tracking number and documentation package
- After-Sales Support: Technical support available for integration, parameter setup, and troubleshooting
Technical FAQ
Q: Is the MADKT1505E compatible with third-party servo motors?
A: The MADKT1505E is optimized for Panasonic MINAS A5 series motors. Use with third-party motors requires careful encoder interface verification and is not officially supported by Panasonic.
Q: What is the maximum pulse input frequency?
A: The driver accepts pulse train commands up to 4 Mpps (line driver) or 200 kpps (open collector).
Q: Can this driver operate in torque control mode without a host controller?
A: Yes. In analog torque mode, the MADKT1505E accepts a ±10 V DC command signal directly, enabling standalone torque control without a pulse-generating controller.
Q: Is a regenerative resistor required for my application?
A: The built-in regenerative circuit handles most standard applications. For high-inertia loads or frequent deceleration cycles, an external regenerative resistor (optional accessory) is recommended.
Q: What software is used for parameter configuration?
A: Panasonic PANATERM® software (free download from Panasonic Industry website) connects via RS-232/RS-485 for full parameter access, real-time monitoring, and auto-tuning.
