Precision Motion Control Solution – Parker COMPAX-S CPX8541S/F4 | COMPAX-S Series
Where This Product Is Used

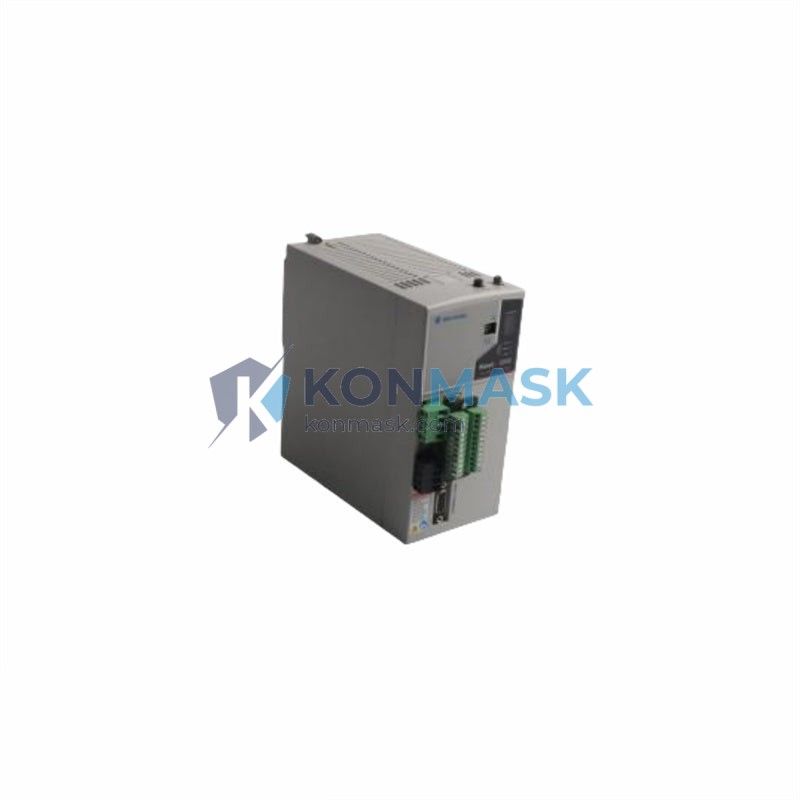

The Parker COMPAX-S CPX8541S/F4 servo controller is engineered for demanding industrial motion control applications where precision, compactness, and reliability are non-negotiable. Typical deployment environments include:
- Packaging Machinery – High-speed pick-and-place, form-fill-seal lines, and labeling systems requiring sub-millisecond position accuracy
- Robotics & Handling – Multi-axis articulated arms, SCARA robots, and gantry systems in automotive and electronics assembly
- CNC Machine Tools – Spindle orientation, feed-axis control, and tool-changer actuation on milling centers and lathes
- Semiconductor & Electronics Manufacturing – Wafer handling, PCB drilling, and SMT pick-and-place requiring micron-level repeatability
- Printing & Converting – Web tension control, register correction, and slitter-rewinder drives
- Medical & Laboratory Automation – Dispensing robots, diagnostic instrument stages, and surgical tool positioning
Technical Specifications
- Model: COMPAX-S CPX8541S/F4
- Brand: Parker Hannifin
- Series: COMPAX-S (Compact Servo Drive)
- Drive Type: Digital AC Servo Controller
- Feedback Interface: F4 – Resolver / Encoder compatible
- Communication: RS-232 / CANopen (model-dependent)
- Operating Voltage: 230 V AC single/three-phase (verify nameplate)
- Protection Class: IP20 (panel-mount)
- Weight: 1,360 g
- Mounting: DIN rail / panel mount
- Operating Temperature: 0 °C to +45 °C
- Standards: CE, UL (refer to product documentation)
Why Engineers Specify This Model
- Compact Footprint – The COMPAX-S form factor integrates power stage and controller in a single slim housing, reducing panel space by up to 40% vs. discrete solutions
- F4 Feedback Versatility – The /F4 option supports both resolver and incremental encoder feedback, enabling drop-in replacement across mixed motor fleets
- Parker Motion Suite Integration – Native compatibility with Parker’s C3 ServoManager software for rapid commissioning, diagnostics, and parameter backup
- Deterministic Control Loop – 62.5 µs current loop and 250 µs velocity loop update rates ensure smooth, jerk-free motion profiles
- Proven Field Reliability – Parker Hannifin’s COMPAX-S platform has accumulated millions of operating hours across global OEM installations
Complete System Bill of Materials
For a fully operational servo axis using the CPX8541S/F4, engineers typically specify:
- Parker COMPAX-S CPX8541S/F4 – Servo Controller (this unit)
- Parker MPP / MPJ Series AC Servo Motor (matched to drive rating)
- Feedback cable assembly (resolver or encoder, shielded)
- Power cable assembly (motor phase + brake)
- 24 VDC control power supply (e.g., Parker SSD or equivalent)
- CANopen or RS-232 communication cable to PLC/HMI
- Parker C3 ServoManager software license (for commissioning)
- EMC line filter (recommended for CE compliance)
- Braking resistor (application-dependent)
Compliance & Industry Standards
- CE Marking – Low Voltage Directive (LVD) and EMC Directive compliant
- UL Listed – Suitable for North American installations (verify current listing)
- RoHS – Compliant with EU Directive 2011/65/EU on hazardous substances
- IEC 61800-5-1 – Adjustable speed electrical power drive systems safety requirements
- ISO 13849 / EN 954-1 – Functional safety considerations for STO (Safe Torque Off) where applicable
Quality Assurance & Sourcing
Konmask.com sources Parker COMPAX-S units exclusively through verified industrial distribution channels. Every unit undergoes:
- Visual and mechanical inspection upon receipt
- Firmware version verification against Parker’s published release notes
- Functional power-on test with parameter read-back confirmation
- Anti-static packaging with humidity indicator card
- Serialized traceability record retained for 5 years
We supply new, surplus-new, and factory-refurbished units — condition is clearly stated on each listing. All refurbished units carry a 12-month Konmask warranty.
How to Source This Part
- In-Stock Orders: Add to cart and check out — same-day dispatch for orders placed before 15:00 CST
- Lead-Time Orders: Contact us for factory-order lead times and volume pricing
- Repair & Exchange: Send your faulty unit for evaluation — turnaround typically 5–10 business days
- Technical Pre-Sales: Email support@konmask.com with your application parameters for drive sizing confirmation
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri 09:00–18:00 CST)
Application-Specific FAQ
Q: Is the CPX8541S/F4 compatible with third-party servo motors?
A: Yes, with proper motor data configuration in C3 ServoManager. Parker provides a motor database; unlisted motors require manual parameter entry and test runs.
Q: Can this drive operate in torque-control mode for tension applications?
A: Yes. The COMPAX-S supports position, velocity, and torque control modes, selectable via software or digital inputs.
Q: What is the maximum cable length between drive and motor?
A: Parker recommends ≤25 m for standard cable; up to 50 m with optional output choke to limit dV/dt stress on motor windings.
Q: Does the /F4 variant support absolute encoders?
A: The F4 feedback option is optimized for resolver and incremental encoder. For absolute multi-turn encoder support, consult the /F5 or /F6 variants.
Q: Is a safety function (STO) available on this model?
A: STO availability depends on the specific hardware revision. Please provide your serial number for confirmation, or contact our technical team.
