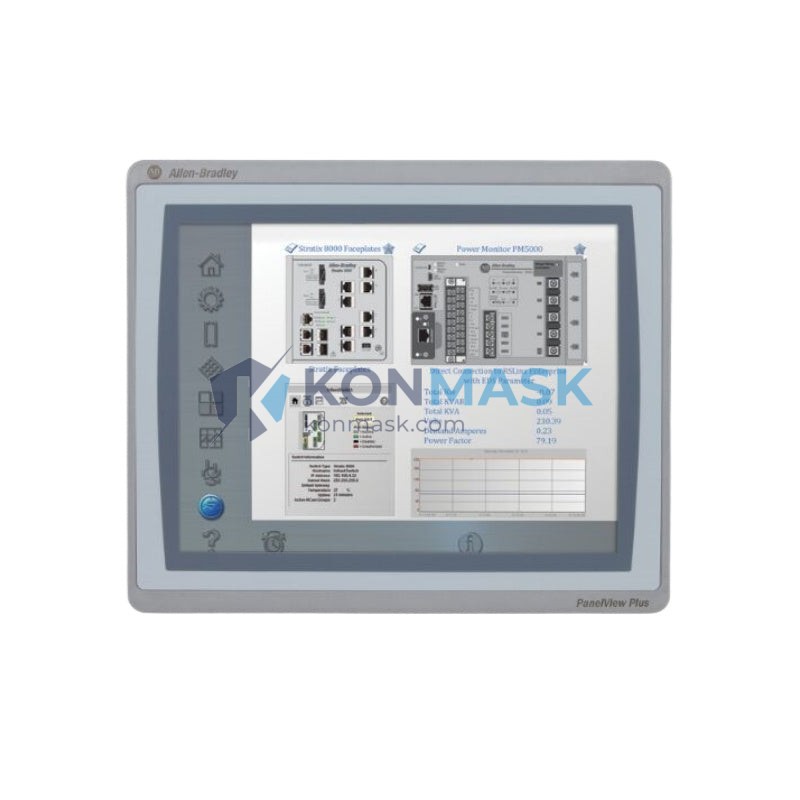

Allen-Bradley 2711P-T15C22D9P – 15″ Widescreen HMI Graphic Terminal | PanelView Plus 7 Platform
Engineering Background
The PanelView Plus 7 series represents Rockwell Automation’s flagship operator interface platform, engineered for demanding industrial environments where uptime, precision, and seamless ControlLogix/CompactLogix integration are non-negotiable. The 2711P-T15C22D9P is the 15-inch widescreen variant of this series, delivering a high-resolution touch interface optimized for complex SCADA visualization, process monitoring, and machine-level HMI applications.
Product Positioning
Designed for OEM machine builders, system integrators, and plant engineers who require a proven, scalable HMI platform with native EtherNet/IP connectivity and Studio 5000 / FactoryTalk View ME compatibility. This terminal is the preferred choice for automotive, food & beverage, oil & gas, and discrete manufacturing environments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2711P-T15C22D9P |
| Series | PanelView Plus 7 Standard |
| Display Size | 15.0″ Widescreen (16:9) |
| Display Type | TFT Color LCD |
| Resolution | 1024 × 768 (XGA) |
| Touch Technology | Analog Resistive Touch |
| Operating System | Windows CE 6.0 |
| Processor | 800 MHz ARM |
| RAM | 512 MB |
| Flash Storage | 512 MB Internal |
| Communication Ports | 2× USB 2.0, 1× SD Card Slot, 1× RS-232 |
| Network Interface | Dual EtherNet/IP (10/100 Mbps) |
| Input Voltage | 24V DC (±20%) |
| Power Consumption | ≤ 40W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | NEMA 4/4X, 12, 13 (front panel); IP65 |
| Certifications | UL, CE, cUL, RCM |
| Panel Cutout | 375 mm × 290 mm |
| Mounting | Panel Mount |
| Software | FactoryTalk View ME (pre-installed runtime) |
| Weight | Approx. 3.2 kg |
Proven Application Environments
- Automotive Manufacturing: Body-in-white line control, robotic cell HMI, torque monitoring stations
- Food & Beverage: Batch process visualization, CIP cycle management, filling line control
- Oil & Gas: Wellhead monitoring, compressor station HMI, pipeline SCADA interface
- Pharmaceutical: Clean-room compatible panel mount, 21 CFR Part 11 audit trail support via FactoryTalk
- Water & Wastewater: Pump station control, SCADA remote terminal integration
- Discrete Manufacturing: Press control, conveyor management, assembly line visualization
Engineering Advantages
- Native EtherNet/IP Integration: Dual-port switch topology eliminates additional network hardware; direct tag browsing with ControlLogix, CompactLogix, and GuardLogix PLCs
- FactoryTalk View ME Compatibility: Full runtime pre-installed; supports alarm management, trending, recipe management, and multi-language displays
- 15″ Widescreen Visibility: High-brightness TFT panel with wide viewing angle reduces operator error in high-ambient-light environments
- Rugged IP65 Front Panel: Sealed against dust and water ingress; NEMA 4/4X rated for washdown and harsh industrial environments
- Scalable Platform: Consistent firmware and software architecture across PanelView Plus 7 family simplifies multi-site standardization
- SD Card & USB Expandability: Field-upgradeable firmware, application backup, and data logging without panel disassembly
System Architecture & Signal Flow
The 2711P-T15C22D9P operates as a FactoryTalk View ME runtime client, communicating with Logix-family controllers via EtherNet/IP CIP messaging. The dual-port Ethernet switch supports linear and ring (DLR) topologies, enabling direct integration into existing plant networks without additional managed switches. Tag-based communication provides real-time data exchange at scan rates configurable down to 10ms. The RS-232 port supports legacy device connectivity (barcode scanners, printers, third-party PLCs via DF1 protocol). USB ports support HID-class peripherals and removable storage for application transfer and data export.
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM decommissions, or verified surplus channels
- Each unit undergoes visual inspection, power-on functional test, and firmware version verification prior to shipment
- Original Rockwell Automation catalog number and serial number verified against factory records where applicable
- Packaging: anti-static bag + foam-lined carton; ESD-safe handling throughout
- Counterfeit risk mitigation: holographic label verification, PCB marking inspection, and boot-screen firmware authentication
Procurement Process
- Inquiry: Submit your BOM or catalog number to support@konmask.com for availability confirmation and lead time
- Quotation: Receive itemized quotation with unit price, shipping cost, and estimated delivery within 24 hours
- Order Confirmation: Purchase order or online checkout; proforma invoice issued for wire transfer or credit card payment
- Quality Check & Dispatch: Pre-shipment inspection report provided; tracking number issued within 1–2 business days
- Delivery & Support: DHL/FedEx express delivery; post-sale technical support available via email and WhatsApp
Technical FAQ
Q: Is this unit compatible with Studio 5000 Logix Designer?
A: The 2711P-T15C22D9P runs FactoryTalk View ME, which is the HMI development environment. Studio 5000 is used for PLC programming. Both integrate seamlessly via EtherNet/IP tag browsing.
Q: Can this terminal connect to non-Rockwell PLCs?
A: Yes. Via the RS-232 port and third-party communication drivers (e.g., Modbus RTU, DF1), connectivity to Siemens, Mitsubishi, and other PLCs is supported with appropriate driver configuration.
Q: What FactoryTalk View ME version is pre-installed?
A: Units are typically shipped with ME v9.0 or later. Firmware upgrade to the latest version is supported via USB or SD card. Please confirm your required version at time of order.
Q: Is a warranty provided?
A: Konmask provides a 90-day functional warranty on all tested units. Extended warranty options are available upon request.
Q: What is the typical lead time?
A: In-stock units ship within 1–2 business days. For sourced units, lead time is typically 5–10 business days. Expedited sourcing available for urgent requirements.
