Genuine Allen-Bradley 1794-IB16XOB16P Flex I/O Combination Module | FLEX I/O Series – Verified Source

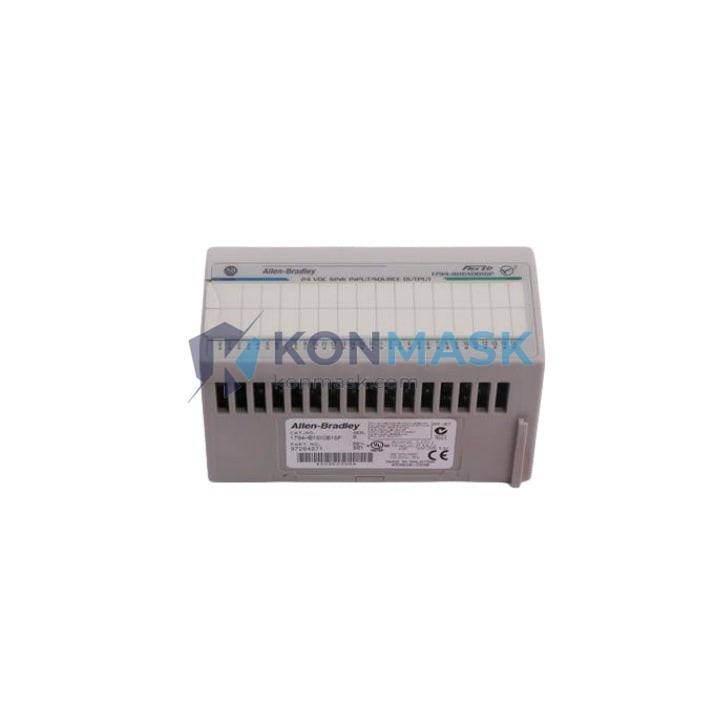

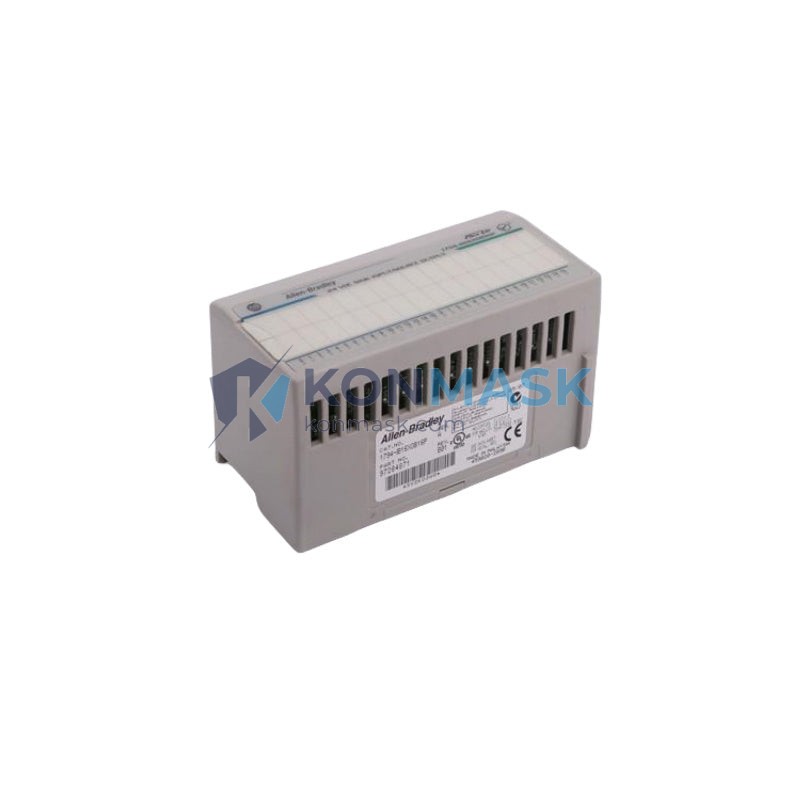

The Allen-Bradley 1794-IB16XOB16P is a high-density combination digital I/O module from Rockwell Automation’s FLEX I/O platform, integrating 16 DC sink inputs and 16 transistor (source) outputs in a single compact module. Konmask.com supplies this module through verified industrial distribution channels, ensuring authenticity, traceability, and reliable delivery to automation engineers worldwide.
Technical Specifications
- Part Number: 1794-IB16XOB16P
- Series: Allen-Bradley FLEX I/O
- Module Type: Combination Digital I/O (16 Inputs + 16 Outputs)
- Input Type: 16-point DC Sink (IEC Type 1)
- Output Type: 16-point Transistor Source (Protected)
- Input Voltage Range: 10–30V DC
- Output Voltage Range: 10–30V DC
- Output Current per Point: 0.5A max
- Backplane Current (5V): 75 mA
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C
- Dimensions (H × W × D): 94 × 23 × 87 mm (approx.)
- Weight: Approx. 100 g
- Communication: Via FLEX I/O adapter (1794-AENT, 1794-ACN15, etc.)
- Mounting: DIN rail via FLEX I/O terminal base (1794-TB3, 1794-TB3S, etc.)
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through a rigorous 4-step verification protocol before dispatch:
- Step 1 – Source Traceability: All modules are sourced from authorized distributors or verified surplus channels with documented supply chain records.
- Step 2 – Physical Inspection: Label integrity, housing condition, connector pins, and firmware revision markings are inspected against OEM specifications.
- Step 3 – Functional Pre-check: Where applicable, modules undergo power-on and communication handshake tests prior to packaging.
- Step 4 – Secure Packaging: Units are packed in anti-static bags with foam cushioning and sealed with tamper-evident labels to ensure safe transit.
Key Features & Benefits
- High-density combination I/O reduces panel space and wiring complexity
- Protected transistor outputs with short-circuit and overload protection
- Hot-swap capable within the FLEX I/O platform — minimizes downtime
- Compatible with all major FLEX I/O adapters (EtherNet/IP, ControlNet, DeviceNet, RIO)
- Diagnostic LEDs per channel for rapid fault identification
- Compact 23mm wide profile — ideal for space-constrained control panels
- Fully supported by Rockwell Automation Studio 5000 / RSLogix 5000
Typical Applications
- Discrete manufacturing automation and assembly line control
- Conveyor systems and material handling equipment
- Packaging machinery and bottling lines
- HVAC and building automation systems
- Water/wastewater treatment plant I/O expansion
- Oil & gas field instrumentation panels
- Automotive body shop and paint line control
Compatible System Components
- Terminal Bases: 1794-TB3, 1794-TB3S, 1794-TB3G, 1794-TB32
- Adapters: 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), 1794-ADN (DeviceNet), 1794-ASB (RIO)
- Power Supplies: 1794-PS13, 1794-PS3
- Controllers: ControlLogix, CompactLogix, MicroLogix (via appropriate adapter)
- Software: Studio 5000 Logix Designer, RSLogix 5000, RSNetWorx
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China warehouse with express consolidation available
- Lead Time: In-stock items typically ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight for bulk orders
- Export Compliance: All shipments comply with applicable export control regulations; commercial invoices and packing lists provided
- Customs Support: HS code documentation and country-of-origin certificates available upon request
- Minimum Order: 1 unit; volume pricing available for orders of 5+ units
- Regions Served: Asia-Pacific, Europe, Middle East, North America, South America, Africa
Certifications & Compliance Statement
- UL Listed (UL 508)
- CE Marked (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU)
- RoHS Compliant
- cUL Listed for Canadian market
- Manufactured under Rockwell Automation ISO 9001:2015 certified quality management system
Note: Konmask.com is an independent reseller. All brand names, trademarks, and part numbers are the property of their respective owners. Konmask.com is not an authorized Rockwell Automation distributor unless explicitly stated.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your part number, quantity, and required delivery date to support@konmask.com
- Phone/WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Bulk / OEM Orders: Contact us for volume pricing, blanket PO arrangements, and consignment stock programs
- Lead Time Confirmation: We will confirm stock availability and estimated ship date within 4 business hours of your inquiry
Authenticity & Trust FAQ
Q: How do I know the module is genuine?
A: Every unit is sourced with traceable documentation. We provide photos of the actual unit, label close-ups, and firmware revision details upon request before payment.
Q: What if the module is DOA or fails on arrival?
A: We offer a 30-day DOA replacement guarantee. Contact us within 30 days of receipt with photos/video evidence and we will arrange a replacement or full refund.
Q: Can you provide a test report or inspection certificate?
A: Yes. Third-party inspection reports (SGS, BV, or equivalent) can be arranged for orders above a minimum value. Please inquire at time of order.
Q: Do you accept returns?
A: Unused, unopened modules in original packaging may be returned within 14 days. Return shipping is the buyer’s responsibility unless the item is defective.
Q: Are you an authorized Rockwell Automation distributor?
A: Konmask.com operates as an independent specialist reseller of industrial automation components. We are not an authorized Rockwell distributor but maintain strict sourcing standards to ensure product authenticity.
