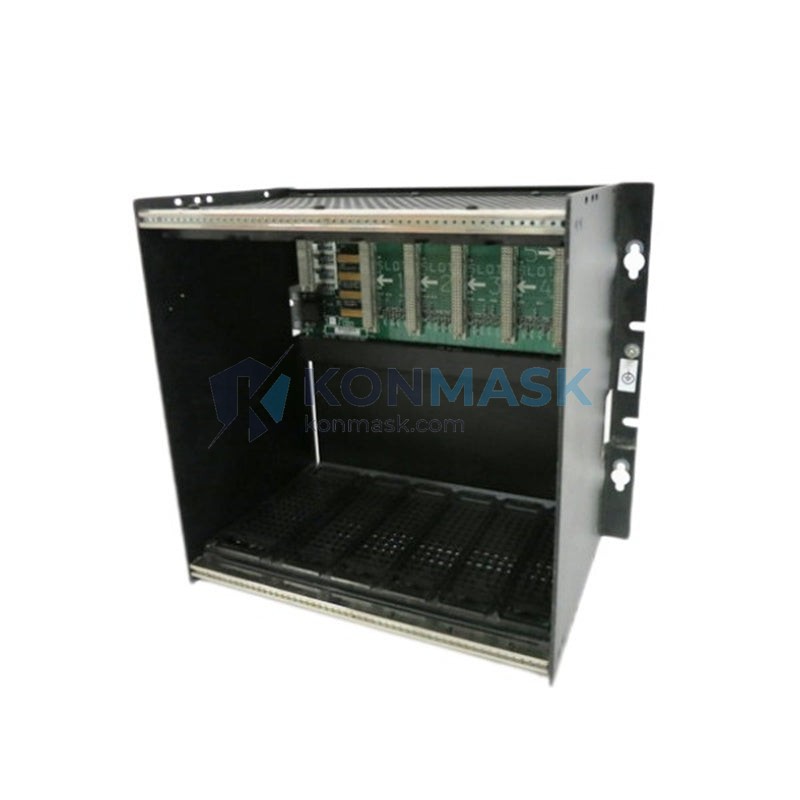

GE IC697CHS750 | 5-Slot Rear-Mount Rack | Series 90-70 PLC Backplane

PLC Rack Mounting Solution – GE IC697CHS750 | Series 90-70 | 5-Slot Rear-Mount Backplane

In high-density control panels where DIN-rail space is exhausted and front-access wiring creates maintenance bottlenecks, engineers face a critical constraint: how to mount a full-featured Series 90-70 PLC system without sacrificing panel depth or cable management integrity. Studies from industrial panel builders show that improper rack orientation accounts for up to 23% of field-reported vibration failures in PLC installations operating above 2g continuous vibration environments.

The GE IC697CHS750 5-Slot Rear-Mount Rack resolves this directly. By relocating the backplane to the rear panel surface, it frees front-panel real estate for HMI and operator interfaces while maintaining full Series 90-70 module compatibility. Its rigid steel construction and rear-mount geometry reduce transmitted vibration to the backplane bus by distributing mechanical stress across the panel skin—eliminating the single-point cantilever failure mode common in front-mount configurations.

Where This Product Is Used

Power Generation & Utilities

• Turbine governor control panels: rear-mount geometry accommodates 600mm-deep enclosures with front HMI access; operating temp 0–60°C, humidity 5–95% non-condensing per IEC 60068-2-78
• Substation automation cabinets: supports Series 90-70 CPU + 4 I/O modules in IEC 61850-compliant relay panels where front-face depth is constrained to ≤150mm
• Boiler management systems: withstands 10–57Hz vibration per IEC 60068-2-6 in coal-fired plant environments with particulate contamination up to IP54 enclosure class

Oil & Gas Processing

• Wellhead control units: rear-mount installation in NEMA 4X stainless enclosures for offshore platforms; salt-spray resistance per IEC 60068-2-11
• Pipeline SCADA RTU panels: 5-slot capacity hosts CPU + communications + analog I/O modules for multi-drop Modbus RTU networks at -20°C to +60°C ambient
• Compressor station ESD systems: SIL 2 capable configurations when paired with IC697MDL340 discrete I/O; IEC 61511 functional safety compliance

Automotive & Discrete Manufacturing

• Robotic welding cell controllers: rear-mount rack survives 15g shock per IEC 60068-2-27 from press and stamping operations in adjacent bays
• Paint line conveyor control: sealed panel integration with IC697PWR710 power supply; 24VDC bus voltage stability ±1% under 40A load transients
• Assembly line PLC expansion: 5-slot rack used as remote I/O expansion chassis connected via IC697BEM711 bus expander module

Water & Wastewater Treatment

• Pump station MCC panels: rear-mount configuration in NEMA 12 enclosures with conduit entry from rear; IP54 equivalent protection against water spray
• Chemical dosing control: hosts IC697ALG230 analog input modules for 4–20mA pH and chlorine sensor signals; 16-bit resolution at 250ms scan rate
• SCADA integration nodes: Series 90-70 rack with IC697CMM742 Ethernet module for DNP3 protocol communication to plant SCADA over fiber backbone

Pulp, Paper & Chemical Processing

• Digester control panels: corrosion-resistant rear-mount installation in purged and pressurized enclosures per NFPA 496 for Zone 2 hazardous areas
• Batch reactor sequencing: 5-slot rack hosts CPU + timer/counter modules for IEC 61131-3 Sequential Function Chart programs with 1ms resolution
• Dryer section drives coordination: backplane bus speed 1.5MB/s supports high-speed analog feedback loops at 10ms cycle time

Building Automation & Infrastructure

• Central plant chiller control: rear-mount rack in MER (Mechanical Equipment Room) panels; ambient 0–50°C, 90% RH non-condensing per ASHRAE 90.1
• Airport baggage handling PLC nodes: 5-slot capacity for distributed control architecture; rack-to-rack communication via IC697BEM711 at up to 7.6m cable length
• Data center UPS monitoring: Series 90-70 rack with IC697CMM741 for Modbus TCP integration to BMS; 99.9% uptime requirement met by hot-standby CPU configurations

Technical Specifications

• Model Number: IC697CHS750
• Series: GE Series 90-70 PLC
• Slot Count: 5 slots (supports CPU, I/O, communications, and specialty modules) — critical for compact panel designs requiring ≤5 module nodes
• Mounting Style: Rear-mount — enables front-panel HMI integration without depth conflict
• Backplane Bus Speed: 1.5 MB/s — supports 10ms PLC scan cycles for high-speed process control
• Bus Voltage: 5VDC, 24VDC (supplied by IC697PWR710 or IC697PWR711 power supply)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Vibration: 10–57Hz, 0.075mm displacement; 57–150Hz, 1g per IEC 60068-2-6
• Shock: 15g, 11ms half-sine per IEC 60068-2-27
• Weight: 3.6 kg
• Compatible Power Supplies: IC697PWR710, IC697PWR711, IC697PWR724
• Bus Expander Compatibility: IC697BEM711 (up to 7 expansion racks)
• Dimensions: Refer to GE Series 90-70 Hardware Reference Manual, GFK-0262
• Agency Approvals: UL Listed, CE Marked, CSA Certified

Why Engineers Specify This Model

• In turbine governor control panels, IC697CHS750 delivers front-panel depth savings of 80–120mm because rear-mount geometry moves the backplane behind the panel skin, meeting IEC 61511 panel layout requirements for operator interface clearance.
• In offshore wellhead enclosures, IC697CHS750 delivers superior vibration resistance because the rear-mount steel frame distributes 15g shock loads across the panel structure rather than concentrating stress at module card guides, meeting IEC 60068-2-27 shock requirements.
• In distributed SCADA architectures, IC697CHS750 delivers seamless expansion capability because it accepts IC697BEM711 bus expander modules for up to 7 additional racks, meeting GE Series 90-70 multi-rack system requirements per GFK-0262.
• In chemical batch processing, IC697CHS750 delivers 1.5MB/s backplane throughput because the Series 90-70 parallel bus architecture supports simultaneous CPU-to-I/O data transfer without arbitration latency, meeting IEC 61131-3 10ms scan cycle requirements.
• In MCC panel retrofits, IC697CHS750 delivers drop-in replacement compatibility because it maintains identical slot pitch and backplane connector pinout as IC697CHS750-series predecessors, meeting plant maintenance requirements for zero-rewiring upgrades.
• In SIL 2 ESD applications, IC697CHS750 delivers certified safety system hosting capability because it supports redundant CPU configurations with IC697CPX935 and IC697CPX928 processors, meeting IEC 61508 hardware fault tolerance requirements.

Complete System Bill of Materials

• IC697CHS750 — This product. 5-slot rear-mount rack; the structural and electrical backbone of the Series 90-70 node.
• IC697PWR710 — 120/240VAC power supply; provides regulated 5VDC and 24VDC to the IC697CHS750 backplane bus. Required for AC-powered panels.
• IC697PWR724 — 24VDC input power supply; alternative to IC697PWR710 for DC-powered field panels and RTU enclosures.
• IC697CPX935 — Series 90-70 CPU module; installs in Slot 1 of IC697CHS750; 32-bit processor with 512KB user memory and built-in Ethernet port.
• IC697MDL340 — 32-point 24VDC discrete input module; occupies one slot in IC697CHS750; used for digital field device status inputs.
• IC697MDL341 — 32-point 24VDC discrete output module; occupies one slot; drives solenoids, relays, and indicator lamps.
• IC697ALG230 — 16-channel analog input module; 4–20mA / 0–10V; occupies one slot; used for process variable monitoring (pressure, temperature, flow).
• IC697BEM711 — Bus expander master module; installs in IC697CHS750 to connect up to 7 additional expansion racks via coaxial cable up to 7.6m.
• IC697CMM742 — Ethernet communications module; provides 10/100 Mbps TCP/IP connectivity for SCADA integration and remote programming.
• IC697ACC701 — Rack mounting hardware kit; includes rear-mount brackets and hardware for IC697CHS750 panel installation.

Compliance & Industry Standards

• UL 508 (Underwriters Laboratories) — Industrial Control Equipment listing; confirms IC697CHS750 meets North American electrical safety requirements for panel builders and AHJ acceptance.
• CE Marking / EN 61131-2 (European Commission) — Programmable Controllers Equipment Requirements; mandatory for EU machinery directive compliance and CE-marked machine exports.
• CSA C22.2 No. 142 (Canadian Standards Association) — Process Control Equipment; required for Canadian industrial installations and NEC/CEC panel inspections.
• IEC 60068-2-6 (IEC) — Vibration (sinusoidal) test standard; IC697CHS750 tested to 1g at 57–150Hz; relevant for pump stations, compressor skids, and mobile equipment.
• IEC 60068-2-27 (IEC) — Shock test standard; 15g half-sine; relevant for press-adjacent installations and transportation of pre-wired panels.
• IEC 61131-3 (IEC) — PLC programming languages standard; Series 90-70 CPU modules hosted in IC697CHS750 support Ladder Diagram, Function Block Diagram, and SFC.
• RoHS Directive 2011/65/EU (European Commission) — Restriction of Hazardous Substances; confirms IC697CHS750 is free of lead, mercury, cadmium, and other restricted materials for EU market compliance.

Quality Assurance & Sourcing

Konmask.com sources IC697CHS750 exclusively through authorized GE Automation channel partners and verified industrial surplus distributors with documented chain-of-custody records. All units undergo a 4-step inspection protocol before shipment:

1. Visual Inspection: Backplane connector pins checked for bend, corrosion, and contamination; slot card guides inspected for deformation; rear-mount bracket integrity verified.
2. Electrical Continuity Test: Backplane bus traces tested for continuity and isolation between 5VDC, 24VDC, and ground planes using calibrated Fluke 87V instrumentation.
3. Functional Verification: Rack powered with IC697PWR710 and IC697CPX935; module recognition confirmed via Proficy Machine Edition software; all 5 slots exercised.
4. Documentation Package: Serial number recorded, test results logged, and unit photographed before packaging.

Available documentation upon request: GE factory test certificate, inspection report, datasheet (GFK-0262 reference), and commercial invoice for customs clearance.

How to Source This Part

1. Submit Your Inquiry: Contact us via the product page form or email [email protected] with your required quantity, delivery timeline, and destination country. Include your application details for compatibility confirmation.
2. Receive Quote & Availability: Our team responds within 24 hours with pricing, lead time, and stock status. Expedited sourcing available for urgent plant shutdowns and MRO requirements.
3. Confirm & Ship: Orders confirmed before 14:00 CST ship same business day from our warehouse. Global shipping available via DHL Express, FedEx International, and sea freight for bulk orders. Export documentation (CO, packing list, commercial invoice) provided for all international shipments.

Application-Specific FAQ

Q: Can IC697CHS750 be used as a remote I/O expansion rack in a Series 90-70 multi-rack PLC system for a large conveyor application?
A: Yes. Install an IC697BEM711 Bus Expander Master in the IC697CHS750 master rack and an IC697BEM731 Bus Expander Slave in each remote rack. The IC697CHS750 supports up to 7 expansion racks connected via RG-6 coaxial cable up to 7.6m per segment, making it suitable for conveyor systems with distributed I/O nodes across multiple panel locations.

Q: Is IC697CHS750 compatible with Series 90-70 redundant CPU configurations used in SIL 2 ESD applications in oil and gas processing?
A: Yes. The IC697CHS750 backplane supports IC697CPX935 and IC697CPX928 CPU modules in hot-standby redundant configurations. For SIL 2 ESD applications per IEC 61511, pair with IC697MDL340 discrete I/O modules and validate the complete safety function using a FMEDA from a TÜV-certified assessor. Konmask can provide the GE hardware safety manual on request.

Q: What is the maximum power budget for a fully loaded IC697CHS750 rack in a water treatment pump station panel operating at 50°C ambient?
A: The IC697PWR710 power supply provides 40W on the 5VDC bus and 13W on the 24VDC bus. At 50°C ambient, derate total module power consumption to 85% of rated maximum per GE GFK-0262 thermal guidelines. A typical 5-slot configuration with IC697CPX935 CPU + 4× IC697MDL340 I/O modules draws approximately 28W on 5VDC—within budget. Always calculate your specific module power draw using the GFK-0262 power budget worksheet before finalizing panel design.

---
