GE IC697BEM733 – Series 90-70 Genius Remote I/O Scanner | GE Fanuc PLC

GE IC697BEM733 – Genius Remote I/O Scanner | GE Fanuc Series 90-70 PLC Platform

Engineering Background: The GE Fanuc Series 90-70 is a rack-based, high-performance PLC platform widely deployed across continuous-process industries including petrochemical refining, power generation (fossil and hydro), and municipal water/wastewater treatment. Within this architecture, the IC697BEM733 functions as the Genius Bus Interface Module (BIM) — the dedicated communications bridge between the Series 90-70 CPU backplane and a Genius I/O bus segment. It enables distributed I/O expansion without burdening the CPU with direct field-device polling, a critical design requirement in large-scale SCADA and DCS-hybrid topologies where deterministic scan times are non-negotiable.

Product Positioning: The IC697BEM733 is the single-bus-segment scanner variant, supporting one Genius bus with up to 32 Genius I/O blocks per segment. It is distinguished from the IC697BEM731 (dual-bus scanner) by its simpler configuration footprint, making it the preferred choice for standalone unit-process cells — a single compressor train, a pump station, or a heat exchanger loop — where bus redundancy is handled at the network level rather than the module level. It is not a CPU replacement and does not execute ladder logic; its sole function is deterministic I/O data exchange.

Complete Technical Specifications

Electrical

• Bus Type: Genius I/O serial bus (Belden 9463 or equivalent shielded twisted pair)
• Bus Speed: 153.6 kbaud (standard Genius bus rate)
• Max I/O Blocks per Bus: 32 Genius I/O blocks
• Backplane Power Consumption: 5 VDC @ 1.0 A (from Series 90-70 rack power supply)
• Bus Isolation: Optically isolated bus interface
• Data Transfer: Cyclic, deterministic; scan time dependent on block count and CPU sweep rate

Mechanical

• Form Factor: Single-slot Series 90-70 rack module
• Connector: 15-pin D-sub (DB15) for Genius bus connection
• Weight: Approx. 240 g
• Mounting: Series 90-70 rack (IC697CHS750, IC697CHS782, IC697CHS790, or equivalent)

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Vibration: IEC 68-2-6 compliant
• Altitude: Up to 2,000 m (6,562 ft) without derating

Certifications

• UL Listed (Industrial Control Equipment)
• CE Marked (EMC Directive 2014/30/EU)
• CSA Certified
• RoHS compliance status: legacy product — verify with project EHS requirements

Data source: GE Fanuc Series 90-70 Programmable Controller Reference Manual (GFK-0265), GE Genius I/O System User’s Manual (GEK-90486-2). Specifications subject to hardware revision; confirm against physical module label before installation.

Proven Application Environments

• Petrochemical Refining: Crude distillation unit (CDU) — continuous high-temperature process control; module manages remote valve positioner and transmitter I/O blocks across a 200 m bus run under 24/7 operation.
• Fossil Power Generation: Boiler feedwater pump control — high-vibration, high-EMI environment; Genius bus optical isolation maintains signal integrity adjacent to large motor drives.
• Municipal Water Treatment: Clarifier and filtration automation — outdoor pump station with wide ambient temperature swings; module operates reliably across full 0–60°C rated range.
• Pulp & Paper: Recovery boiler I/O expansion — corrosive atmosphere with H₂S traces; sealed rack enclosure with IC697BEM733 managing 28 remote I/O blocks on a single bus segment.
• Hydroelectric Power: Turbine governor auxiliary I/O — safety-critical application requiring deterministic scan; Genius bus cyclic protocol delivers consistent sub-10 ms I/O update rates at 32-block loading.
• Pharmaceutical Manufacturing: CIP/SIP skid automation — FDA-regulated environment; module supports validated control system architecture with documented hardware revision traceability.

Engineering Advantages

• For high-EMI environments near VFDs and large contactors, this scanner module maintains bus integrity because the Genius bus interface is optically isolated, preventing ground loop interference from corrupting I/O data.
• For long-distance field I/O distribution up to 750 m bus length, this scanner module eliminates the need for intermediate repeaters in most plant layouts because Genius bus operates at 153.6 kbaud with robust differential signaling on Belden 9463 cable.
• For brownfield upgrades where existing Genius I/O blocks are already installed, this scanner module preserves the entire field wiring investment because it is fully backward-compatible with all Series 1, 2, and 3 Genius I/O blocks.
• For applications requiring deterministic scan times, this scanner module offloads bus polling from the CPU because it operates as an autonomous bus master, returning I/O data to the CPU backplane on a fixed cyclic schedule independent of CPU sweep load.
• For spare-parts-constrained maintenance environments, this scanner module simplifies inventory management because a single module type covers all single-bus Genius I/O expansion requirements across the entire Series 90-70 rack family.
• For validated and regulated process industries, this scanner module supports hardware revision documentation because GE Fanuc maintained consistent module labeling and revision history throughout the Series 90-70 product lifecycle.

System Architecture & Signal Flow

Signal Flow: Field device → Genius I/O block (analog/digital) → Genius serial bus (Belden 9463, differential, 153.6 kbaud) → IC697BEM733 DB15 bus connector → Series 90-70 backplane bus → CPU (IC697CPU7xx series) → PLC program logic → output path reverses for control signals.

Compatible CPUs: IC697CPU731, IC697CPU771, IC697CPU772, IC697CPU781, IC697CPU782, IC697CPU788, IC697CPU789 — all Series 90-70 CPUs that support Genius bus configuration via Logicmaster 90-70 or Proficy Machine Edition software. Compatibility is confirmed by the CPU’s support for the BEM733 module catalog entry in the hardware configuration tool.

Compatible Racks: IC697CHS750 (5-slot), IC697CHS782 (9-slot), IC697CHS790 (9-slot VME), IC697CHS791 (9-slot expanded). The IC697BEM733 occupies one slot in any position except the power supply slot.

Substitution Conditions: The IC697BEM731 (dual-bus scanner) can replace the IC697BEM733 in single-bus applications with configuration adjustment, but introduces unnecessary complexity. The IC697BEM733 cannot substitute for the IC697BEM731 in dual-bus redundant configurations. No cross-platform substitution to Series 90-30 or PACSystems is supported without a full I/O architecture redesign.

Sourcing & Quality Verification

Units offered through Konmask.com are sourced from decommissioned industrial control panels, authorized surplus distributors, and controlled-environment storage facilities. Each unit undergoes a structured incoming inspection before listing.

4-Step Inspection Process:

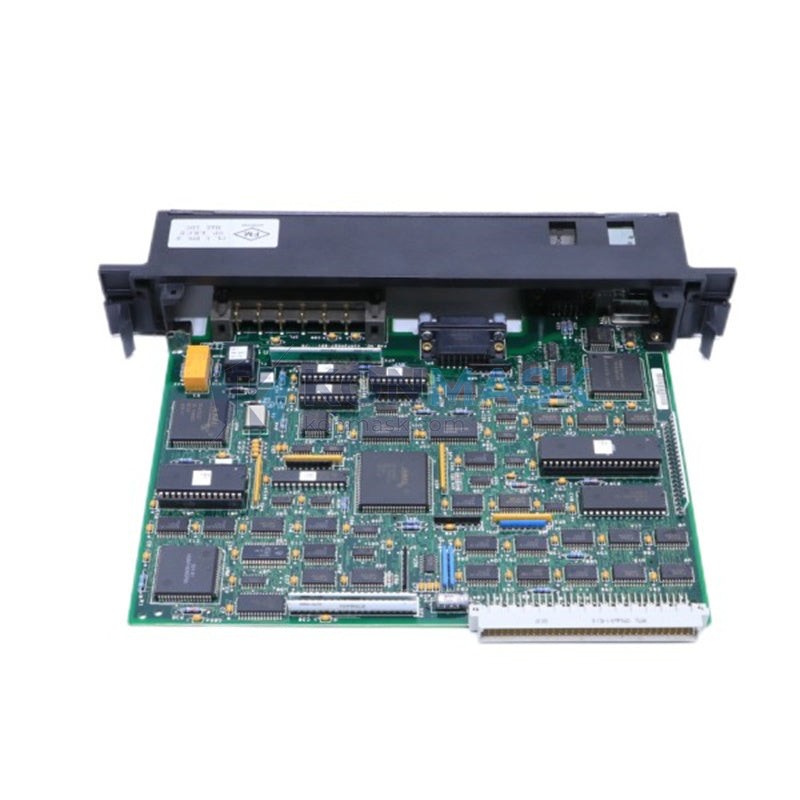

1. Visual Inspection: Board-level examination for burn marks, cracked traces, corroded connectors, and damaged bus fingers. DB15 connector pin integrity verified.
2. Label & Revision Verification: Catalog number, firmware revision, and date code recorded from module label and compared against GE Fanuc revision history documentation.
3. Functional Bench Test: Module installed in a Series 90-70 test rack with a known-good CPU; Genius bus communication established with reference I/O blocks; data exchange verified across full I/O address range.
4. Packaging & ESD Protection: Module bagged in anti-static packaging, placed in foam-lined carton with desiccant. Shipping label includes catalog number, revision, and test date.

Documentation available upon request: Inspection report, functional test log, module label photograph, GE Fanuc datasheet (GFK-0265 relevant section), and export compliance documentation (HS code, country of origin).

Procurement Process

1. Inquiry Submission: Submit part number, required quantity, and target delivery date via the product page inquiry form or directly to support@konmask.com. Include your project site and application context for technical pre-screening.
2. Quotation & Technical Confirmation: A response with unit availability, pricing, lead time, and module revision details is provided within 24 business hours. Technical questions regarding compatibility or substitution are addressed at this stage at no charge.
3. Order Fulfillment: Upon purchase order confirmation, units are re-inspected, packaged, and dispatched with full tracking. Export documentation (commercial invoice, packing list, certificate of origin) is included for international shipments. DHL, FedEx, and sea freight options available.

Technical support is available pre-sale (compatibility verification, architecture review) and post-sale (installation guidance, configuration reference). Support is provided by engineers with hands-on Series 90-70 system experience.

Technical FAQ

Q: Is the IC697BEM733 compatible with PACSystems RX7i racks?
A: No. The PACSystems RX7i uses a different backplane bus architecture (VME64 with CPCI extensions) and does not accept Series 90-70 modules directly. However, GE provides a Series 90-70 compatibility rack (IC698CHS800) that allows Series 90-70 modules including the IC697BEM733 to operate within a PACSystems RX7i system. Confirm firmware revision requirements with GE documentation GFK-2222 before integration.

Q: Can the IC697BEM733 replace an IC697BEM731 in an existing dual-bus installation?
A: No — the IC697BEM733 supports only one Genius bus segment. Replacing an IC697BEM731 with an IC697BEM733 in a dual-bus configuration will result in loss of the second bus segment and all associated I/O. If only one bus is active in the existing installation, substitution is feasible after hardware configuration update in Logicmaster 90-70 or Proficy ME, but this must be verified against the as-built system documentation before any field change.

Q: Does this module carry current safety certifications for use in SIL-rated applications?
A: The IC697BEM733 is UL Listed and CE Marked for industrial control use. It is not independently SIL-certified under IEC 61508. For SIL 1 or SIL 2 applications, the Series 90-70 platform may be used as part of a broader safety architecture with appropriate proof-test intervals and redundancy design, but the safety case must be developed by a qualified functional safety engineer. Konmask.com can provide hardware revision documentation to support the safety case dossier.

---
