Embedded Networking Solution – PMC-Sierra PMC-GBIT-DT2BP | PMC610J4RC Series

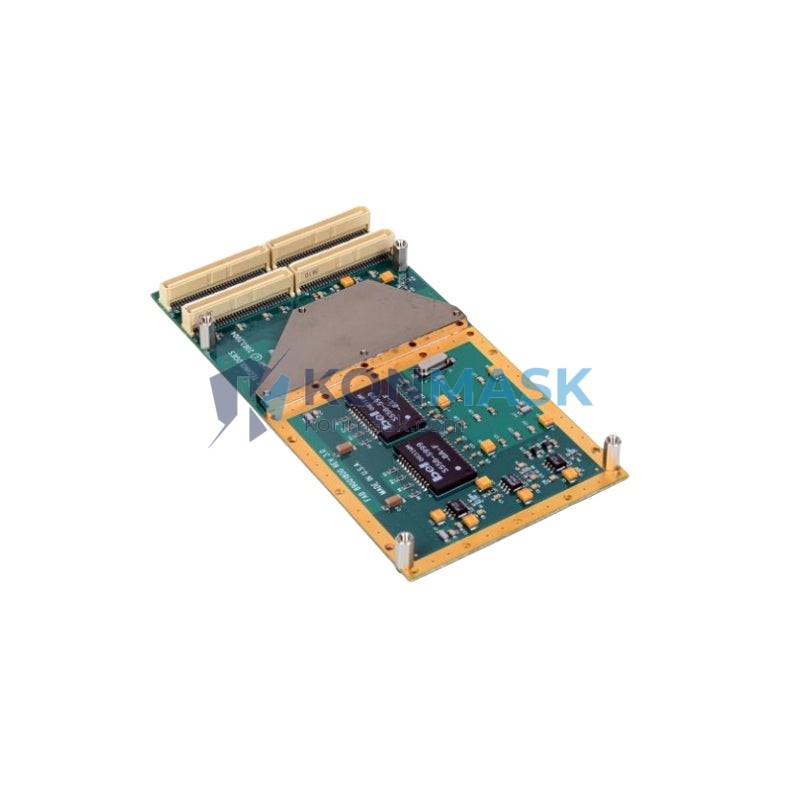

The PMC-GBIT-DT2BP (PMC610J4RC) is a dual-port Gigabit Ethernet PMC (PCI Mezzanine Card) network interface card engineered for high-reliability embedded computing platforms. Designed for demanding industrial, defense, and telecom environments, this module delivers wire-speed Ethernet connectivity where standard PCIe NICs cannot fit. Konmask.com supplies this part with full traceability and functional verification.
Where This Product Is Used
The PMC-GBIT-DT2BP is specified by engineers across mission-critical embedded platforms:
- Defense & Aerospace: Rugged VME/VPX chassis requiring PMC mezzanine expansion — radar signal processors, mission computers, and electronic warfare systems.
- Industrial Automation: Real-time Ethernet communication in SCADA controllers, distributed control systems (DCS), and high-speed data acquisition nodes.
- Telecommunications: Carrier-grade embedded platforms (ATCA/CompactPCI) needing dual GbE uplinks for redundant network paths.
- Test & Measurement: High-throughput data transfer between instruments and host systems in automated test equipment (ATE) racks.
- Transportation & Rail: EN 50155-compliant embedded computers for onboard network switching and passenger information systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | PMC-GBIT-DT2BP |
| Chip / Reference Design | PMC610J4RC |
| Form Factor | PMC (PCI Mezzanine Card) — IEEE P1386.1 |
| Network Ports | 2 × Gigabit Ethernet (1000BASE-T) |
| Host Interface | 32-bit / 64-bit PCI, 33/66 MHz |
| Bus Mastering | Yes — DMA supported |
| Operating Temperature | 0°C to +70°C (commercial); extended range variants available |
| Power Consumption | Typical ≤ 5 W |
| Connector | PMC P14/P15 + front-panel RJ-45 × 2 |
| Driver Support | VxWorks, Linux, QNX, Windows |
| Weight | Approx. 100 g |
Why Engineers Specify This Model
- PMC form factor longevity: VME and CompactPCI platforms have 15–20 year lifecycles; PMC mezzanine cards extend network capability without chassis redesign.
- Dual-port redundancy: Two independent GbE ports enable active-standby or load-balanced network configurations critical for fault-tolerant systems.
- Deterministic latency: Hardware-offloaded checksums and interrupt coalescing reduce CPU overhead, supporting real-time OS environments.
- Wide OS ecosystem: Supported under VxWorks, Linux, QNX, and Windows — minimizing BSP porting effort.
- Long-term availability: Konmask.com maintains stock of legacy PMC modules to support MRO (Maintenance, Repair & Overhaul) programs.
Complete System Bill of Materials
Typical embedded networking system using the PMC-GBIT-DT2BP:
- VME/VPX Single Board Computer (SBC) with PMC site — e.g., Curtiss-Wright SVME/DMV-183, Abaco SBC7240
- PMC-GBIT-DT2BP (PMC610J4RC) — Dual GbE NIC mezzanine ← this module
- PMC carrier card (if using in PCIe host) — e.g., Acromag APC8620
- Managed Gigabit Ethernet switch — e.g., Cisco IE-3300, Hirschmann RS20
- Cat5e/Cat6 shielded cable assemblies for panel-mount RJ-45
- RTOS BSP with GbE driver package (VxWorks / Linux)
- Chassis backplane with P1/P2/P4 PMC connectors
Compliance & Industry Standards
- IEEE P1386.1 — PCI Mezzanine Card (PMC) standard
- IEEE 802.3ab — 1000BASE-T Gigabit Ethernet
- IEEE 802.3x — Flow control
- PCI Local Bus Specification Rev. 2.2
- RoHS compliant (confirm with specific lot documentation)
Quality Assurance & Sourcing
Every PMC-GBIT-DT2BP unit shipped by Konmask.com undergoes:
- Visual inspection: PCB, connector pins, and component integrity check
- Functional power-on test: PCI enumeration and dual-port link verification
- Anti-static packaging: ESD-safe bag + foam insert + labeled carton
- Traceability documentation: Serial number, test record, and sourcing declaration available on request
We source from decommissioned industrial systems, authorized distributors, and OEM excess inventory — never counterfeit or remarked parts.
How to Source This Part
- Click Add to Cart or Buy Now for immediate checkout.
- For volume orders (5+ units), email support@konmask.com for a bulk quote.
- Need a specific firmware revision or extended temperature grade? Contact us before ordering.
- Lead time: In-stock units ship within 1–3 business days. Out-of-stock: 2–4 weeks sourcing lead time.
- Export compliance: We handle HTS classification and export documentation for international shipments.
Application-Specific FAQ
Q: Can the PMC-GBIT-DT2BP be used in a VxWorks 6.x environment?
A: Yes. PMC610J4RC-based cards have established driver support under VxWorks 6.x. BSP integration typically requires the vendor END driver package.
Q: Is this card compatible with 3.3V-only PMC sites?
A: The PMC-GBIT-DT2BP supports both 3.3V and 5V signaling environments. Verify your SBC’s PMC site voltage keying before installation.
Q: Can both ports operate simultaneously at full Gigabit speed?
A: Yes. Each port has an independent MAC/PHY path. Simultaneous full-duplex 1 Gbps operation is supported, subject to PCI bus bandwidth.
Q: Do you supply the driver CD or software?
A: Driver packages are available via the original manufacturer’s archive. We can assist in locating the correct driver version for your OS upon request.
Q: What is your warranty policy?
A: All units carry a 90-day functional warranty. DOA claims are accepted within 7 days of receipt with return shipping covered by Konmask.com.
