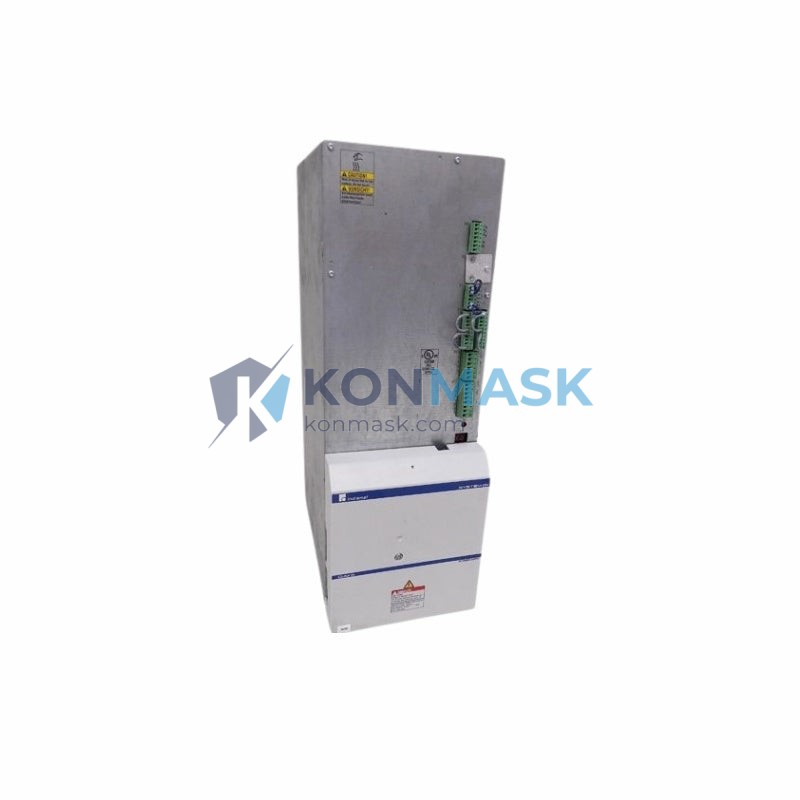

Bosch Rexroth HMS01.1N-W0020-A-07-NNNN – Single-Axis Servo Inverter | IndraDrive M Platform
The Rexroth HMS01.1N-W0020-A-07-NNNN is a high-performance single-axis servo inverter from the IndraDrive M (HMS) series, engineered for precision motion control in demanding industrial automation environments. Designed for procurement engineers and system integrators who require verified OEM components with full traceability, this drive delivers reliable closed-loop servo performance at a continuous output power of 2.0 kW.
Product Positioning: The HMS01.1N series occupies the mid-range of Bosch Rexroth’s IndraDrive M family, balancing compact form factor with robust power handling. It is the preferred choice for multi-axis CNC machining centers, robotic workcells, and high-cycle packaging lines where axis-level independence and deterministic communication are critical.
Complete Technical Specifications
- Part Number / SKU: HMS01.1N-W0020-A-07-NNNN
- Series / Platform: IndraDrive M – HMS (Single-Axis)
- Manufacturer: Bosch Rexroth AG
- Country of Origin: Germany
- Drive Type: Single-Axis AC Servo Inverter
- Continuous Output Power: 2.0 kW
- Supply Voltage: 3 × AC 200–480 V, 50/60 Hz
- DC Bus Voltage: 540–750 V DC
- Output Current (Continuous): ~5.5 A (axis-dependent)
- Communication Interface: SERCOS III (Slot 7)
- Encoder Interface: Hiperface / EnDat 2.1 / Resolver (multi-protocol)
- Cooling Method: Forced air (internal fan)
- Protection Rating: IP20 (cabinet-mount)
- Operating Temperature: 0 °C to +45 °C (derated above 40 °C)
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 5–95%, non-condensing
- Vibration Resistance: IEC 60068-2-6
- Weight: ~7.5 kg
- HS Code: 8504.40
- Firmware Compatibility: MPx-18 and above (Rexroth IndraWorks)
- Safety Function: STO (Safe Torque Off) – IEC 62061 SIL 2 / EN ISO 13849-1 PLd
Proven Application Environments
- CNC Machining Centers: Axis interpolation with sub-micron positioning repeatability via SERCOS III deterministic bus
- Robotic Workcells: Coordinated multi-axis motion with real-time torque/speed loop closure
- Packaging & Labeling Lines: High-cycle cam-profile execution with electronic gearing
- Printing & Converting Machines: Register control and tension management
- Semiconductor & Electronics Assembly: Ultra-low-vibration servo control for pick-and-place
- Plastics Injection Molding: Hydraulic-axis replacement with energy-efficient servo actuation
Engineering Advantages
- Deterministic SERCOS III Communication: 31.25 µs minimum cycle time enables tight multi-axis synchronization without jitter
- Integrated Safety (STO): Eliminates external safety contactors, reducing panel footprint and wiring complexity
- Universal Encoder Support: Single hardware platform supports Hiperface, EnDat 2.1, and resolver — no encoder-specific variants required
- Shared DC Bus Architecture: Energy regeneration between braking and accelerating axes reduces net power consumption by up to 30%
- IndraWorks Engineering: Unified commissioning, diagnostics, and parameter management across all IndraDrive M axes
- Compact Single-Axis Form Factor: Modular rail-mount design simplifies cabinet layout and future axis expansion
System Architecture & Signal Flow
The HMS01.1N-W0020-A-07-NNNN operates within the IndraDrive M system topology as follows:
- Power Supply: Shared DC bus fed by an HMV or HCS supply unit; the HMS axis module draws from the common DC rail
- Control Communication: SERCOS III ring connects the CNC/PLC master (e.g., Rexroth IndraMotion MTX or Siemens 840D) to each HMS axis via fiber or copper Ethernet
- Feedback Loop: Motor encoder signals (Hiperface/EnDat) feed directly into the HMS DSP for closed-loop current, speed, and position control at 16 kHz PWM
- Safety Channel: STO input (24 V DC) connects to the machine safety relay or safety PLC; de-energizing disables gate drive without removing DC bus power
- I/O Expansion: Optional I/O extension modules (HAS) mount directly to the HMS unit for local digital/analog I/O without additional wiring runs
Sourcing & Quality Verification
- OEM Authenticity: All units sourced from authorized Bosch Rexroth distribution channels or verified surplus with full documentation
- Pre-shipment Inspection: Each unit undergoes visual inspection, label verification (part number, serial number, date code), and functional power-on test where applicable
- Traceability: Serial number and firmware version recorded at dispatch; available upon request for incoming QC
- Packaging: ESD-safe anti-static bag + foam-lined export carton; meets ISTA 2A transit testing standards
- Warranty: 12-month replacement warranty against manufacturing defects from date of invoice
- Certifications: CE (2014/35/EU Low Voltage Directive), UL Listed, RoHS 2 compliant
Procurement Process
- Step 1 – RFQ: Submit your part number, required quantity, and delivery timeline via the contact form or email below
- Step 2 – Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Step 3 – Order Confirmation: Issue a PO; payment via T/T, PayPal, or credit card (net terms available for qualified accounts)
- Step 4 – Dispatch: Units ship within 1–3 business days via DHL Express, FedEx, or UPS with full tracking and commercial invoice
- Step 5 – After-Sales: Technical support available for commissioning, parameter backup, and fault diagnosis via email or WhatsApp
Technical FAQ
Q: Is the HMS01.1N-W0020-A-07-NNNN compatible with a Siemens 840D controller?
A: Yes. The SERCOS III interface (slot 07) is protocol-standard and interoperable with any SERCOS III master, including Siemens 840D sl and Fanuc 30i series, provided the drive firmware supports the required SERCOS profile.
Q: Can this drive operate on a 480 V supply without modification?
A: Yes. The HMS01.1N accepts 3-phase input from 200 V to 480 V AC without hardware modification. Ensure the DC bus supply unit (HMV/HCS) is rated for your mains voltage.
Q: What is the difference between HMS01.1N and HMS01.1E?
A: The HMS01.1N uses a standard (non-export-controlled) firmware variant. The HMS01.1E designation indicates an export-restricted version with enhanced safety or encryption features. For most industrial applications, the .1N variant is appropriate.
Q: Do you provide the original Rexroth documentation and parameter files?
A: Yes. We can supply the Rexroth project engineering documentation (DOK-INDRV*-HMS+HMD****-PR01-EN-P) and, where available, the original parameter backup file (.par) from the previous installation.
Q: What is the lead time for stock and non-stock units?
A: In-stock units ship within 1–3 business days. Non-stock or new OEM orders typically carry a 4–8 week lead time. Contact us for current availability.
