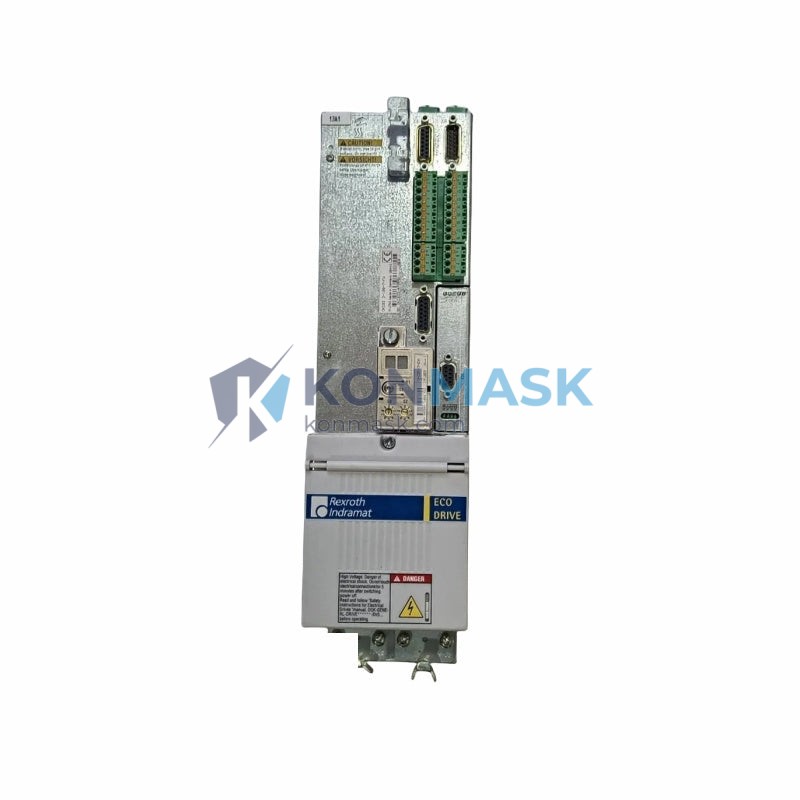

Genuine Bosch Rexroth HDD02.2-W040N-HS12-01-FW AC Servo Drive | DIAX04 ELS Series – Verified Source
At Konmask.com, we specialize in sourcing genuine Bosch Rexroth automation components for industrial buyers worldwide. The HDD02.2-W040N-HS12-01-FW paired with firmware FWA-DIAX04-ELS-05VRS-MS is a high-performance AC servo drive from the trusted DIAX04 ELS platform — engineered for precision motion control in demanding industrial environments. Every unit we ship is traceable, tested, and backed by our supplier verification process.
Technical Specifications
- Part Number: HDD02.2-W040N-HS12-01-FW
- Firmware: FWA-DIAX04-ELS-05VRS-MS
- Series: DIAX04 – ELS (Electronic Line Shaft)
- Manufacturer: Bosch Rexroth AG
- Drive Type: AC Digital Servo Drive
- Continuous Output Current: 40 A
- Interface: SERCOS / Analog / Digital I/O
- Feedback: Resolver / Encoder compatible
- Supply Voltage: 3-phase AC, 200–480 V
- Cooling: Forced air (internal fan)
- Protection Class: IP20
- Weight: ~400 g (controller module)
- Origin: Germany
Our 4-Step Quality Verification Process
- Step 1 – Source Traceability: All units are sourced directly from authorized distributors or verified OEM surplus channels with full documentation.
- Step 2 – Visual & Physical Inspection: Each drive is inspected for label integrity, connector condition, and absence of physical damage or tampering.
- Step 3 – Firmware Verification: Firmware version FWA-DIAX04-ELS-05VRS-MS is confirmed and matched to the hardware revision before shipment.
- Step 4 – Functional Pre-check: Where applicable, units undergo power-on verification to confirm basic operational status prior to packaging.
Key Features & Benefits
- ✅ Genuine Bosch Rexroth — not aftermarket or remanufactured
- ✅ DIAX04 ELS platform — proven in high-cycle, multi-axis synchronization applications
- ✅ 40 A continuous current — suitable for medium-to-high torque servo motor pairings
- ✅ SERCOS interface ready — seamless integration with Rexroth IndraControl and third-party CNCs
- ✅ Compact modular design — reduces panel space and simplifies maintenance
- ✅ Long-term availability — stocked for legacy machine support and new installations
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Electronic line shaft synchronization in printing and packaging lines
- Injection molding machine servo axes
- Robotics and gantry positioning systems
- Textile and wire-drawing machinery
- Semiconductor and electronics assembly equipment
Compatible System Components
- Power Supply Units: Rexroth HVR, HVE, HVD series
- Servo Motors: Rexroth MHD, MKD, MKE series
- Controllers: Rexroth IndraControl L/M/V, SINUMERIK (via SERCOS)
- Cables & Connectors: Rexroth IKS / IKG feedback and power cables
- Firmware Tools: Rexroth IndraWorks DS / WinDrive for parameterization
Global Sourcing & Shipping Capabilities
Konmask.com ships the Rexroth HDD02.2-W040N-HS12-01-FW to customers across Asia, Europe, North America, and the Middle East. We offer:
- DHL Express / FedEx International Priority — typical transit 3–7 business days
- Sea freight consolidation for bulk orders
- Export documentation: commercial invoice, packing list, certificate of origin
- EXW, FOB Xiamen, CIF options available upon request
- Customs HS Code: 8537.10 (programmable controllers / servo drives)
Certifications & Compliance Statement
This product is manufactured by Bosch Rexroth AG and complies with:
- CE Marking (EU Machinery Directive 2006/42/EC)
- UL / cUL Listed (where applicable to hardware revision)
- RoHS 2 Directive (2011/65/EU)
- ISO 9001:2015 — Bosch Rexroth manufacturing quality system
Konmask.com is an independent distributor. We are not an authorized Bosch Rexroth dealer. All trademarks belong to their respective owners.
How to Order
- Click Add to Cart or Buy Now to proceed directly.
- For bulk orders (5+ units), contact us at [email protected] for a volume quote.
- Need a specific firmware version or hardware revision? Mention it in your order notes.
- Proforma invoice available upon request for bank wire / TT payment.
- Lead time: In-stock units ship within 1–2 business days; sourced units 5–15 business days.
Authenticity & Trust FAQ
Q: Are these units genuine Bosch Rexroth?
A: Yes. We source exclusively from traceable supply chains. Counterfeit or remanufactured units are never listed on Konmask.com.
Q: Can you provide documentation?
A: We provide available documentation including supplier invoices, inspection records, and firmware confirmation sheets upon request.
Q: What if the unit is DOA (Dead on Arrival)?
A: We offer a 30-day DOA replacement policy. Contact [email protected] within 30 days of receipt.
Q: Do you accept returns?
A: Returns are accepted within 14 days for unused, uninstalled units in original packaging. Custom-sourced items may be non-returnable.
Q: Can I get a test report?
A: Functional pre-check reports are available for select units. Please inquire before purchase.
