SCHNEIDER 140XCP51000 Blank Module | Replacement, Equivalent & Selection Guide

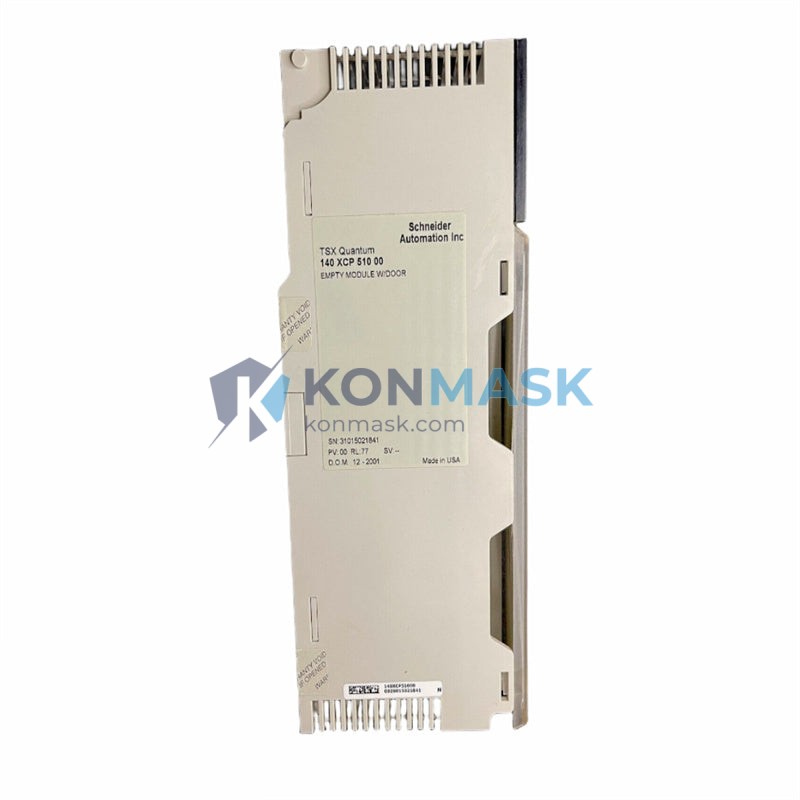

The Schneider Electric 140XCP51000 is a blank/filler module designed for the Modicon Quantum PLC platform. It occupies unused slots in the Quantum backplane rack, ensuring proper EMC shielding, mechanical protection, and airflow management within the chassis. Whether you are maintaining an existing Quantum system or sourcing a replacement, this guide covers everything you need to make the right selection.
Technical Specifications
- Part Number: 140XCP51000
- Manufacturer: Schneider Electric (formerly Modicon)
- Series: Modicon Quantum
- Module Type: Blank / Filler / Placeholder Module
- Function: Occupies empty rack slots; provides EMC shielding and dust protection
- Rack Compatibility: Quantum backplane racks (140XBP series)
- Slot Width: Single slot
- Weight: Approx. 200 g
- Operating Temperature: 0°C to 60°C
- Standards: CE, UL, cUL compliant
- RoHS: Compliant
Compatible Replacement & Equivalent Models
When the 140XCP51000 is unavailable or discontinued, the following alternatives may be considered. Always verify mechanical fit and rack compatibility before substitution.
- 140XCP51000 — Original Schneider Electric Quantum blank module (direct replacement)
- 140XBP00600 / 140XBP01000 / 140XBP01600 — Quantum backplane racks that ship with blank modules; spare blanks are interchangeable across the Quantum series
- Third-party Quantum-compatible filler modules — Available from certified automation parts suppliers; must match single-slot form factor and backplane connector profile
- Custom fabricated blanks — For non-critical EMC environments only; not recommended for CE/UL-certified installations
Note: Schneider Electric does not publish a formal cross-reference for blank modules. Contact Konmask.com for sourcing assistance.
Why Choose the Original Model
- Guaranteed fit: Precision-molded to Quantum rack slot dimensions — no modification required
- EMC integrity: Maintains chassis shielding continuity as designed by Schneider Electric
- Airflow management: Preserves designed thermal airflow paths within the rack
- Compliance: Keeps the overall panel installation CE/UL certified without re-testing
- Long-term availability: Stocked by authorized and independent distributors globally
Typical Applications
- Filling unused I/O or communication slots in Modicon Quantum racks during initial system build
- Slot reservation for future module expansion without compromising rack integrity
- Replacement of damaged or missing blanks in existing Quantum installations
- Maintenance of EMC compliance in CE/UL-certified control panels
- Industries: Oil & Gas, Water Treatment, Power Generation, Manufacturing, Building Automation
System Compatibility
- Platform: Schneider Electric Modicon Quantum PLC
- Compatible Racks: 140XBP00600 (6-slot), 140XBP01000 (10-slot), 140XBP01600 (16-slot)
- Not compatible with: Modicon M340, M580, Premium, or Momentum platforms (different slot form factors)
- Software: No software configuration required — passive mechanical component
Selection Guide
Use the following criteria to confirm the 140XCP51000 is the correct part for your application:
- ✅ You are using a Modicon Quantum backplane rack (140XBP series)
- ✅ You need to fill one single empty slot in the rack
- ✅ Your installation requires CE/UL compliance and EMC shielding continuity
- ✅ You want an OEM-original part for warranty and audit purposes
- ❌ If you need a functional I/O or communication module, refer to the 140ACI, 140ACO, 140NOE, or 140CRP series instead
- ❌ If your rack is M340 or M580, this module is not compatible — contact us for the correct blank module part number
Quality Assurance & Sourcing
- Source: Sourced from authorized distributors and verified secondary market channels
- Inspection: Each unit visually inspected for physical integrity before shipment
- Authenticity: Schneider Electric part markings and labeling verified
- Condition: New, refurbished, and tested-used options available — specify at time of order
- Documentation: Certificate of conformance available upon request
- Warranty: 12-month warranty against manufacturing defects
How to Order
- Confirm your rack model (e.g., 140XBP01000) and count of empty slots requiring blanks
- Specify quantity required
- Select condition: New OEM / Refurbished / Tested-Used
- Contact us via the form below or email support@konmask.com
- Receive quote with lead time and shipping options within 24 hours
Replacement & Compatibility FAQ
Q: Can I use any blank module in a Quantum rack?
A: Only modules with the correct Quantum single-slot form factor and backplane connector profile should be used. Using incorrect blanks may compromise EMC shielding and void CE/UL certification.
Q: Is the 140XCP51000 still in production?
A: Schneider Electric periodically updates its Quantum product lifecycle status. Contact Konmask.com for current availability and recommended alternatives if the part is end-of-life.
Q: Do I need to configure this module in Unity Pro / EcoStruxure Control Expert?
A: No. The 140XCP51000 is a passive mechanical component and requires no software configuration.
Q: Can one blank module replace another brand’s filler in a Quantum rack?
A: Yes, provided the third-party blank matches the Quantum slot dimensions and connector profile. OEM originals are always preferred for certified installations.
Q: What is the lead time?
A: In-stock items typically ship within 1–3 business days. Contact us for current stock status.
