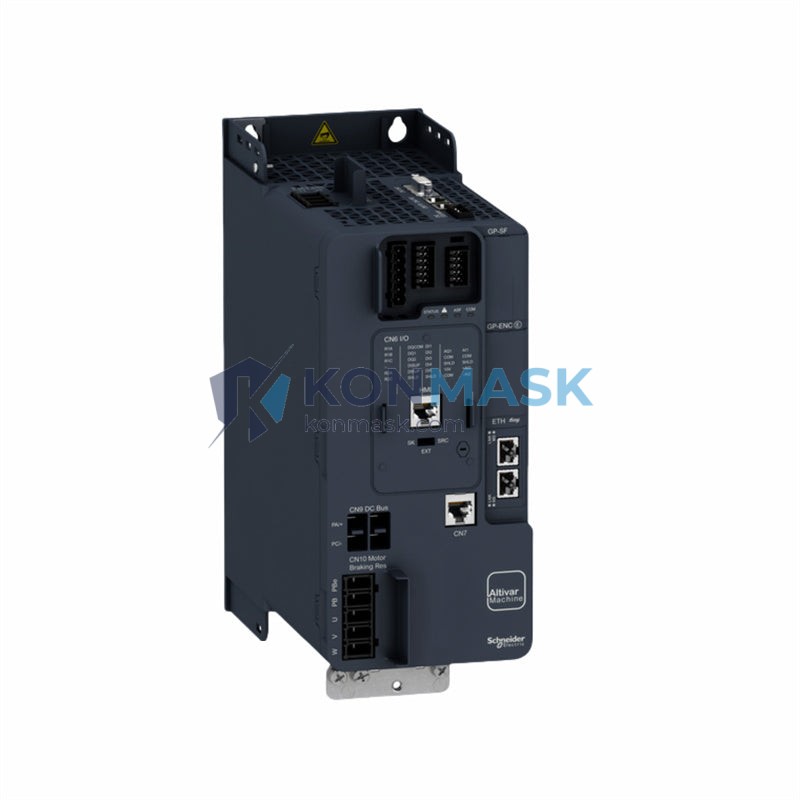

Schneider Electric ATV340D11N4 – 11kW Three-Phase Variable Speed Drive | Altivar 340 Platform
Engineering Background: The Altivar 340 series represents Schneider Electric’s dedicated drive platform for simple machine applications requiring reliable motor control, energy efficiency, and seamless integration with industrial automation architectures. Designed for OEM machine builders and system integrators, the ATV340 combines robust hardware with intuitive commissioning tools.
Product Positioning: The ATV340D11N4 is a 11kW (15HP) three-phase AC variable speed drive rated for 380–480V supply networks. It targets conveyor systems, pumps, fans, compressors, and general-purpose machinery where precise speed regulation and energy savings are critical operational requirements for procurement engineers.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | ATV340D11N4 |
| Brand | Schneider Electric |
| Series / Platform | Altivar 340 (ATV340) |
| Motor Power | 11 kW / 15 HP |
| Supply Voltage | 3-Phase 380–480V AC ±10% |
| Output Current (Nominal) | 27 A |
| Output Frequency Range | 0.5–500 Hz |
| Control Method | V/f, Sensorless Flux Vector (SVC) |
| Communication Protocols | Modbus RTU (built-in); CANopen, EtherNet/IP, Profibus DP (optional cards) |
| Protection Rating | IP20 (panel mount) |
| Ambient Temperature | -10°C to +50°C (operating) |
| Storage Temperature | -25°C to +70°C |
| Altitude | Up to 1000 m without derating |
| Braking | Built-in dynamic braking transistor |
| EMC Filter | Integrated Class C2 |
| Certifications | CE, UL, cUL, RoHS |
| Mounting | DIN rail / panel mount |
| HS Code | 8504.40 |
| Country of Origin | China (CN) |
Proven Application Environments
- Conveyor & Material Handling: Precise speed ramp control reduces mechanical stress and extends belt/chain life.
- Pump & Fan Systems: Energy-saving V/f curves deliver measurable kWh reductions in HVAC and water treatment plants.
- Compressors: Sensorless vector control maintains stable torque at low speeds for scroll and screw compressor applications.
- Packaging Machinery: Fast dynamic response supports high-cycle indexing and positioning tasks on OEM lines.
- Food & Beverage Processing: IP20 panel-mount format integrates cleanly into enclosed control cabinets meeting hygiene standards.
- General Industrial Automation: Compatible with Schneider Modicon PLCs and EcoStruxure Machine architecture for unified control.
Engineering Advantages
- Integrated EMC Filter (C2): Eliminates the need for external filter components, reducing BOM cost and panel space.
- Built-in Braking Transistor: Supports direct connection of external braking resistor for rapid deceleration without additional hardware.
- SoMove Software Compatible: Free PC commissioning tool enables parameter backup, upload, and drive-to-drive cloning.
- Modular Communication: Fieldbus option cards (EtherNet/IP, Profibus DP, CANopen) allow seamless integration into existing plant networks.
- Energy Efficiency: Automatic energy optimization function reduces motor losses during partial-load operation.
- Compact Footprint: Optimized enclosure dimensions minimize cabinet real estate in space-constrained machine designs.
System Architecture & Signal Flow
The ATV340D11N4 accepts a 3-phase 380–480V AC supply at the L1/L2/L3 input terminals. The internal rectifier converts AC to a regulated DC bus, which feeds the IGBT inverter stage. The inverter synthesizes a variable-frequency, variable-voltage output (U/V/W) to the motor. Speed reference is accepted via analog input (0–10V / 4–20mA), digital preset speeds, or fieldbus command. The integrated Modbus RTU port (RJ45) enables direct connection to a PLC or HMI for remote monitoring and parameter adjustment. The built-in braking transistor connects to an external resistor (customer-supplied) across the DC bus terminals for regenerative energy dissipation.
Sourcing & Quality Verification
- OEM Traceability: All units supplied by Konmask.com carry original Schneider Electric factory labels with date codes and serial numbers verifiable via Schneider’s online authentication portal.
- Incoming Inspection: Each drive undergoes visual inspection, label verification, and functional power-on test prior to dispatch.
- Packaging Integrity: Units ship in original Schneider Electric retail packaging with foam inserts; tamper-evident seals intact.
- Warranty: 12-month Konmask warranty against manufacturing defects; Schneider OEM warranty terms apply where applicable.
- Counterfeit Prevention: Konmask sources exclusively from authorized distributors and verified tier-1 supply channels. Certificates of conformity available on request.
Procurement Process
- Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Place order via Konmask.com checkout or proforma invoice (T/T, PayPal, credit card accepted).
- Quality Check & Dispatch: Pre-shipment inspection completed; tracking number issued within 1–3 business days.
- Delivery: DHL / FedEx / UPS express (3–7 days worldwide); sea freight available for bulk orders.
- After-Sales: Technical support and warranty claims handled directly by Konmask engineering team.
Technical FAQ
Q: Is the ATV340D11N4 compatible with single-phase input?
A: No. The D11N4 suffix denotes a 3-phase (N4 = 380–480V) input drive. For single-phase applications, refer to the ATV340 U-series.
Q: Can I use the built-in braking transistor without an external resistor?
A: The transistor is present but requires an external braking resistor to dissipate regenerative energy. Operating without a resistor during braking will trigger a DC bus overvoltage fault.
Q: What fieldbus options are available?
A: Modbus RTU is built-in. EtherNet/IP, Profibus DP, and CANopen are available via optional plug-in communication cards (VW3A3xxx series).
Q: Does the drive support PID control?
A: Yes. The ATV340 includes an integrated PID controller for closed-loop process control (e.g., pressure or flow regulation) without an external PLC.
Q: What is the derating policy above 1000m altitude?
A: Above 1000m, derate output current by 1% per 100m additional altitude up to a maximum of 3000m.
