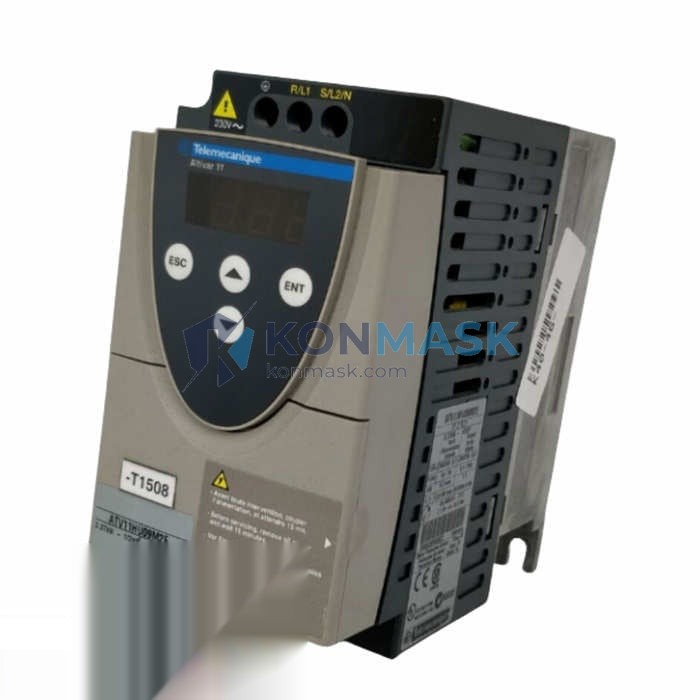

SCHNEIDER ATV11HU09M2E Variable Speed Drive | Replacement, Equivalent & Selection Guide
The Schneider Electric ATV11HU09M2E is a compact single-phase input / three-phase output variable speed drive (VSD) from the Altivar 11 series, rated at 0.09 kW (1/8 HP) for 200–240 V AC motor control applications. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | ATV11HU09M2E |
| Brand / Series | Schneider Electric / Altivar 11 |
| Motor Power | 0.09 kW (1/8 HP) |
| Supply Voltage | 200–240 V AC, Single-Phase (1φ) |
| Output Voltage | 200–240 V AC, Three-Phase (3φ) |
| Output Current | 0.9 A |
| Frequency Range | 0.5–400 Hz |
| Control Mode | V/f (Volts per Hertz) |
| Protection Rating | IP20 |
| Communication | None (standalone) |
| Braking | DC injection braking |
| Ambient Temperature | -10°C to +50°C (operating) |
| Weight | Approx. 0.5 kg |
| Certifications | CE, UL, cUL |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the ATV11HU09M2E. Always verify motor ratings, supply voltage, and control wiring before substitution.
| Model | Brand | Power | Input Voltage | Notes |
|---|---|---|---|---|
| ATV12H018M2 | Schneider Electric | 0.18 kW | 200–240 V 1φ | Next-gen Altivar 12; direct upgrade path |
| ATV12H009M2 | Schneider Electric | 0.09 kW | 200–240 V 1φ | Closest Altivar 12 equivalent |
| FR-D720-0.1K | Mitsubishi Electric | 0.1 kW | 200–240 V 3φ | Cross-brand equivalent; verify input phase |
| G110-1/8HP-1 | Siemens SINAMICS | 0.09 kW | 200–240 V 1φ | Functional equivalent; different wiring |
| GD10-0R1G-S2-B | INVT | 0.1 kW | 220 V 1φ | Economy alternative; CE certified |
| VFD004EL21A | Delta Electronics | 0.4 kW | 200–240 V 1φ | Slightly higher power; widely available |
Note: Cross-brand replacements require parameter re-commissioning. Contact Konmask for pre-sales compatibility verification.
Why Choose the Original Model
- Proven reliability — Altivar 11 series has a long field track record in light industrial and HVAC applications.
- Drop-in compatibility — Identical footprint and terminal layout to existing ATV11 installations; no panel re-wiring required.
- OEM-grade performance — Factory-calibrated V/f curves optimized for Schneider-approved motor pairings.
- Regulatory compliance — CE / UL / cUL certified; meets IEC 61800-3 EMC requirements out of the box.
- Simplified spare-parts management — Maintaining original part numbers reduces BOM complexity and audit risk.
Typical Applications
- Small conveyor belt speed control
- Pump and fan variable-speed regulation
- Packaging and labeling machinery
- HVAC fan coil unit control
- Light-duty textile and food-processing equipment
- OEM machine builder integration (sub-1 kW axis)
System Compatibility
The ATV11HU09M2E operates as a standalone drive and does not include a fieldbus interface. It is compatible with:
- PLC digital outputs — 2-wire or 3-wire start/stop via logic inputs (LI1–LI3)
- Analog speed reference — 0–10 V or 4–20 mA via AI1 terminal
- Schneider Modicon PLCs — Via hardwired I/O (no native Modbus on this model)
- Third-party PLCs — Siemens S7, Mitsubishi FX/Q, Omron CP/CJ series via relay/analog I/O
- Motor compatibility — Standard IEC 3-phase induction motors, 200–240 V, 2-pole or 4-pole
Selection Guide
Use the decision matrix below to confirm the ATV11HU09M2E is the right drive for your application, or to identify the best alternative:
| Requirement | ATV11HU09M2E | Recommended Alternative |
|---|---|---|
| Motor power ≤ 0.09 kW, 1φ supply | ✅ Ideal fit | — |
| Motor power 0.18–0.37 kW, 1φ supply | ❌ Undersized | ATV12H018M2 / ATV12H037M2 |
| 3φ supply available | ⚠️ Works but wastes 3φ | ATV11HU09M2A (3φ input variant) |
| Fieldbus / Modbus RTU required | ❌ Not supported | ATV12 + VW3A1104 Modbus card |
| Outdoor / IP55 enclosure needed | ❌ IP20 only | ATV12H009M2 + external enclosure |
| Budget-sensitive replacement | ⚠️ OEM pricing | INVT GD10-0R1G-S2-B (economy) |
Quality Assurance & Sourcing
- Authorized distribution channels — Konmask sources ATV11HU09M2E units through verified industrial distributors with full traceability.
- Inspection protocol — Each unit undergoes visual inspection, label verification, and functional power-on check before dispatch.
- Warranty — 12-month warranty against manufacturing defects; DOA replacement within 7 business days.
- Counterfeit prevention — Holographic labels, date codes, and serial number verification against Schneider Electric databases.
- Export compliance — HS Code 8504.40 applicable; export documentation available on request.
How to Order
- Confirm your motor nameplate data: power (kW), voltage, and current.
- Verify supply voltage availability at the installation site (single-phase 200–240 V).
- Add ATV11HU09M2E to cart, or contact us for bulk / project pricing.
- Specify required quantity and delivery timeline at checkout.
- For OEM / integrator accounts, request a formal quotation via support@konmask.com.
Replacement & Compatibility FAQ
Q: Can I replace ATV11HU09M2E with ATV12H009M2 directly?
A: Yes, the Altivar 12 is the designated successor. Terminal layout is similar but not identical — review the ATV12 wiring diagram before installation and re-enter drive parameters.
Q: Is the ATV11HU09M2E still in production?
A: The Altivar 11 series has reached end-of-commercialization. Schneider Electric recommends migrating to the Altivar 12 series. Konmask maintains stock of both new and refurbished ATV11 units.
Q: Can this drive control a 3-phase motor?
A: Yes. The ATV11HU09M2E accepts single-phase input and outputs three-phase to the motor — this is its primary design purpose.
Q: What is the difference between ATV11HU09M2E and ATV11HU09M2A?
A: The suffix M2E denotes single-phase 200–240 V input with EMC filter; M2A denotes three-phase 200–240 V input. Verify your supply before ordering.
Q: Do you provide installation support?
A: Yes. Konmask offers pre-sales technical consultation and post-sales commissioning guidance via email and phone.
