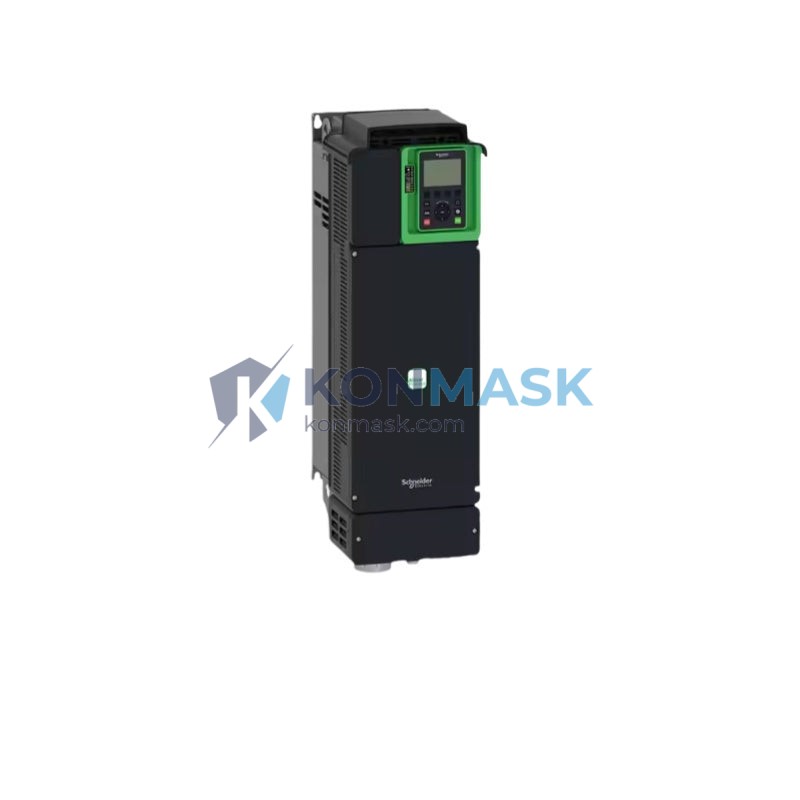

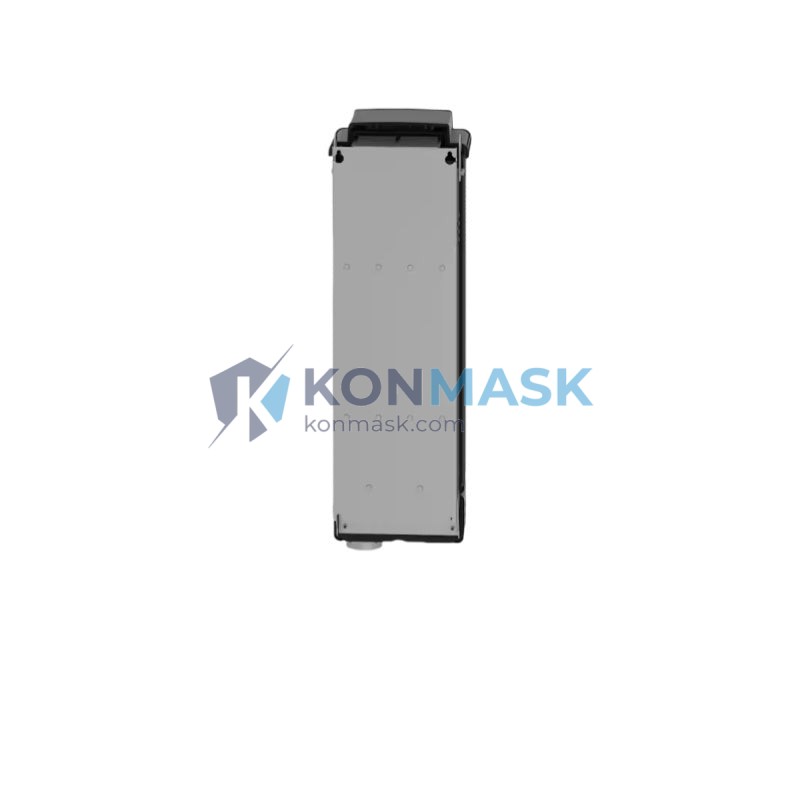

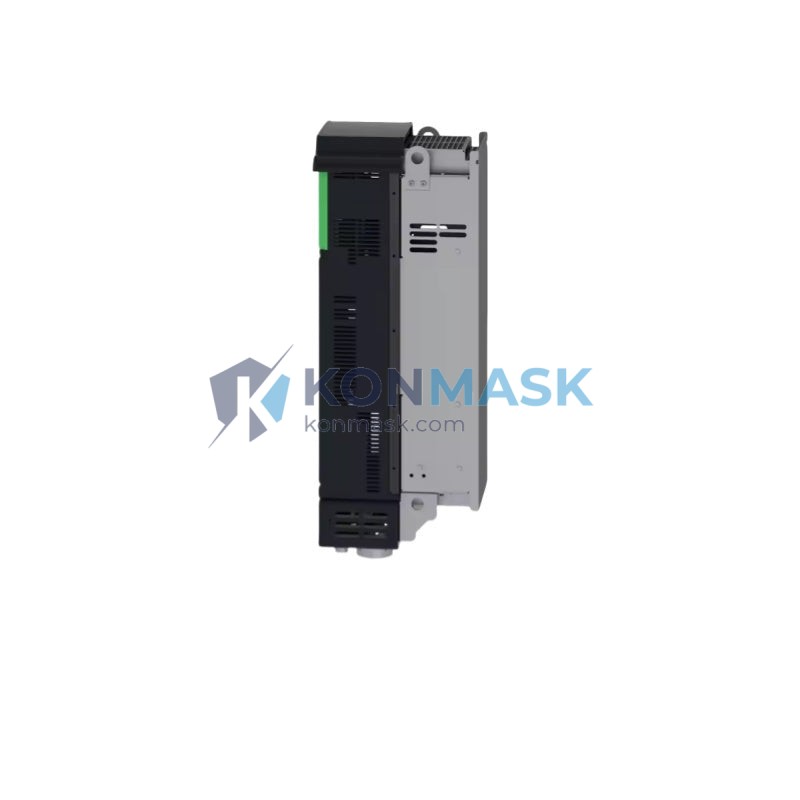

Schneider Electric ATV630D37N4 – Advanced Process Variable Speed Drive | Altivar Process 630 Platform
Engineering Background: The Altivar Process 630 series represents Schneider Electric’s flagship process-oriented variable speed drive platform, engineered for demanding continuous-duty industrial applications where process reliability, energy efficiency, and seamless integration with automation architectures are non-negotiable. The ATV630D37N4 is the 37 kW / 400 V three-phase variant, purpose-built for pump, fan, compressor, and mixer applications in process industries.
Product Positioning: Targeted at procurement engineers and system integrators sourcing a proven, IEC-compliant VFD for critical process loops. The ATV630D37N4 delivers embedded process functions—PID control, flow/pressure regulation, predictive maintenance diagnostics—without requiring an external PLC for standard process tasks. It is a direct fit for Modicon M340, M580, Premium, and Quantum PLC architectures via Modbus TCP/IP, EtherNet/IP, PROFIBUS DP, or CANopen fieldbus options.
Complete Technical Specifications
| Part Number / SKU | ATV630D37N4 |
| Brand / Manufacturer | Schneider Electric |
| Series / Platform | Altivar Process ATV630 |
| Motor Power (kW) | 37 kW (50 HP) |
| Supply Voltage | 380–480 V AC, 3-phase (±10%) |
| Output Current (Nominal) | 75 A |
| Output Frequency Range | 0.1 – 500 Hz |
| Control Method | Sensorless Flux Vector (SVC), Closed-Loop Flux Vector (FVC), V/f |
| Switching Frequency | 2 – 16 kHz (adjustable) |
| Protection Degree | IP21 / UL Type 1 (standard); IP55 optional |
| EMC Filter | Integrated Class C2 EMC filter |
| Braking | Dynamic braking transistor integrated |
| Communication Ports | Modbus RTU (RJ45), Ethernet (RJ45) — fieldbus cards optional |
| Digital Inputs | 6 × DI (24 V DC logic) |
| Analog Inputs | 3 × AI (0–10 V / 0–20 mA / PTC) |
| Relay Outputs | 2 × relay (NO/NC) |
| Analog Outputs | 2 × AO (0–10 V / 0–20 mA) |
| Ambient Temperature | -10°C to +50°C (operating); -25°C to +70°C (storage) |
| Altitude | Up to 1000 m without derating |
| Humidity | 5–95% RH, non-condensing |
| Certifications | CE, UL, cUL, RoHS, IEC 61800-5-1, IEC 61800-3 |
| Dimensions (H×W×D mm) | Approx. 400 × 200 × 230 mm |
| Weight | Approx. 9.5 kg |
| Enclosure Color | RAL 7035 Light Grey |
Proven Application Environments
- Water & Wastewater: Centrifugal pump speed regulation, pressure-boosting stations, SCADA-integrated flow control
- HVAC & Building Automation: Variable air volume (VAV) fan drives, chiller pump control, BMS integration via BACnet/Modbus
- Oil & Gas / Chemical: Compressor soft-start, mixer drives, hazardous-area panel integration (with appropriate enclosure)
- Food & Beverage: Conveyor speed control, agitator drives, hygienic-area compatible with IP55 variant
- Mining & Minerals: Belt conveyor, crusher auxiliary drives, high-altitude installations
- Power Generation: Cooling tower fan drives, auxiliary pump control
Engineering Advantages
- Embedded Process PID: Dual-loop PID with sleep/wake function eliminates external controller for standard process regulation
- Energy Savings Dashboard: Real-time kWh metering and energy-saving estimation displayed on integrated graphical keypad
- Predictive Maintenance: Motor thermal model, bearing wear estimation, and run-hour counters reduce unplanned downtime
- Flexible Fieldbus Architecture: Native Modbus RTU + Ethernet; optional PROFIBUS DP, DeviceNet, EtherNet/IP, CANopen cards for seamless PLC integration
- Safe Torque Off (STO): IEC 62061 SIL 2 / ISO 13849-1 PLd certified — eliminates external safety relay in many topologies
- Graphical Keypad: Multi-language color display with drive-to-drive parameter copy function accelerates commissioning
- Wide Input Voltage Tolerance: ±10% supply variation tolerance protects against grid instability in industrial environments
System Architecture & Signal Flow
The ATV630D37N4 accepts 3-phase 380–480 V AC supply through an integrated Class C2 EMC filter and rectifier stage, producing a regulated DC bus. The IGBT inverter stage synthesizes variable-frequency, variable-voltage output (0.1–500 Hz) to the motor terminals. Control logic is executed on a dual-processor architecture: one core handles real-time PWM and motor flux vector algorithms; the second manages process PID, communication stacks, and HMI. I/O expansion modules (VW3A3201–VW3A3204) can be added to the option slot for additional analog/digital channels. The integrated braking transistor connects to an external braking resistor (customer-supplied) for applications requiring rapid deceleration.
Typical Wiring Topology: PLC (Modbus TCP/IP) → ATV630D37N4 Ethernet port → Drive internal PID → Motor output → Process sensor (4–20 mA) → AI1 feedback input → closed-loop regulation.
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels with full traceability documentation
- Pre-shipment inspection: visual check, label verification, firmware version confirmation, and power-on functional test
- Original manufacturer packaging preserved; serial numbers recorded and cross-referenced against Schneider Electric’s product database
- Counterfeit-risk mitigation: holographic label inspection, PCB marking verification, and weight/dimension cross-check against OEM specifications
- Warranty: 12-month Konmask quality guarantee covering manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Inquiry: Submit your BOM or part number via email to [email protected] or WhatsApp +0086 19859288691
- Quotation: Receive a formal quotation with lead time, unit price, and MOQ within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment
- Quality Inspection: Pre-shipment inspection report and photos provided upon request
- Shipping: DHL / FedEx / UPS express (3–7 days) or sea freight for bulk orders; tracking number provided within 24 hours of dispatch
- After-Sales: Technical support available for commissioning, parameter configuration, and fault diagnosis
Technical FAQ
Q: Is the ATV630D37N4 compatible with Modicon M580 PLC via EtherNet/IP?
A: Yes, with the optional VW3A3720 EtherNet/IP communication card installed. Native Modbus TCP/IP is available on the standard RJ45 Ethernet port without any additional card.
Q: Can this drive operate a permanent magnet synchronous motor (PMSM)?
A: Yes. The ATV630 supports PMSM control via the Flux Vector Control (FVC) mode with encoder feedback, or sensorless PMSM mode for applications where encoder installation is impractical.
Q: What is the derating factor above 1000 m altitude?
A: Current derating of approximately 1% per 100 m above 1000 m is required. At 2000 m, apply a 10% current derating. Consult Schneider Electric application note AN-ATV630-ALT for full derating curves.
Q: Does the drive include a line reactor or du/dt filter?
A: The integrated EMC filter provides conducted emission suppression. For long motor cable runs (>50 m) or sensitive motor insulation, an external du/dt filter (VW3A5304–VW3A5308) is recommended.
Q: What is the standard warranty and return policy?
A: Konmask.com provides a 12-month quality guarantee. DOA units are replaced within 7 business days. Contact [email protected] with serial number and fault description to initiate a claim.
