Industrial HMI & Machine Control Solution – Schneider Electric XBTGK2330 | Magelis XBTGK Series
Where This Product Is Used

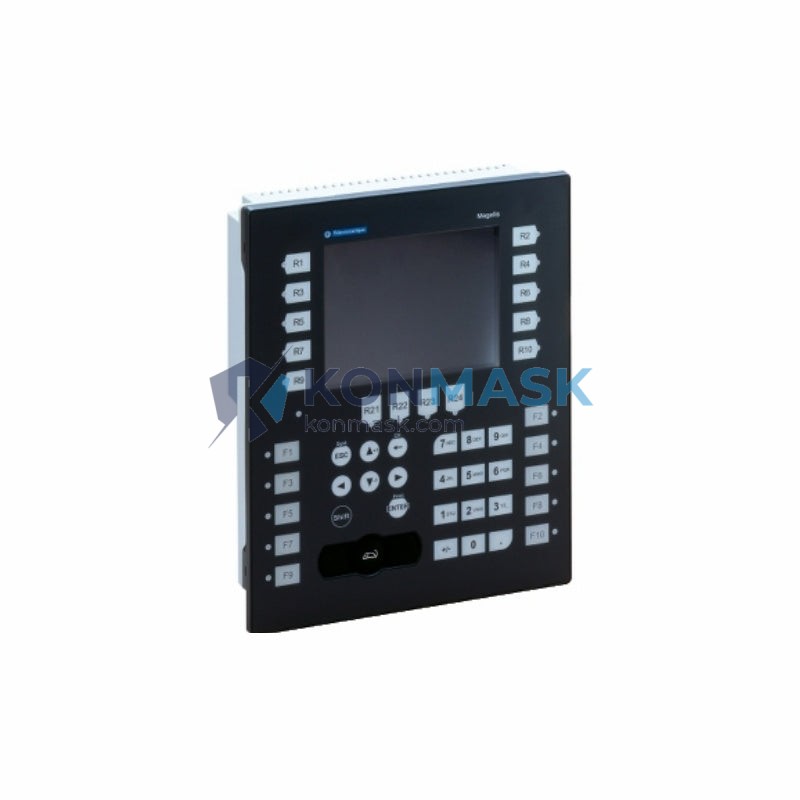

The Schneider Electric XBTGK2330 is a Magelis advanced touchscreen HMI panel with integrated keyboard, purpose-built for demanding industrial environments. Engineers and system integrators deploy this unit across a wide range of applications:
- Manufacturing & Assembly Lines – Real-time operator interface for PLC-controlled conveyor, press, and robotic systems.
- Water & Wastewater Treatment – SCADA front-end for pump stations, filtration, and dosing control panels.
- Oil & Gas Facilities – Rugged HMI for wellhead, pipeline, and compressor station monitoring.
- Building Automation (BAS/BMS) – Central operator terminal for HVAC, access control, and energy management systems.
- Food & Beverage Processing – Hygienic-environment panel interface for batch control and CIP sequences.
- Power Distribution & Utilities – Substation and switchgear operator interface integrated with Modbus/Ethernet networks.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / SKU | XBTGK2330 |
| Brand | Schneider Electric |
| Series | Magelis XBTGK |
| Display Type | Advanced Touchscreen with Keyboard |
| HS Code | 8537.10 |
| Country of Origin | France |
| Weight | 380 g |
| Communication | Serial (RS-232/RS-485), Ethernet (model-dependent) |
| Software | Vijeo Designer |
| Operating Temperature | 0 °C to +50 °C |
| Protection Rating | IP65 (front panel) |
Why Engineers Specify This Model
- Dual Input Method – Combines resistive touchscreen with a physical keyboard for precise alphanumeric data entry in gloved-hand environments.
- Vijeo Designer Compatibility – Seamless project development with Schneider Electric’s industry-standard HMI configuration software.
- Wide PLC Compatibility – Native drivers for Modicon M340, M580, Premium, Quantum, and third-party PLCs via Modbus, EtherNet/IP, and serial protocols.
- IP65 Front Panel – Dust-tight and water-jet resistant, suitable for wash-down and harsh industrial enclosures.
- Proven Magelis Platform – Part of Schneider Electric’s globally deployed Magelis HMI family, with long-term spare parts availability and firmware support.
Complete System Bill of Materials
For a complete XBTGK2330-based control station, engineers typically specify:
- Schneider Electric XBTGK2330 – HMI Panel (this unit)
- Modicon M340 or M580 PLC CPU – Process controller
- XBTZG935 / XBTZG9XX – Mounting gasket & panel cut-out kit
- VW3A8306 – USB programming cable (Vijeo Designer)
- 24 VDC Power Supply (e.g., ABL8REM24030) – Panel power
- Ethernet switch (e.g., TCSESM063F2CU0) – Network connectivity
- Enclosure (Spacial S3D or equivalent) – IP66 rated cabinet
Compliance & Industry Standards
- CE Marking – EU Machinery Directive & EMC Directive compliant
- UL Listed – North American safety certification
- RoHS Compliant – Restriction of Hazardous Substances
- IEC 61131-2 – Programmable controller equipment standard
- ATEX / IECEx – Consult factory for hazardous area variants
Quality Assurance & Sourcing
Every XBTGK2330 unit offered through Konmask.com is sourced from authorized Schneider Electric distribution channels or verified surplus inventories. Each unit undergoes:
- Visual inspection for physical damage, label integrity, and firmware version verification
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable documentation including original manufacturer part number confirmation
We do not sell counterfeit, refurbished-as-new, or unverified grey-market components.
How to Source This Part
- In Stock: Add to cart and proceed to checkout. We ship globally with DHL Express, FedEx, and UPS.
- Lead Time Orders: Contact us for volume pricing, scheduled delivery, and project-based procurement.
- Urgent Requirement: Email [email protected] or call +0086 19859288691 for same-day quotation.
- Export & Cross-Border: We handle customs documentation, HS code declaration (8537.10), and commercial invoicing for international shipments.
Application-Specific FAQ
Q: Is the XBTGK2330 compatible with third-party PLCs such as Siemens S7 or Allen-Bradley?
A: Yes. Vijeo Designer includes driver libraries for major third-party PLC brands via serial and Ethernet protocols. Confirm the specific driver version with your project requirements.
Q: What is the difference between XBTGK2330 and XBTGT2330?
A: The XBTGK series includes an integrated physical keyboard for alphanumeric entry; the XBTGT series is touchscreen-only. The XBTGK2330 is preferred in applications requiring frequent text or numeric input by operators.
Q: Can this HMI be used in a hazardous (ATEX Zone 2) environment?
A: The standard XBTGK2330 is not ATEX-rated. For Zone 2 applications, consult Schneider Electric’s ATEX-certified Magelis variants or use an appropriate purged enclosure solution.
Q: What software version of Vijeo Designer is required?
A: Vijeo Designer V6.2 or later is recommended for full feature support. Always verify firmware compatibility before deployment.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects. Contact [email protected] for warranty claims.
