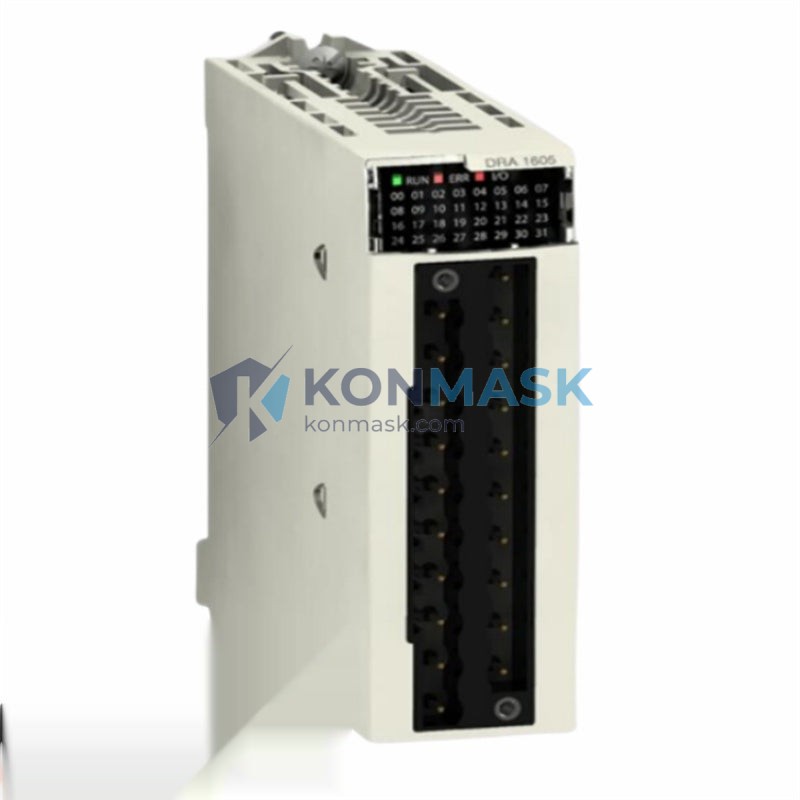

Genuine Schneider Electric BMXDRA1605 Relay Output Module | Modicon M340 Series – Verified Source
The Schneider Electric BMXDRA1605 is a 16-channel relay output module designed for the Modicon M340 PLC platform. Sourced directly through verified industrial distribution channels, every unit supplied by Konmask.com undergoes multi-point authenticity and functional checks before dispatch. Whether you are maintaining a critical production line or commissioning a new automation project, you can order with confidence.
Technical Specifications
- Part Number: BMXDRA1605
- Brand: Schneider Electric
- Series: Modicon M340
- Module Type: Discrete Relay Output
- Number of Channels: 16
- Output Type: Relay (NO contact)
- Rated Output Current: 2 A per channel
- Rated Voltage: 24 VDC / 24–240 VAC
- Isolation: Optocoupler isolation between logic and field side
- Backplane Bus: Modicon M340 X-Bus
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Degree of Protection: IP20
- Dimensions (H × W × D): 100 × 30 × 73 mm (approx.)
- Weight: 180 g
- Certifications: CE, UL, cUL, IEC 61131-2
Our 4-Step Quality Verification Process
Every BMXDRA1605 unit shipped from Konmask.com passes through our standardized verification workflow:
- Step 1 — Source Traceability: We document the full supply chain from manufacturer or authorized distributor to our warehouse. Batch codes and date codes are recorded.
- Step 2 — Visual & Mechanical Inspection: Housing integrity, label authenticity, connector pin condition, and seal markings are checked against OEM reference standards.
- Step 3 — Functional Bench Test: Where applicable, modules are powered and relay switching is verified under controlled conditions prior to packaging.
- Step 4 — Secure Packaging & Documentation: Units are packed in anti-static ESD bags with desiccant, accompanied by a Konmask inspection checklist and, where available, original OEM documentation.
Key Features & Benefits
- 16 independent relay output channels — maximizes I/O density per slot
- Relay (NO) contacts support both DC and AC loads — versatile field wiring
- Optocoupler isolation protects the PLC backplane from field-side transients
- Hot-swap compatible within M340 rack (with appropriate system configuration)
- LED channel-status indicators for rapid field diagnostics
- Compact 30 mm wide single-slot form factor — space-efficient panel design
- Fully compliant with IEC 61131-2 discrete output specifications
Typical Applications
- Motor starter and contactor control in manufacturing lines
- Solenoid valve switching in fluid handling and process plants
- Alarm and indicator lamp control in SCADA-integrated systems
- Conveyor and material-handling automation
- Building management and HVAC control panels
- Water treatment and utilities infrastructure
- Oil & gas upstream and midstream control systems
Compatible System Components
- Racks: BMX XBP 0400 / 0600 / 0800 / 1200 (M340 backplane racks)
- CPUs: BMX P34 1000 / 2000 / 2010 / 2020 / 2030 series processors
- Power Supplies: BMX CPS 2000 / 3500 / 3020 series
- Terminal Blocks: BMXFTB2800 (28-pin screw terminal block for BMXDRA1605)
- Pre-wired Cables: BMXFCA series connection cables
- Programming Software: Unity Pro / EcoStruxure Control Expert
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China warehouse with bonded export capability
- Lead Time: In-stock units typically ship within 1–3 business days of order confirmation
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight consolidation for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Customs & HS Code: 8537.10 (programmable controllers / industrial control modules)
- Minimum Order: 1 unit; volume pricing available for orders of 5+ units
- Regions Served: Asia-Pacific, Middle East, Europe, Americas, Africa
Certifications & Compliance Statement
The BMXDRA1605 is manufactured by Schneider Electric in compliance with the following standards and directives:
- CE Marking — EU Low Voltage Directive (LVD) and EMC Directive
- UL / cUL Listed — North American safety certification
- IEC 61131-2 — Programmable controllers: equipment requirements and tests
- RoHS Compliant — Restriction of Hazardous Substances
Konmask.com is an independent reseller and is not an authorized Schneider Electric distributor. All brand names and part numbers are used for identification purposes only. Authenticity of supplied units is supported by our internal verification process and available documentation.
How to Order
- Step 1: Confirm the part number BMXDRA1605 matches your system BOM or existing module label.
- Step 2: Select quantity and add to cart, or contact us directly for bulk pricing.
- Step 3: Complete checkout — we accept T/T bank transfer, PayPal, and major credit cards.
- Step 4: Receive order confirmation and tracking number within 1 business day of payment clearance.
- Step 5: Inspect upon delivery — contact support within 7 days if any discrepancy is found.
For urgent requirements, RFQ submissions, or technical pre-sales questions, email [email protected] or call +0086 19859288691.
Authenticity & Trust FAQ
Q: Are these units genuine Schneider Electric products?
A: Yes. All units are sourced from industrial supply channels and pass our 4-step verification process. We provide batch/date code documentation upon request.
Q: Can you provide a test report or inspection certificate?
A: A Konmask inspection checklist is included with every shipment. Third-party test reports can be arranged for orders of 10+ units at additional cost.
Q: What is your return policy if the module is DOA?
A: We offer a 30-day DOA replacement guarantee. Contact [email protected] within 30 days of receipt with photos and a fault description.
Q: Do you offer a warranty?
A: Yes — 12-month limited warranty against manufacturing defects under normal operating conditions.
Q: Can you source other Modicon M340 modules not listed on your site?
A: Yes. Submit your full BOM to [email protected] and we will provide availability and pricing within 24 hours.
