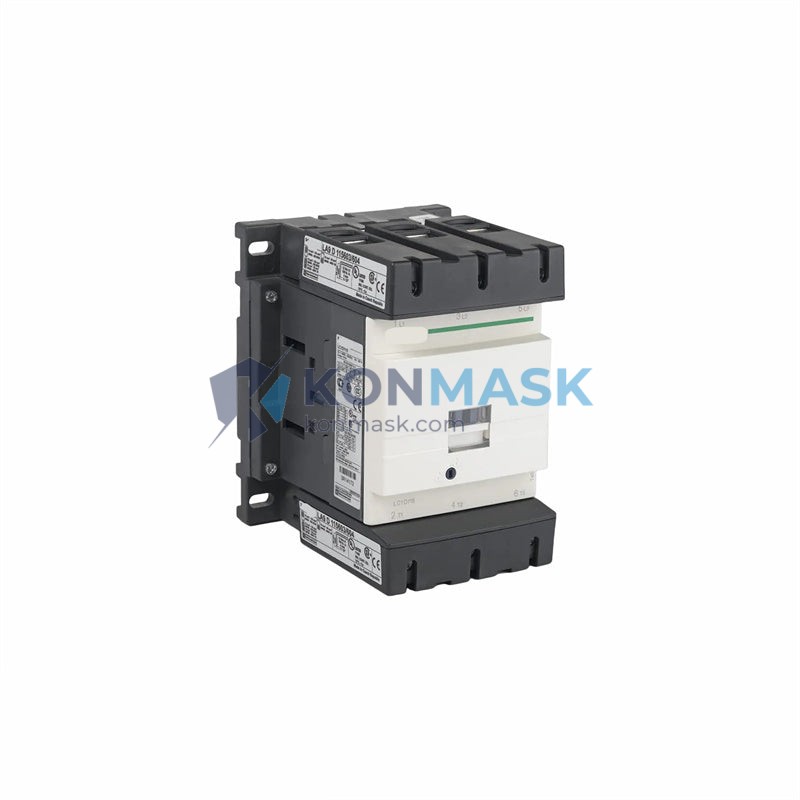

Schneider LC1D170M7C TeSys D 170A AC Contactor | Replacement, Equivalent & Selection Guide
The Schneider Electric LC1D170M7C is a heavy-duty 3-pole AC contactor from the TeSys D series, rated at 170A AC-3 with a 220V AC (M7) coil. Designed for motor control and power switching in industrial automation systems, it delivers reliable performance in demanding environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Model / SKU: LC1D170M7C
- Brand: Schneider Electric
- Series: TeSys D
- Rated Current (AC-3): 170A
- Poles: 3-pole (main) + 1 NO auxiliary
- Coil Voltage: 220V AC / 50–60Hz (M7)
- Motor Power (400V): 90 kW
- Motor Power (690V): 132 kW
- Utilization Category: AC-3, AC-4
- Mechanical Endurance: 10 million operations
- Electrical Endurance (AC-3): 1 million operations
- Mounting: DIN rail or panel mount
- Protection Degree: IP20 (open type)
- Operating Temperature: -5°C to +60°C
- Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2
- Weight: Approx. 1.36 kg
Compatible Replacement & Equivalent Models
The following models are commonly referenced as functional equivalents or direct replacements for the LC1D170M7C. Always verify coil voltage, pole configuration, and current rating before substitution.
- Schneider LC1D150M7C – Same series, 150A rating; suitable for slightly lower load applications
- Schneider LC1F185M7C – TeSys F series upgrade for higher current demands (185A)
- ABB AX185-30-11 – ABB equivalent, 185A, 3-pole, 220V coil; verify dimensional fit
- Siemens 3RT2065-1AM20 – Siemens SIRIUS equivalent, 185A, 220V AC coil
- Chint NC2-170 – Cost-effective Chinese-market equivalent, 170A, 220V coil
- Delixi CDC10-170 – Delixi equivalent for budget-sensitive projects
Note: Cross-brand replacements may require adapter plates or wiring adjustments. Contact our team for pre-sales compatibility verification.
Why Choose the Original LC1D170M7C
- ✅ Proven reliability – TeSys D is one of the world’s most widely deployed contactor platforms
- ✅ Full IEC & UL certification – Accepted in global projects without re-certification
- ✅ Extensive accessory ecosystem – Compatible with TeSys D auxiliary contacts, overload relays (LRD series), and suppressor modules
- ✅ Long service life – 10M mechanical / 1M electrical operations
- ✅ Spare parts availability – Coil replacement kits and contact kits widely stocked
Typical Applications
- Heavy-duty motor starting and stopping (pumps, compressors, fans, conveyors)
- Reversing starter circuits (paired with LC1D170 + LAD reversing kit)
- Star-delta (Y-Δ) starter configurations
- Power distribution panel switching
- HVAC and building automation systems
- Marine and offshore control panels
System Compatibility
- Overload Relay: LRD3365 (TeSys D, 110–140A) or LRD3369 (132–220A)
- Auxiliary Contact Blocks: LADN series (front-mount), LADN11, LADN22
- Surge Suppressor: LAD4RCU (RC type), LAD4RCE (varistor type)
- Mechanical Interlock: LAD9R1 (for reversing starters)
- Control Voltage: Compatible with PLC 24VDC outputs via interposing relay; direct 220VAC coil drive
- Enclosure Fit: Standard IEC panel cutouts; DIN rail EN 60715 TH35
Selection Guide
Use the table below to select the correct TeSys D contactor for your motor load:
- Up to 75 kW @ 400V → LC1D115M7C (115A)
- Up to 90 kW @ 400V → LC1D170M7C (170A) ← This model
- Up to 110 kW @ 400V → LC1D185M7C (185A)
- Up to 132 kW @ 400V → LC1F185M7C (TeSys F, 185A)
Coil voltage suffix guide: M7 = 220V AC | B7 = 24V AC | BD = 24V DC | E7 = 48V AC | F7 = 110V AC | Q7 = 380V AC
Need a different coil voltage? The LC1D170 frame is available in all standard coil variants. Contact us with your required suffix.
Quality Assurance & Sourcing
- 🔍 Authenticity: All units sourced from authorized distributors or verified surplus channels with full traceability
- 📦 Inspection: Each unit inspected for original packaging, label integrity, and date codes before dispatch
- 📋 Documentation: CE Declaration of Conformity and test reports available on request
- 🚚 Lead Time: In-stock units ship within 1–3 business days; special orders 7–15 days
- 🛡️ Warranty: 12-month warranty against manufacturing defects
How to Order
- Confirm your required coil voltage suffix (default: M7 = 220V AC)
- Verify motor kW rating and supply voltage match the 170A AC-3 rating
- Add to cart or contact us for bulk pricing and lead time
- For OEM/project orders (>5 units), request a formal quotation via email
📧 Email: support@konmask.com | 📞 Phone/WhatsApp: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace LC1D170M7C with LC1D150M7C?
A: Only if your motor load is within the 150A AC-3 rating. For 90 kW @ 400V motors, the 170A rating is required.
Q: Is the LC1D170M7C compatible with TeSys D overload relays?
A: Yes. Use LRD3369 (132–220A range) for direct mounting without adapter.
Q: Can I use an ABB or Siemens equivalent in an existing TeSys D panel?
A: Functionally possible, but mounting holes and busbar connections may differ. We recommend sticking with the original or a verified TeSys-compatible replacement.
Q: Do you supply the coil replacement kit separately?
A: Yes. The coil kit for LC1D170M7C is available as a spare part. Contact us with your coil voltage requirement.
Q: What is the difference between LC1D170M7C and LC1D170M7?
A: The suffix “C” denotes the standard IEC version with screw terminals. Both are functionally identical in most applications.
