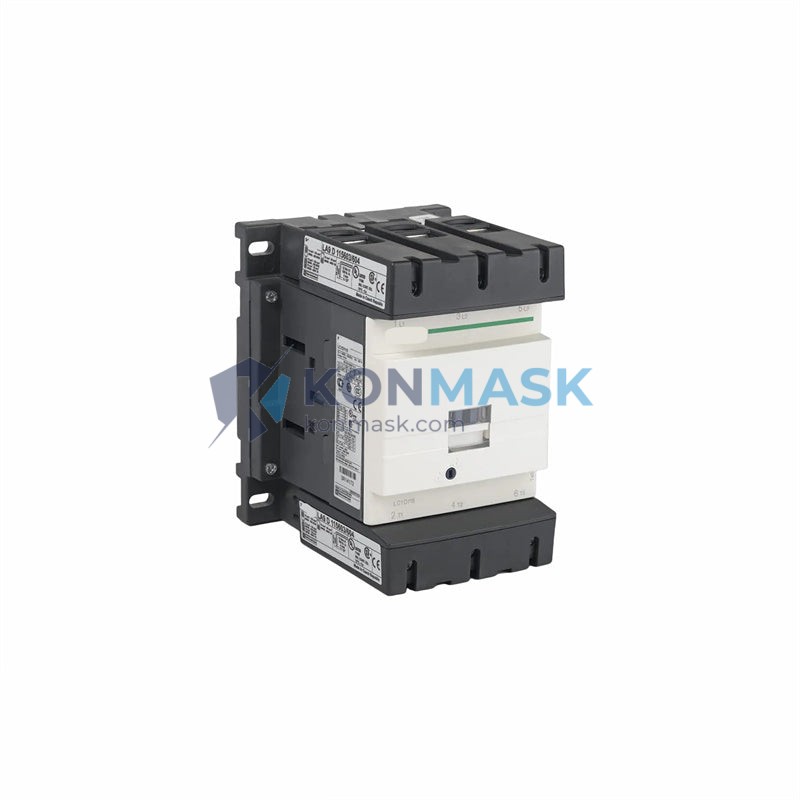

Genuine Schneider Electric LC1D150M7C 150A Electromagnetic Contactor | TeSys D Series – Verified Source
The Schneider Electric LC1D150M7C is a heavy-duty 150A electromagnetic contactor from the industry-proven TeSys D Series. At Konmask.com, every unit is sourced through verified supply channels and undergoes a rigorous 4-step quality inspection before dispatch — giving industrial buyers the confidence they need when specifying critical control components.
Technical Specifications
- Part Number / SKU: LC1D150M7C
- Brand: Schneider Electric
- Series: TeSys D
- Rated Current (AC-3): 150 A
- Coil Voltage: 220 V AC (M7 = 220 VAC, 50/60 Hz)
- Poles: 3-pole (3P)
- Auxiliary Contacts: 1 NO + 1 NC (integrated)
- Motor Power (400 V): 75 kW
- Motor Power (690 V): 90 kW
- Utilization Category: AC-3 / AC-4
- Mounting: DIN rail or panel mount
- Degree of Protection: IP20 (open type)
- Operating Temperature: -25°C to +60°C
- Weight: 1,360 g
- Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2
Our 4-Step Quality Verification Process
- Source Authentication — All units are procured directly from Schneider Electric authorized distributors or verified OEM channels. No grey-market or refurbished stock.
- Physical Inspection — Each contactor is inspected for label integrity, housing condition, coil markings, and terminal quality upon receipt.
- Functional Pre-Check — Coil energization and contact continuity are verified before packaging.
- Secure Packaging & Documentation — Units ship in original or equivalent ESD-safe packaging with a Konmask inspection certificate and original manufacturer documentation where available.
Key Features & Benefits
- ✅ High Current Capacity: 150 A AC-3 rating handles demanding motor loads reliably
- ✅ Compact TeSys D Form Factor: Drop-in compatible with existing TeSys D panel layouts
- ✅ Wide Coil Voltage Tolerance: ±15% voltage tolerance for stable operation in fluctuating supply environments
- ✅ Integrated Auxiliary Contacts: 1 NO + 1 NC eliminates the need for add-on auxiliary blocks in standard circuits
- ✅ Long Electrical Life: Rated for millions of operating cycles under full load
- ✅ Global Certifications: IEC, UL, and CSA listed — accepted by inspectors worldwide
- ✅ Genuine OEM Part: Full Schneider Electric traceability and warranty eligibility
Typical Applications
- Heavy-duty motor starters and reversing starters (75–90 kW range)
- Industrial HVAC compressor and pump control panels
- Conveyor and crane drive systems
- Water treatment and mining equipment control
- Power distribution switchgear and MCC (Motor Control Centers)
- Oil & gas processing automation systems
Compatible System Components
- Overload Relays: LRD340 / LRD350 (TeSys D thermal overload, 30–40 A / 37–50 A)
- Auxiliary Contact Blocks: LADN11 (1 NO + 1 NC add-on block)
- Surge Suppressors: LAD9ES1 (RC snubber for AC coils)
- Mechanical Interlocks: LAD9R1 (for reversing starter configurations)
- Mounting Accessories: LADN11, LADP02 spacer kits
- Compatible PLCs: Schneider Modicon M340, M580; Siemens S7-300/400 via standard I/O wiring
Global Sourcing & Shipping Capabilities
Konmask.com ships the LC1D150M7C worldwide from our warehouse in China. We support:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days globally
- Sea Freight: Available for bulk orders (MOQ negotiable)
- Export Documentation: Commercial invoice, packing list, certificate of origin, and customs HS code 8536.49 declaration provided
- B2B Bulk Pricing: Tiered discounts available for orders of 5+ units — contact us for a formal quotation
- Lead Time: In-stock units ship within 1–2 business days; pre-order lead time 7–15 business days
Certifications & Compliance Statement
The Schneider Electric LC1D150M7C carries the following certifications:
- IEC/EN 60947-4-1 — Low-voltage switchgear and controlgear
- UL 508 — Industrial control equipment (USA)
- CSA C22.2 No. 14 — Industrial control equipment (Canada)
- CE Marking — European conformity
- RoHS Compliant — Restriction of hazardous substances
Konmask.com does not alter, re-label, or modify any OEM products. All units are sold as-manufactured by Schneider Electric.
How to Order
- Add to Cart — Click “Add to Cart” for standard single-unit or small-quantity orders.
- Request a Quote — For bulk orders (5+ units), email support@konmask.com with your required quantity, delivery address, and timeline.
- Confirm Lead Time — Our team will confirm stock availability and estimated ship date within 1 business day.
- Payment — We accept T/T (bank transfer), PayPal, and major credit cards. LC (Letter of Credit) available for orders above USD 5,000.
- Tracking — A tracking number is provided within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Schneider Electric product?
A: All units are sourced from authorized distributors. We provide purchase documentation upon request and each unit carries original Schneider Electric labeling and date codes.
Q: Can I return the product if it is defective?
A: Yes. We offer a 12-month warranty against manufacturing defects. Defective units are replaced or refunded after inspection.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes, a Konmask inspection certificate is included with every shipment. OEM CoC is available where provided by the manufacturer.
Q: Can you source other TeSys D variants or Schneider part numbers?
A: Yes. We stock a wide range of TeSys D contactors and Schneider Electric automation components. Contact us with your full BOM for a consolidated quote.
Q: What is your minimum order quantity (MOQ)?
A: MOQ is 1 unit for standard orders. Bulk pricing applies from 5 units.
