SCHNEIDER TSXDSY16T2 Discrete Output Module | Replacement, Equivalent & Selection Guide

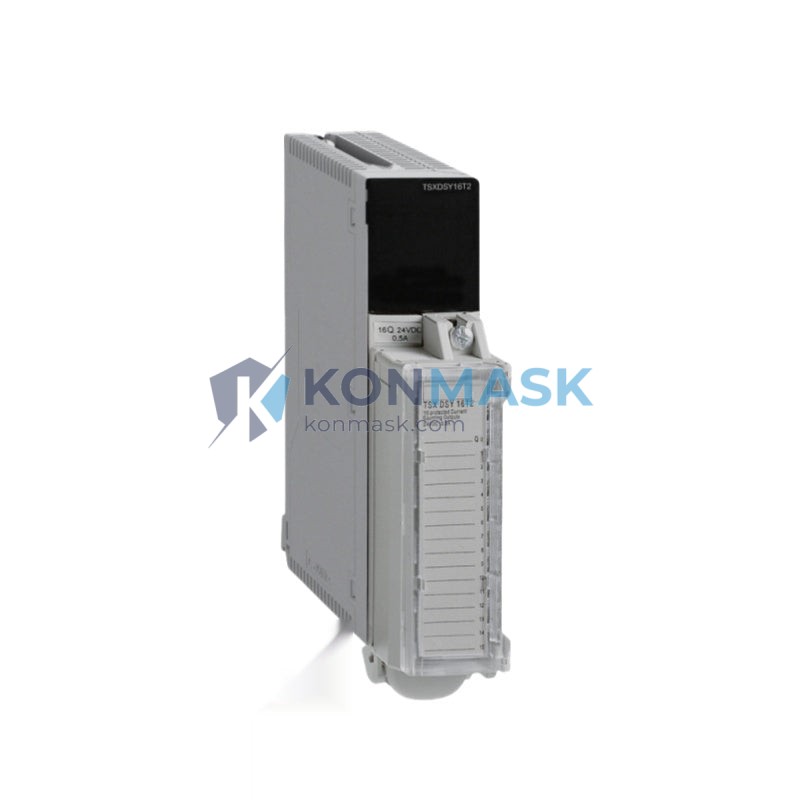

The SCHNEIDER TSXDSY16T2 is a 16-channel transistor discrete output module designed for the Modicon TSX Premium programmable logic controller platform. Engineered for high-speed, high-reliability digital output control in industrial automation environments, this module is a trusted component across manufacturing, process control, and infrastructure applications worldwide. Konmask.com supplies genuine and verified TSXDSY16T2 units with full traceability and quality assurance.
Technical Specifications
- Part Number: TSXDSY16T2
- Manufacturer: Schneider Electric (Modicon)
- Series: Modicon TSX Premium
- Module Type: Discrete Output Module
- Number of Channels: 16
- Output Type: Transistor (solid-state), sourcing (PNP)
- Rated Output Voltage: 24 VDC
- Max Output Current per Channel: 0.5 A
- Total Max Load Current: 4 A per common group
- Isolation: Optical isolation between logic and field side
- Response Time: ≤ 1 ms (ON/OFF)
- Protection: Short-circuit and overload protection per channel
- Connector Type: 40-pin HE10 connector
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +70°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H × W × D): 100 × 15 × 60 mm (approx.)
- Weight: 450 g
- Standards: IEC 61131-2, CE, UL
Compatible Replacement & Equivalent Models
When the TSXDSY16T2 is unavailable or end-of-life, the following models may serve as functional replacements depending on your system configuration. Always verify electrical and mechanical compatibility before substitution:
- TSXDSY16T3 – Higher current variant (1 A/channel), same channel count and connector; direct form-factor replacement for higher-load applications
- TSXDSY32T2 – 32-channel version for expanded I/O density; requires rack slot availability
- TSXDSY08T2 – 8-channel reduced version; suitable when only partial output capacity is needed
- BMXDDO1602 – Modicon M340 platform equivalent; requires platform migration and software re-mapping
- BMXDDO3202K – M340 32-channel transistor output; for system upgrades from TSX Premium to M340
- TM5SDO16DT – Modicon TM5 distributed I/O equivalent for decentralized architectures
⚠ Note: Cross-platform replacements require engineering review. Contact Konmask.com for selection support.
Why Choose the Original Model
- Plug-and-Play Compatibility: The TSXDSY16T2 slots directly into any TSX Premium rack without firmware changes or re-wiring
- Proven Reliability: Millions of units deployed globally in mission-critical industrial environments
- Schneider Unity Pro / PL7 Pro Support: Full native support in both legacy and current Schneider programming environments
- Per-Channel Protection: Built-in short-circuit protection eliminates the need for external fusing on each output
- Long Service Life: Solid-state transistor outputs rated for >10 million switching cycles
- Minimal Downtime: Hot-swap capable within TSX Premium racks (with appropriate rack configuration)
Typical Applications
- Solenoid valve and actuator control in fluid power systems
- Conveyor belt and material handling drive control
- Indicator lamp and HMI signal output
- Motor starter and contactor switching
- Packaging machinery and bottling line automation
- HVAC and building management system (BMS) control outputs
- Water treatment and pump station automation
- Automotive assembly line PLC I/O expansion
System Compatibility
The TSXDSY16T2 is compatible with the following TSX Premium CPU and rack configurations:
- CPUs: TSXP571634M, TSXP572634M, TSXP573634M, TSXP574634M, TSXP575634M, TSXP576634M
- Racks: TSXRKY4, TSXRKY6, TSXRKY8, TSXRKY12, TSXRKY16 (standard and extended racks)
- Power Supplies: TSXPSY2600M, TSXPSY5500M, TSXPSY8500M
- Programming Software: PL7 Pro v4.x, Unity Pro v2.x and above
- Bus Extensions: Compatible with TSXSCY21601 and TSXSCY11601 bus extension modules
Selection Guide
Use the following criteria to confirm the TSXDSY16T2 is the right module for your application:
- ✅ Platform: You are using a Modicon TSX Premium PLC rack
- ✅ Output Type: You require transistor (solid-state) sourcing outputs — not relay outputs
- ✅ Voltage: Your field devices operate at 24 VDC
- ✅ Current: Each output load is ≤ 0.5 A (e.g., solenoids, lamps, small contactors)
- ✅ Channel Count: 16 output points per module meets your I/O density requirement
- ✅ Speed: Response time ≤ 1 ms is sufficient for your control cycle
If your load exceeds 0.5 A per channel → consider TSXDSY16T3.
If you need relay outputs → consider TSXDSY16R5.
If you are migrating to M340 → consider BMXDDO1602 with platform re-engineering.
Quality Assurance & Sourcing
- Genuine Parts Only: All TSXDSY16T2 units sourced through authorized Schneider Electric distribution channels or verified surplus with full traceability
- 4-Step Verification: Visual inspection → Functional test → Firmware/label verification → Packaging integrity check
- Anti-Counterfeit Measures: Serial number verification against Schneider Electric databases where applicable
- Condition Options: New-in-box (NIB), factory-refurbished, and tested-used available — clearly labeled at time of order
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com
- Documentation: Datasheet, test report, and certificate of conformity available upon request
How to Order
- Confirm Part Number: Verify TSXDSY16T2 against your existing module label or system BOM
- Specify Quantity & Condition: Indicate required quantity and preferred condition (new / refurbished / tested-used)
- Request a Quote: Email support@konmask.com or call +0086 19859288691 for pricing and lead time
- Confirm Shipping Details: Provide delivery address, preferred courier, and any import/customs requirements
- Receive & Verify: Inspect upon arrival — all units ship with test documentation and are eligible for return within 7 days if DOA
Replacement & Compatibility FAQ
Q: Can TSXDSY16T2 be replaced by TSXDSY16T3 directly?
A: Yes, in most cases. The T3 variant supports 1 A per channel vs. 0.5 A on the T2. It is mechanically and electrically compatible with the same rack slots and wiring connectors. Verify your power supply budget before substitution.
Q: Is TSXDSY16T2 compatible with Modicon M340 or M580?
A: No. The TSXDSY16T2 is exclusive to the TSX Premium platform. M340 and M580 use different backplane architectures. Migration requires platform-specific I/O modules (e.g., BMXDDO1602 for M340).
Q: Can I use TSXDSY16T2 in a TSX Micro or TSX Nano rack?
A: No. TSX Micro and TSX Nano use integrated I/O architectures and do not accept TSX Premium expansion modules.
Q: What is the difference between TSXDSY16T2 and TSXDSY16T2K?
A: The “K” suffix typically denotes a kit or bundle variant including accessories (e.g., pre-wired connector). Core module functionality is identical.
Q: How do I verify authenticity of a TSXDSY16T2 unit?
A: Check the Schneider Electric holographic label, verify the serial number via Schneider’s product verification portal, and confirm the module firmware version matches official documentation. Konmask.com provides full traceability documentation with every shipment.
