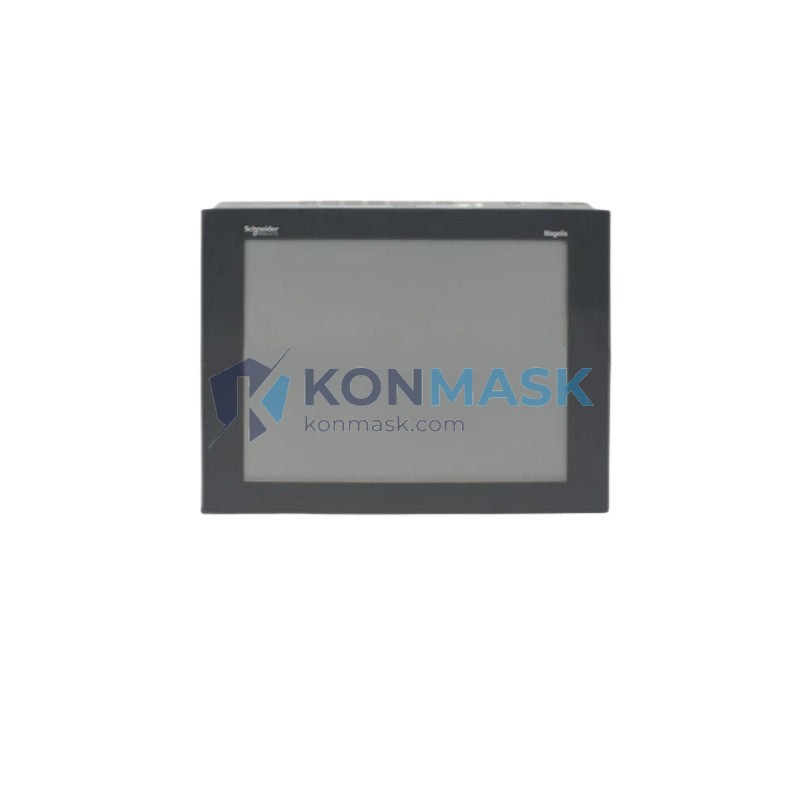

SCHNEIDER XBTG7340 Advanced Touchscreen Panel | Replacement, Equivalent & Selection Guide
The Schneider Electric XBTG7340 is a high-performance HMI (Human-Machine Interface) touchscreen panel from the Magelis XBTG series, designed for demanding industrial automation environments. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | XBTG7340 |
| Series | Magelis XBTG |
| Display Type | TFT Color Touchscreen |
| Display Size | 10.4 inch |
| Resolution | 640 × 480 (VGA) |
| Communication Ports | RS-232, RS-485, Ethernet (RJ45), USB Host/Device |
| Programming Software | Vijeo Designer |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Protection Rating | IP65 (front panel) |
| Memory | Flash memory for application storage |
| Weight | Approx. 400 g |
| Certifications | CE, UL, cUL |
Compatible Replacement & Equivalent Models
When the XBTG7340 is discontinued, hard to source, or cost-prohibitive, the following models offer functional equivalence or direct drop-in replacement potential:
- XBTGT7340 – Schneider Magelis XBTGT series; enhanced version with faster processor and expanded memory. Direct functional upgrade.
- XBTGK5330 – Schneider Magelis XBTGK; smaller 5.7″ variant for space-constrained panels, same Vijeo Designer programming environment.
- Siemens KTP1000 Basic DP – 10″ TFT panel with PROFIBUS DP; suitable for Siemens S7 PLC environments as a cross-brand alternative.
- Weintek MT8102iE – 10.1″ widescreen HMI; supports Modbus, EtherNet/IP, and multi-brand PLC protocols; cost-effective replacement.
- Proface GP4501TW – 10.4″ TFT; compatible with Modbus RTU/TCP and major PLC brands; industrial-grade alternative.
- Delta DOP-B10S615 – 10.1″ HMI; supports Delta DVP/AS series PLCs and Modbus; budget-friendly equivalent for non-critical applications.
Note: Always verify communication protocol, power supply voltage, and cutout dimensions before substituting. Contact Konmask for pre-sales compatibility verification.
Why Choose the Original Model
- Proven reliability – Magelis XBTG series has a long field track record in automotive, food & beverage, and water treatment industries.
- Native Vijeo Designer integration – Seamless programming with Schneider’s official IDE; no protocol bridging required.
- IP65 front protection – Suitable for wash-down and dusty environments without additional enclosure modifications.
- Multi-protocol support – RS-232, RS-485, and Ethernet enable connection to a wide range of PLCs and field devices.
- OEM spare parts availability – Genuine Schneider parts ensure warranty compliance and system certification integrity.
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Conveyor and material handling system HMIs
- Water and wastewater treatment SCADA local displays
- Food & beverage packaging line operator stations
- Building automation and HVAC control panels
- Energy management and power distribution monitoring
- Pharmaceutical and chemical process visualization
System Compatibility
The XBTG7340 is compatible with the following PLC and automation platforms via built-in or configurable drivers in Vijeo Designer:
- Schneider Electric – Modicon M340, M580, Premium, Quantum, TM221/241 (Modbus RTU/TCP)
- Siemens – S7-200, S7-300, S7-400 (via Modbus or third-party driver)
- Mitsubishi – FX, Q, iQ-R series (via Modbus RTU)
- Omron – CP1, CJ, CS series (via Modbus RTU)
- Allen-Bradley – MicroLogix, SLC 500 (via DF1/Modbus)
- Generic Modbus RTU/TCP devices – Universal compatibility for third-party field instruments
Selection Guide
Use the following criteria to determine whether the XBTG7340 is the right choice for your application, or to select an appropriate alternative:
- Display size requirement: 10.4″ is ideal for operator stations requiring clear data visualization at arm’s length. For smaller panels, consider XBTGK5330 (5.7″) or XBTGT6340 (6.5″).
- Communication protocol: If your PLC uses PROFIBUS DP or EtherNet/IP natively, evaluate Siemens KTP or Weintek MT series for native driver support.
- Environment rating: IP65 front panel is sufficient for most industrial environments. For full IP67/IP69K, consider Proface GP4000 series.
- Budget: For cost-sensitive projects, Weintek MT8102iE or Delta DOP-B10S615 offer comparable functionality at lower price points.
- Software ecosystem: If your team is already using Vijeo Designer, staying within the Magelis XBTG/XBTGT family minimizes retraining costs.
- Obsolescence risk: For new installations, consider the XBTGT series (successor line) to ensure longer product lifecycle support from Schneider Electric.
Quality Assurance & Sourcing
- Genuine OEM units – All XBTG7340 units sourced through authorized Schneider Electric distribution channels.
- Inspection & testing – Each unit undergoes power-on functional verification and visual inspection before shipment.
- Traceability – Serial numbers and batch records maintained for full supply chain traceability.
- Warranty – 12-month warranty against manufacturing defects; replacement or refund policy applies.
- Anti-counterfeit – Holographic labels and OEM packaging verified at intake; counterfeit units rejected.
How to Order
- Confirm part number: XBTG7340 (include firmware version if required).
- Specify quantity and required delivery timeline.
- Contact Konmask via email or phone for stock availability and lead time confirmation.
- Receive proforma invoice; confirm payment terms.
- Units shipped with full documentation (datasheet, test report, packing list).
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the XBTG7340 be replaced by the XBTGT7340 without hardware modification?
A: In most cases yes — the XBTGT7340 uses the same cutout dimensions and 24 VDC power supply. Verify communication wiring and re-upload the Vijeo Designer project.
Q: Is the XBTG7340 still in production?
A: The XBTG series has been superseded by the XBTGT series. Stock availability varies; contact Konmask for current inventory status.
Q: Can I use a Weintek or Proface panel as a drop-in replacement?
A: Physically, cutout dimensions may differ. Functionally, you will need to recreate the HMI project in the replacement panel’s software (EasyBuilder Pro or GP-Pro EX). Protocol bridging may also be required.
Q: Does Konmask provide programming or integration support?
A: Konmask specializes in hardware supply. For programming support, we can refer you to certified Schneider Electric system integrators.
Q: What is the minimum order quantity?
A: No minimum order quantity. Single units and bulk orders are both accepted.
