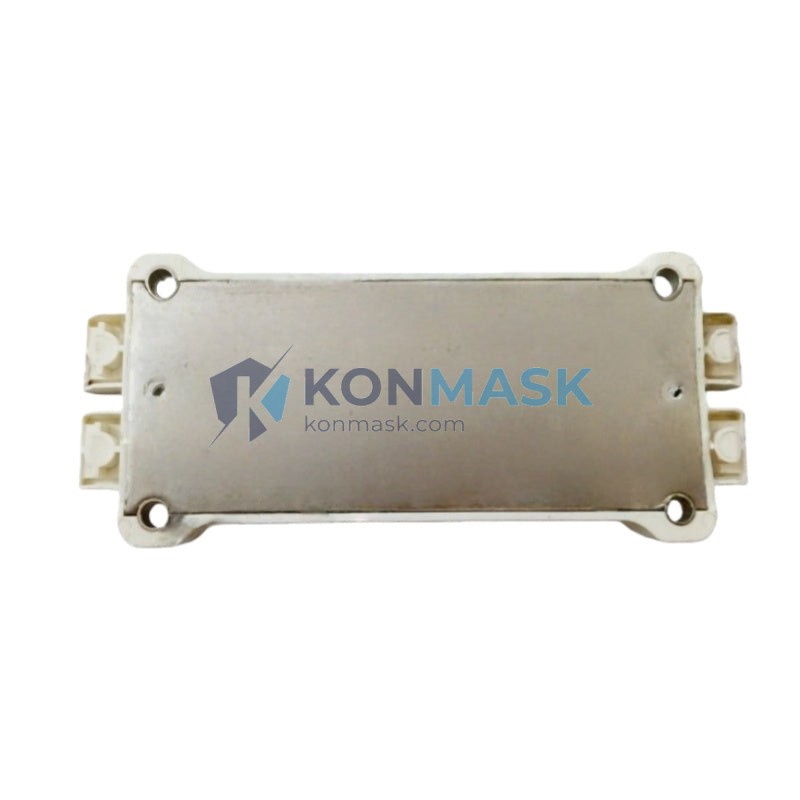

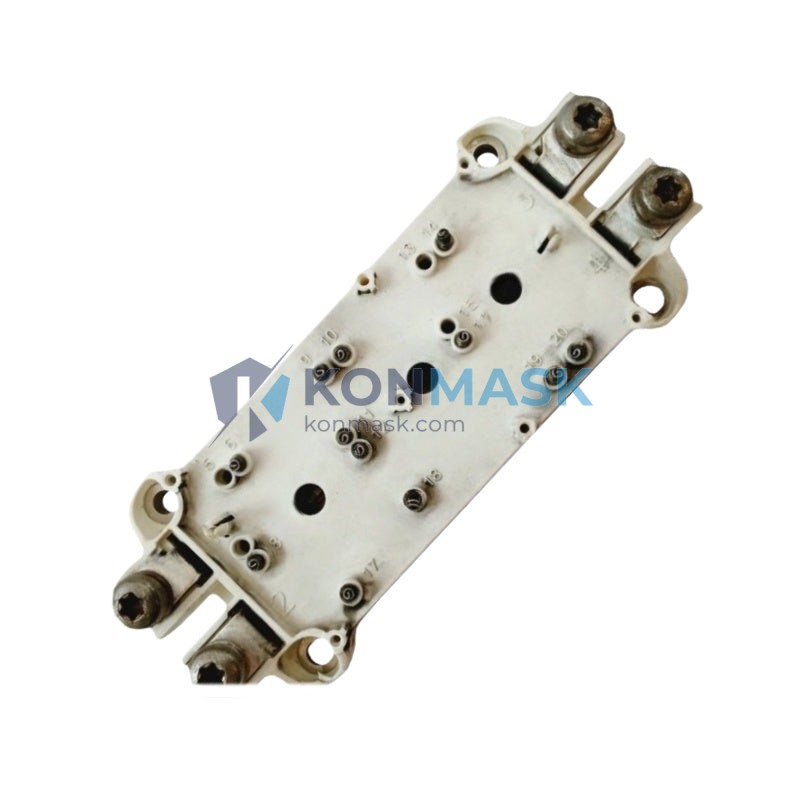

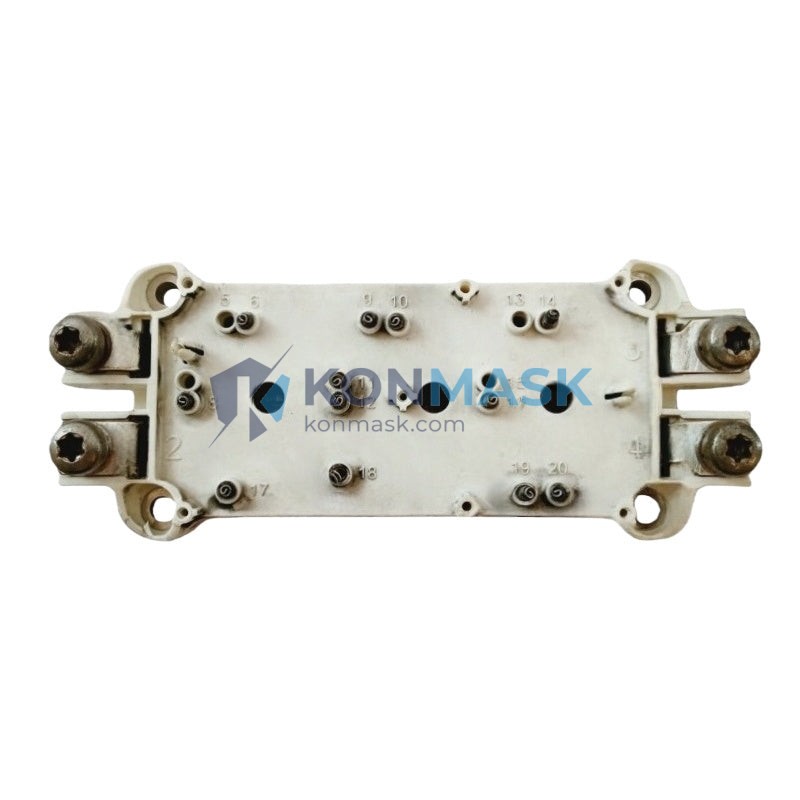

SEMIKRON SEMIX353GB126V1 IGBT Module 1200V 353A | SEMiX Press-Pack

SEMIKRON SEMIX353GB126V1 – High-Power IGBT Switching Module | SEMiX Press-Pack Platform

Engineering Background: The SEMIX353GB126V1 belongs to SEMIKRON’s SEMiX series — a press-pack IGBT platform engineered for high-power industrial conversion systems where thermal cycling endurance, low stray inductance, and reliable gate-drive compatibility are non-negotiable. This module is a dual IGBT half-bridge configuration rated at 1200 V / 353 A, designed to operate continuously in demanding environments including variable-speed drives, renewable energy inverters, and rail traction systems.

Product Positioning: Targeting power electronics engineers who require a drop-in, spec-verified replacement or new-build component for medium-to-high power converter stages (typically 75 kW–400 kW). The SEMiX platform’s standardized footprint and gate-drive interface reduce design iteration time and simplify multi-vendor qualification.

Complete Technical Specifications

• Part Number: SEMIX353GB126V1
• Manufacturer: SEMIKRON (now Semikron Danfoss)
• Series / Platform: SEMiX® Press-Pack
• Configuration: Dual IGBT Half-Bridge (2-in-1)
• Collector-Emitter Voltage (V_CES): 1200 V
• Continuous Collector Current (I_C @ 25°C): 353 A
• Continuous Collector Current (I_C @ 80°C): ~250 A (derated)
• Peak Collector Current (I_CRM): 706 A
• Gate-Emitter Voltage (V_GES): ±20 V
• Saturation Voltage (V_CE(sat) @ I_C=353A): ≤ 2.5 V (typ.)
• Switching Frequency: Up to 20 kHz (application-dependent)
• Operating Junction Temperature (T_j): −40°C to +150°C
• Storage Temperature (T_stg): −40°C to +125°C
• Thermal Resistance Junction-to-Case (R_th(j-c)): ≤ 0.09 K/W per switch
• Isolation Voltage (V_isol): 4000 V AC (1 min)
• Package / Footprint: SEMiX press-pack, industry-standard bolt-down
• Weight: ~900 g
• Integrated Freewheeling Diodes: Yes (CAL4 soft-recovery type)
• Gate Drive Compatibility: SKHI / SKYPER series drivers (SEMIKRON)

Proven Application Environments

• Industrial Variable-Speed Drives (VSD): AC motor control for pumps, fans, compressors, and conveyors in the 75–400 kW range. The module’s low V_CE(sat) reduces conduction losses in continuous-duty cycles.
• Wind Turbine Converters: Full-power and doubly-fed induction generator (DFIG) topologies. The SEMiX platform’s thermal cycling robustness (>100,000 power cycles) is critical for offshore and onshore wind applications.
• Solar / PV String Inverters & Central Inverters: Three-phase NPC and T-type inverter stages where switching losses and EMI must be minimized.
• Rail Traction & Auxiliary Converters: Locomotive auxiliary power units and metro traction inverters requiring IEC 61373 vibration compliance.
• UPS & Energy Storage Systems: Three-phase online UPS topologies and battery energy storage system (BESS) inverters requiring high reliability under load-following duty.
• Marine & Offshore Drives: Variable-frequency drives for thrusters and winches in DNV/ABS-certified installations.

Engineering Advantages

• SEMiX Press-Pack Footprint: Standardized mechanical interface enables multi-source qualification and simplifies heatsink design — compatible with existing SEMiX-family heatsink assemblies.
• CAL4 Soft-Recovery Freewheeling Diodes: Reduces reverse-recovery di/dt, lowering EMI and switching losses in hard-switching topologies.
• Low Stray Inductance Package: Minimizes voltage overshoot (ΔV) during turn-off, reducing snubber requirements and improving system reliability.
• Wide T_j Range (−40°C to +150°C): Supports operation in unheated enclosures and high-ambient industrial environments without derating.
• Integrated NTC Thermistor: Enables real-time junction temperature monitoring for predictive thermal management and OTP protection.
• SEMIKRON SKYPER Gate Drive Compatibility: Plug-and-play with SKYPER 32R/52R drivers — reduces gate drive design risk and shortens time-to-prototype.

System Architecture & Signal Flow

In a typical three-phase inverter stage, three SEMIX353GB126V1 modules are arranged in a 6-switch bridge configuration. Each module forms one phase leg (high-side + low-side IGBT with freewheeling diodes). The signal flow is as follows:

• DC Bus Input → Collector of high-side IGBT (V_CES = 1200 V rail)
• PWM Gate Signal → Gate-Emitter terminals via isolated SKYPER driver (V_GE = +15V / −8V recommended)
• AC Phase Output → Mid-point (emitter of high-side / collector of low-side)
• NTC Signal → Monitoring PCB for thermal protection loop
• Heatsink Interface → Bolt-down to liquid-cooled or forced-air heatsink via SEMiX footprint (M6 bolts, torque per datasheet)

Sourcing & Quality Verification

• Origin: Genuine SEMIKRON / Semikron Danfoss production — not aftermarket or rebranded.
• Traceability: Each unit ships with original manufacturer label, date code, and lot number for full supply-chain traceability.
• Incoming Inspection: 100% visual inspection + V_CE(sat) and leakage current functional test prior to dispatch.
• Packaging: Anti-static tray + foam insert + moisture barrier bag with humidity indicator card.
• Certifications: RoHS compliant; CE marked; manufactured under ISO 9001 quality system.
• Shelf Life: Stored in climate-controlled warehouse (18–25°C, RH <60%) — no shelf-life degradation risk.

Procurement Process

1. Submit RFQ: Contact support@konmask.com with quantity, required delivery date, and project application details.
2. Quotation & Lead Time: Response within 24 business hours. Ex-stock units ship within 2–3 business days; non-stock orders quoted with factory lead time.
3. Order Confirmation: Pro-forma invoice issued. Payment via T/T, PayPal, or credit card (Stripe).
4. Shipping: DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) included.
5. After-Sales: 12-month warranty against manufacturing defects. Technical support available for gate drive and thermal design questions.

Technical FAQ

Q: Can the SEMIX353GB126V1 replace an older SEMiX module with a different suffix (e.g., V2, V3)?
A: Suffix variants typically indicate minor process or packaging revisions. Electrical parameters are generally backward-compatible, but always verify V_CE(sat), R_th, and gate charge values against your gate drive design before substitution.

Q: What gate resistor (R_g) value is recommended?
A: SEMIKRON recommends R_g,on = 2.2–4.7 Ω and R_g,off = 2.2–4.7 Ω for this module at rated current. Refer to the SEMIX353GB126V1 datasheet Application Note for switching loss vs. R_g curves.

Q: Is liquid cooling required?
A: Not mandatory. Forced-air cooling is viable at reduced power levels. For full 353 A continuous operation, liquid cooling (water or glycol) is strongly recommended to maintain T_j < 125°C.

Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 piece. Volume pricing is available for orders of 5+ units.

Q: Do you provide the official SEMIKRON datasheet?
A: Yes. The datasheet PDF is available upon request with your RFQ. Contact support@konmask.com.

---
