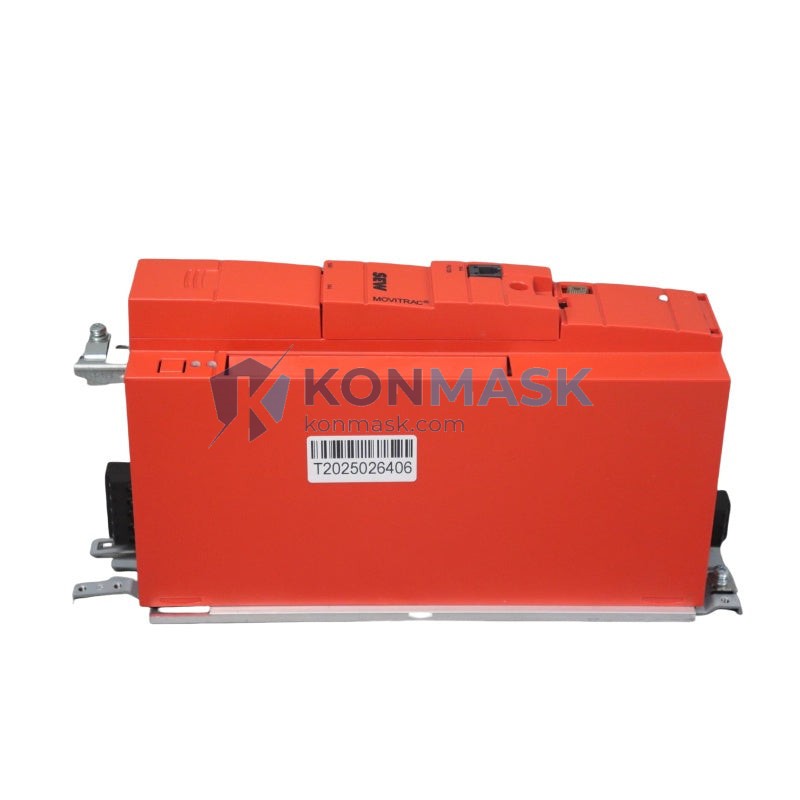

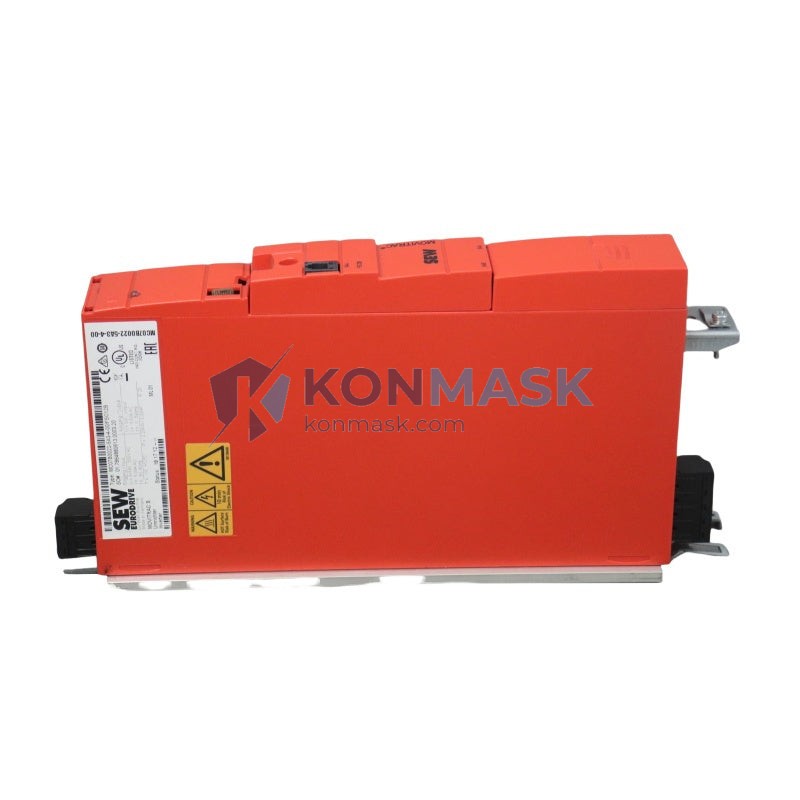

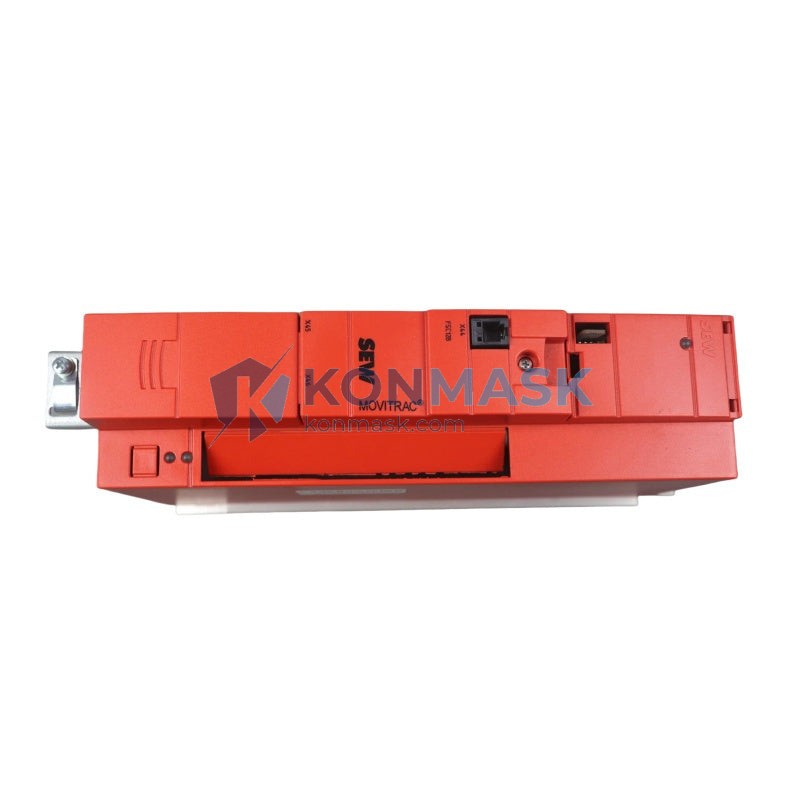

Variable Speed Drive Solution – SEW-Eurodrive MC07B0022-5A3-4-00 | MOVITRAC B Series
The SEW-Eurodrive MC07B0022-5A3-4-00 is a compact, high-performance frequency inverter from the MOVITRAC® B series, rated at 2.2 kW (3 HP) for three-phase 380–500 V supply networks. Engineered for demanding industrial environments, this drive delivers precise motor speed control, energy savings, and seamless integration into modern automation architectures.
Where This Product Is Used
Industrial engineers and OEM machine builders specify the MC07B0022-5A3-4-00 across a wide range of motion-control applications:
- Conveyor & Material Handling: Smooth start/stop and variable belt speed on packaging lines, airport baggage systems, and warehouse sortation conveyors.
- Pump & Fan Control: Energy-efficient flow regulation in HVAC, water treatment, and process cooling systems — eliminating throttle valves and reducing power consumption by up to 50%.
- Textile & Printing Machinery: Tension-controlled winding/unwinding and precise web-speed synchronization.
- Food & Beverage Processing: Hygienic-area drives for mixers, fillers, and portioning machines requiring repeatable speed profiles.
- Crane & Hoist Applications: Controlled acceleration/deceleration for overhead cranes and vertical lifts with safe torque-off capability.
- General Machine Building: Spindle drives, rotary tables, and indexing stations in CNC and assembly automation.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | MC07B0022-5A3-4-00 |
| Series | MOVITRAC® B |
| Rated Output Power | 2.2 kW (3 HP) |
| Supply Voltage | 3-Phase, 380–500 V AC (±10%) |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Nominal) | 5.5 A |
| Output Frequency Range | 0 – 150 Hz |
| Control Method | V/f characteristic, Sensorless vector (VFC) |
| Protection Class | IP20 (UL Open Type) |
| Ambient Temperature | 0 °C to +40 °C (derating to +55 °C) |
| Braking | Built-in brake chopper |
| Communication | RS-485 (SBus), optional fieldbus modules |
| Dimensions (H×W×D) | Approx. 202 × 90 × 172 mm |
| Weight | 1.91 kg |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Compact Footprint: Slim 90 mm width enables side-by-side mounting in tight control cabinets without derating.
- Integrated Brake Chopper: Eliminates the need for an external braking unit in most applications, reducing BOM cost and panel space.
- Flexible Communication: Native SBus (RS-485) plus optional PROFIBUS, CANopen, DeviceNet, and PROFINET modules allow drop-in integration with existing PLC networks.
- SEW MOVITOOLS® MotionStudio: Unified commissioning, diagnostics, and parameter management software — reducing startup time significantly.
- Wide Voltage Tolerance: ±10% supply tolerance handles unstable grid conditions common in industrial facilities.
- Proven Global Installed Base: MOVITRAC B is deployed in 100+ countries with localized SEW service centers for rapid support.
Complete System Bill of Materials
For a fully functional drive system, engineers typically pair the MC07B0022-5A3-4-00 with:
- Input Line Filter: SEW HD.. series EMC filter (Class C2/C3) for conducted emission compliance
- Line Choke: ND.. series input choke to protect against supply transients
- Braking Resistor: BW.. series resistor for high-cycle or regenerative loads
- Fieldbus Module: DFP21B (PROFIBUS), DFE24B (EtherNet/IP), or DFD11B (DeviceNet) as required
- Keypad / Display: DBG60B handheld operator panel for local parameter setting
- Motor: SEW DRN.. or DR.. series IE3 induction motor (2.2 kW, 4-pole recommended)
Compliance & Industry Standards
- CE Marked — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL Listed / cUL (File E192143)
- RoHS 2 Compliant (Directive 2011/65/EU)
- EN 61800-5-1 (Electrical safety of adjustable speed drives)
- EN 61800-3 (EMC requirements — Category C2)
- IEC 61508 / EN 954-1 — Safe Torque Off (STO) ready via optional safety module
Quality Assurance & Sourcing
Every unit offered through Konmask.com undergoes a structured verification process:
- Visual inspection of housing, labels, and nameplate data against OEM specifications
- Functional power-on test and parameter read-back verification
- Authenticity check: serial number cross-referenced against SEW production records where available
- Sourced from authorized distributors, decommissioned OEM lines, or certified refurbishers — condition disclosed at point of sale
- Packed in anti-static ESD-safe packaging with desiccant for international transit
How to Source This Part
Ready to order or need a formal quotation? Here’s how to proceed:
- Add to Cart: In-stock units ship within 1–3 business days from our warehouse
- Request a Quote: Email support@konmask.com with your required quantity, delivery timeline, and Incoterms preference
- Bulk / OEM Orders: Volume pricing available for 5+ units — contact us for a tiered price schedule
- Lead Time for New Units: Factory-new stock typically 4–8 weeks; refurbished/surplus stock available immediately
- Export Documentation: We provide commercial invoice, packing list, and CO (Certificate of Origin) for customs clearance
Application-Specific FAQ
Q: Can the MC07B0022-5A3-4-00 control a single-phase motor?
A: No. This model outputs three-phase power and is designed for three-phase AC induction or synchronous motors only.
Q: Is a separate braking resistor required for conveyor applications?
A: The built-in brake chopper handles most conveyor deceleration loads. An external BW.. resistor is recommended only for high-inertia loads or duty cycles exceeding 10% braking time.
Q: What fieldbus does this drive support natively?
A: The base unit supports SEW SBus (RS-485). PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, and PROFINET are available via plug-in option cards.
Q: Can I use MOVITOOLS® MotionStudio to commission this drive?
A: Yes. Connect via the front-panel RS-485 port or USB-RS485 adapter. MotionStudio supports full parameter upload/download, scope function, and startup wizard.
Q: What is the warranty on units purchased from Konmask.com?
A: All units carry a minimum 90-day functional warranty. Extended warranty options are available — contact us for details.
