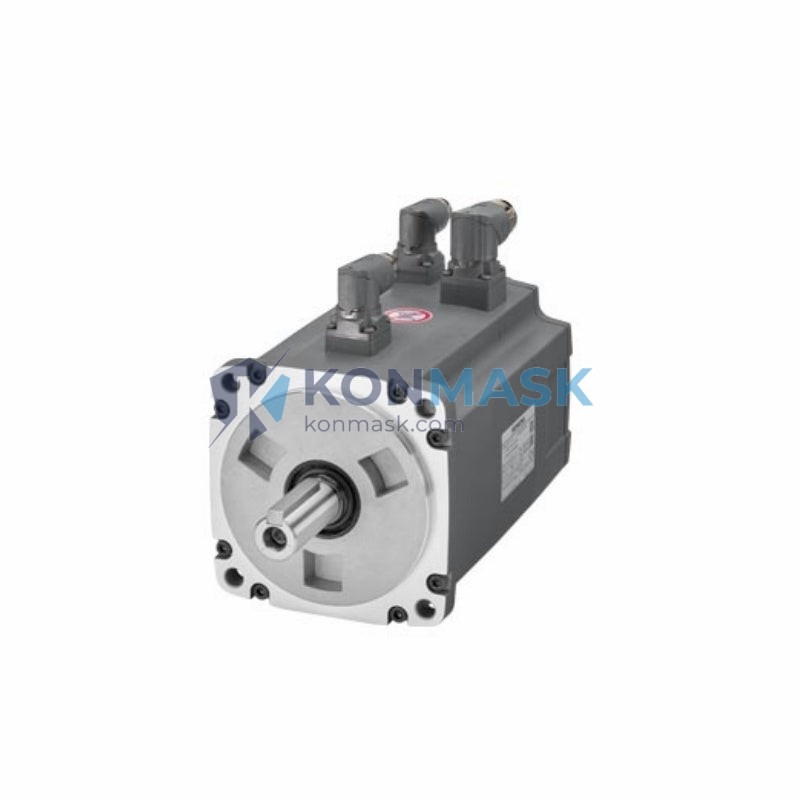

Siemens 1FL6092-1AC61-2LA1 Permanent-Magnet Synchronous Servo Motor – SIMOTICS S-1FL6 Series
When a servo axis loses its drive motor on a production line, the consequences are immediate and costly: the entire machine halts, downstream processes back up, and every minute of unplanned downtime erodes both output and margin. In high-precision applications—CNC machining centers, packaging lines, or robotic assembly cells—there is no acceptable substitute for the exact motor the system was engineered around. The Siemens 1FL6092-1AC61-2LA1 is that motor: a purpose-built, permanent-magnet synchronous servo motor designed to restore full axis performance without compromise.
Within the SIMOTICS S-1FL6 family, the 1FL6092-1AC61-2LA1 occupies the high-inertia, medium-frame segment—shaft height 90 mm, natural-cooled construction, with a 23-bit absolute encoder (Hiperface DSL single-turn) and a holding brake. This combination makes it the preferred choice for axes that demand precise positioning, smooth torque delivery at low speed, and safe standstill holding. Globally, the SIMOTICS S-1FL6 series is one of Siemens’ most widely deployed servo platforms, fully integrated with SINAMICS S120 and S210 drive systems and supported by TIA Portal engineering.
Technical Specifications
- Part Number / SKU: 1FL6092-1AC61-2LA1
- Series: SIMOTICS S-1FL6 (High-Inertia)
- Motor Type: Permanent-Magnet Synchronous Servo Motor (PMSM)
- Shaft Height: 90 mm
- Cooling Method: Natural convection (IC 410)
- Rated Voltage: 400 V AC (3-phase)
- Encoder: 23-bit absolute single-turn (Hiperface DSL)
- Brake: Integrated holding brake
- Protection Class: IP64
- Insulation Class: F (155 °C)
- Compatible Drive Systems: SINAMICS S120, SINAMICS S210
- Weight: Approx. 6.8 kg
- Mounting: Flange mount (IM B5 / IM V1 / IM V3)
Note: All specifications are sourced from Siemens published datasheets. Do not rely on this page alone for engineering design—always verify against the official Siemens product configurator (SIZER) and current datasheet.
Key Features & Benefits
- High-Inertia Rotor Design: Optimized for axes with large load inertia ratios, reducing mechanical resonance and enabling stable control without complex filter tuning.
- 23-Bit Absolute Encoder (Hiperface DSL): Single-cable technology combines power and encoder signals, simplifying wiring and improving noise immunity. Absolute position is retained on power-down—no homing cycle required at startup.
- Integrated Holding Brake: Provides safe mechanical standstill holding for vertical axes or safety-critical applications, reducing reliance on external brake hardware.
- Seamless TIA Portal Integration: Drive and motor parameters are auto-identified via DRIVE-CLiQ-compatible encoder protocol, dramatically reducing commissioning time.
- Natural Cooling: No external fan required, eliminating a common failure point and reducing maintenance intervals in dusty or humid environments.
- IP64 Protection: Suitable for environments with moderate dust and splash water exposure, common in machine tool and food-adjacent applications.
Industry & Equipment Applications
- CNC Machine Tools: Feed axis and spindle positioning on machining centers, lathes, and grinding machines.
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and cartoning lines requiring precise torque and position control.
- Robotics & Handling: Joint drives in Cartesian gantries and SCARA robots where high inertia matching is critical.
- Printing & Converting: Register control and tension management on web-fed printing presses and slitter-rewinders.
- Semiconductor & Electronics Manufacturing: Precision stage drives in wafer handling and PCB drilling equipment.
- Plastics & Injection Molding: Clamp and injection axis drives on all-electric injection molding machines.
System Integration & Compatible Parts
The 1FL6092-1AC61-2LA1 is engineered for direct integration with the Siemens SINAMICS drive ecosystem. Typical system components include:
- Drive Units: SINAMICS S120 Motor Module (booksize or chassis), SINAMICS S210 single-axis servo drive
- Power Supply: SINAMICS S120 Active Line Module or Smart Line Module
- Motor Cable: Siemens pre-assembled power cable for 1FL6 (order separately by length)
- Encoder Cable: Single-cable solution (SCS) for Hiperface DSL—power and encoder in one cable
- Controller: SIMATIC S7-1500T (technology CPU) with S7-1500 Motion Control, or SINUMERIK 840D sl for CNC applications
- Engineering Software: TIA Portal V17+, SIZER for Siemens Drives (sizing tool)
Our Quality Assurance Process
At Konmask.com, every unit of the Siemens 1FL6092-1AC61-2LA1 passes through a structured verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized Siemens distribution channels or verified surplus inventories with full traceability documentation.
- Visual & Physical Inspection: Nameplate data (part number, serial number, date code) is cross-checked against Siemens product records. Connectors, shaft, and encoder housing are inspected for damage or tampering.
- Packaging Integrity: Original Siemens packaging is preserved where available. Repackaged units are secured with anti-static materials and shock-absorbing foam.
- Documentation: Each shipment includes a packing list with serial numbers. Test reports or certificates of conformity are provided upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page, or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange export documentation, freight, and insurance as required.
- Tracking information is shared at the time of shipment.
We support T/T (wire transfer), L/C, and other standard B2B payment terms. Minimum order quantity: 1 unit.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, servo, and drive components—not a general electronics marketplace.
- ✅ Global Export Experience: We ship to Europe, Southeast Asia, the Middle East, and the Americas with full export documentation.
- ✅ Fast Response: Dedicated B2B team responds to all RFQs within 1 business day.
- ✅ Traceability: Every unit ships with verifiable serial number documentation.
- ✅ Long-Term Partnership: We support repeat procurement, blanket orders, and emergency sourcing for MRO and OEM customers.
Frequently Asked Questions
Q: Is the 1FL6092-1AC61-2LA1 compatible with SINAMICS S210?
A: Yes. The SIMOTICS S-1FL6 series is fully compatible with SINAMICS S210 single-axis servo drives. The Hiperface DSL encoder protocol is natively supported, enabling single-cable connection and automatic motor identification.
Q: What does the “2LA1” suffix indicate in the part number?
A: In Siemens’ ordering nomenclature for the 1FL6 series, the suffix encodes options such as encoder type, brake configuration, shaft and flange variant, and vibration class. “2LA1” specifies the 23-bit absolute single-turn Hiperface DSL encoder with integrated holding brake and standard shaft/flange. Always verify the full order number against the Siemens configurator for your specific application.
Q: Can this motor be used as a direct replacement for an older 1FK7 or 1FT7 motor?
A: The 1FL6 series is not a direct drop-in replacement for 1FK7 or 1FT7 motors due to differences in flange dimensions, encoder protocol, and drive parameterization. A compatibility assessment by a qualified Siemens drive engineer is required before substitution.
Q: Do you provide a warranty on this product?
A: We offer a standard inspection warranty covering physical and nameplate integrity. For operational warranty, we recommend purchasing through an authorized Siemens channel. Contact us for details on our quality guarantee terms.
Q: What is the typical lead time for the 1FL6092-1AC61-2LA1?
A: Lead time depends on current stock availability. Please submit an RFQ for a real-time availability check. In-stock units typically ship within 3–5 business days after order confirmation.
