SIEMENS 6AV6640-0AA00-0AX0 TD 400C Text Display | S7-200 HMI Panel

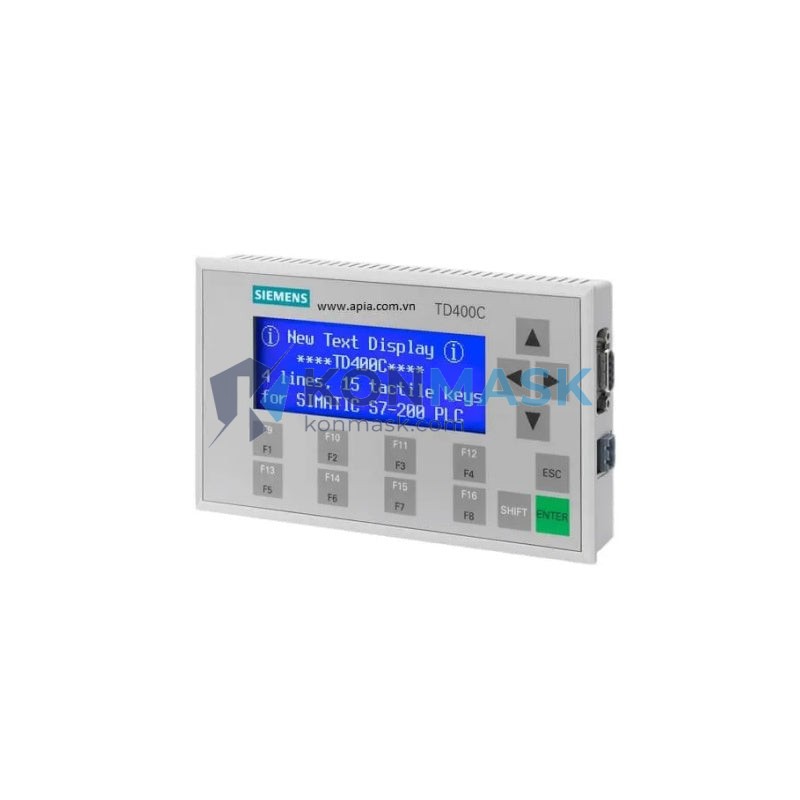

SIEMENS 6AV6640-0AA00-0AX0 TD 400C Text Display – SIMATIC S7-200 Series

When a production line loses its operator interface, engineers are left blind — unable to monitor process variables, acknowledge alarms, or adjust setpoints without halting operations. In time-critical industrial environments, even minutes of downtime translate directly into lost output and costly maintenance escalations. The SIEMENS TD 400C Text Display (6AV6640-0AA00-0AX0) eliminates this vulnerability by providing a robust, dedicated HMI solution engineered specifically for SIMATIC S7-200 PLC systems.

Within the SIMATIC S7-200 HMI ecosystem, the TD 400C occupies the entry-level yet highly capable tier — offering a cost-effective, space-efficient display solution for machines and panels where a full-color touchscreen is unnecessary but reliable text-based monitoring is essential. Trusted by OEMs and system integrators across manufacturing, water treatment, HVAC, and packaging industries worldwide, the 6AV6640-0AA00-0AX0 has established itself as a dependable workhorse in global industrial automation deployments.

Technical Specifications

• Part Number / SKU: 6AV6640-0AA00-0AX0
• Product Family: SIMATIC TD 400C
• Series: SIMATIC S7-200 Text Display
• Display Type: LCD, 4-line text display
• Characters per Line: 20 characters
• Supply Voltage: 24 V DC
• Protection Rating: IP65 (front panel)
• Communication Interface: PPI (Point-to-Point Interface) via RS-485
• Compatible PLC: SIMATIC S7-200 CPU series
• Operating Temperature: 0 °C to +50 °C
• Storage Temperature: -20 °C to +70 °C
• Dimensions (W × H × D): 182 × 86 × 33 mm (approx.)
• Weight: approx. 613 g
• Mounting: Panel cut-out mounting
• Manufacturer: Siemens AG, Germany

Key Features & Benefits

• Plug-and-Play with S7-200: Connects directly to the S7-200 CPU via the PPI port — no additional communication module required, reducing wiring complexity and commissioning time.
• 4-Line LCD Display: Displays up to 4 lines × 20 characters simultaneously, enabling clear presentation of process values, alarm messages, and operator prompts.
• IP65 Front Protection: Sealed front panel resists dust and water jets, making it suitable for harsh industrial environments including food processing and outdoor enclosures.
• Configurable Function Keys: Dedicated function keys allow operators to trigger PLC actions directly from the panel without additional input devices.
• Multilingual Support: Supports multiple character sets for international deployments.
• Compact Form Factor: Slim depth of 33 mm allows installation in space-constrained control panels.
• Low Power Consumption: 24 VDC operation with minimal current draw, compatible with standard PLC power supplies.

Industry & Equipment Applications

• Manufacturing & Assembly Lines: Machine status monitoring, cycle count display, fault acknowledgment.
• Water & Wastewater Treatment: Pump status, flow rate display, alarm management.
• HVAC & Building Automation: Temperature setpoint adjustment, system status readout.
• Packaging Machinery: Speed display, batch counting, operator prompts.
• Food & Beverage Processing: IP65 rating supports washdown environments.
• OEM Machine Builders: Cost-effective HMI solution for volume machine production.

System Integration & Compatible Parts

The TD 400C (6AV6640-0AA00-0AX0) is designed for seamless integration within the SIMATIC S7-200 automation platform. Compatible and commonly paired components include:

• SIMATIC S7-200 CPUs: CPU 221, CPU 222, CPU 224, CPU 224XP, CPU 226
• S7-200 Expansion Modules: EM 221, EM 222, EM 223 (digital I/O)
• S7-200 Analog Modules: EM 231, EM 232, EM 235
• STEP 7-Micro/WIN programming software (for TD 400C wizard configuration)
• PC/PPI cable or USB/PPI adapter for programming
• SIMATIC S7-200 SMART series (verify firmware compatibility)

Our Quality Assurance Process

At Konmask.com, every SIEMENS 6AV6640-0AA00-0AX0 unit we supply undergoes a rigorous multi-stage verification process before shipment:

• Authenticity Verification: Cross-referenced against Siemens product databases and physical label inspection.
• Visual Inspection: Full exterior check for damage, corrosion, or counterfeit indicators.
• Functional Pre-check: Power-on test and communication interface verification where applicable.
• Secure Packaging: Anti-static packaging with shock-absorbing materials for safe international transit.
• Documentation: Shipment includes product datasheet and test report upon request.

How to Order

1. Submit your inquiry via the Contact / RFQ form on this page.
2. Provide your required quantity, delivery destination, and any urgency requirements.
3. Our technical sales team will respond within 24 business hours with availability, lead time, and a formal quotation.
4. Upon order confirmation, we arrange secure packaging and international logistics.
5. Tracking information is provided upon dispatch.

For urgent requirements, contact us directly at support@konmask.com or +0086 19859288691.

Why Choose Konmask.com?

• Specialized in Industrial Automation: We focus exclusively on PLC, DCS, HMI, and automation components — not a generalist marketplace.
• Global B2B Supply: Serving system integrators, OEMs, and MRO buyers across Asia, Europe, the Middle East, and the Americas.
• Competitive Lead Times: Extensive supplier network enables fast sourcing of both current and legacy/obsolete parts.
• Technical Support: Our team includes experienced automation engineers who can assist with compatibility and application questions.
• Transparent Quotation: No hidden fees. Clear pricing, lead time, and shipping terms provided upfront.

Frequently Asked Questions

Q: Is the SIEMENS 6AV6640-0AA00-0AX0 compatible with S7-200 SMART PLCs?
A: The TD 400C was originally designed for the classic S7-200 series. Compatibility with S7-200 SMART depends on firmware version and communication settings. Please consult our technical team before ordering for SMART applications.

Q: What software is required to configure the TD 400C?
A: Configuration is done via the TD 400C Wizard within STEP 7-Micro/WIN programming software. No separate HMI configuration software is needed.

Q: Can the TD 400C display alarm messages automatically?
A: Yes. The TD 400C supports configurable alarm messages linked to PLC data bits, enabling automatic alarm display and operator acknowledgment.

Q: What is the minimum order quantity?
A: We supply from single units to bulk orders. Contact us for volume pricing on quantities of 5 units or more.

Q: Do you provide a warranty?
A: Yes. All units are covered by our standard warranty policy. Please contact support@konmask.com for warranty terms applicable to your order.

Q: How long does international shipping take?
A: Typical transit times are 5–15 business days depending on destination and chosen logistics method. Express options are available.

---
