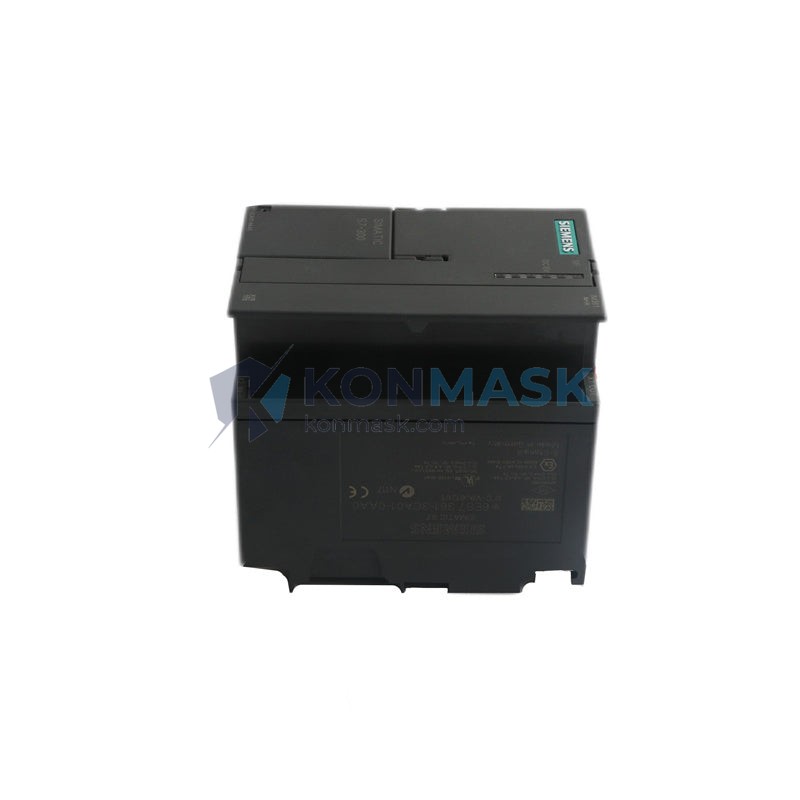

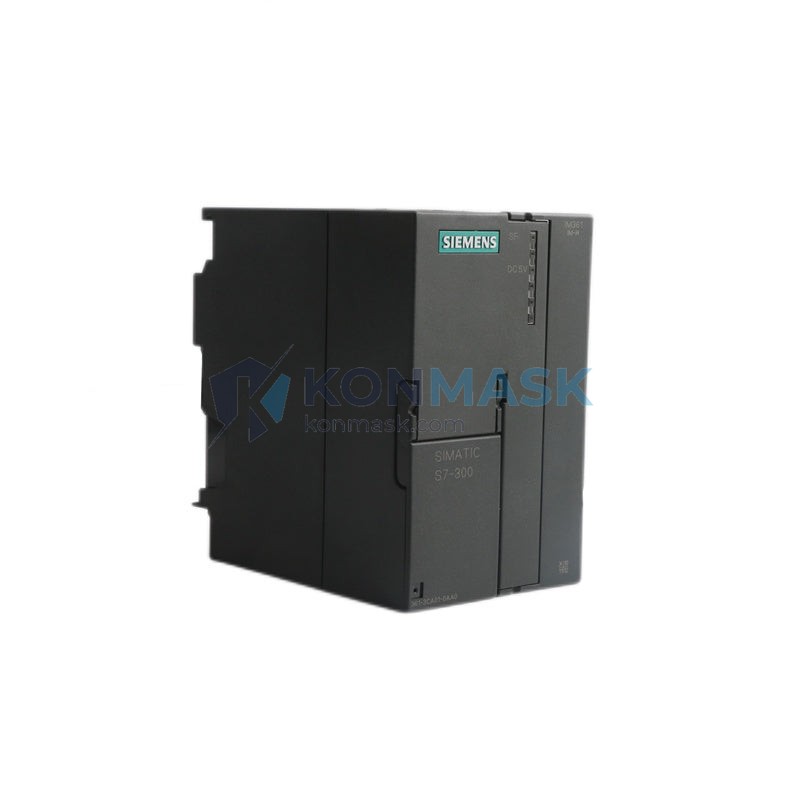

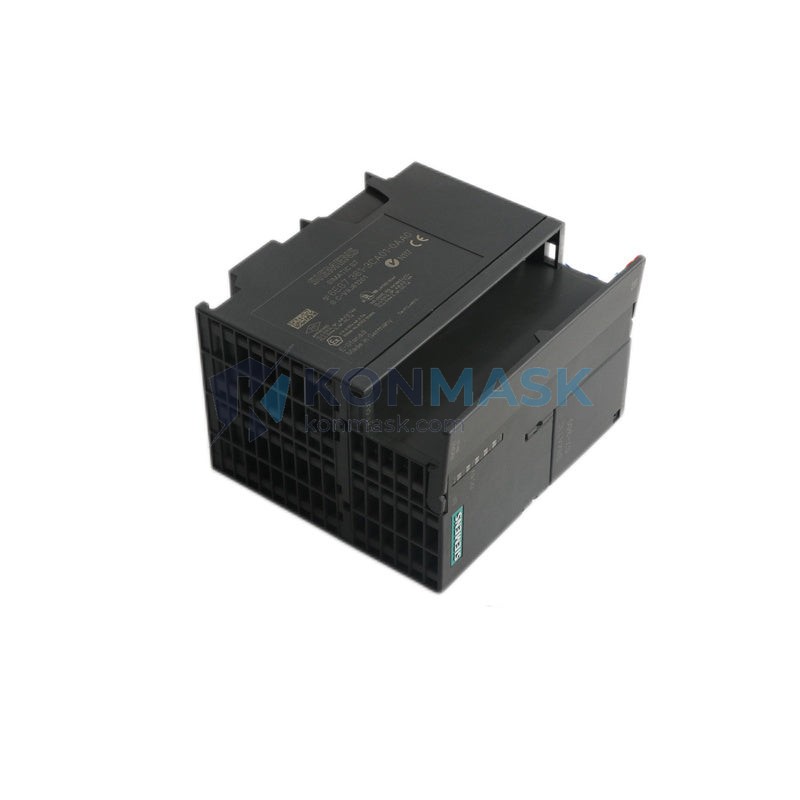

SIEMENS 6ES7361-3CA01-0AA0 – Send Interface Module for Expansion Rack Connection | SIMATIC S7-300
Engineering Background: The SIMATIC S7-300 is Siemens’ mid-range modular PLC platform, widely deployed across process automation, discrete manufacturing, and utility infrastructure. Within the S7-300 architecture, the IM361 (6ES7361-3CA01-0AA0) serves as the send-side interface module installed in the central rack (CR), enabling high-speed backplane communication to up to three expansion racks (ERs) via the IM360 receive-side counterpart. This pairing is the backbone of any multi-rack S7-300 configuration where I/O density exceeds single-rack capacity.
Product Positioning: The IM361 is specifically designed for the central rack role — it cannot be substituted by the IM360 (receive-side) or the IM365 (single-expansion, no power feed). The IM361 supports up to 3 expansion racks at a maximum cable distance of 1 m between racks, making it the correct choice for compact multi-rack cabinets. Applications requiring longer inter-rack distances (up to 600 m) require the IM360/IM361 pair with external power supply on the ER side.
Complete Technical Specifications
Electrical
- Supply Voltage: 5 VDC (via S7-300 backplane bus)
- Current Consumption from Backplane Bus: max. 800 mA
- Power Dissipation: max. 4 W
- Transmission Rate: 12 Mbit/s (PROFIBUS-DP physical layer, internal)
- Number of Expansion Racks Supported: up to 3
- Max. Cable Length Between Racks: 1 m (standard); up to 600 m with external PS on ER
Mechanical
- Form Factor: Single-slot S7-300 module
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: approx. 360 g
- Mounting: DIN rail (35 mm) via S7-300 rail system
- Connector: 50-pin sub-D (IM bus connector, included)
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Relative Humidity: 10% to 95% (non-condensing)
- Degree of Protection: IP20
- Vibration Resistance: 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g (IEC 60068-2-6)
- Shock Resistance: 15 g / 11 ms (IEC 60068-2-27)
Certifications
- CE (EU Machinery Directive, EMC Directive)
- UL Listed (UL 508)
- cULus
- ATEX Zone 2 (with appropriate enclosure)
- RoHS compliant
Data source: Siemens SIMATIC S7-300 Module Data Manual (A5E00105505), Siemens Industry Online Support (SIOS) product datasheet for 6ES7361-3CA01-0AA0.
Proven Application Environments
- Petrochemical Refinery: Crude distillation unit control cabinet | Multi-rack S7-300 CR/ER configuration managing 400+ I/O points under continuous 24/7 operation at 50 °C ambient
- Thermal Power Plant: Auxiliary boiler BMS (Burner Management System) | IM361 linking CR to two ERs for flame scanner and valve I/O, operating under high-vibration turbine hall conditions
- Municipal Water Treatment: SCADA-integrated dosing and filtration control | Expansion rack extension for remote I/O panels in pump stations, requiring reliable 1 m inter-rack cabling
- Automotive Assembly: Body-in-white welding line PLC cabinet | High-cycle discrete I/O expansion across three racks, demanding deterministic scan times and zero unplanned downtime
- Chemical Batch Processing: Reactor temperature and pressure sequencing | Multi-rack S7-300 with IM361/IM360 pair supporting analog-heavy I/O modules for PID loop control
- Offshore Platform Utilities: HVAC and fire & gas detection auxiliary panel | IM361 deployed in salt-air environment within IP54 enclosure, certified for Zone 2 ATEX boundary compliance
Engineering Advantages
- For high-density I/O applications, this interface module enables seamless expansion to up to 3 additional racks, because the IM361/IM360 pair uses the same high-speed S7-300 backplane protocol, maintaining deterministic cycle times without gateway latency.
- For cabinet installations with tight inter-rack spacing, this interface module eliminates the need for external communication hardware, because the 1 m direct cable connection between CR and ER uses the standard IM bus connector included with the module.
- For replacement and maintenance scenarios, this interface module is a direct drop-in for existing 6ES7361-3CA01-0AA0 installations, because the hardware revision is backward-compatible with all S7-300 rail and backplane generations.
- For environments with electrical noise (VFDs, contactors), this interface module maintains signal integrity, because the IM bus uses differential signaling and the module meets IEC 61000-4 EMC immunity levels.
- For plants operating under ATEX Zone 2 requirements, this interface module can be deployed within compliant enclosures, because the module itself carries CE and cULus certification and does not generate ignition-capable energy under normal operation.
- For procurement engineers managing spare parts inventory, this interface module has a stable, long-lifecycle part number, because Siemens maintained the 6ES7361-3CA01-0AA0 designation across multiple production runs with no functional changes between hardware revisions.
System Architecture & Signal Flow
Signal Flow: CPU (Central Rack, Slot 3+) → Backplane Bus → IM361 (CR, rightmost slot) → IM Bus Cable (max. 1 m) → IM360 (ER Slot 1) → ER Backplane Bus → I/O Modules (ER Slots 2–11). The IM361 acts as the bus master on the inter-rack link; the IM360 is the passive receiver. Data exchange is synchronous with the CPU scan cycle.
Compatible Modules:
- 6ES7360-3AA01-0AA0 (IM360): Mandatory receive-side counterpart installed in each expansion rack. The IM361 will not establish communication without a valid IM360 in the ER.
- 6ES7365-0BA01-0AA0 (IM365): Alternative for single-ER configurations only; does not support power feed to ER and cannot be used where ER requires its own PS307. Not a substitute for IM361 in 2–3 ER configurations.
- S7-300 CPU 31x series (e.g., 6ES7315-2AH14-0AB0): All S7-300 CPUs with standard backplane interface are compatible; the IM361 occupies a dedicated interface module slot and does not consume CPU memory resources.
Substitution Conditions: The 6ES7361-3CA01-0AA0 can be replaced by later hardware revisions of the same order number without configuration changes in STEP 7 or TIA Portal. Cross-brand substitution is not supported — the IM bus protocol is proprietary to the S7-300 platform.
Sourcing & Quality Verification
All units offered through Konmask.com are sourced from authorized distribution channels and verified surplus stock with documented chain of custody. Each unit undergoes a 4-step inspection process before dispatch:
- Visual Inspection: Housing integrity check, connector pin condition, label authenticity verification against Siemens holographic security features.
- Firmware & Hardware Revision Check: Revision markings confirmed against Siemens SIOS documentation to ensure compatibility with stated specifications.
- Functional Power-On Test: Module installed in S7-300 test rack, CPU communication established, IM bus link verified via STEP 7 hardware diagnostics (no SF/BF LED faults).
- Packaging & ESD Protection: Shipped in anti-static bag with foam insert; humidity indicator card included for international shipments.
Documentation available upon request: Test report, product datasheet (Siemens A5E00105505), declaration of conformity, packing list with serial number, and commercial invoice for customs clearance.
Procurement Process
- Submit Inquiry: Contact Konmask.com via the product page, email support@konmask.com, or call +0086 19859288691 with your required quantity, delivery timeline, and destination port.
- Quotation & Confirmation: A formal quotation with unit price, lead time, and shipping terms (EXW/FOB/CIF) will be issued within 24 hours. Technical clarification calls are available for complex multi-rack configurations.
- Order Fulfillment: Payment confirmation triggers same-day or next-business-day dispatch. Tracking number provided within 24 hours of shipment. Technical support for installation and STEP 7 configuration is available post-delivery.
Technical support scope includes: hardware revision compatibility confirmation, STEP 7 / TIA Portal hardware configuration guidance, and inter-rack cabling specification review.
Technical FAQ
Q: Can the IM361 (6ES7361-3CA01-0AA0) be used with S7-400 or ET 200M systems?
A: No. The IM361 is exclusively designed for the S7-300 backplane bus architecture. S7-400 uses a different IM family (e.g., IM460/IM461), and ET 200M uses IM153 series modules. Cross-platform use is not supported and will result in hardware fault.
Q: Is the 6ES7361-3CA01-0AA0 a direct replacement for the older 6ES7361-3CA00-0AA0?
A: Yes, with qualification. The -3CA01- revision supersedes -3CA00- and is functionally identical for all standard S7-300 configurations. STEP 7 hardware catalog may require updating to recognize the newer revision; TIA Portal V13 SP2 and later support both revisions natively. No wiring or rack changes are required.
Q: Does the IM361 require a separate power supply in the expansion rack?
A: At 1 m cable distance, the IM361 can supply 5 VDC logic power to the ER via the IM bus cable, eliminating the need for a dedicated PS307 in the ER for logic-only loads. However, if the ER contains modules with high 24 VDC load current (e.g., digital output modules driving actuators), a separate PS307 in the ER is required. Always verify total ER current budget against the PS307 datasheet before finalizing the rack design.
