Genuine Siemens 6ES7134-6HD00-0BA1 4AI Analog Input Module | ET 200SP Series — Verified Source

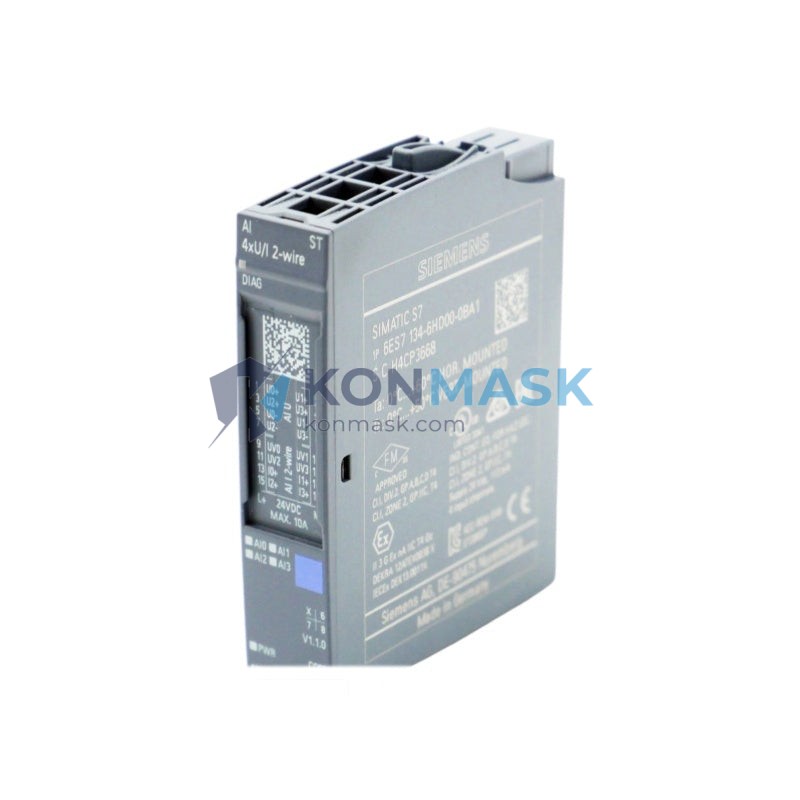

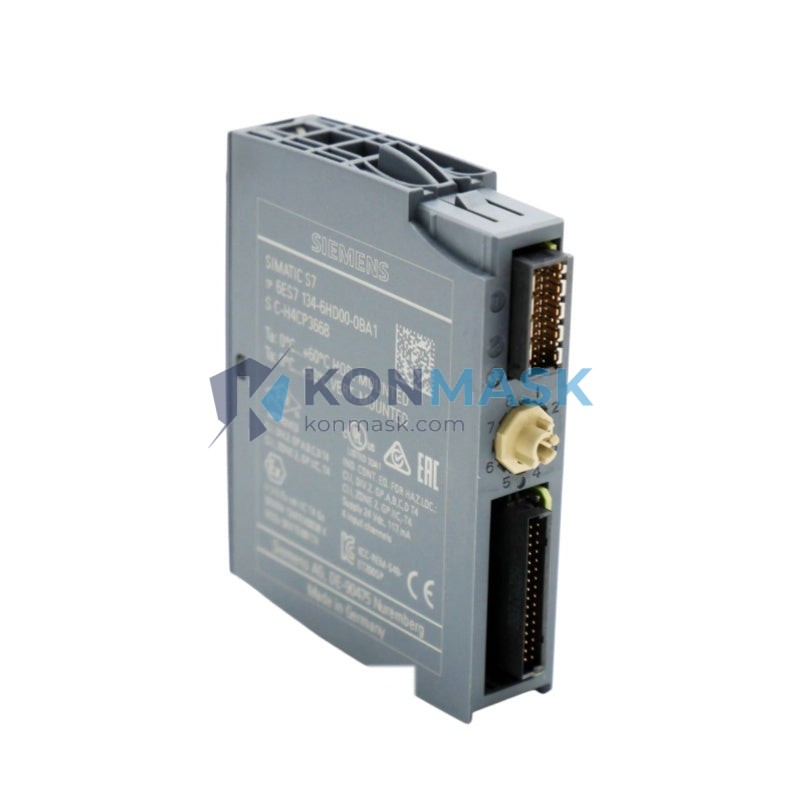

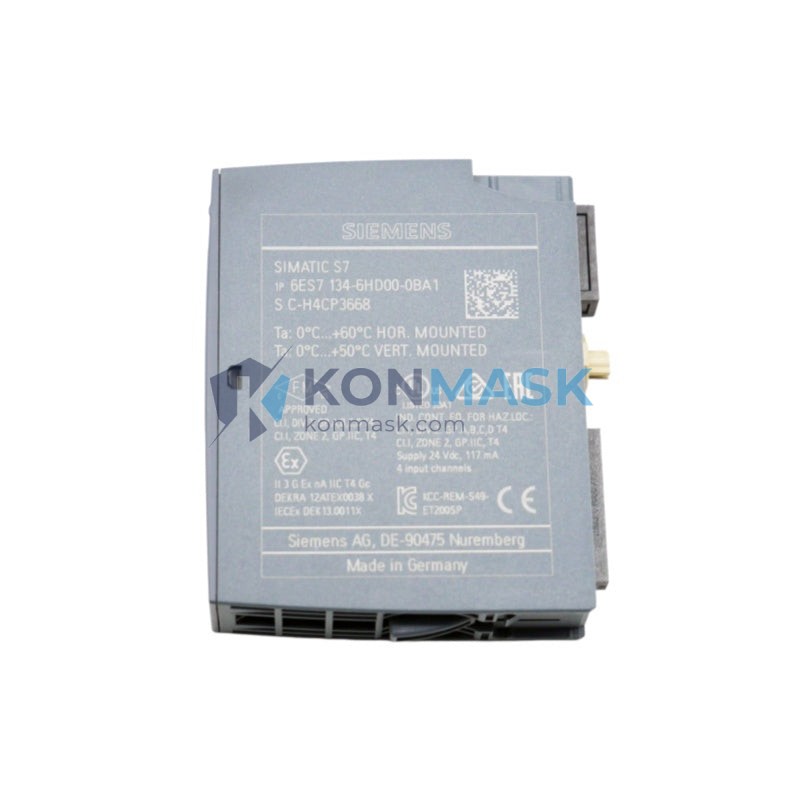

The Siemens 6ES7134-6HD00-0BA1 is a high-precision analog input module designed for the SIMATIC ET 200SP distributed I/O system. Sourced directly through verified Siemens supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity and quality check before dispatch.
Technical Specifications
- Part Number / SKU: 6ES7134-6HD00-0BA1
- Series: SIMATIC ET 200SP
- Module Type: Analog Input (AI)
- Number of Channels: 4 AI
- Input Type: Voltage (U) / Current (I), 2-wire / 4-wire
- Voltage Input Range: ±10 V, ±5 V, ±2.5 V, 1–5 V
- Current Input Range: 0–20 mA, 4–20 mA, ±20 mA
- Resolution: 16-bit
- Conversion Time: 1 ms per channel (high-speed mode)
- Supply Voltage: 24 V DC (via backplane bus)
- Dimensions (W×H×D): 15 mm × 73 mm × 58 mm
- Weight: approx. 39 g
- Operating Temperature: 0 °C to +60 °C
- Protection Class: IP20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Our 4-Step Quality Verification Process
- Step 1 — Source Validation: All units are procured exclusively from Siemens-authorized distributors or factory-direct channels. No grey-market or refurbished stock.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, holographic seals, firmware version markings, and housing condition upon receipt.
- Step 3 — Functional Bench Test: Modules are powered up and channel-level I/O signals are verified against Siemens factory specifications before packaging.
- Step 4 — Secure Packaging & Documentation: Units ship in anti-static ESD packaging with original Siemens documentation, CE declaration, and a Konmask inspection certificate.
Key Features & Benefits
- High-speed 1 ms per-channel conversion — ideal for fast-response process control loops
- Supports both 2-wire and 4-wire transducer connections on the same module
- Plug-in BaseUnit design enables hot-swapping without system shutdown
- Integrated diagnostics with channel-level fault reporting to the CPU
- Compact 15 mm width maximizes cabinet space efficiency
- Fully compatible with TIA Portal V13 SP1 and later for seamless engineering
Typical Applications
- Process temperature and pressure monitoring in chemical and petrochemical plants
- Flow measurement in water treatment and utilities infrastructure
- Tension and load cell signal acquisition in material handling systems
- Analog sensor integration in pharmaceutical manufacturing lines
- Machine tool feedback loops in precision CNC and robotics applications
Compatible System Components
- Interface Module: 6ES7155-6AU01-0BN0 (IM 155-6 PN ST) — ET 200SP PN interface
- BaseUnit (Light): 6ES7193-6BP00-0BA0 (BU15-P16+A0+2B)
- BaseUnit (Dark): 6ES7193-6BP00-0DA0 (BU15-P16+A0+2B)
- Server Module: 6ES7193-6PA00-0AA0
- Compatible CPUs: S7-1200, S7-1500, ET 200SP CPU (e.g., 6ES7512-1DK01-0AB0)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a B2B industrial automation component supplier serving clients across Asia-Pacific, Europe, the Middle East, and the Americas. We maintain bonded warehouse stock for fast-turn orders and offer:
- DHL Express / FedEx International Priority — typical transit 3–7 business days
- Sea freight consolidation for bulk orders (MOQ negotiable)
- Export documentation: commercial invoice, packing list, CO (Certificate of Origin), and FORM E (ASEAN) upon request
- Customs HS Code: 8537.10 (programmable controllers / I/O modules)
Certifications & Compliance Statement
All Siemens 6ES7134-6HD00-0BA1 units supplied by Konmask.com are genuine OEM products compliant with:
- CE Marking — EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL / cULus Listed — North American safety standards
- ATEX Zone 2 — Suitable for use in potentially explosive atmospheres (Group IIC, T4)
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- ISO 9001:2015 — Konmask quality management system certification
How to Order
- Add the 6ES7134-6HD00-0BA1 to your cart and proceed to checkout, or
- Contact us directly for bulk pricing, lead time confirmation, or custom documentation requirements.
- For urgent requirements, email support@konmask.com with your PO number and required delivery date.
- Payment terms: T/T (wire transfer), PayPal, and major credit cards accepted. Net-30 available for approved accounts.
Authenticity & Trust FAQ
Q: How do I verify the module is genuine Siemens?
A: Each unit ships with the original Siemens holographic label, MLFB code, and date code. You can cross-reference the serial number on Siemens’ Industry Online Support portal.
Q: Do you offer a warranty?
A: Yes — 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced within 5 business days of confirmed fault report.
Q: Can I request a factory test report or COC?
A: Certificate of Conformance (COC) is available upon request at no additional charge. Factory test reports are available for orders of 5+ units.
Q: What if I order the wrong module?
A: Unused modules in original packaging may be returned within 30 days. Please contact us before returning any item.
