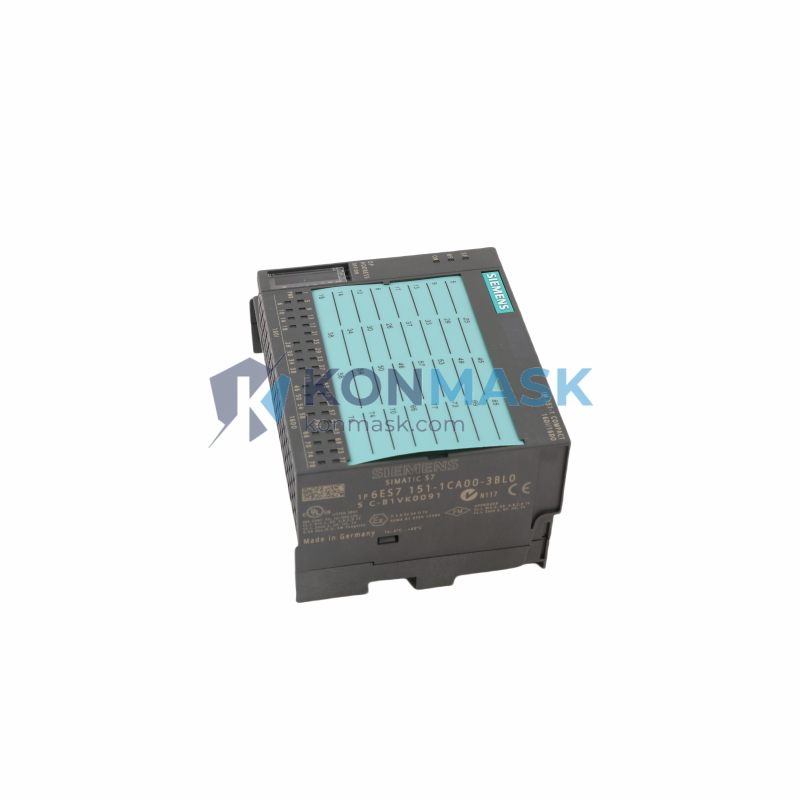

SIEMENS 6ES7151-1CA00-3BL0 – ET 200S IM151-1 PROFIBUS DP Interface Module | SIMATIC ET 200S Platform
Engineering Background
In distributed I/O architectures, the interface module is the nerve center of the entire remote station. Without a functioning IM151-1, every I/O module downstream goes silent — field signals from sensors, actuators, and drives become invisible to the CPU. Production lines halt, process variables go unmonitored, and safety interlocks may fail to respond. The SIEMENS 6ES7151-1CA00-3BL0 is the critical link that keeps your ET 200S station communicating reliably with the SIMATIC S7 controller over PROFIBUS DP.
Product Positioning
The 6ES7151-1CA00-3BL0 is the standard PROFIBUS DP interface module for the SIMATIC ET 200S distributed I/O system — one of Siemens’ most widely deployed remote I/O platforms globally. Designed for high-density, modular field installations, the IM151-1 (standard version) supports up to 63 I/O modules per station and operates across a broad range of industrial environments. It is the backbone of ET 200S deployments in automotive, food & beverage, chemical, and machine-building industries worldwide.
Complete Technical Specifications
- Order Number (SKU): 6ES7151-1CA00-3BL0
- Product Family: SIMATIC ET 200S
- Module Type: IM151-1 Interface Module (Standard)
- Fieldbus Protocol: PROFIBUS DP (Slave)
- PROFIBUS DP Transfer Rate: Up to 12 Mbit/s (auto-detected)
- Supply Voltage: DC 24 V
- Current Consumption (from backplane bus): Typically 100 mA at 5 V DC
- Max. I/O Modules per Station: 63
- Max. Process Data: 244 bytes input / 244 bytes output
- Diagnostic Functions: Yes — station diagnostics, module diagnostics
- Isochronous Mode: Not supported (standard version)
- Degree of Protection: IP20
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +70 °C
- Relative Humidity: 10% to 95% (non-condensing)
- Mounting: S7-300 DIN rail (35 mm)
- Dimensions (W × H × D): 60 × 125 × 117 mm (approx.)
- Weight: Approx. 240 g
- Certifications: CE, UL, cULus, ATEX (zone 2)
- Firmware: Upgradeable via SIMATIC Manager / TIA Portal
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, assembly robots — ET 200S with IM151-1 provides the modular, high-density I/O needed for complex multi-axis control.
- Food & Beverage Processing: Hygienic filling lines, CIP/SIP systems, and packaging machines benefit from the module’s compact footprint and robust diagnostics.
- Chemical & Pharmaceutical Plants: ATEX zone 2 certification makes the 6ES7151-1CA00-3BL0 suitable for use in potentially explosive atmospheres when paired with appropriate Ex-rated I/O modules.
- Machine Building (OEM): Standard choice for OEM machine builders integrating SIMATIC S7-300/400 or S7-1500 (via PROFIBUS proxy) controllers with distributed field I/O.
- Water & Wastewater Treatment: Pump stations, filtration systems, and SCADA-connected remote I/O panels.
- Material Handling & Logistics: Conveyor systems, sorters, and warehouse automation where distributed I/O reduces wiring complexity.
Engineering Advantages
- Hot-Swappable I/O Modules: ET 200S supports module replacement under power (with appropriate power modules), minimizing downtime during maintenance.
- Modular Scalability: Start with a minimal configuration and expand up to 63 I/O modules without changing the interface module or PROFIBUS address.
- Integrated Diagnostics: Station-level and module-level fault reporting via PROFIBUS DP diagnostic frames — faults are visible directly in STEP 7 / TIA Portal without additional hardware.
- Compact Terminal Block Design: ET 200S uses spring-loaded or screw-type terminal modules, reducing wiring time and improving reliability in vibration-prone environments.
- Wide Fieldbus Speed Range: Auto-detects PROFIBUS DP baud rates from 9.6 kbit/s to 12 Mbit/s — no manual configuration required.
- Proven Global Installed Base: Millions of ET 200S stations deployed worldwide since the late 1990s — extensive third-party support, spare parts availability, and engineering expertise.
System Architecture & Signal Flow
The 6ES7151-1CA00-3BL0 acts as the PROFIBUS DP slave interface for the ET 200S station. The signal flow is as follows:
- PROFIBUS DP Network: The S7 CPU (master) cyclically polls the ET 200S station via the PROFIBUS DP cable connected to the IM151-1’s 9-pin Sub-D connector.
- Interface Module Processing: The IM151-1 receives process data from the master, distributes output data to downstream I/O modules via the internal ET 200S backplane bus, and collects input data for transmission back to the master.
- Power Module: A PM-E power module (e.g., 6ES7138-4CA01-0AA0) provides 24 V DC to the I/O module segments — the IM151-1 itself is powered from the leftmost power module.
- I/O Modules: Digital input, digital output, analog input, analog output, and technology modules plug directly onto terminal modules mounted on the DIN rail to the right of the IM151-1.
- Diagnostics Return Path: Module faults, wire-break detection, and station status are reported back to the CPU via the PROFIBUS DP diagnostic channel.
Compatible master controllers include: SIMATIC S7-300 (CP 342-5), S7-400 (CP 443-5), S7-1500 (CM 1542-5), and third-party PROFIBUS DP masters conforming to IEC 61158.
Sourcing & Quality Verification
At Konmask.com, every SIEMENS 6ES7151-1CA00-3BL0 unit we supply undergoes a structured verification process before dispatch:
- ✅ Origin Traceability: Units sourced from authorized distribution channels or verified surplus inventories with documented provenance.
- ✅ Physical Inspection: Label authenticity, housing integrity, connector condition, and firmware version verification.
- ✅ Functional Pre-check: Power-on LED status and communication readiness verified where test infrastructure permits.
- ✅ Secure Packaging: ESD-safe anti-static bags, foam-lined boxes, and moisture-barrier packaging for international shipment.
- ✅ Documentation: Certificate of conformity and packing list provided with every order.
Procurement Process
- Submit Inquiry: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quotation: Our technical team will respond within 24 hours with pricing, lead time, and stock availability confirmation.
- Order Confirmation: Confirm the purchase order with your company details and shipping address.
- Quality Check & Dispatch: Units are inspected, packed, and shipped via DHL / FedEx / UPS with full tracking.
- After-Sales Support: Our engineers are available for installation guidance and compatibility consultation post-delivery.
Technical FAQ
- Q: Is the 6ES7151-1CA00-3BL0 compatible with SIMATIC S7-1500?
- A: Yes — the S7-1500 can communicate with ET 200S stations via a CM 1542-5 PROFIBUS DP communication module acting as the DP master. The IM151-1 operates as a standard DP slave.
- Q: What is the maximum cable length for PROFIBUS DP at 12 Mbit/s?
- A: At 12 Mbit/s, the maximum segment length is 100 m. At lower baud rates (e.g., 187.5 kbit/s), segments can extend up to 1,000 m. Repeaters can be used to extend the network.
- Q: Can I replace the IM151-1 without removing the I/O modules?
- A: Yes — the IM151-1 can be replaced independently. The I/O terminal modules remain on the DIN rail. After replacement, re-download the hardware configuration from STEP 7 / TIA Portal to restore the PROFIBUS address and parameters.
- Q: What is the difference between 6ES7151-1CA00-3BL0 and 6ES7151-1BA02-0AB0?
- A: The 6ES7151-1CA00-3BL0 is the standard IM151-1 with PROFIBUS DP. The 6ES7151-1BA02-0AB0 is an earlier revision. Always verify the exact order number against your hardware configuration to ensure compatibility.
- Q: Does this module support PROFINET?
- A: No — the 6ES7151-1CA00-3BL0 is a PROFIBUS DP interface module. For PROFINET connectivity, the ET 200S uses the IM151-3 PN series (e.g., 6ES7151-3BA23-0AB0).
- Q: What is the warranty on units supplied by Konmask.com?
- A: We offer a 12-month warranty against manufacturing defects on all verified units. Contact support@konmask.com for warranty claims.
