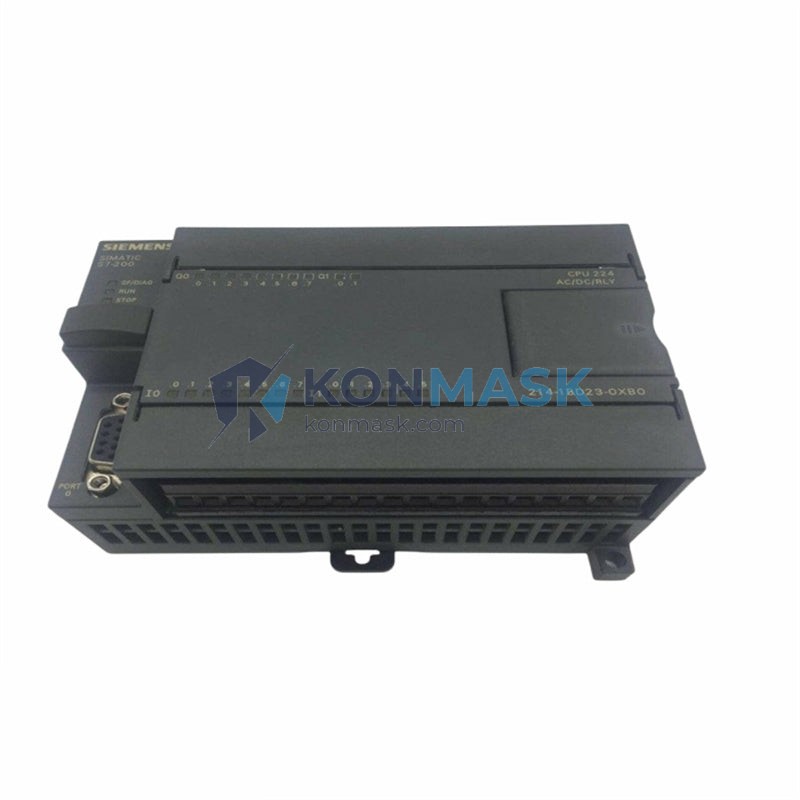

Siemens 6ES7214-1BD23-0XB0 CPU 224 S7-200 PLC Module | Replacement, Equivalent & Selection Guide
The Siemens 6ES7214-1BD23-0XB0 is a compact, high-performance CPU 224 module from the SIMATIC S7-200 series — a proven micro-PLC platform widely deployed in discrete manufacturing, building automation, and OEM machine control. This page provides full technical specifications, compatible replacement models, system compatibility notes, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7214-1BD23-0XB0 |
| Series | SIMATIC S7-200 |
| CPU Type | CPU 224 |
| Supply Voltage | 24 V DC |
| Digital Inputs | 14 × DC 24V |
| Digital Outputs | 10 × Transistor (DC) |
| Program Memory | 12 KB |
| Data Memory | 8 KB |
| Expandable I/O | Up to 7 expansion modules |
| Communication Ports | 2 × RS-485 (PPI/MPI/Freeport) |
| Real-Time Clock | Built-in |
| Pulse Outputs | 2 × 20 kHz |
| High-Speed Counters | 6 × up to 30 kHz |
| Operating Temperature | 0 °C to +55 °C |
| Protection Rating | IP20 |
| Weight | 580 g (approx.) |
| Dimensions (W×H×D) | 196 × 80 × 62 mm |
| Firmware Version | V2.0 (compatible with STEP 7-Micro/WIN) |
Compatible Replacement & Equivalent Models
When the 6ES7214-1BD23-0XB0 is discontinued, hard to source, or cost-prohibitive, the following models are commonly evaluated as replacements. Always verify I/O count, voltage type, and firmware compatibility before substitution.
| Model | Series | DI / DO | Supply | Notes |
|---|---|---|---|---|
| 6ES7214-1BD23-0XB0 | S7-200 CPU 224 | 14 DI / 10 DO (DC) | 24 VDC | Original — this product |
| 6ES7214-1BE30-0XB0 | S7-200 CPU 224 | 14 DI / 10 DO (DC) | 24 VDC | Newer firmware revision; pin-compatible |
| 6ES7214-1AD23-0XB0 | S7-200 CPU 224 | 14 DI / 10 DO (Relay) | 24 VDC | Relay output variant — check load type |
| 6ES7214-2BD23-0XB0 | S7-200 CPU 224 XP | 14 DI / 10 DO (DC) | 24 VDC | Adds analog I/O; enhanced replacement |
| 6ES7212-1BE40-0XB0 | S7-1200 CPU 1212C | 8 DI / 6 DO (DC) | 24 VDC | Next-gen platform; requires program migration |
| 6ES7214-1HG40-0XB0 | S7-1200 CPU 1214C | 14 DI / 10 DO (DC) | 24 VDC | Closest S7-1200 I/O match; TIA Portal required |
⚠ Note: S7-200 → S7-1200 migration requires program rewrite in TIA Portal. Contact our technical team for migration support.
Why Choose the Original Model
- Zero re-engineering cost — drop-in replacement for existing S7-200 installations without program changes.
- Proven field reliability — millions of units deployed globally across 20+ years of industrial service.
- STEP 7-Micro/WIN compatibility — no toolchain changes required for maintenance teams.
- Dual RS-485 ports — supports simultaneous PPI network and Freeport serial communication.
- Compact footprint — ideal for panel space-constrained retrofits and OEM enclosures.
- Sourcing continuity — Konmask maintains verified stock of legacy S7-200 modules for MRO and spares programs.
Typical Applications
- Conveyor and material handling systems
- Packaging machine control (filling, sealing, labeling)
- HVAC and building automation controllers
- Pump and compressor sequencing
- Small-scale process control and batch systems
- OEM machine retrofits and legacy system maintenance
- Textile, printing, and food processing equipment
System Compatibility
| Component | Compatible | Notes |
|---|---|---|
| Programming Software | STEP 7-Micro/WIN V4.0+ | Windows XP / 7 / 10 (32-bit mode) |
| Expansion Modules | EM 221, EM 222, EM 223, EM 231, EM 232, EM 235 | Up to 7 modules on right-side bus |
| HMI Panels | TD 200, TD 400C, TP 177 micro | PPI protocol |
| Communication Modules | EM 241 (Modem), CP 243-1 (Ethernet), CP 243-2 (AS-i) | Left-side slot |
| Power Supply | 24 VDC ± 20% | Internal 5V bus for expansion |
| PC Interface Cable | PC/PPI Cable (6ES7901-3CB30-0XA0) or USB-PPI adapter | Required for programming |
Selection Guide
Use this guide to confirm the 6ES7214-1BD23-0XB0 is the right choice, or to identify the best alternative:
- Maintaining an existing S7-200 system? → Choose 6ES7214-1BD23-0XB0 or -1BE30-0XB0 (newer firmware). No program changes needed.
- Need relay outputs instead of transistor? → Choose 6ES7214-1AD23-0XB0. Same CPU, relay DO variant.
- Need built-in analog I/O? → Upgrade to 6ES7214-2BD23-0XB0 (CPU 224 XP). Adds 2 AI / 1 AO.
- Building a new system or major retrofit? → Consider S7-1200 CPU 1214C (6ES7214-1HG40-0XB0). Modern platform, TIA Portal, better long-term support.
- Budget-constrained MRO replacement? → Contact Konmask for certified refurbished 6ES7214-1BD23-0XB0 units with test reports.
- Unsure? → Send your existing program (.mwp file) and panel layout to [email protected] for a free compatibility assessment.
Quality Assurance & Sourcing
- ✅ Genuine Siemens origin — sourced through authorized distribution channels with full traceability.
- ✅ Pre-shipment functional test — each unit powered on and I/O verified before dispatch.
- ✅ Anti-counterfeit inspection — label, firmware version, and PCB markings verified against Siemens reference standards.
- ✅ Secure packaging — ESD-safe bags, foam-lined boxes, and moisture indicators for international shipments.
- ✅ Documentation available — test reports, certificates of conformity, and customs HS code documentation on request.
How to Order
- Add the 6ES7214-1BD23-0XB0 to your cart and proceed to checkout.
- For bulk orders (5+ units), email [email protected] for a volume quote.
- For urgent MRO requirements, call +0086 19859288691 — we offer same-day dispatch for in-stock items.
- Need a pro-forma invoice or customs documentation? Request at checkout or via email.
- International orders: DDP (Delivered Duty Paid) shipping available to most destinations.
Replacement & Compatibility FAQ
Q: Is 6ES7214-1BD23-0XB0 still in production?
A: The S7-200 series has been officially discontinued by Siemens. However, Konmask maintains verified stock for MRO and spares programs. Contact us for availability.
Q: Can I replace -1BD23-0XB0 with -1BE30-0XB0 without reprogramming?
A: Yes. The -1BE30 is a firmware revision of the same CPU 224 DC/DC/DC variant. It is electrically and mechanically compatible. Verify your STEP 7-Micro/WIN version supports the newer firmware.
Q: Can I use an S7-1200 as a direct replacement?
A: Not without program migration. S7-1200 uses TIA Portal and a different instruction set. I/O wiring is similar but the program must be rewritten. Konmask can provide migration consulting.
Q: What is the difference between -1BD23 (DC output) and -1AD23 (relay output)?
A: The -1BD23 has transistor (DC) outputs — faster switching, suitable for PWM and high-frequency loads. The -1AD23 has relay outputs — suitable for AC loads and higher current switching but slower response.
Q: Do you provide a warranty?
A: Yes. All new units carry a 12-month warranty. Certified refurbished units carry a 6-month warranty. See our warranty policy for details.
Q: Can you supply the PC/PPI programming cable as well?
A: Yes. Add the 6ES7901-3CB30-0XA0 PC/PPI cable or a USB-PPI adapter to your order. Contact us to bundle.
