SIEMENS 6ES7322-1BH01-0AA0 SM322 Digital Output Module | Replacement, Equivalent & Selection Guide

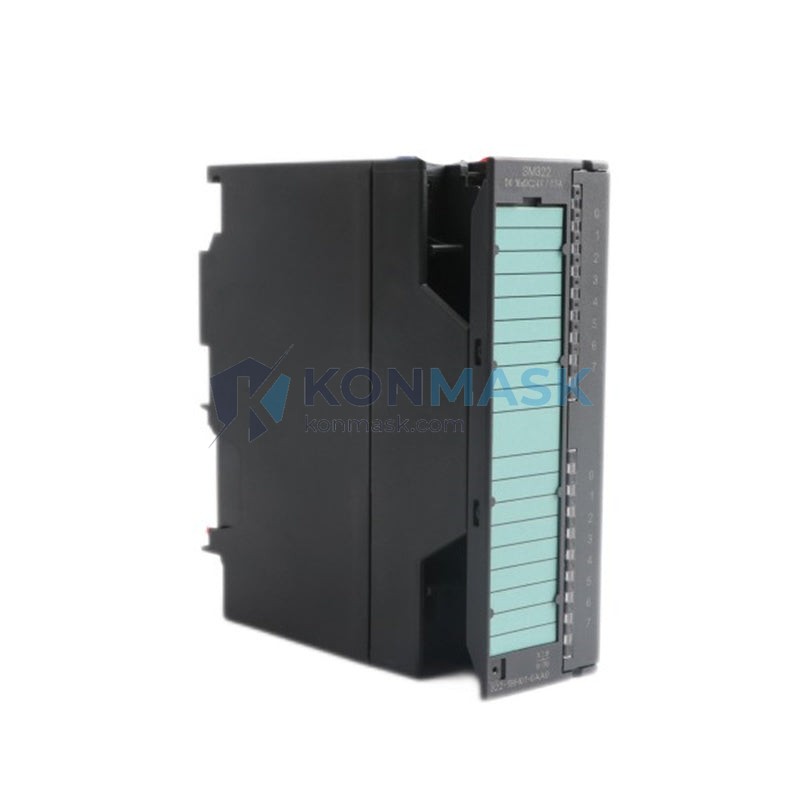

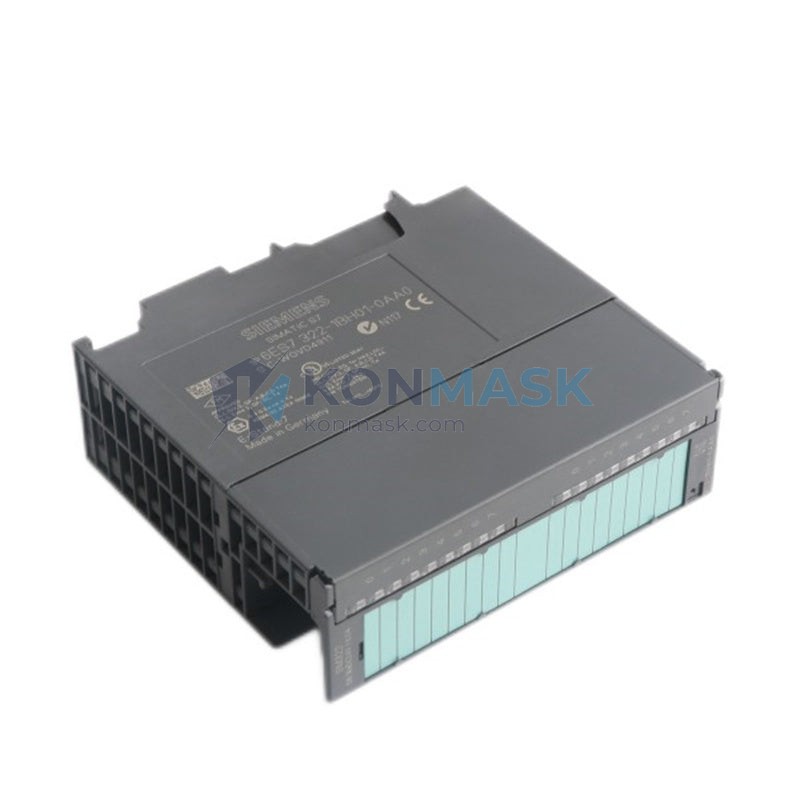

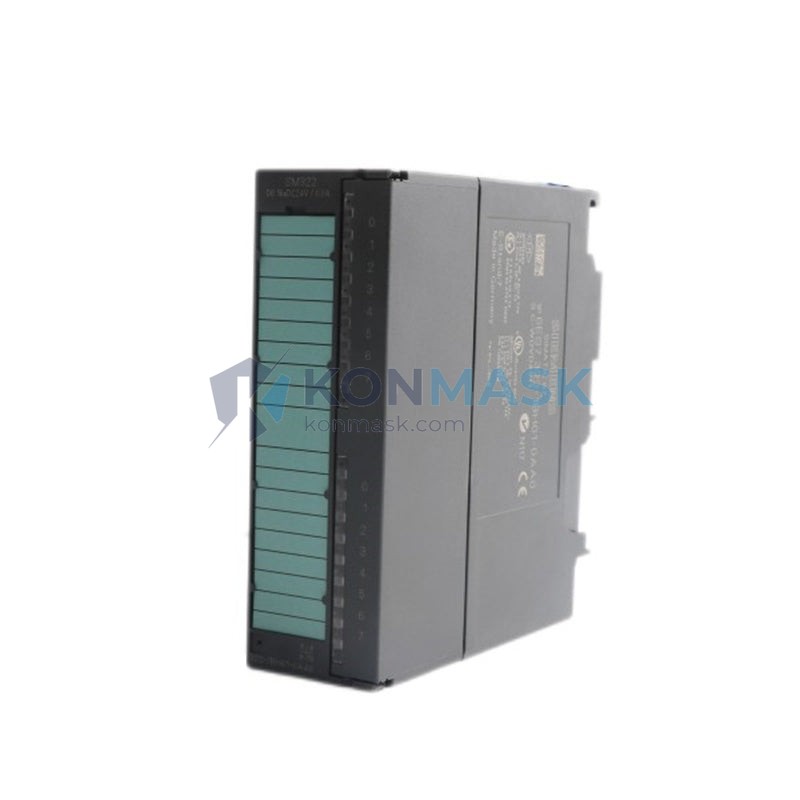

The SIEMENS 6ES7322-1BH01-0AA0 is a 16-point 24 VDC transistor digital output module (SM322) for the SIMATIC S7-300 PLC platform. It interfaces the S7-300 CPU with field-level actuators — solenoid valves, contactors, indicator lamps, and relay coils — across a wide range of industrial automation applications. With a 0.5 A per-channel rating, optocoupler isolation, and native STEP 7 / TIA Portal integration, it is one of the most widely deployed discrete output modules in the S7-300 ecosystem.
Selection Background
Industrial buyers frequently search for a 6ES7322-1BH01-0AA0 replacement or SM322 equivalent when facing end-of-life procurement constraints, emergency line-down situations, or cost-optimization projects. Understanding which modules are direct drop-in replacements versus functional equivalents — and which cross-brand alternatives require engineering review — is critical to maintaining system integrity and certification compliance. This guide consolidates that information to support a confident sourcing decision. Whether you need an exact substitute or a validated equivalent, Konmask stocks verified options with full traceability documentation.
Technical Specifications
| Part Number | 6ES7322-1BH01-0AA0 |
| Module Type | SM322 Digital Output Module |
| Platform | SIMATIC S7-300 |
| Number of Outputs | 16 × DC outputs ⚑ key replacement parameter |
| Output Voltage | 24 VDC ⚑ key replacement parameter |
| Output Current per Channel | 0.5 A |
| Total Current per Module | 4 A |
| Output Type | Transistor (sourcing / PNP) ⚑ key replacement parameter |
| Isolation | Optocoupler isolation between field and backplane bus |
| Backplane Bus | S7-300 standard backplane ⚑ key replacement parameter |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | ~200 g |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, cUL, ATEX Zone 2 |
| Configuration Tool | STEP 7 V5.x / TIA Portal V13+ (HW Config) |
Compatible Replacement & Equivalent Models
① Direct Drop-in Replacements — Same form factor, same S7-300 backplane connector, same STEP 7 hardware catalog entry. No hardware or software changes required.
- 6ES7322-1BH10-0AA0 — Official successor revision of the same SM322 16DO 24VDC module; fully backward compatible. Most recommended direct substitute when the original is on allocation.
- 6ES7322-1BH01-0AA0 (new-production restock) — Original part number available as factory-new or certified-refurbished through authorized channels including Konmask.
② Functional Equivalents — Same electrical function (16DO, 24VDC, 0.5A/ch, transistor PNP), same S7-300 backplane, but different revision or sub-variant. May require a minor HW Config update in STEP 7 / TIA Portal.
- 6ES7322-1BH00-0AA0 — Earlier hardware revision; functionally equivalent. Verify firmware compatibility with your specific CPU version before deployment.
- 6ES7322-1CF00-0AA0 — 16DO 120/230VAC relay output variant; not a direct substitute for 24VDC transistor loads, but serves as a functional equivalent for AC actuator applications requiring the same 16-point count.
③ Cross-Brand Alternatives — Third-party modules compatible with the S7-300 backplane or requiring an adapter. Engineering review and functional testing required before production deployment.
- VIPA 322-1BH01 — VIPA (Yaskawa) S7-300 compatible 16DO 24VDC module; drop-in for most non-safety applications. Verify against VIPA compatibility matrix for your CPU firmware version.
- Mitsubishi Q Series QY10 — Functional equivalent for new panel designs; requires different backplane and CPU. Suitable for greenfield replacement projects only, not rack-level substitution.
- Beckhoff KL2408 — 8DO 24VDC Bus Terminal; two units required to match 16-point capacity. Suitable for retrofit projects with dedicated engineering support.
⚠ Cross-brand alternatives must be validated against your specific CPU, power supply, and software version before production deployment. ATEX-certified installations must use the original SIEMENS part number. Contact Konmask for a pre-sales compatibility review.
Why Choose the Original Model
- Output Precision & Reliability: Factory-calibrated transistor outputs with guaranteed 0.5 A per channel rating eliminate field derating risks common in third-party equivalents, ensuring consistent actuator response across the module’s service life.
- Multi-Market Certifications: CE, UL, cUL, and ATEX Zone 2 certifications are tied to the original part number — critical for regulated industries including oil & gas, pharmaceuticals, and food processing where certification traceability is mandatory.
- Seamless S7-300 Integration: Native STEP 7 / TIA Portal hardware catalog entry ensures zero-configuration backplane recognition, full diagnostic transparency, and access to SIEMENS module-level fault diagnostics unavailable with cross-brand substitutes.
- Long-Term Platform Compatibility: SIEMENS guarantees spare parts availability and firmware compatibility across the full S7-300 lifecycle, reducing future replacement risk and protecting your installed base investment.
- Manufacturer Technical Support: Access to SIEMENS global technical support, firmware updates, and application engineering notes — support infrastructure unavailable for cross-brand substitutes or uncertified equivalents.
- Warranty & Batch Traceability: Full manufacturer warranty with batch-level traceability documentation, essential for ISO 9001 production audits and IEC 61511 functional safety compliance records.
Typical Applications
- Automotive Manufacturing: Controlling welding robots, conveyor drives, and assembly line actuators in body-in-white and powertrain production lines operating at high cycle rates with strict uptime requirements.
- Chemical & Petrochemical: Switching solenoid valves and pump contactors in ATEX Zone 2 classified process areas where only the original SIEMENS ATEX-certified module is an acceptable substitute.
- Food & Beverage: Driving filling machine actuators, conveyor indexers, and CIP valve banks under hygienic production conditions requiring IP-rated enclosures and washdown-compatible wiring.
- Water & Wastewater Treatment: Controlling pump stations, chemical dosing systems, and gate valve actuators in remote SCADA-connected substations with extended ambient temperature ranges.
- Pharmaceutical: Actuating isolator valves and cleanroom HVAC dampers in GMP-compliant manufacturing environments where full component traceability and certification documentation are audit requirements.
- Machine Tool & Packaging: Coordinating tool changers, clamp cylinders, and labeling actuators in high-cycle-rate OEM machinery where module replacement must be completed within a single maintenance window.
System Compatibility
The 6ES7322-1BH01-0AA0 is compatible with the following SIMATIC S7-300 system components:
- 6ES7315-2AG10-0AB0 — CPU 315-2 DP; standard host CPU for mid-range S7-300 systems with PROFIBUS DP master interface
- 6ES7307-1EA01-0AA0 — PS307 5A Power Supply; provides 24VDC backplane and field power for the S7-300 rack
- 6ES7390-1AE80-0AA0 — DIN Rail Profile 480 mm; standard mounting rail for S7-300 rack assembly
- 6ES7392-1AJ00-0AA0 — Front Connector 20-pin; required field wiring connector for SM322 modules (order separately)
- 6ES7153-1AA03-0XB0 — IM153-1 Interface Module; for distributed ET 200M rack configurations with remote I/O
- 6ES7321-1BH02-0AA0 — SM321 16DI 24VDC Input Module; standard paired input module for discrete I/O applications
Selection Guide
Answer these three questions to confirm the 6ES7322-1BH01-0AA0 is the right module — or to identify the best replacement or equivalent for your application:
- Is your PLC platform SIMATIC S7-300? If yes, this module or its direct equivalent (6ES7322-1BH10-0AA0) are your safest options. If you are migrating to S7-1500 or ET 200SP, contact Konmask for a migration-path recommendation and compatible substitute.
- Do your field devices operate at 24 VDC with ≤ 0.5 A per channel? If your actuators require higher current or AC voltage, a different SM322 variant (e.g., relay output 6ES7322-1CF00-0AA0) may be the correct functional equivalent for your application.
- Do you require ATEX Zone 2 certification? Only the original SIEMENS part number carries the certified ATEX rating. Cross-brand alternatives are not certified substitutes for hazardous area installations and cannot be used as direct replacements in ATEX-classified zones.
Not sure which option is right? Contact Konmask with your CPU part number, rack layout, and application description for a free compatibility review within 24 hours.
Quality Assurance & Sourcing
Source Channel: Konmask sources the 6ES7322-1BH01-0AA0 exclusively through authorized SIEMENS distribution channels and verified secondary-market suppliers with full chain-of-custody documentation. All units are original SIEMENS manufacture — no third-party rebrands or counterfeit risk.
4-Step Inspection Process:
- Visual & Marking Verification: Label authenticity, housing integrity, connector pin condition, and date-code verification against SIEMENS batch records. Counterfeit screening per SIEMENS genuine product identification guidelines.
- Electrical Bench Test: All 16 output channels tested at rated 24VDC and 0.5A; isolation resistance verified (>100 MΩ at 500VDC) between field terminals and backplane bus using calibrated test equipment.
- Functional PLC Test: Module installed in live S7-300 rack, recognized by STEP 7 HW Config, and cycled through full I/O diagnostic sequence including channel-level fault simulation.
- Packaging & Documentation: Module packed in anti-static bag with desiccant; inspection report issued and attached to shipment documentation prior to dispatch.
Available Documentation: Certificate of Conformity (CoC) · Inspection Test Report · SIEMENS Product Datasheet · Commercial Invoice & Packing List · Country of Origin Declaration · RoHS Declaration of Conformity
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your required part number (original or equivalent), quantity, and delivery timeline. Include your CPU model and rack configuration if requesting a compatibility review.
- Receive Quotation & Availability Confirmation: Konmask responds within 24 business hours with pricing, lead time, and stock status — including alternative equivalents or direct replacements if the primary part is on allocation.
- Confirm Order & Ship: Upon order confirmation, modules are inspected, documented, and dispatched with full traceability paperwork. DHL Express, FedEx International Priority, and sea freight options available for global delivery. Export documentation provided for all international shipments.
Replacement & Compatibility FAQ
Q1: Can the 6ES7322-1BH10-0AA0 directly replace the 6ES7322-1BH01-0AA0 without any software changes?
Yes. The 6ES7322-1BH10-0AA0 is the official SIEMENS successor revision and is a direct drop-in replacement for the 6ES7322-1BH01-0AA0. It uses the same S7-300 backplane connector, the same STEP 7 hardware catalog entry, and requires no software or configuration changes. This is the most recommended substitute when the original part number is unavailable or on extended lead time.
Q2: Is the VIPA 322-1BH01 a compatible equivalent for the SIEMENS 6ES7322-1BH01-0AA0 in a production environment?
The VIPA 322-1BH01 is designed to be compatible with the S7-300 backplane and is widely used as a cost-effective equivalent in non-safety-critical applications. However, it is not certified by SIEMENS, may not be recognized identically in STEP 7 diagnostics, and does not carry SIEMENS ATEX certification. Konmask recommends bench-testing before production deployment. This module is not a certified substitute for ATEX Zone 2 or SIL-rated installations.
Q3: What is the practical difference between a replacement, an equivalent, and a substitute for this module?
A replacement (e.g., 6ES7322-1BH10-0AA0) installs and operates identically with no changes to hardware or software — the safest option for production environments. An equivalent (e.g., an earlier revision or VIPA module) performs the same electrical function but may require configuration adjustments or engineering sign-off. A cross-brand substitute requires the most thorough validation including functional testing, certification review, and in some cases software changes. Konmask can advise on the appropriate option based on your application criticality, certification requirements, and delivery timeline.
