Compact PLC & Machine Control Solution – SIEMENS 6ES7215-1AG40-0XB0 | S7-1200 Series

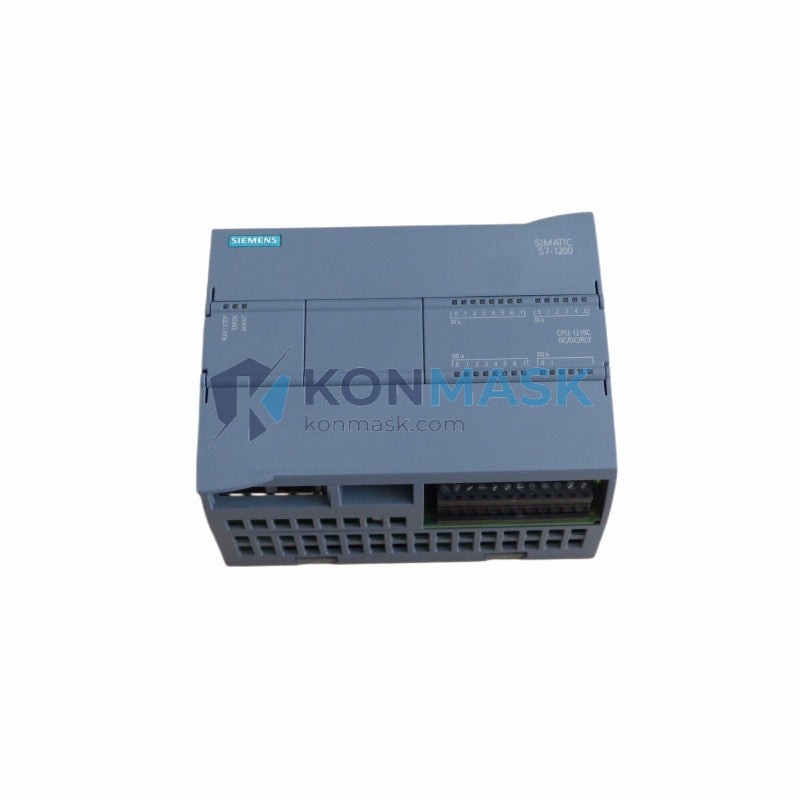

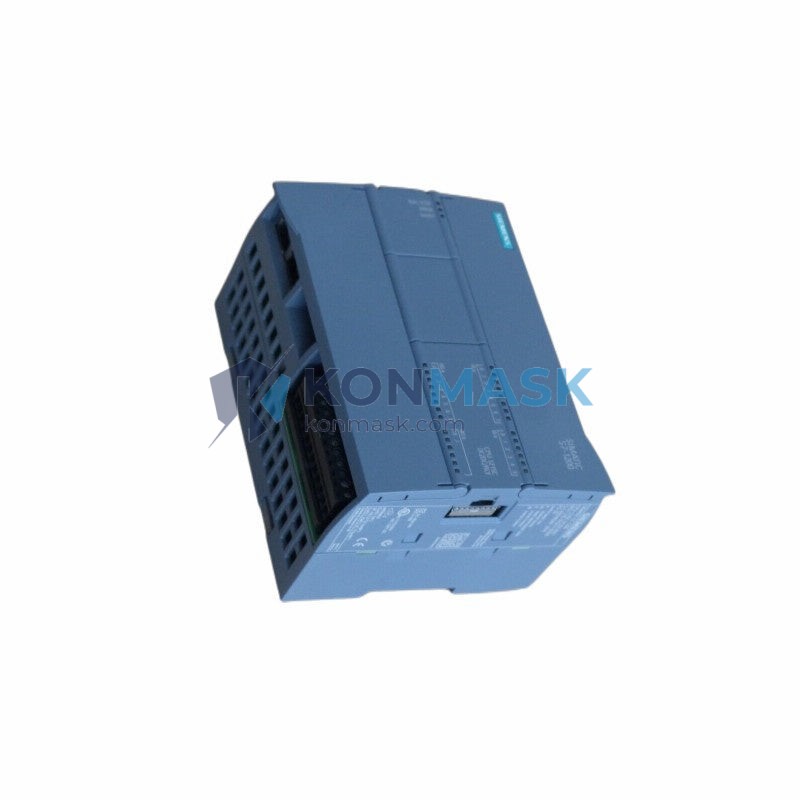

The SIEMENS 6ES7215-1AG40-0XB0 CPU 1215C is a high-performance compact programmable logic controller from the S7-1200 series, engineered for demanding industrial automation environments. Whether you are building a new control panel or replacing a failed unit on the production floor, this CPU delivers the processing power, I/O density, and communication flexibility that modern machine builders and system integrators depend on.
Where This Product Is Used
The CPU 1215C is specified across a wide range of industrial applications where compact form factor and robust performance are non-negotiable:
- Packaging Machinery – High-speed sequencing, servo coordination, and HMI integration on filling, sealing, and labeling lines
- Conveyor & Material Handling Systems – Multi-zone control with distributed I/O via PROFINET
- Water & Wastewater Treatment – PID loop control for pump stations, dosing systems, and filtration plants
- HVAC & Building Automation – Energy management, chiller sequencing, and BMS integration
- Food & Beverage Processing – Hygienic-area panel builds requiring compact, reliable PLCs with Ethernet connectivity
- OEM Machine Builders – Standard platform for multi-axis motion, vision trigger, and safety integration
- Renewable Energy – Solar inverter monitoring, wind turbine auxiliary control, and grid-tie management
Technical Specifications
- Part Number: 6ES7215-1AG40-0XB0
- Series: SIMATIC S7-1200
- CPU Type: CPU 1215C DC/DC/DC
- Supply Voltage: 24 V DC
- Digital Inputs (Onboard): 14 × DI (24 V DC, sink/source)
- Digital Outputs (Onboard): 10 × DO (24 V DC, 0.5 A transistor)
- Analog Inputs (Onboard): 2 × AI (0–10 V)
- Analog Outputs (Onboard): 2 × AO (0–20 mA)
- Work Memory: 125 KB
- Load Memory: 4 MB (integrated)
- Retentive Memory: 10 KB
- Communication Ports: 2 × PROFINET (RJ45)
- High-Speed Counters: 6 × HSC up to 1 MHz
- Pulse Outputs: 4 × PTO/PWM up to 1 MHz
- Signal Module Expansion: Up to 8 SM modules
- Communication Module Expansion: Up to 3 CM modules
- Operating Temperature: 0 °C to +55 °C
- Protection Rating: IP20
- Dimensions (W × H × D): 130 × 100 × 75 mm
- Weight: Approx. 410 g
- Programming Software: TIA Portal V14 SP1 or higher
Why Engineers Specify This Model
- Dual PROFINET Ports – Built-in switch enables daisy-chain topologies without an external switch, reducing panel cost and wiring complexity
- Integrated Motion Control – Native PTO outputs support up to 4 axes of open-loop stepper/servo control without additional hardware
- Scalable I/O Architecture – Expand to 284 digital I/O and 67 analog channels via SM modules; no gateway required
- OPC UA & Modbus TCP Native – Direct integration with SCADA, MES, and IIoT platforms without middleware
- TIA Portal Ecosystem – Unified engineering environment shared with S7-300/400/1500 reduces training overhead
- Compact Footprint – 130 mm wide DIN-rail mount fits tight panel layouts where larger CPUs cannot
- Proven Reliability – MTBF exceeding 300,000 hours; widely deployed in mission-critical applications globally
Complete System Bill of Materials
The 6ES7215-1AG40-0XB0 is the control core of a complete S7-1200 system. Typical companion components include:
- Power Supply: SIEMENS PM1207 (6EP1332-1SH71) – 24 V DC / 2.5 A stabilized PSU
- Digital I/O Expansion: SM 1221 (6ES7221-1BF32-0XB0) – 8 × DI 24 V DC
- Analog I/O Expansion: SM 1234 (6ES7234-4HE32-0XB0) – 4 × AI / 2 × AO
- Communication Module: CM 1241 RS-485 (6ES7241-1CH32-0XB0) – for Modbus RTU / USS
- Signal Board: SB 1232 (6ES7232-4HA30-0XB0) – 1 × AO 12-bit
- HMI Panel: SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0) – 7″ touch panel, PROFINET
- Memory Card: SIMATIC Micro Memory Card 24 MB (6ES7954-8LF03-0AA0)
Contact us for bundle pricing on complete system configurations.
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU
- UL Listed – UL 508 (Industrial Control Equipment)
- cULus – Canadian market approval
- IEC 61131-2 – Programmable controller hardware standard
- RoHS Compliant – Restriction of Hazardous Substances Directive
- PROFINET Certified – Conformance Class B
Quality Assurance & Sourcing
Every unit supplied by Konmask.com undergoes a structured verification process before dispatch:
- Step 1 – Origin Verification: Units sourced exclusively from authorized SIEMENS distribution channels or verified surplus inventories with documented chain of custody
- Step 2 – Physical Inspection: Label authenticity, hologram integrity, housing condition, and connector pin inspection by trained technicians
- Step 3 – Functional Power-On Test: CPU boots to RUN mode, firmware version confirmed, PROFINET ports tested for link/activity
- Step 4 – Documentation Package: Each shipment includes a test report, packing list, and certificate of conformity upon request
We do not supply counterfeit, remarked, or untested components. If a unit fails to meet specification upon receipt, we provide full replacement or refund.
How to Source This Part
- Add to Cart – Click “Buy Now” or “Add to Cart” for standard stock orders
- Request a Quote – For quantities of 3+ units, email support@konmask.com for volume pricing
- Provide Your PO – We accept purchase orders from registered companies; net-30 terms available for qualified accounts
- Confirm Lead Time – In-stock units ship within 1–3 business days; out-of-stock items sourced within 5–15 business days
- Track Your Shipment – DHL Express, FedEx International Priority, and UPS Worldwide available; tracking provided within 24 hours of dispatch
Application-Specific FAQ
Q: Can the CPU 1215C replace a CPU 1214C in an existing installation?
A: Yes. The 1215C is a drop-in functional upgrade with identical mounting dimensions. It adds 2 additional DI, 2 additional DO, 2 AO channels, and a second PROFINET port. Existing TIA Portal projects can be migrated with minimal modification.
Q: Is this CPU suitable for safety applications (SIL/PLe)?
A: The standard 6ES7215-1AG40-0XB0 is not a safety-rated CPU. For functional safety requirements, pair it with a SIMATIC ET 200SP F-CPU or use the S7-1500F series.
Q: What TIA Portal version is required?
A: TIA Portal V14 SP1 minimum; V16 or V17 recommended for full firmware V4.x feature support including OPC UA server and Web server functions.
Q: Can this unit communicate with third-party HMIs (Weintek, Proface)?
A: Yes. The CPU 1215C supports Modbus TCP and S7 communication protocols natively, which are supported by most third-party HMI brands.
Q: What is your warranty policy?
A: All units carry a 12-month warranty against manufacturing defects from the date of shipment. DOA units are replaced at no charge within 7 days of receipt.
