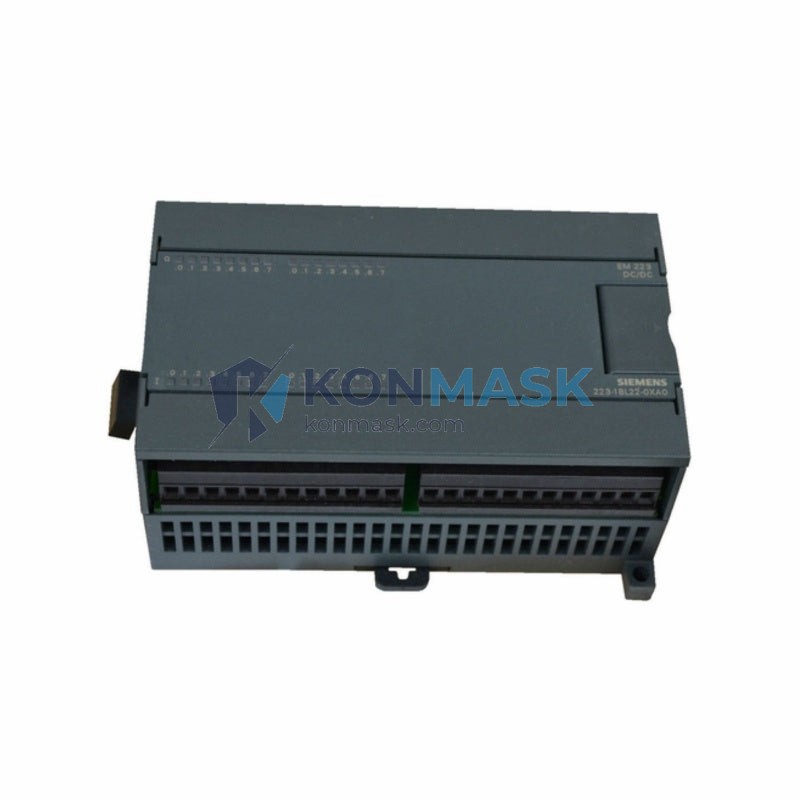

Siemens 6ES7223-1BL22-0XA0 EM223 – 16DI/16DO Digital I/O Expansion Module | SIMATIC S7-200 Platform
Engineering Background
The Siemens SIMATIC S7-200 series has been a cornerstone of compact PLC automation for over two decades, trusted by OEMs and system integrators across discrete manufacturing, building automation, and process control. The EM223 family of digital expansion modules extends the I/O capacity of the S7-200 CPU, enabling engineers to scale control architectures without migrating to larger, costlier platforms.
Product Positioning
The 6ES7223-1BL22-0XA0 is a 16-input / 16-output digital expansion module operating at 24 VDC. It connects directly to any S7-200 CPU via the local I/O bus, delivering deterministic scan-cycle performance for high-speed discrete control tasks. This module is the preferred choice for procurement engineers sourcing proven, field-hardened I/O expansion for legacy S7-200 installations and new compact automation builds alike.
Complete Technical Specifications
| Part Number | 6ES7223-1BL22-0XA0 |
| Module Type | EM223 Digital Combination I/O |
| Platform | SIMATIC S7-200 |
| Digital Inputs | 16 × 24 VDC, sink/source (IEC Type 1) |
| Digital Outputs | 16 × 24 VDC transistor, source type |
| Output Current | 0.75 A per output, 8 A per common |
| Input Voltage Range | 20.4 – 28.8 VDC |
| Input Current (24 VDC) | 4 mA typical per input |
| Isolation | Optical isolation, 500 VAC (input/output to logic) |
| Response Time (Input ON) | ≤ 1.2 ms (filter = 0.2 ms) |
| Response Time (Output ON) | ≤ 2 µs |
| Power Consumption (5 VDC bus) | 145 mA |
| Power Consumption (24 VDC) | 60 mA (no load) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 – 95 % (non-condensing) |
| Degree of Protection | IP20 |
| Dimensions (W × H × D) | 196.6 × 80 × 62 mm |
| Weight | approx. 300 g |
| Mounting | DIN rail (EN 60715) or panel mount |
| Certifications | CE, UL, cUL, FM, ATEX (Zone 2) |
| HS Code | 8537.10 |
| Country of Origin | Germany |
Proven Application Environments
- Discrete Manufacturing: Conveyor sequencing, pick-and-place control, end-of-line testing stations
- Building Automation: HVAC damper control, lighting relay management, access control interlocks
- Water & Wastewater: Pump station control, valve actuation, level switch monitoring
- Food & Beverage: Filling line control, reject gate actuation, CIP sequence management
- OEM Machine Builders: Compact panel designs requiring high I/O density with minimal footprint
- Retrofit & Expansion: Extending existing S7-200 CPU installations without hardware platform change
Engineering Advantages
- High I/O Density: 32 points (16DI + 16DO) in a single compact module — maximizes panel space efficiency
- Fast Response: Sub-millisecond input filtering and microsecond output switching for time-critical sequences
- Optical Isolation: 500 VAC isolation protects CPU logic from field-side transients and ground loops
- Flexible Wiring: Removable terminal blocks simplify commissioning and module replacement without rewiring
- Wide Temperature Range: Rated to +55 °C ambient — suitable for non-air-conditioned enclosures
- Multi-certification: CE / UL / FM / ATEX Zone 2 compliance supports global project deployment
- Plug-and-Play Expansion: Direct bus connection to S7-200 CPU — no additional power supply or interface module required
System Architecture & Signal Flow
The 6ES7223-1BL22-0XA0 connects to the S7-200 CPU via the integrated expansion bus connector on the right side of the CPU housing. The module draws 5 VDC logic power from the CPU bus (145 mA) and requires a separate 24 VDC field power supply for I/O operation. Signal flow is as follows:
- Inputs: Field device → terminal block → optical isolator → CPU I/O image register (updated each scan cycle)
- Outputs: CPU I/O image register → optical isolator → transistor driver → terminal block → field actuator
- Addressing: Module address is automatically assigned by the CPU based on slot position in the expansion chain (EM0, EM1, …)
- Max Expansion Chain: Up to 7 EM modules per S7-200 CPU (subject to 5 VDC bus current budget)
Sourcing & Quality Verification
Konmask.com sources the 6ES7223-1BL22-0XA0 through verified industrial distribution channels. Every unit undergoes the following pre-shipment checks:
- Visual inspection: label integrity, housing condition, connector pin alignment
- Firmware/date code verification against Siemens production records
- Functional power-on test: LED status verification, bus communication handshake
- Anti-static packaging with humidity indicator card
- Certificate of conformity available upon request
All units are shipped with original Siemens packaging where available. Refurbished units are clearly identified and carry a separate warranty statement.
Procurement Process
- Step 1 — Confirm Part Number: Verify 6ES7223-1BL22-0XA0 against your BOM or Siemens TIA Selection Tool output
- Step 2 — Request Quote: Contact support@konmask.com with quantity, delivery timeline, and destination country
- Step 3 — Order Confirmation: Receive proforma invoice with lead time, shipping method, and payment terms
- Step 4 — Shipment & Tracking: Units dispatched within 1–3 business days; tracking number provided via email
- Step 5 — Incoming Inspection: Use provided checklist to verify label, date code, and functional status on receipt
Minimum Order Quantity: 1 unit | Lead Time: 1–5 business days (stock-dependent) | Payment: T/T, PayPal, credit card
Technical FAQ
Q: Is the 6ES7223-1BL22-0XA0 compatible with S7-200 SMART CPUs?
A: No. The EM223 expansion bus is specific to the classic S7-200 platform. S7-200 SMART uses a different expansion connector and requires SMART-series EM modules (e.g., 6ES7223-1BL22-0XA8).
Q: Can I mix transistor-output and relay-output EM modules in the same expansion chain?
A: Yes. The S7-200 CPU supports mixed EM module types in the expansion chain, subject to the total 5 VDC bus current limit.
Q: What is the maximum cable length between the CPU and the last EM module?
A: The expansion bus cable is integrated — modules connect directly side-by-side. There is no external cable; the chain must be physically contiguous.
Q: Does this module support interrupt-driven input processing?
A: Expansion module inputs are read during the normal scan cycle I/O update phase. For interrupt-driven inputs, use the onboard CPU I/O points (HSC or interrupt inputs on the CPU itself).
Q: What programming software is required?
A: STEP 7-Micro/WIN V4.0 SP9 or later. The software is available from Siemens Industry Online Support (SIOS).
