FOXBORO FBM203 P0914SV Channel Isolated 8-Input RTD | Replacement, Equivalent & Selection Guide

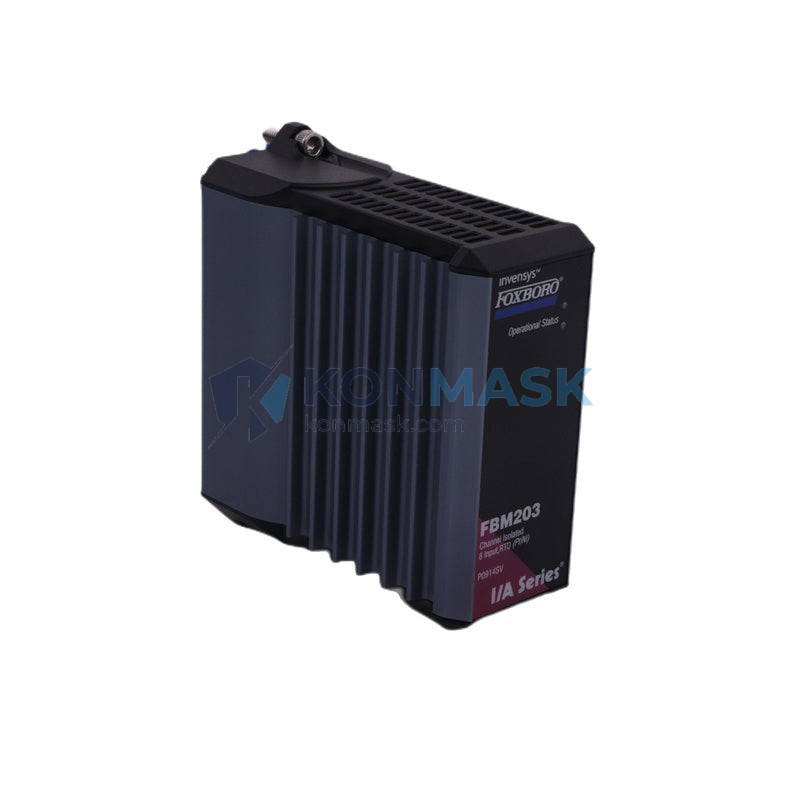

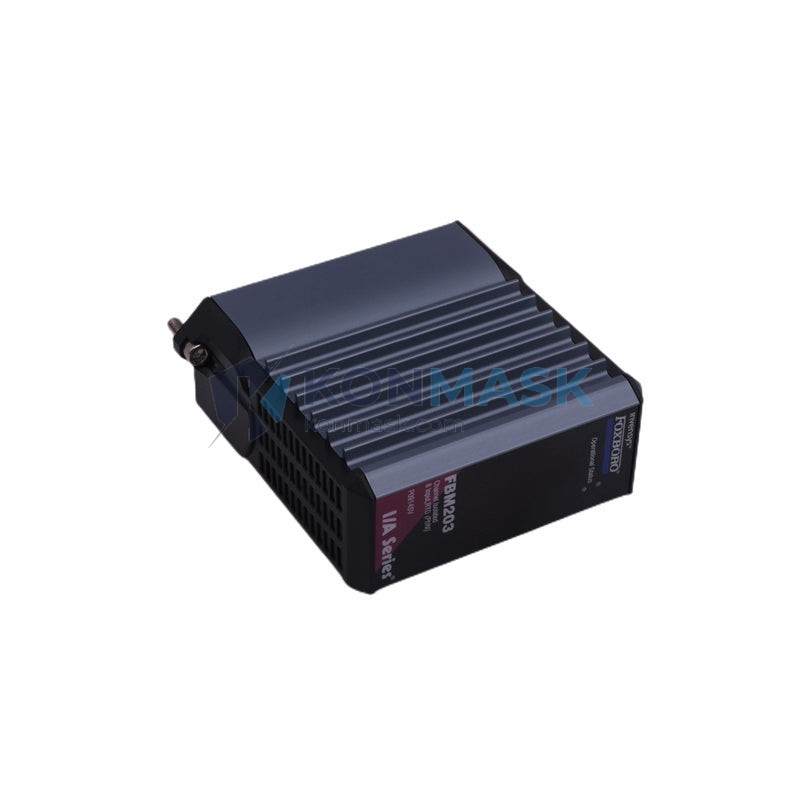

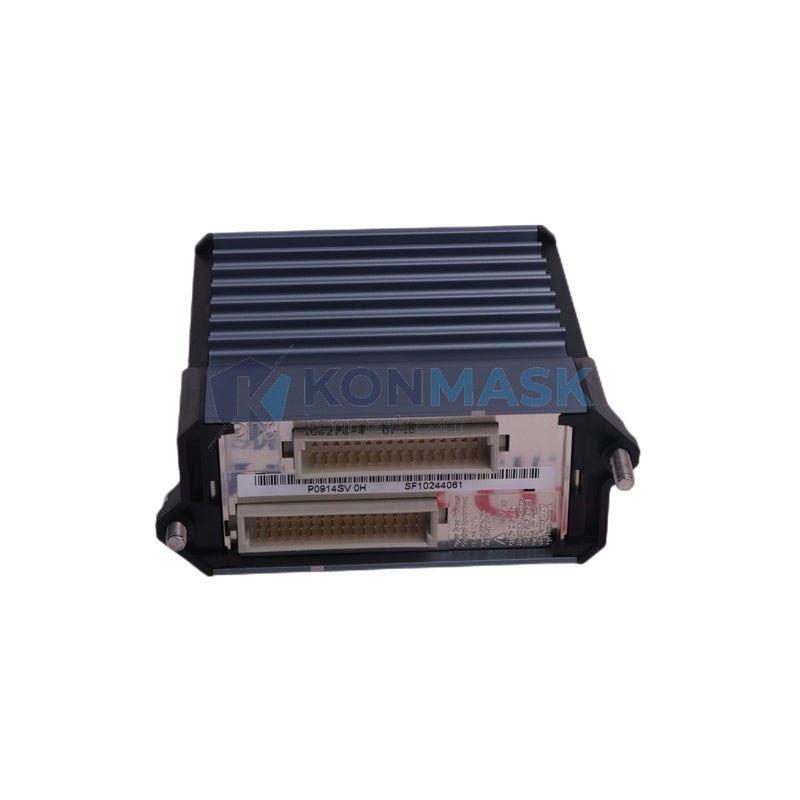

The FOXBORO FBM203 (Part No. P0914SV) is a channel-isolated, 8-input RTD (Resistance Temperature Detector) field bus module designed for use within the Foxboro I/A Series Distributed Control System (DCS). It provides high-accuracy temperature measurement with full channel-to-channel isolation, making it a critical I/O component in process automation environments across oil & gas, chemical, and power generation industries.
Selection Background: Why Replacement & Equivalent Models Matter
When the FBM203 P0914SV reaches end-of-life, becomes obsolete, or is urgently needed for an unplanned shutdown, engineers must quickly identify a qualified replacement or equivalent module that maintains system integrity. Buyers searching for FBM203 replacement, P0914SV equivalent, or FBM203 substitute need reliable sourcing and clear compatibility guidance — not guesswork. Konmask specializes in exactly this: verified OEM stock, functional equivalents, and cross-brand alternatives with full technical vetting.
Technical Specifications
| Model | FBM203 |
| Part Number | P0914SV |
| Manufacturer | Schneider Electric / Foxboro (I/A Series) |
| Module Type | RTD Input Field Bus Module |
| Input Channels | 8 (fully channel-isolated) ⚠️ Key replacement parameter |
| Sensor Types Supported | Pt100, Pt200, Pt500, Pt1000, Ni100, Cu10 (configurable per channel) |
| Measurement Range | -200°C to +850°C (Pt100) |
| Accuracy | ±0.1°C typical ⚠️ Key replacement parameter |
| Channel Isolation | Channel-to-channel isolated ⚠️ Key replacement parameter |
| Communication Bus | Foxboro Nodebus / Fieldbus |
| Power Supply | Supplied via baseplate (I/A Series standard) |
| Mounting | I/A Series FBM baseplate (e.g., CP60, CP270) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, FM (intrinsic safety variants available) |
| Weight | ~300g |
Compatible Replacement & Equivalent Models
When sourcing an FBM203 P0914SV replacement, three categories apply. Always verify firmware revision and baseplate compatibility before installation.
✅ Direct Drop-in Replacements (OEM)
- FOXBORO FBM203 P0914SV — Identical OEM unit; preferred for zero-risk swap. Konmask stocks tested surplus and new units.
- FOXBORO FBM203 P0914YV — Conformal-coated variant; functionally equivalent, suitable for humid environments. Confirm baseplate slot compatibility.
🔄 Functional Equivalents (Same Platform)
- FOXBORO FBM204 — 8-input thermocouple module; equivalent form factor but different sensor type. Use only if process sensors are changed to TC simultaneously.
- FOXBORO FBM217 — Enhanced RTD/TC combo module; superset functionality. Requires firmware ≥ v7.x on the CP controller. Confirm with Foxboro compatibility matrix.
🔀 Cross-Brand Alternatives (Engineering Review Required)
- Emerson DeltaV RTD Input Card (MD Plus) — Functional substitute in multi-vendor DCS migrations. Requires full I/O mapping and loop reconfiguration. Not a plug-in replacement.
- Honeywell HC900 RTD Module — Comparable channel count and isolation spec; applicable in system replacement projects only. Full engineering validation mandatory.
- ABB S800 AI810 — 8-channel analog input with RTD support; cross-brand migration path. Requires new baseplate, wiring, and configuration.
⚠️ Note: Cross-brand alternatives are not plug-and-play. They require engineering review, I/O remapping, and system validation. Contact Konmask for a compatibility assessment before ordering.
Why Choose the Original FBM203 P0914SV
- Measurement Precision: ±0.1°C accuracy with 16-bit resolution ensures process-critical temperature loops remain within specification — no recalibration required after swap.
- Full Channel Isolation: Each of the 8 channels is independently isolated, eliminating ground loop interference and protecting against sensor faults propagating across channels.
- Certified Compatibility: Designed and validated for I/A Series DCS baseplates and Nodebus architecture — no firmware patches or workarounds needed.
- Regulatory Certifications: CE, UL, and FM listings maintained; critical for facilities operating under IEC 61511 / ISA-84 functional safety requirements.
- OEM Technical Support: Schneider Electric / Foxboro provides full documentation, firmware updates, and lifecycle support for verified OEM units.
- Warranty & Traceability: Konmask-supplied units include test reports, serial number traceability, and a 12-month warranty — reducing procurement risk in MRO and capital projects.
Typical Applications
- Oil & Gas Refining: Crude distillation column temperature profiling across 8 measurement points using Pt100 sensors on a single FBM203 module.
- Chemical Processing: Reactor jacket temperature monitoring with channel isolation preventing cross-contamination of measurement signals in exothermic processes.
- Power Generation: Steam turbine bearing and winding temperature surveillance in combined-cycle plants running Foxboro I/A Series DCS.
- Pulp & Paper: Digester and dryer section temperature control loops requiring high-accuracy RTD inputs with minimal drift over long production runs.
- Pharmaceutical Manufacturing: Validated temperature measurement in GMP-regulated batch reactors where audit trail and sensor traceability are mandatory.
- LNG / Cryogenic Facilities: Low-temperature RTD measurement down to -200°C for cryogenic storage and transfer line monitoring.
System Compatibility
The FBM203 P0914SV is designed for the Foxboro I/A Series DCS ecosystem. Confirmed compatible components:
- CP60 / CP270 Control Processors — Host controllers that communicate with FBM203 via Nodebus; firmware v6.x and above recommended.
- FBM Baseplates (8-slot / 16-slot) — Standard I/A Series mounting baseplates; FBM203 occupies one slot.
- Nodebus Extender Modules — For remote I/O cabinets; FBM203 fully supported on extended Nodebus segments.
- FOXBORO FoxView / IA Series Workstations — Engineering and operator stations for configuration, calibration, and diagnostics of FBM203 channels.
- Pt100 / Pt1000 RTD Sensors — 2-wire, 3-wire, and 4-wire configurations supported per channel (configurable in software).
- Intrinsic Safety Barriers (Zener / Galvanic) — Compatible with IS-rated sensor installations in Zone 1/2 hazardous areas when used with approved barriers.
Selection Guide
Answer these three questions to confirm the FBM203 P0914SV — or its equivalent — is the right choice for your application:
-
Is your DCS platform Foxboro I/A Series with Nodebus architecture?
If yes, the OEM FBM203 P0914SV is the lowest-risk, highest-compatibility choice. If you are migrating to a different DCS platform, contact Konmask for a cross-brand equivalent assessment. -
Do you require channel-to-channel isolation for your RTD inputs?
If your process has multiple sensor ground references or operates in electrically noisy environments, the FBM203’s full channel isolation is a critical specification — verify any substitute module matches this requirement. -
What is your sensor type and measurement range?
Confirm your field sensors are RTD (Pt100/Pt1000/Ni100/Cu10) and not thermocouples. If TC sensors are in use, the FBM204 or FBM217 may be the correct equivalent. Contact Konmask for a free selection review.
Quality Assurance & Sourcing
Sourcing Channels: Konmask procures FBM203 P0914SV units through authorized distributor networks, verified surplus channels, and direct OEM partnerships — never from unverified grey-market sources.
4-Step Inspection Process:
- Visual Inspection: Board-level examination for physical damage, corrosion, counterfeit markings, and date code verification.
- Functional Test: Power-on test with I/A Series baseplate; all 8 RTD channels verified against calibrated reference signals.
- Firmware Verification: Firmware revision confirmed and documented; compatibility with target CP controller version validated.
- Final Documentation: Test report issued with serial number, inspection date, and technician sign-off before shipment.
Available Documentation: Certificate of Conformance (CoC) · Functional Test Report · Datasheet · MSDS (if applicable) · Export compliance documentation (HS Code, COO)
How to Order
- Submit Your Requirement: Email support@konmask.com or call +0086 19859288691 with your part number (FBM203 P0914SV), required quantity, and delivery timeline.
- Receive Quote & Availability: Konmask will confirm stock status, lead time, pricing, and any equivalent options within 24 hours.
- Confirm & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full traceability. Expedited shipping available for emergency shutdowns.
Replacement & Compatibility FAQ
Q: Can I directly replace FBM203 P0914SV with FBM203 P0914YV?
A: Yes. The P0914YV is the conformal-coated variant of the same module and is a functional equivalent and direct substitute in the same baseplate slot. No configuration changes are required. Verify the coating specification meets your environmental requirements.
Q: Is the FBM203 compatible with both 3-wire and 4-wire RTD sensors?
A: Yes. Each channel on the FBM203 P0914SV supports 2-wire, 3-wire, and 4-wire RTD configurations, selectable per channel in the I/A Series configuration software. This flexibility makes it compatible with the majority of installed Pt100 sensor wiring schemes without field rewiring.
Q: What is the best cross-brand substitute for FBM203 in a DCS migration project?
A: There is no universal drop-in cross-brand equivalent for the FBM203 P0914SV — any substitute from Emerson, Honeywell, or ABB requires full I/O remapping, wiring changes, and system validation. Konmask recommends sourcing OEM or functional equivalents within the I/A Series platform wherever possible. For migration projects, contact us for a detailed compatibility and cost analysis.
