Genuine Siemens 6ES7322-8BH10-0AB0 Digital Output Module | SIMATIC S7-300 SM322 – Verified Source

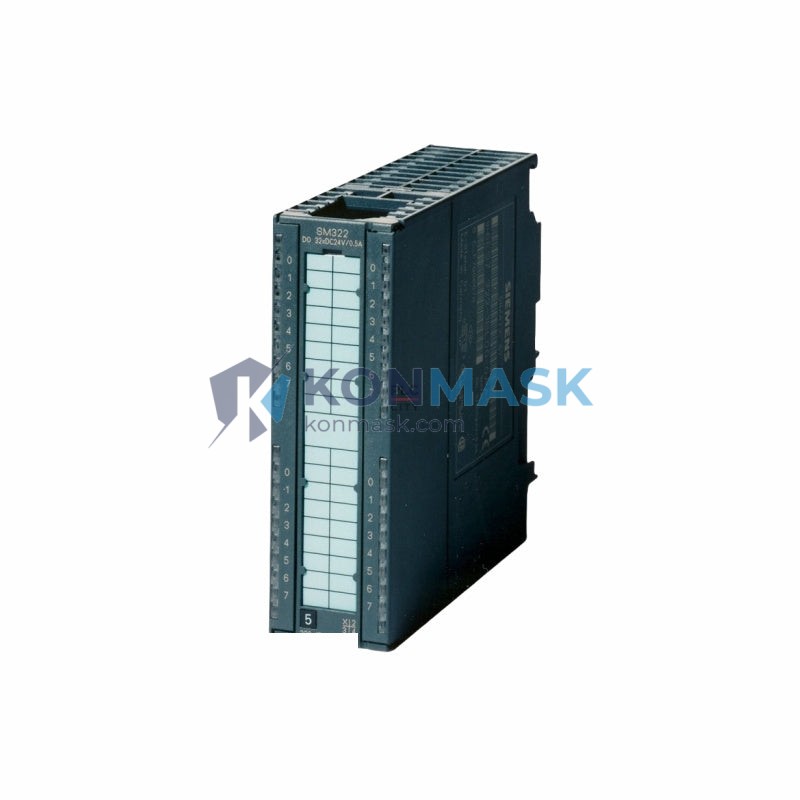

The Siemens 6ES7322-8BH10-0AB0 is a high-reliability SM322 series digital output module designed for the SIMATIC S7-300 programmable logic controller platform. Featuring 16 transistor outputs at DC 24V / 0.5A, this module delivers precise, fast-switching control for demanding industrial automation environments. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes rigorous authenticity screening before dispatch.
Technical Specifications
- Part Number / SKU: 6ES7322-8BH10-0AB0
- Series: SIMATIC S7-300, SM322 Digital Output
- Output Channels: 16 × DC 24V transistor outputs
- Output Current: 0.5A per channel
- Supply Voltage: DC 24V (load voltage L+)
- Output Type: Sourcing (P-switching)
- Isolation: Optocoupler isolation between field side and backplane bus
- Backplane Bus: S7-300 standard backplane
- Dimensions (W×H×D): 40 × 125 × 120 mm
- Weight: Approx. 200 g
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +70°C
- Degree of Protection: IP20
- Standards: CE, UL, cULus, ATEX (Zone 2)
Our 4-Step Quality Verification Process
At Konmask.com, every 6ES7322-8BH10-0AB0 unit passes through a documented 4-step verification protocol before shipment:
- Step 1 — Source Traceability: We verify the supply chain origin. Units are sourced from authorized distributors or factory-sealed surplus stock with traceable documentation.
- Step 2 — Physical Inspection: Label integrity, housing condition, connector pins, and firmware version stickers are inspected against Siemens OEM specifications.
- Step 3 — Functional Bench Test: Each module is powered up and output channel continuity is verified using calibrated test equipment.
- Step 4 — Packaging & Documentation: Units are repackaged in anti-static ESD bags with inspection records enclosed. A certificate of inspection is available upon request.
Key Features & Benefits
- ✅ 16 independent transistor output channels — maximizes I/O density per slot
- ✅ Fast switching response — ideal for high-speed actuator and solenoid control
- ✅ Optocoupler isolation — protects the CPU from field-side voltage transients
- ✅ Plug-and-play compatibility with all S7-300 racks and CPUs
- ✅ Diagnostic LED indicators per channel for rapid fault identification
- ✅ Compact 40mm width — space-efficient for dense panel installations
- ✅ Genuine Siemens hardware — not counterfeit, not refurbished without disclosure
Typical Applications
- Conveyor and material handling system control
- Solenoid valve and relay actuation in process automation
- Machine tool and CNC auxiliary output control
- Packaging line actuator sequencing
- Building automation and HVAC control panels
- Water treatment and pump station control
- Automotive assembly line automation
Compatible System Components
- CPUs: S7-300 series — CPU 312, 313, 314, 315, 316, 317, 318, 319
- Racks: UR1 (6ES7390-1AE80-0AA0), UR2 (6ES7390-1AF30-0AA0)
- Power Supplies: PS307 series (6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0)
- Digital Input Modules: SM321 series (e.g., 6ES7321-1BH02-0AA0)
- Front Connectors: 6ES7392-1BJ00-0AA0 (20-pin), 6ES7392-1BM01-0AA0 (40-pin)
- Programming Software: STEP 7 V5.x, TIA Portal V13 SP1 and above
Global Sourcing & Shipping Capabilities
Konmask.com ships the 6ES7322-8BH10-0AB0 worldwide from our warehouse in China. We support urgent industrial procurement needs with the following logistics options:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days globally
- Economy Air: 7–15 business days for cost-sensitive orders
- Sea Freight: Available for bulk orders (MOQ negotiable)
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided as standard
- Customs Support: HS Code 8537.10 — we assist with customs declaration documentation upon request
Certifications & Compliance Statement
The Siemens 6ES7322-8BH10-0AB0 is manufactured in compliance with the following international standards and directives:
- CE Marking — EU Low Voltage Directive (LVD) and EMC Directive compliant
- UL / cULus Listed — North American safety certification
- ATEX Zone 2 — suitable for use in potentially explosive atmospheres (gas group IIC)
- IEC 61131-2 — programmable controller equipment standard
- RoHS Compliant — restriction of hazardous substances
Konmask.com does not alter, modify, or re-label any hardware. All compliance certifications are those of the original Siemens manufacturer.
How to Order
- Add to Cart — click the “Add to Cart” button above and proceed to checkout.
- Request a Quote — for bulk orders (5+ units) or special pricing, email support@konmask.com with your required quantity and delivery timeline.
- Provide PO Documentation — B2B buyers may submit a Purchase Order; we issue a proforma invoice within 1 business day.
- Payment Methods: T/T (Bank Wire), PayPal, and major credit cards accepted.
- Lead Time: In-stock units ship within 1–2 business days of payment confirmation.
Authenticity & Trust FAQ
Q: Are these units genuine Siemens products?
A: Yes. All units are sourced from verified supply channels. We do not sell counterfeit, cloned, or unauthorized replica hardware. Inspection records are available upon request.
Q: Can I verify the serial number with Siemens?
A: Yes. Genuine units carry a Siemens factory serial number on the label. You may verify authenticity through Siemens Industry Online Support (support.industry.siemens.com).
Q: What is your return policy for defective units?
A: We offer a 30-day return window for units that fail to function as specified under normal operating conditions. Contact support@konmask.com with your order number and fault description.
Q: Do you provide a warranty?
A: Yes — 12-month limited warranty against manufacturing defects. This does not cover damage from incorrect installation, overvoltage, or unauthorized modification.
Q: Can you supply multiple units or arrange a long-term supply agreement?
A: Yes. We support OEM procurement, MRO replenishment, and project-based bulk supply. Contact us to discuss pricing tiers and lead time commitments.
