Honeywell FC-SDO-0824 (10201/2/1) Digital Output Module | Replacement, Equivalent & Selection Guide

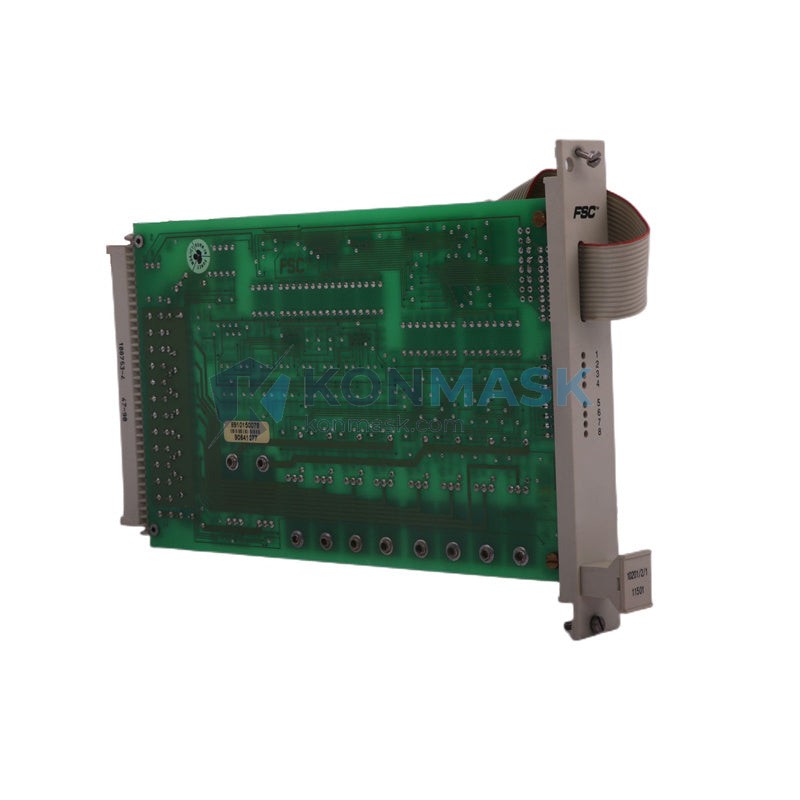

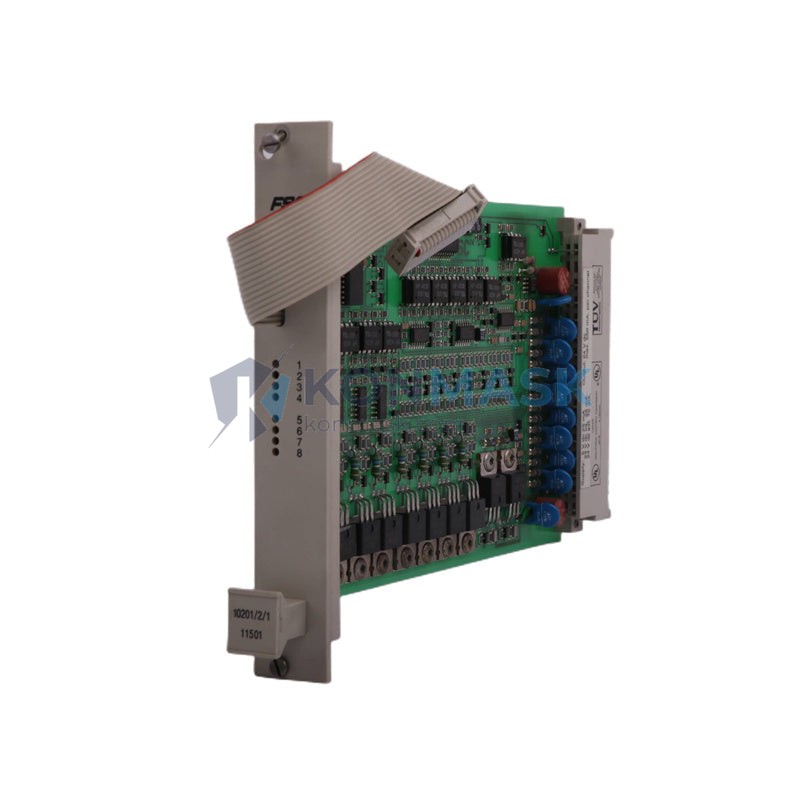

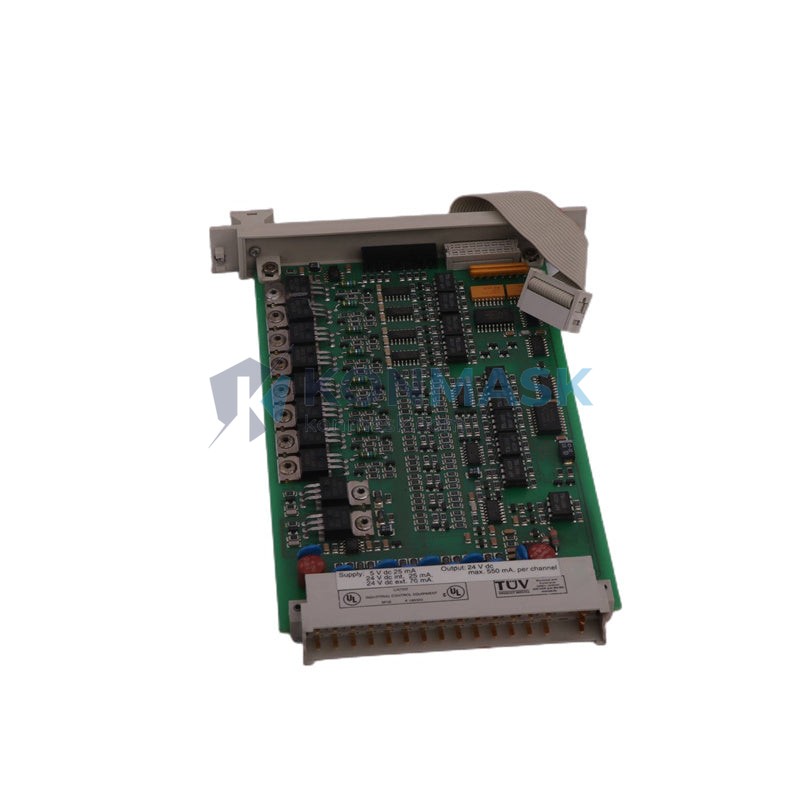

The Honeywell FC-SDO-0824 (part number 10201/2/1) is an 8-channel, 24 VDC digital output module designed for use within the Honeywell Safety Manager and FSC (Fail-Safe Controller) safety instrumented systems. It provides reliable discrete output control for critical process automation and safety shutdown applications across oil & gas, petrochemical, and power generation industries.
Selection Background
Industrial buyers frequently search for FC-SDO-0824 replacement or FC-SDO-0824 equivalent modules when facing end-of-life notifications, extended lead times, or budget-driven sourcing decisions. Understanding which alternatives are truly drop-in compatible — and which require engineering review — is essential before committing to a substitute. This guide consolidates that intelligence so your procurement and engineering teams can make an informed decision quickly. Whether you need an exact Honeywell FC-SDO-0824 substitute or a cross-brand functional equivalent, Konmask provides verified sourcing and pre-shipment inspection for every unit.
Technical Specifications
| Parameter | Value | Replacement Impact |
|---|---|---|
| Part Number | FC-SDO-0824 / 10201/2/1 | — |
| Output Channels | 8 channels | ⚠ Critical — must match |
| Output Voltage | 24 VDC | ⚠ Critical — must match |
| Output Type | Digital (discrete) solid-state | ⚠ Critical |
| Load Current (per channel) | 0.5 A max | ⚠ Must be ≥ 0.5 A |
| Safety Rating | SIL 2 (IEC 61508) | ⚠ Critical for SIS applications |
| System Compatibility | Honeywell Safety Manager / FSC | ⚠ Backplane bus protocol must match |
| Diagnostics | Online self-diagnostics, fault reporting | Verify equivalent diagnostic coverage |
| Operating Temperature | 0 °C to 60 °C | Confirm for harsh environments |
| Form Factor | Single-slot module | Verify slot pitch compatibility |
| Weight | 150 g (approx.) | — |
| Certifications | CE, UL, TÜV SIL 2 | Verify for regulated sites |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules share the same Honeywell FSC/Safety Manager backplane interface, channel count, and SIL rating and can be swapped without hardware or software modification (subject to firmware version compatibility):
- Honeywell FC-SDO-0824 (10201/2/1) — Original OEM unit; new, refurbished, and tested-surplus stock available from Konmask.
- Honeywell FC-SDO-0824R — Repair/exchange variant; functionally identical, factory-reconditioned.
Prerequisite: Confirm firmware revision compatibility with your Safety Manager controller version before installation.
2. Functional Equivalents (Same Platform, Different Revision)
Modules within the Honeywell FSC family that provide equivalent 8-channel 24 VDC DO functionality but may differ in firmware generation or minor hardware revision:
- Honeywell FC-SDO-0824A — Later hardware revision; verify backplane compatibility with your FSC chassis generation.
- Honeywell 10201/2/2 — Alternate catalog suffix; confirm channel configuration and I/O map before substitution.
Note: Functional equivalents may require a configuration download or I/O map update in Safety Builder / FSC Engineering Tool.
3. Cross-Brand Alternatives (Engineering Review Required)
These modules offer comparable 8-channel 24 VDC digital output functionality but operate on different backplane architectures. A full engineering assessment, including SIL verification, I/O mapping, and system integration testing, is mandatory before deployment in a safety-critical loop:
- Triconex 3603E (Schneider Electric) — TMR architecture DO module; SIL 3 rated; requires Tricon chassis and TriStation programming environment.
- Hima F3 DO 8/01 — 8-channel 24 VDC DO for HIMax/HIMatrix platforms; SIL 3 capable; not backplane-compatible with Honeywell FSC.
- Rockwell 1756-OB8 (Allen-Bradley ControlLogix) — 8-channel 24 VDC DO; suitable for non-SIS process control replacement only; does not carry SIL certification in standard configuration.
Important: Cross-brand substitution in a Safety Instrumented System requires a Management of Change (MOC) process and re-validation per IEC 61511.
Why Choose the Original Model
- Certified SIL 2 Performance: The FC-SDO-0824 carries TÜV-verified SIL 2 certification under IEC 61508, ensuring compliance without additional validation burden.
- Seamless FSC/Safety Manager Integration: Native backplane protocol eliminates integration risk and reduces commissioning time versus cross-brand alternatives.
- Proven Diagnostic Coverage: Built-in online self-diagnostics meet the diagnostic coverage requirements of your existing SIS design basis.
- OEM Technical Support: Honeywell Process Solutions provides lifecycle support, firmware updates, and engineering assistance for original modules.
- Regulatory Acceptance: Auditors and insurers recognize the original certified module, simplifying functional safety audits and PSSR reviews.
- Warranty & Traceability: Konmask supplies units with full traceability documentation, supporting your site’s spare-parts management and quality records.
Typical Applications
- Oil & Gas — Emergency Shutdown (ESD): Actuating solenoid valves and shutdown relays in wellhead and pipeline ESD systems.
- Petrochemical — Burner Management Systems (BMS): Controlling igniter and fuel valve outputs in fired-heater safety loops.
- Power Generation — Turbine Protection: Discrete output control for trip solenoids and auxiliary shutdown devices on gas and steam turbines.
- LNG / Offshore Platforms: High-reliability DO control in harsh marine and cryogenic process environments.
- Chemical Processing — HIPPS: High-Integrity Pressure Protection System output actuation where SIL 2 integrity is mandated.
- Water & Wastewater — Critical Pump Control: Safety-rated discrete output for pump trip and isolation valve control in critical infrastructure.
System Compatibility
The FC-SDO-0824 is designed for use within the following Honeywell system architecture. Ensure all companion components are present and correctly configured:
- Honeywell Safety Manager SC / MC — Host controller; governs I/O scanning and safety logic execution.
- Honeywell FSC Chassis / Backplane — Provides power distribution and module communication bus.
- FC-PSU-0101 / FC-PSU-0201 — FSC power supply modules; verify voltage rail compatibility.
- FC-SDI-0824 — Companion 8-channel 24 VDC digital input module for paired I/O loops.
- FC-COM-0101 — Communication module for Safety Manager network integration.
- Safety Builder / FSC Engineering Tool — Configuration and download software; required for any module replacement or I/O map change.
Selection Guide
Answer these three questions before finalizing your order. If any answer is uncertain, contact Konmask for a free pre-order consultation.
-
Is your application a Safety Instrumented System (SIS) requiring SIL 2 or higher?
If yes, only the original FC-SDO-0824 or a TÜV-certified equivalent with equivalent diagnostic coverage is acceptable. Cross-brand alternatives require full MOC and re-validation. -
What is your FSC chassis generation and Safety Manager firmware version?
Provide this information to Konmask to confirm hardware revision compatibility and avoid firmware mismatch issues. -
Do you need the module operational within a specific maintenance window?
Konmask maintains ready stock and can arrange expedited shipping with pre-shipment testing to meet planned or emergency turnaround schedules. Contact us with your timeline.
Quality Assurance & Sourcing
Konmask sources the FC-SDO-0824 exclusively through authorized distribution channels and verified surplus networks with full chain-of-custody documentation.
4-Step Pre-Shipment Inspection Process:
- Visual Inspection: Check for physical damage, corrosion, counterfeit indicators, and label authenticity.
- Functional Power-On Test: Module powered and channel outputs verified against specification.
- Firmware Version Check: Firmware revision recorded and matched to customer system requirements where specified.
- Documentation Package: Serial number, test report, and traceability records compiled before dispatch.
Available Documentation: Certificate of Conformance (CoC) · Test Report · Datasheet · Material Safety Data Sheet (MSDS) on request · Export compliance documentation
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (FC-SDO-0824 / 10201/2/1), required quantity, and delivery timeline.
- Receive Quote & Availability Confirmation: Konmask will respond within 24 hours with pricing, stock status, lead time, and any compatibility notes specific to your system.
- Order Confirmation & Dispatch: Upon order confirmation, units undergo pre-shipment inspection and are dispatched with full documentation. Expedited and international shipping available.
Replacement & Compatibility FAQ
Q1: Can I directly replace the FC-SDO-0824 with a module from a different manufacturer?
A cross-brand substitute is not a direct drop-in replacement for the FC-SDO-0824. Different manufacturers use proprietary backplane protocols, and any cross-brand alternative requires a full engineering assessment, MOC process, and SIL re-verification per IEC 61511 before it can be used in a safety loop. For non-SIS process control applications, cross-brand options may be feasible with appropriate I/O mapping changes.
Q2: Is the FC-SDO-0824 compatible with both the Honeywell Safety Manager and the older FSC platform?
The FC-SDO-0824 is designed for the Honeywell FSC/Safety Manager platform. Compatibility with specific chassis generations depends on hardware revision and firmware version. Provide your controller model and firmware version to Konmask, and we will confirm the correct equivalent or replacement revision for your system.
Q3: What is the difference between a substitute and an equivalent for the FC-SDO-0824?
In industrial automation sourcing, a substitute typically refers to a module that performs the same function but may require configuration changes, while an equivalent implies a higher degree of interchangeability — often a direct drop-in with no engineering changes. For the FC-SDO-0824, only modules within the same Honeywell FSC family (same backplane, same channel count, same SIL rating) qualify as true equivalents. All other options are substitutes requiring engineering review.
