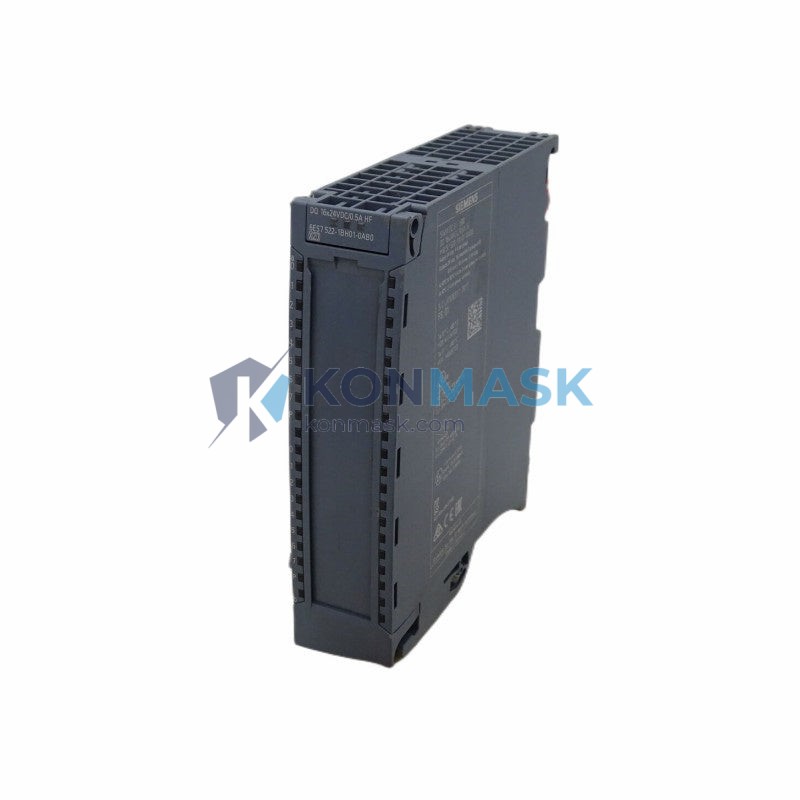

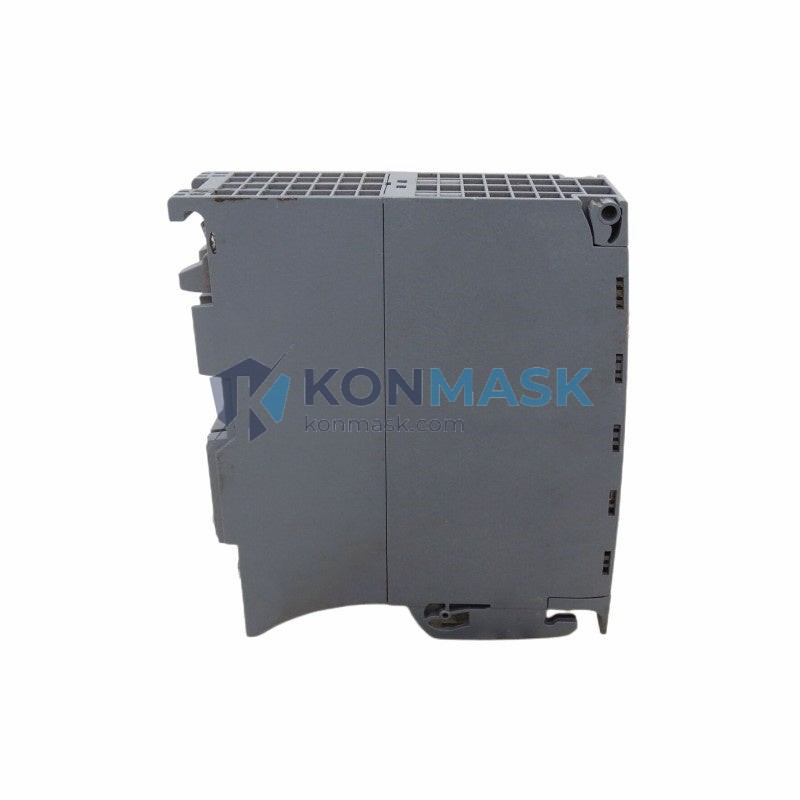

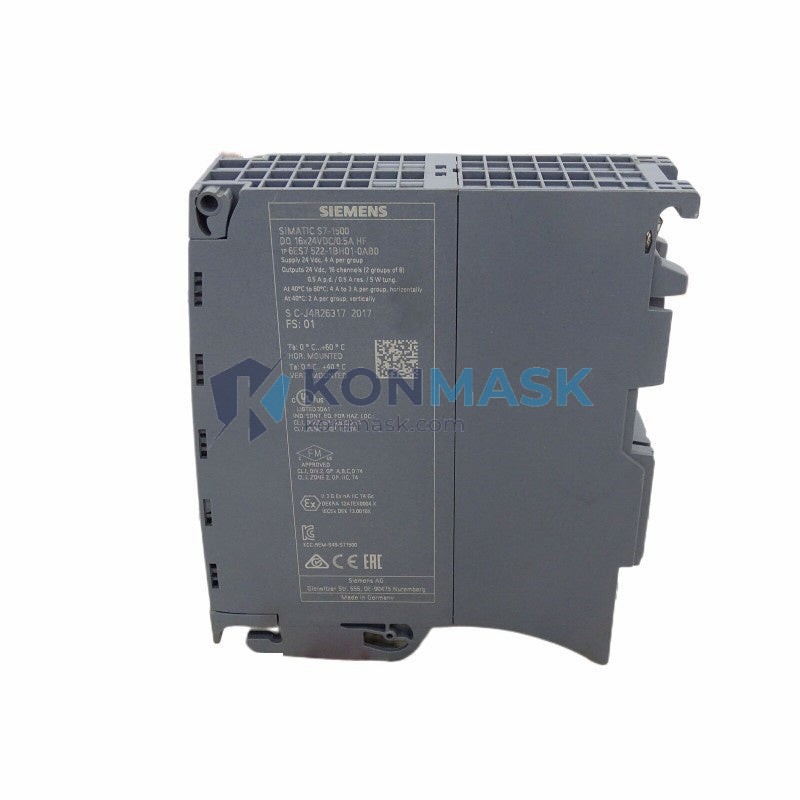

SIEMENS 6ES7522-1BH01-0AB0 — 16-Channel 24 VDC Digital Output Module | SIMATIC S7-1500 Platform
Engineering Background
The SIMATIC S7-1500 series represents Siemens’ flagship controller platform for high-performance discrete and process automation. Designed for demanding industrial environments, the S7-1500 architecture delivers deterministic cycle times, integrated motion control, and a unified engineering framework under TIA Portal. The DQ 16x24VDC/0.5A HF module (6ES7522-1BH01-0AB0) is the high-frequency digital output variant engineered for applications requiring rapid switching, dense I/O packing, and robust diagnostics — all within a compact 35 mm module footprint.
Product Positioning
This module is the preferred choice for machine builders and system integrators who need reliable, high-speed 24 VDC switching across 16 independent channels. Its HF (High Frequency) designation indicates optimized output drivers capable of handling inductive loads, solenoid valves, contactors, and indicator lamps with full short-circuit and overload protection per channel. It slots directly into any S7-1500 rack without additional interface hardware, making it a drop-in upgrade or expansion component for existing S7-1500 installations.
Complete Technical Specifications
| Order Number (MLFB) | 6ES7522-1BH01-0AB0 |
| Module Type | Digital Output (DQ), High Frequency |
| Platform | SIMATIC S7-1500 |
| Number of Outputs | 16 channels |
| Output Voltage | 24 V DC (20.4 – 28.8 V) |
| Output Current per Channel | 0.5 A |
| Total Current (all channels) | 4 A (load group) |
| Output Type | Transistor, sourcing (P-switching) |
| Short-Circuit Protection | Yes, per channel, electronic |
| Overload Protection | Yes, thermal |
| Switching Frequency (resistive load) | 100 Hz |
| Switching Frequency (inductive load) | 0.5 Hz |
| Isolation | Optocoupler isolation between field and backplane bus |
| Diagnostics | Wire break, short circuit, missing load voltage — per channel |
| Supply Voltage (load) | 24 V DC (external) |
| Power Consumption (backplane bus) | Typ. 1.0 W |
| Module Width | 35 mm |
| Weight | Approx. 300 g |
| Operating Temperature | 0 °C to +60 °C (horizontal), 0 °C to +40 °C (vertical) |
| Storage Temperature | –40 °C to +70 °C |
| Degree of Protection | IP20 |
| Connector Type | 40-pin front connector (not included, order separately) |
| HS Code | 8537.10 |
| Country of Origin | Germany |
| Firmware | Configurable via TIA Portal V13 SP1 or higher |
| Certifications | CE, UL, cULus, ATEX Zone 2 (with appropriate housing) |
Proven Application Environments
- Automotive Assembly Lines — High-speed switching of pneumatic actuators and servo drives in body-in-white and powertrain assembly cells
- Packaging Machinery — Precise control of solenoid valves, reject gates, and conveyor drives in FMCG packaging lines
- Water & Wastewater Treatment — Reliable valve and pump control in continuous-duty municipal and industrial water systems
- Building Automation & HVAC — Integration with BMS systems for damper, fan, and chiller control via PROFINET
- Semiconductor & Electronics Manufacturing — Clean-room compatible control of precision actuators requiring deterministic I/O response
- Oil & Gas Upstream/Midstream — Hazardous-area installations (Zone 2) with appropriate Ex-rated enclosures
- Food & Beverage Processing — Washdown-adjacent installations with IP20 module in sealed control cabinets
Engineering Advantages
- Per-Channel Diagnostics — Wire-break and short-circuit detection reported individually to TIA Portal, eliminating manual fault tracing and reducing MTTR
- HF Output Drivers — Optimized transistor output stage supports 100 Hz switching on resistive loads, enabling high-cycle applications without relay wear
- Integrated Backplane Communication — No additional gateway or interface module required; plug-and-play into any S7-1500 rack slot
- Isochronous Mode Support — Synchronizable to PROFINET IRT for motion-critical applications requiring deterministic output timing
- Compact 35 mm Footprint — High channel density minimizes rack space and cabinet real estate versus legacy S7-300/400 equivalents
- Substitute Value Configuration — Configurable safe-state output values on CPU STOP or communication loss, critical for process safety
- TIA Portal Integration — Full hardware configuration, diagnostics, and firmware update via unified TIA Portal engineering environment
System Architecture & Signal Flow
The 6ES7522-1BH01-0AB0 connects to the S7-1500 CPU via the integrated backplane bus (no external wiring). The CPU writes output data to the module’s process image output (PIO) area each scan cycle. The module’s output driver stage converts the digital logic signal to a 24 VDC switched output, with optocoupler isolation maintaining galvanic separation between the control logic and field wiring. Load voltage (24 VDC external) is supplied via the 40-pin front connector. Each channel’s diagnostic status is read back to the CPU via the backplane bus and surfaced in TIA Portal’s online diagnostics view. In isochronous mode, output switching is synchronized to the PROFINET IRT cycle for sub-millisecond jitter performance.
Recommended front connector: 6ES7592-1BM00-0XA0 (40-pin, screw terminal) or 6ES7592-1BM00-0XB0 (40-pin, push-in terminal).
Sourcing & Quality Verification
- Authentic Origin — All units sourced from authorized Siemens distribution channels or verified OEM surplus with full traceability documentation
- Pre-Shipment Inspection — Each module inspected for physical integrity, label authenticity (MLFB, date code, serial number), and firmware version prior to dispatch
- Counterfeit Mitigation — Holographic Siemens security labels verified; units with tampered or missing labels are rejected and not listed
- Condition Grading — New (factory sealed), Refurbished (tested to OEM spec), or Surplus (used, fully functional) — condition stated explicitly in order confirmation
- Documentation Package — Certificate of conformity, test report, and packing list provided on request
Procurement Process
- Inquiry — Submit your BOM or part number via the product page or email [email protected] with required quantity and delivery timeline
- Quote & Lead Time — Receive a formal quotation within 1 business day including unit price, freight, and estimated delivery
- Order Confirmation — Purchase order accepted via the Shopify checkout or direct bank transfer (T/T); proforma invoice issued immediately
- Quality Check & Dispatch — Module inspected, photographed, and packed in anti-static ESD packaging; tracking number provided within 24 hours of payment clearance
- Delivery — DHL Express / FedEx International Priority standard; sea freight available for bulk orders ≥ 10 units
- After-Sales Support — 12-month warranty on new units; 90-day warranty on refurbished/surplus; technical support via WhatsApp/email
Technical FAQ
Q: Is the front connector included?
A: No. The 40-pin front connector must be ordered separately. We recommend 6ES7592-1BM00-0XA0 (screw) or 6ES7592-1BM00-0XB0 (push-in). Contact us to bundle.
Q: What TIA Portal version is required?
A: TIA Portal V13 SP1 minimum. V16 or higher recommended for full diagnostic and isochronous mode support.
Q: Can this module replace the 6ES7522-1BH00-0AB0 (HF predecessor)?
A: Yes. The -1BH01- revision is a direct functional replacement for -1BH00- with identical electrical characteristics and improved firmware. No hardware changes required.
Q: What is the maximum cable length for field wiring?
A: Siemens specifies a maximum of 600 m for unshielded cables and 1000 m for shielded cables to field devices.
Q: Is this module suitable for SIL/Safety applications?
A: No. The 6ES7522-1BH01-0AB0 is a standard (non-safety) output module. For SIL 2/3 applications, use the SIMATIC Safety F-DQ series (e.g., 6ES7526-2BF00-0AB0).
Q: Can I order in small quantities?
A: Yes. Minimum order quantity is 1 unit. Volume pricing available for orders ≥ 5 units — contact us for a tiered quote.
