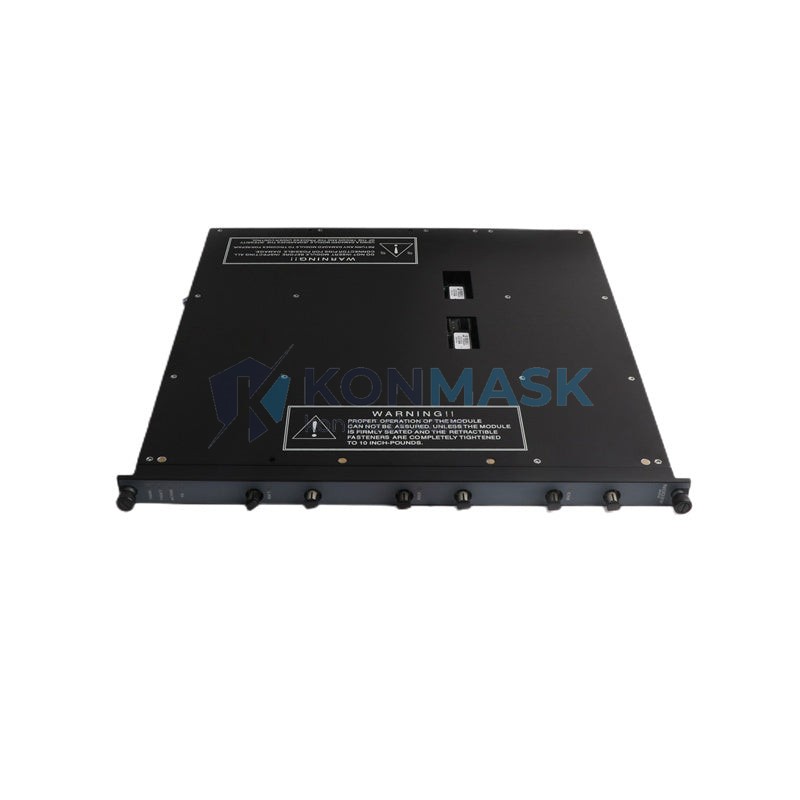

TRICONEX 4329 Communication Module – Peer-to-Peer Network Interface | Tricon TMR Safety Platform
Engineering Background: The Triconex Tricon Triple Modular Redundant (TMR) safety system is one of the most widely deployed Safety Instrumented System (SIS) platforms in high-hazard process industries globally. Certified to IEC 61511 and IEC 61508 SIL 3, the Tricon architecture executes three independent processing paths simultaneously, with a fault-tolerant voter that ensures continuous operation even under dual-fault conditions. Within this architecture, the 4329 Communication Module serves as the dedicated peer-to-peer (TriStation/Peer) network interface card, enabling high-speed, deterministic data exchange between Tricon controllers in distributed safety loop configurations. It occupies a defined slot in the Main Chassis and is essential for multi-controller SIS topologies found in large-scale process plants.
Product Positioning: The 4329 is specifically designed for Tricon v9 and v10 system platforms and is distinct from the 4329A (enhanced firmware variant) and the 4351/4352 series (TriTalk/Modbus gateway modules). The 4329 targets applications requiring direct controller-to-controller communication rather than host SCADA integration. It is not interchangeable with the 4119 (Enhanced Intelligent Communication Module) or the 4554 (TriStation Communication Module). Selection boundary: use the 4329 when the architecture requires dedicated peer network redundancy without SCADA gateway functionality.
Complete Technical Specifications
Electrical
- Supply Voltage: 5 VDC (backplane-supplied), 24 VDC auxiliary (chassis-dependent)
- Power Consumption: ≤ 8 W (typical operating)
- Communication Interface: Dual-port peer network (proprietary Triconex peer protocol)
- Network Speed: 5 Mbps (peer-to-peer dedicated link)
- Isolation: Optical isolation on all network ports
- Signal Type: RS-485 differential, transformer-coupled
Mechanical
- Form Factor: Single-slot Tricon Main Chassis card
- Dimensions: 233.4 mm × 25.4 mm × 280 mm (H × W × D, approximate)
- Weight: ~300 g
- Connector: Dual RJ-45 / proprietary peer port (chassis backplane)
- Mounting: Tricon Main Chassis slot (non-hot-swap without chassis redundancy active)
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- Shock: IEC 60068-2-27 compliant
- EMC: CE marked, meets EN 61000-4 series immunity requirements
Certifications
- Functional Safety: IEC 61508 SIL 3 (system-level, as part of Tricon platform)
- Safety Standard: IEC 61511 compliant SIS application
- Approvals: FM, CSA, ATEX (zone classification per system configuration)
- Quality System: ISO 9001 manufacturing
Data source: Schneider Electric / Triconex Tricon System Planning and Installation Guide, Rev. 10; IEC 61508 SIL 3 Certificate of Conformance. Specifications subject to revision — confirm against current Triconex documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refining | Hydrocracker Unit ESD System — Multi-controller Tricon SIS topology; 4329 peer links maintain sub-10 ms cross-controller synchronization under continuous high-temperature, high-pressure process conditions.
- LNG Liquefaction | Compressor Train Safety Shutdown — Distributed Tricon nodes connected via 4329 peer network; supports SIL 3 loop integrity across geographically separated compressor bays in cryogenic environments.
- Power Generation | Turbine Protection System — 4329 enables real-time peer voting data exchange between redundant Tricon controllers managing overspeed and flame-out protection on gas turbine trains.
- Water Treatment | Chlorination & Dosing Control SIS — Tricon peer network via 4329 links primary and backup controllers in chemical dosing safety loops, maintaining SIL 2 integrity in corrosive, high-humidity enclosure environments.
- Chemical Processing | Reactor Emergency Shutdown — 4329 peer communication supports multi-zone ESD coordination across exothermic reactor trains, where deterministic response time is a design requirement.
- Offshore Platform | Fire & Gas Detection Integration — Tricon controllers interconnected via 4329 in classified hazardous areas; module’s optical isolation and transformer coupling provide noise immunity against platform-level EMI.
Engineering Advantages
- For multi-controller SIS topologies requiring deterministic peer synchronization, this communication module delivers sub-10 ms peer-to-peer latency, because the dedicated 5 Mbps proprietary peer protocol bypasses shared network contention entirely.
- For installations in electrically noisy environments such as motor control centers or switchgear rooms, this communication module maintains signal integrity, because all network ports incorporate optical isolation and transformer coupling per IEC 61000-4 immunity standards.
- For SIL 3 safety loops where single-point failure is unacceptable, this communication module supports the Tricon TMR voting architecture, because it operates as a transparent backplane-integrated node that participates in the three-path redundancy scheme without introducing a single point of failure.
- For plants operating Tricon v9 or v10 platforms with existing peer network wiring infrastructure, this communication module enables direct drop-in replacement, because the 4329 maintains backward firmware compatibility within the v9/v10 chassis ecosystem.
- For procurement teams requiring traceable documentation for functional safety audits, this communication module ships with verifiable provenance records, because sourcing is conducted through documented supply channels with serialization cross-reference capability.
- For maintenance engineers executing planned shutdowns with tight reinstatement windows, this communication module supports rapid slot-level replacement, because the Tricon chassis architecture allows module swap with controller restart rather than full system reconfiguration.
System Architecture & Signal Flow
In a standard Tricon multi-controller configuration, the 4329 occupies a designated communication slot in the Main Chassis. Peer data originates from the Tricon Main Processor (MP) modules, passes through the chassis backplane to the 4329, and is transmitted via the dual peer ports to the corresponding 4329 in the remote Tricon chassis. The receiving 4329 delivers the peer data back through the backplane to the remote MP modules, completing the cross-controller data exchange loop. All three TMR paths participate in this exchange, and the voter logic operates at the MP level — the 4329 functions as a transparent transport layer.
Compatible Modules & Chassis:
- Tricon Main Chassis (3006, 3007, 3008 series) — direct slot compatibility
- Tricon Main Processor 3008 / 3009 — peer protocol supported natively
- 4329A — enhanced firmware variant; functionally equivalent for most peer applications, confirm firmware revision compatibility with Triconex TAC before substitution
- 4351 / 4352 (TriTalk modules) — NOT a peer replacement; different protocol stack (Modbus/TriTalk gateway)
Substitution Conditions: The 4329A may substitute the 4329 in v10 systems with MP firmware ≥ 10.x; verify chassis slot assignment and peer port wiring before substitution. Cross-reference Triconex TAC bulletin for approved substitution matrix.
Sourcing & Quality Verification
All TRICONEX 4329 units offered through Konmask.com are sourced from decommissioned plant inventory, authorized distributor overstock, or verified secondary market channels with documented chain of custody. No units are refurbished without disclosure.
4-Step Incoming Inspection Process:
- Visual & Physical Inspection — Board-level examination for corrosion, component damage, connector pin integrity, and label authenticity against known-good reference units.
- Serial Number & Firmware Verification — Serial number cross-referenced against Triconex TAC database where accessible; firmware revision confirmed via module diagnostic readout.
- Functional Bench Test — Module powered in compatible Tricon chassis; peer port communication verified via TriStation 1131 diagnostic tools; LED status and fault register checked.
- ESD Packaging & Storage — Modules stored in anti-static bags with desiccant in climate-controlled warehouse; humidity and temperature logs maintained.
Documentation Available Upon Request:
- Inspection report with test date and technician ID
- Photographs of physical unit (all six faces)
- Firmware revision record
- Chain of custody declaration
- Triconex OEM datasheet (publicly available reference copy)
Procurement Process
- Submit Inquiry — Provide model number (4329), required quantity, target delivery date, and any firmware or certification requirements via email to support@konmask.com or the product page inquiry form.
- Quotation & Availability Confirmation — A response with unit availability, lead time, pricing (HKD/USD), and shipping options will be issued within 24 hours on business days. Expedited response available for shutdown-critical requirements — state urgency in inquiry.
- Order Confirmation & Dispatch — Upon purchase order confirmation, units are re-inspected, photographed, and dispatched with full documentation package. Export documentation (commercial invoice, packing list, COO) provided for international shipments.
Technical Support: Pre-sale application compatibility consultation available at no charge. Post-sale support includes installation guidance, TriStation diagnostic assistance, and compatibility cross-reference for Tricon system integration questions.
Technical FAQ
Q: Is the 4329 compatible with Tricon v9 and v10 systems simultaneously in a mixed-version peer network?
A: Peer network compatibility between v9 and v10 Tricon controllers depends on MP firmware revision and peer protocol version. Mixed-version peer networks are generally not supported by Triconex without TAC authorization. Confirm system firmware baseline before ordering for mixed-version installations.
Q: Can the 4329A be used as a direct replacement for the 4329?
A: In most Tricon v10 installations with MP firmware ≥ 10.x, the 4329A is an approved functional substitute. However, the substitution must be validated against the Triconex TAC approved substitution matrix, as chassis slot assignment and peer port wiring may differ. Contact the technical team with your system’s MP firmware version for a definitive compatibility assessment before substitution.
Q: Does the 4329 carry SIL 3 certification independently, or only as part of the Tricon system?
A: The SIL 3 rating applies to the Tricon system as a certified platform, not to the 4329 module in isolation. The 4329 is a certified component within the Tricon SIL 3 architecture. For SIS design purposes, the module must be used within a fully certified Tricon system configuration as documented in the Triconex Safety Manual. Standalone module SIL certification is not applicable.
