SIEMENS 6ES7972-0BB42-0XA0 PROFIBUS Bus Connector | Replacement, Equivalent & Selection Guide

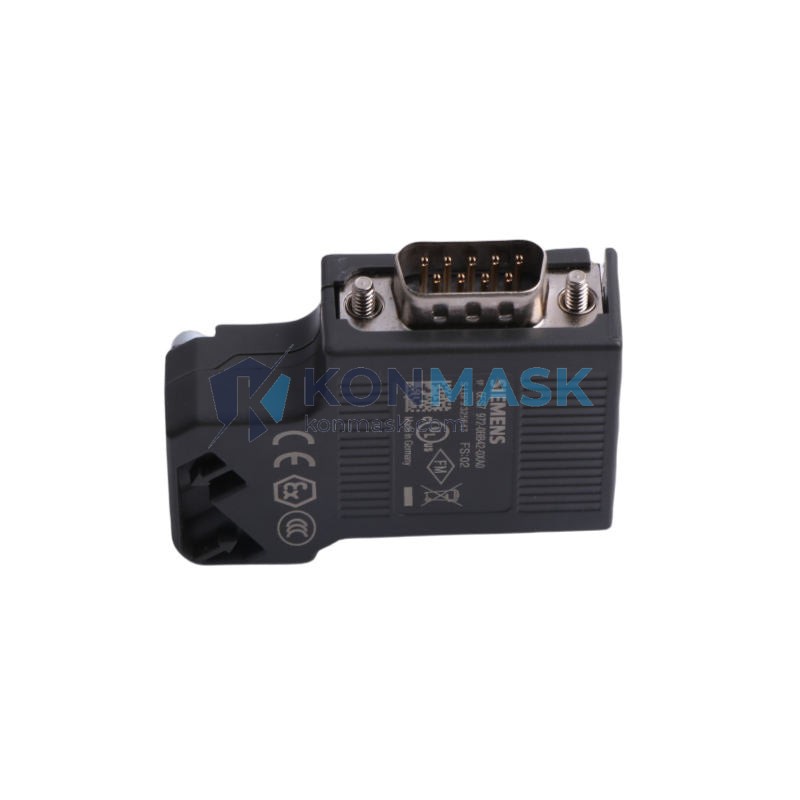

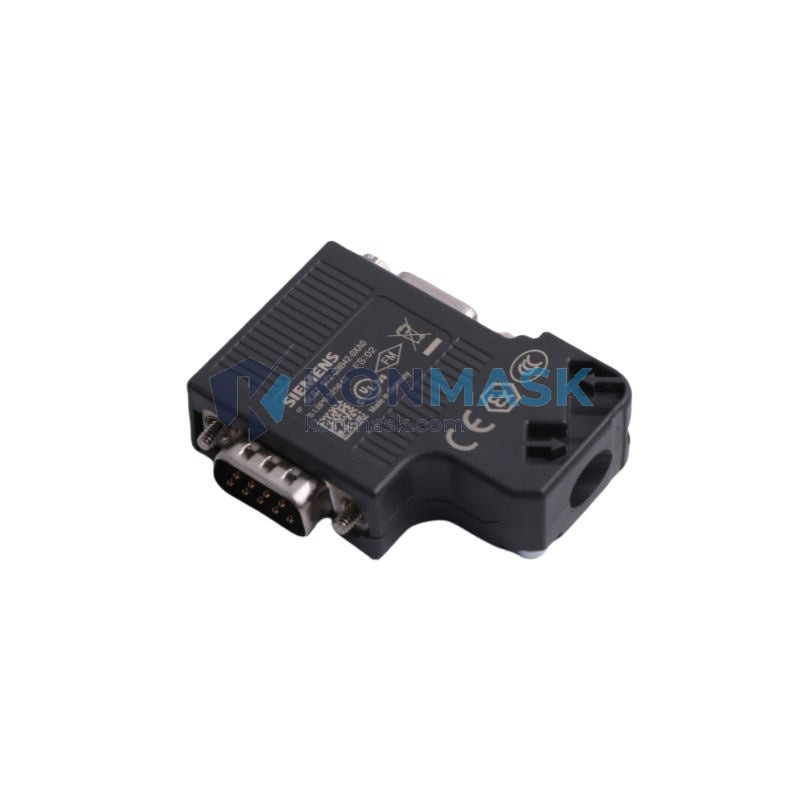

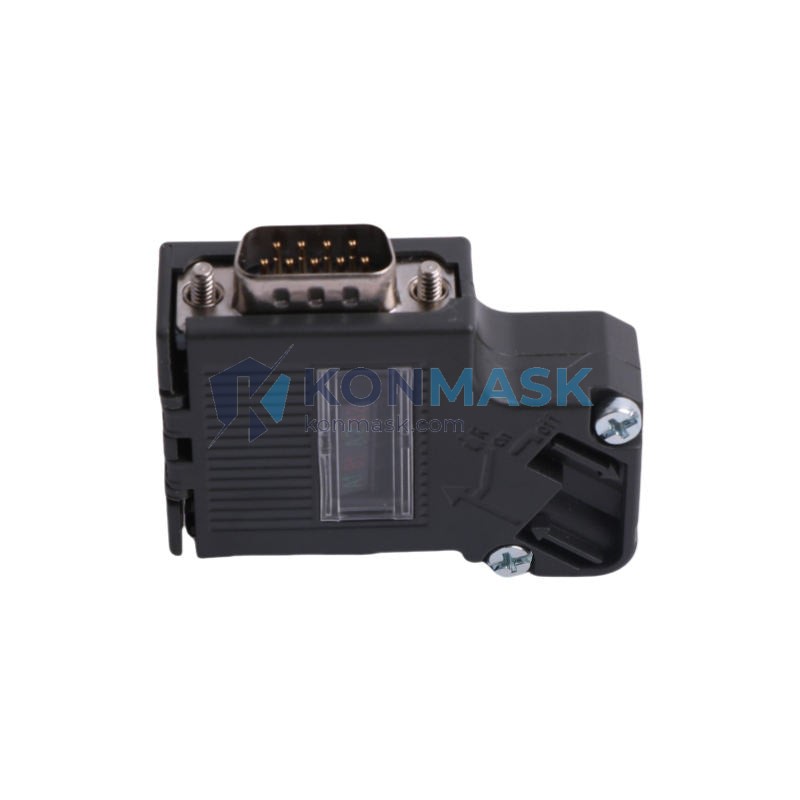

The SIEMENS 6ES7972-0BB42-0XA0 is a 90° PROFIBUS DP bus connector designed for seamless integration into SIMATIC S7-300 and S7-400 automation systems. Whether you are sourcing an original unit, evaluating compatible replacements, or selecting the right connector for a new installation, this guide provides the technical depth and cross-reference data your engineering team needs.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number / SKU: 6ES7972-0BB42-0XA0
- Series: SIMATIC S7 / PROFIBUS Accessories
- Connector Type: PROFIBUS DP Bus Connector, 90° cable outlet
- Bus Interface: RS-485 (PROFIBUS DP)
- Transmission Rate: Up to 12 Mbit/s
- Terminating Resistor: Switchable (integrated)
- Cable Entry Angle: 90°
- Degree of Protection: IP20
- Operating Temperature: 0 °C to +60 °C
- Connection Method: Screw terminal
- Compatible Standards: EN 50170, IEC 61158
- Weight: Approx. 40 g
- Country of Origin: Germany
Compatible Replacement & Equivalent Models
When the original 6ES7972-0BB42-0XA0 is unavailable or a cost-optimised alternative is required, the following models offer functional compatibility:
- 6ES7972-0BB41-0XA0 — Previous generation, same 90° outlet; compatible at speeds up to 12 Mbit/s on most S7-300 racks
- 6ES7972-0BA42-0XA0 — 35° cable outlet variant; electrically equivalent, different mechanical form factor
- 6ES7972-0BB52-0XA0 — With PG socket; suitable when programming device access is required at the node
- Phoenix Contact PROFIBUS Connectors (SUBCON series) — Third-party equivalents; verify baud rate and termination compatibility before installation
- Weidmüller PROFIBUS DP Connectors — Industrial-grade alternatives; confirm pin-out and housing dimensions
Note: Always verify firmware compatibility and physical dimensions before substituting connectors in safety-critical or high-speed PROFIBUS segments.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-validated for all SIMATIC S7-300/400 CPUs and I/O modules without additional configuration
- Integrated Termination: Switchable bus termination eliminates the need for external resistors at segment endpoints
- High-Speed Reliability: Certified for 12 Mbit/s PROFIBUS DP — critical for time-sensitive process control loops
- Robust Construction: Siemens-grade housing withstands industrial vibration, EMI, and thermal cycling
- Warranty & Traceability: Full Siemens product traceability and warranty coverage for audit and compliance requirements
- Long-Term Availability: Supported under Siemens’ Industrial Automation lifecycle policy
Typical Applications
- PROFIBUS DP network segment termination and mid-bus node connections in S7-300/400 systems
- Automotive body shop and paint line automation
- Pharmaceutical batch processing and CIP/SIP control systems
- Water treatment and utilities SCADA networks
- Food & beverage packaging and conveyor control
- Machine tool and CNC machining centre integration
- Building automation and HVAC control panels
System Compatibility
- SIMATIC S7-300: All CPU variants (CPU 312 – CPU 319)
- SIMATIC S7-400: All CPU variants (CPU 412 – CPU 417)
- SIMATIC ET 200 Distributed I/O: ET 200M, ET 200S, ET 200pro
- SIMATIC HMI Panels: TP/OP series with PROFIBUS DP interface
- SINAMICS & MICROMASTER Drives: Via PROFIBUS DP option boards
- Third-Party PROFIBUS DP Slaves: Any device compliant with EN 50170 / IEC 61158
Selection Guide
Use the decision matrix below to select the correct bus connector for your application:
- Cable outlet angle: Choose 90° (this model) for panel-mounted devices with horizontal cable routing; choose 35° (0BA42) for vertical or angled cable exits
- PG socket required? If on-site programming device access is needed at the node, select 6ES7972-0BB52-0XA0 (with PG socket)
- Segment endpoint? This model includes a switchable terminating resistor — enable it only at the first and last physical node of each PROFIBUS segment
- Baud rate: All 6ES7972-0BB42 variants support up to 12 Mbit/s; confirm third-party alternatives match this rating
- Budget vs. OEM: For non-critical auxiliary loops, validated third-party connectors may reduce cost; for safety or high-availability lines, specify OEM Siemens parts
Quality Assurance & Sourcing
- Authorised Supply Chain: Konmask.com sources from verified Siemens authorised distributors and bonded industrial stockists
- Incoming Inspection: Each unit undergoes visual, dimensional, and label-authenticity checks upon receipt
- Batch Traceability: Date codes and batch numbers recorded for full supply-chain traceability
- Anti-Counterfeit Measures: Holographic labels and Siemens product verification codes checked where applicable
- Packaging Integrity: Shipped in original or equivalent ESD-safe packaging with desiccant
How to Order
- Step 1: Confirm your required quantity and delivery timeline
- Step 2: Add to cart or contact us for volume pricing and lead-time confirmation
- Step 3: Provide your project PO number and shipping address at checkout
- Step 4: Receive order confirmation with tracking within 1 business day
- Bulk / OEM enquiries: Email [email protected] or call +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use 6ES7972-0BB41-0XA0 instead of 0BB42-0XA0?
A: In most cases yes — the 0BB41 is the predecessor and is electrically compatible. However, the 0BB42 revision includes improved EMC shielding; for high-speed segments (>1.5 Mbit/s) we recommend the 0BB42.
Q: Is this connector compatible with PROFIBUS PA?
A: No. This connector is designed for PROFIBUS DP (RS-485). PROFIBUS PA requires a dedicated DP/PA coupler and segment connector.
Q: How many connectors can I daisy-chain on one PROFIBUS segment?
A: PROFIBUS DP supports up to 32 nodes per segment without repeaters. Termination must be enabled only at the two physical endpoints.
Q: Do you supply certificates of conformity?
A: Yes. A certificate of conformity and batch traceability document can be provided upon request for all orders.
Q: What is the lead time for out-of-stock units?
A: Typical lead time is 3–10 business days for standard stock replenishment. Contact us for urgent requirements.
