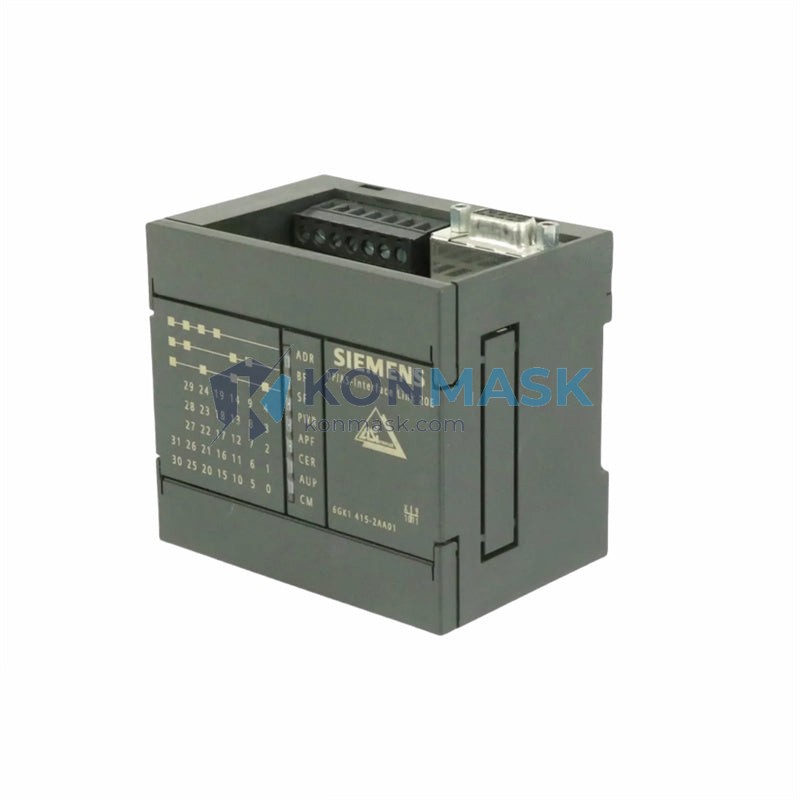

Siemens 6GK1415-2AA01 – PROFIBUS DP Communication Module | SIMATIC NET CP 1415
Engineering Background
The Siemens 6GK1415-2AA01 is a PROFIBUS DP communications processor (CP 1415) designed for integration into SIMATIC S5 programmable logic controller systems. As part of Siemens’ SIMATIC NET industrial networking portfolio, this module enables high-speed, deterministic fieldbus communication between S5 PLCs and distributed I/O, drives, and field devices across demanding industrial environments. It represents Siemens’ commitment to robust, standards-compliant automation networking for process and discrete manufacturing.
Product Positioning
Targeted at maintenance engineers, system integrators, and procurement specialists managing legacy SIMATIC S5 installations, the 6GK1415-2AA01 provides a direct OEM-sourced replacement or expansion path for PROFIBUS DP master/slave communication. Konmask.com supplies this module with full traceability, supporting both brownfield upgrades and ongoing production continuity.
Complete Technical Specifications
- Part Number: 6GK1415-2AA01
- Product Family: SIMATIC NET CP 1415
- Compatible PLC Platform: SIMATIC S5 (S5-115U, S5-135U, S5-155U)
- Communication Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Interface Role: DP Master (Class 1)
- Max. DP Slaves: Up to 125 slaves per segment
- Transmission Rate: 9.6 kbit/s – 12 Mbit/s (auto-negotiated)
- Physical Interface: 9-pin D-Sub (RS-485)
- Bus Termination: Active termination via connector
- Power Supply: Via S5 backplane (5 VDC)
- Configuration Tool: COM PROFIBUS / STEP 5
- Firmware: Factory-loaded, field-upgradeable
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +70 °C
- Relative Humidity: 5% – 95% (non-condensing)
- Protection Class: IP20
- Weight: Approx. 446 g
- Certifications: CE, UL, cUL, FM (Class I, Div. 2)
- MTBF: >100,000 hours (typical)
Proven Application Environments
- Automotive body-in-white and powertrain assembly lines (SIMATIC S5 legacy systems)
- Chemical and petrochemical process control with distributed field devices
- Water and wastewater treatment plant SCADA integration
- Steel mill rolling and continuous casting automation
- Pharmaceutical batch processing with validated PLC architectures
- Power generation and substation automation (brownfield PROFIBUS networks)
- Food and beverage packaging lines requiring deterministic cycle times
Engineering Advantages
- Deterministic Fieldbus: PROFIBUS DP guarantees cycle times as low as 1 ms for 32 slaves at 12 Mbit/s, critical for motion-synchronized applications.
- Backward Compatibility: Direct plug-in replacement for earlier CP 1430 TF modules in S5 racks without hardware modification.
- Diagnostic Transparency: Integrated LED status indicators and STEP 5 diagnostic blocks enable rapid fault isolation without additional hardware.
- Network Scalability: Supports up to 125 slaves per segment; multi-segment topologies achievable with standard PROFIBUS repeaters.
- Noise Immunity: RS-485 differential signaling with galvanic isolation provides robust operation in high-EMI industrial environments.
- Long Service Life: Siemens industrial-grade components rated for continuous 24/7 operation in harsh conditions.
System Architecture & Signal Flow
The 6GK1415-2AA01 occupies a standard S5 module slot and communicates with the S5 CPU via the internal S5 bus. As DP Master Class 1, it cyclically exchanges process data (inputs/outputs) with up to 125 DP slave devices connected via the RS-485 PROFIBUS segment. Configuration is performed offline using COM PROFIBUS software, which generates a GSD-based network configuration downloaded to the CP via STEP 5. During runtime, the CP autonomously manages the DP token ring, slave polling, and error reporting — offloading communication overhead from the S5 CPU. Diagnostic alarms are passed to the CPU via interrupt mechanisms for integration into the user program.
Sourcing & Quality Verification
- Origin: OEM Siemens production (Germany / authorized manufacturing sites)
- Traceability: Each unit ships with Siemens factory label, date code, and serial number intact
- Inspection: 100% functional power-on test and visual inspection prior to dispatch
- Packaging: Original Siemens ESD-safe packaging or equivalent anti-static protection
- Warranty: 12-month Konmask.com operational warranty against manufacturing defects
- Counterfeit Prevention: All units verified against Siemens authorized distributor records; holographic labels and PCB markings authenticated
Procurement Process
- Inquiry: Submit your RFQ with required quantity and delivery timeline to support@konmask.com or via the product page.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Purchase order accepted via email, Shopify checkout, or wire transfer (T/T).
- Quality Check: Pre-shipment inspection report available upon request (photos, serial numbers, test results).
- Shipping: DHL Express / FedEx International Priority standard; EXW, FOB Xiamen available for bulk orders.
- Documentation: Commercial invoice, packing list, certificate of origin, and Siemens datasheet included.
Technical FAQ
Q: Is the 6GK1415-2AA01 compatible with SIMATIC S7 systems?
A: No. This module is designed exclusively for the SIMATIC S5 backplane. For S7-300/400 PROFIBUS DP, refer to the CP 342-5 or CP 443-5 Extended families.
Q: Can this module operate as a DP Slave?
A: The 6GK1415-2AA01 is configured as DP Master Class 1 only. Slave operation is not supported by this variant.
Q: What software is required for configuration?
A: COM PROFIBUS (version 5.x or later) in conjunction with STEP 5 v7.x. The GSD file for slave devices must be imported into COM PROFIBUS prior to network configuration.
Q: Is a firmware update available?
A: Firmware updates, if applicable, are distributed via Siemens Industry Online Support (support.industry.siemens.com). Konmask.com supplies units with the latest available factory firmware.
Q: What is the lead time for stock orders?
A: In-stock units ship within 1–3 business days. For non-stock or bulk orders, lead time is typically 7–15 business days. Contact us for real-time availability.
Q: Do you provide a test report?
A: Yes. A pre-shipment functional test report with serial number, test date, and pass/fail criteria is available upon request at no additional charge.
