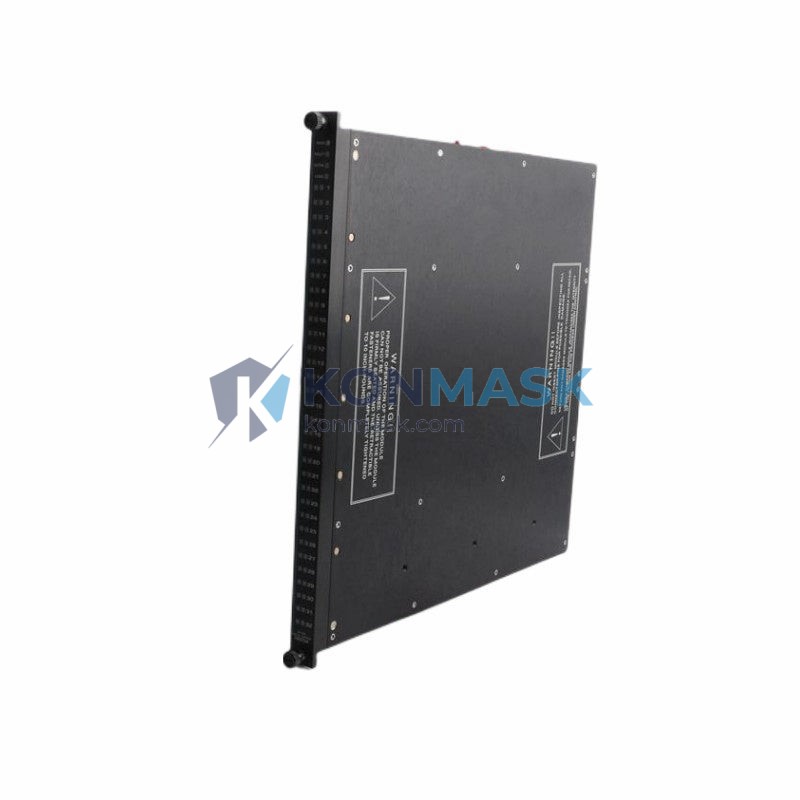

TRICONEX 8306E Communication Module – High-Speed Redundant Communications | Tricon Safety PLC Platform
Engineering Background
The TRICONEX 8306E is a dedicated communication module engineered for the Tricon Triple Modular Redundant (TMR) Safety PLC platform — one of the most widely deployed safety instrumented systems (SIS) in global process industries. Developed by Triconex (a Schneider Electric brand), the 8306E addresses the critical need for deterministic, fault-tolerant data exchange between the Tricon controller and host supervisory systems, DCS networks, and third-party automation equipment.
Product Positioning
Designed for procurement engineers and control system integrators operating in high-hazard environments — including oil & gas, petrochemical, nuclear, and power generation — the 8306E delivers IEC 61508 SIL-rated communication integrity without compromising scan-cycle performance. It is the preferred module for facilities requiring certified safety communication alongside high-availability process control.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 8306E |
| Manufacturer | TRICONEX (Schneider Electric) |
| Platform Compatibility | Tricon TMR Safety PLC (v9.x / v10.x / v11.x) |
| Module Type | Communication Module |
| Architecture | Triple Modular Redundant (TMR) |
| Communication Protocol | TriStation, Modbus RTU/TCP, OPC, proprietary Tricon bus |
| Interface Ports | Dual redundant communication ports |
| Data Transfer Rate | High-speed deterministic (application-dependent) |
| Operating Voltage | Per Tricon chassis backplane (5 VDC logic) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Safety Certification | IEC 61508 SIL 3 capable (system-level) |
| Form Factor | Single-slot Tricon chassis module |
| Weight | ~500 g |
| RoHS Compliance | Yes |
| Country of Origin | USA |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), and wellhead control panels requiring SIL 3 certified communication loops.
- Petrochemical & Refining: Burner Management Systems (BMS) and process safety interlock networks where deterministic data exchange is mandatory.
- Power Generation: Turbine protection and boiler safety systems integrating Tricon controllers with DCS platforms via redundant communication links.
- Nuclear: Safety-critical I&C networks requiring TMR fault tolerance and certified module-level redundancy.
- LNG & Offshore: Harsh-environment installations demanding wide-temperature operation and vibration-resistant module design.
- Chemical Processing: Reactor safety systems and toxic-release prevention interlocks with multi-vendor DCS integration requirements.
Engineering Advantages
- TMR Fault Tolerance: Triple-redundant internal architecture ensures no single-point failure can interrupt communication — critical for SIL 3 loop integrity.
- Hot-Swap Capability: Module replacement without system shutdown, minimizing maintenance downtime in continuous-process facilities.
- Protocol Flexibility: Native support for TriStation programming environment plus Modbus and OPC connectivity for seamless DCS/SCADA integration.
- Deterministic Scan Cycle: Communication latency is bounded and predictable, preserving safety response time requirements.
- Backward Compatibility: Compatible across multiple Tricon firmware generations, protecting existing infrastructure investments.
- Diagnostic Transparency: Onboard LED status indicators and TriStation diagnostic tools provide real-time module health visibility.
System Architecture & Signal Flow
The 8306E occupies a dedicated communication slot within the Tricon main chassis. It interfaces directly with the Tricon backplane bus, receiving process data from the Main Processor Modules (MPMs) and transmitting it to host systems via its external communication ports. In a standard TMR configuration, three independent 8306E signal paths are voted internally — any two-of-three agreement drives the output, ensuring fault masking without operator intervention.
Typical signal flow: Field I/O → I/O Modules → Tricon Backplane → 8306E → Host DCS / SCADA / TriStation Workstation
For redundant host communication, dual 8306E modules can be deployed in primary/secondary configuration, with automatic failover managed by the Tricon operating system.
Sourcing & Quality Verification
- OEM Traceability: All 8306E units sourced through verified industrial automation supply channels with documented provenance.
- Pre-Shipment Inspection: Each module undergoes visual inspection, label verification, and functional continuity checks prior to dispatch.
- Packaging Integrity: Shipped in anti-static ESD packaging with foam cushioning to prevent transit damage to sensitive communication circuitry.
- Condition Disclosure: New, refurbished, and tested-used grades available — condition clearly stated at time of quotation. No misrepresentation.
- Documentation: Certificate of conformance and inspection report available upon request for regulated industries.
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your part number, required quantity, and delivery timeline.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and condition grade.
- Order Confirmation: Approve the quotation and submit a purchase order. Payment terms discussed at this stage.
- Quality Check & Dispatch: Module inspected, packed in ESD-safe materials, and shipped via tracked international freight.
- After-Sales Support: Technical support available post-delivery for installation verification and TriStation configuration guidance.
Technical FAQ
Q: Is the 8306E compatible with Tricon v10 and v11 firmware?
A: Yes. The 8306E is designed for cross-version compatibility across Tricon v9.x through v11.x platforms. Confirm your chassis model and firmware revision when submitting your RFQ for final verification.
Q: Can the 8306E be replaced online without shutting down the safety system?
A: In most Tricon configurations, hot-swap replacement is supported. However, this depends on chassis type and system configuration. Consult your TriStation project documentation before performing live module replacement.
Q: What communication protocols does the 8306E support natively?
A: The module supports the proprietary Tricon backplane protocol, TriStation communication, Modbus RTU and TCP, and OPC connectivity. Third-party protocol gateways may be required for non-standard DCS integration.
Q: Do you provide a warranty on the 8306E?
A: Warranty terms are provided at time of quotation and vary by condition grade. New OEM units carry manufacturer warranty where applicable. Tested-used units carry a Konmask functional warranty period.
Q: Can you supply multiple units for a plant-wide spares program?
A: Yes. Konmask supports bulk procurement and long-term spares agreements. Contact us to discuss volume pricing and staggered delivery schedules.
