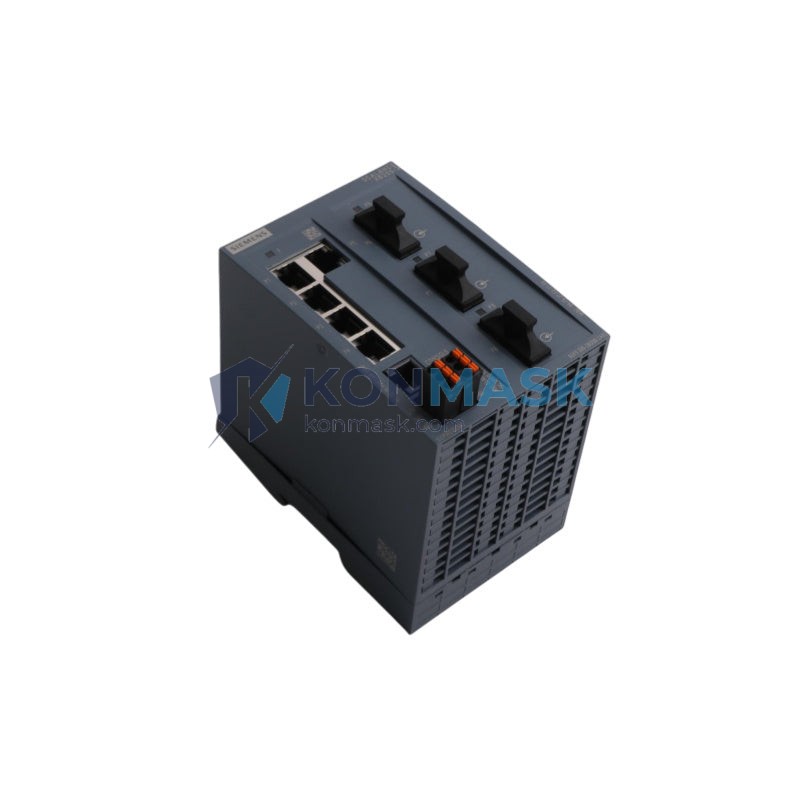

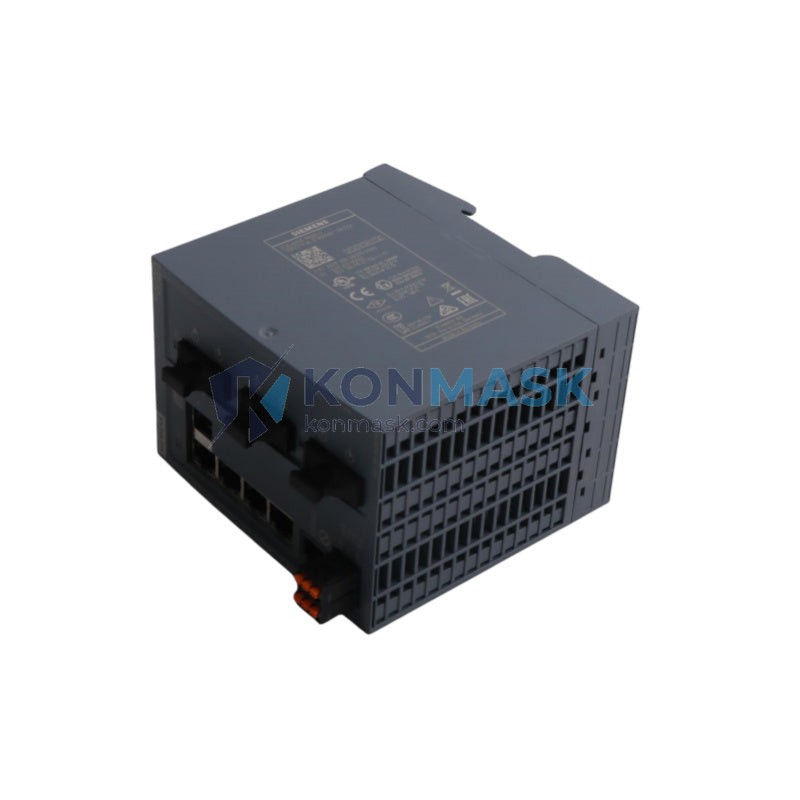

Siemens 6GK5205-3BD00-2AB2 – 5-Port Managed Industrial Ethernet Switch | SCALANCE X205-3
Engineering Background
The SCALANCE X205-3 is part of Siemens’ proven SCALANCE X-200 series, engineered specifically for demanding industrial environments where network reliability is non-negotiable. Designed to operate seamlessly within SIMATIC automation architectures, this switch bridges copper and fiber media in a single compact unit — eliminating the need for separate media converters in mixed-topology plants.
Product Positioning
The 6GK5205-3BD00-2AB2 targets process engineers and system integrators who require deterministic Ethernet communication across distributed control nodes, remote I/O racks, and field-level devices. It is the preferred choice for PROFINET-based machine networks, conveyor systems, and utility automation panels where uptime and signal integrity are critical.
Complete Technical Specifications
- Part Number: 6GK5205-3BD00-2AB2
- Product Family: SCALANCE X205-3 (X-200 Series)
- Total Ports: 5
- Copper Ports (RJ45): 2 × 10/100 Mbps, auto-negotiation, auto-crossover
- Fiber Ports (SC-RJ): 3 × 100 Mbps, multimode, 2 km max distance
- Fiber Wavelength: 1300 nm
- Switching Mode: Store-and-forward
- Management: Managed (SNMP v1/v2c, HTTP/HTTPS, CLI)
- PROFINET Support: Yes (PROFINET IO Device)
- Redundancy Protocols: RSTP (IEEE 802.1w), HRP (High-Speed Redundancy Protocol)
- Supply Voltage: 24 V DC (18–32 V DC)
- Power Consumption: Max. 5.5 W
- Operating Temperature: -40 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Degree of Protection: IP30
- Mounting: DIN rail (35 mm) or wall mount
- Dimensions (W×H×D): 60 × 125 × 124 mm
- Weight: Approx. 320 g
- Certifications: CE, UL, cUL, ATEX Zone 2, IECEx, GL, DNV
- MTBF: > 10 years (typical)
Proven Application Environments
- PROFINET IO networks in SIMATIC S7-300 / S7-400 / S7-1500 control systems
- Long-distance fiber backbone segments in large factory floors (>100 m copper limit)
- Outdoor and harsh-environment enclosures (wide temperature range, IP30)
- Ring topology networks requiring fast failover via HRP (<0.3 ms recovery)
- Utility substations, water treatment plants, and oil & gas field panels
- Conveyor and material handling systems with distributed I/O nodes
- Marine and offshore installations (GL/DNV certified)
Engineering Advantages
- Fiber + Copper Hybrid: Eliminates separate media converters; reduces panel footprint and wiring complexity
- Extended Temperature Range: -40 °C to +70 °C — suitable for unheated outdoor cabinets and cold-storage facilities
- Sub-millisecond Ring Recovery: HRP protocol ensures <0.3 ms failover, meeting IEC 62439-3 requirements
- PROFINET Native: Appears as a PROFINET IO device in TIA Portal — no third-party configuration tools required
- Compact DIN Rail Form Factor: 60 mm wide; fits standard 24 V DC panel power supplies without adapter
- Dual Power Input: Redundant 24 V DC inputs with fault signaling relay output
- Diagnostic LEDs: Per-port link/activity, power, and fault indicators for rapid field troubleshooting
System Architecture & Signal Flow
In a typical PROFINET ring topology, the 6GK5205-3BD00-2AB2 connects to the SIMATIC PLC via one RJ45 copper port, while the two remaining copper ports serve local field devices (ET 200SP, drives, HMI panels). The three SC-RJ fiber ports form the ring backbone — connecting to adjacent switches up to 2 km away — with HRP managing automatic ring closure upon link failure. The switch reports its status directly to TIA Portal via PROFINET, enabling centralized diagnostics without additional engineering effort.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified industrial surplus with full traceability
- Each unit inspected for firmware version, port functionality, and physical integrity prior to shipment
- Original Siemens packaging, labels, and documentation preserved where available
- Counterfeit screening performed per IEC 62239-1 supply chain assurance guidelines
- Certificate of conformity available upon request
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; ex-stock confirmation provided at order
- MOQ: 1 unit (bulk pricing available for qty ≥ 5)
- Payment: T/T, PayPal, credit card via Shopify Payments
- Export: Worldwide shipping; export documentation (CO, packing list, commercial invoice) included
- Returns: 30-day DOA replacement guarantee; contact support before returning
- RFQ: For project quantities or alternative part numbers, email support@konmask.com
Technical FAQ
Q: Is the 6GK5205-3BD00-2AB2 compatible with TIA Portal V16/V17/V18?
A: Yes. The SCALANCE X205-3 is fully supported in TIA Portal V13 SP1 and later, including V18. GSD files are available from the Siemens Industry Online Support portal.
Q: Can this switch operate in a PROFINET MRP ring without a PLC?
A: Yes, when configured as an MRP client or manager via its web interface or SNMP, the switch participates in ring redundancy independently of PLC control.
Q: What is the maximum fiber cable distance?
A: 2 km per fiber segment using 50/125 µm or 62.5/125 µm multimode fiber with SC-RJ connectors at 1300 nm wavelength.
Q: Does it support VLAN segmentation?
A: Yes. IEEE 802.1Q VLAN tagging is supported, allowing network segmentation between PROFINET, office IT, and HMI traffic on the same physical infrastructure.
Q: What redundant power input voltage is accepted?
A: 18–32 V DC on both P1 and P2 inputs. A fault relay output (floating contact) signals power loss on either input to the PLC or alarm system.
