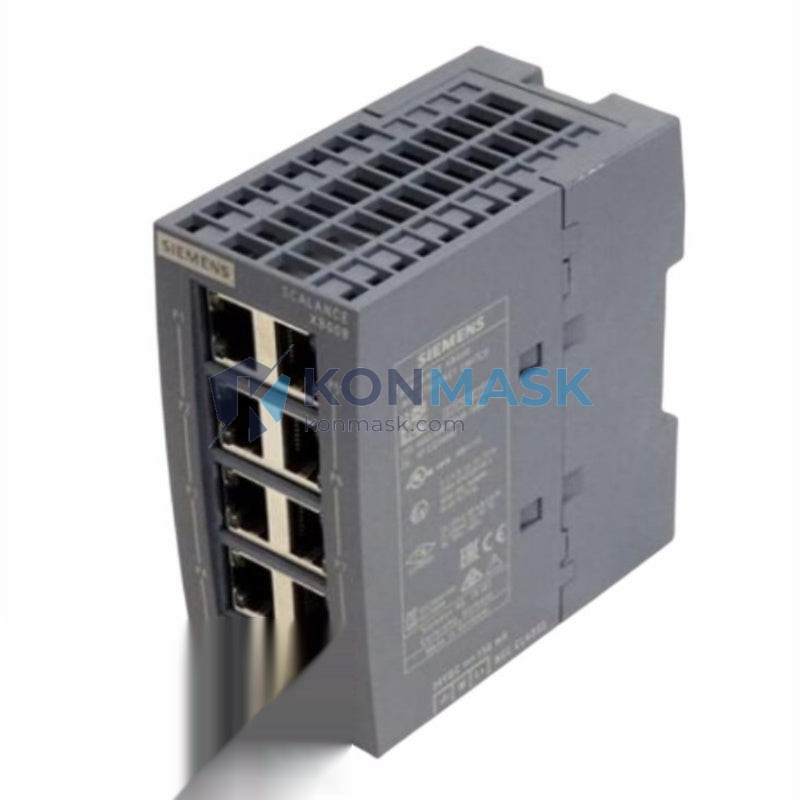

SIEMENS 6GK5008-0BA00-1AB2 – 8-Port Unmanaged Industrial Ethernet Switch | SCALANCE X008 Platform
Engineering Background
The SIEMENS SCALANCE X008 (6GK5008-0BA00-1AB2) is a purpose-built unmanaged industrial Ethernet switch designed for deterministic, high-availability communication in factory automation and process control environments. Engineered to IEC 61131 and PROFINET standards, it delivers plug-and-play Ethernet connectivity without the overhead of managed configuration — ideal for machine-level and field-level network segments where simplicity, ruggedness, and reliability are paramount.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant engineers who require a cost-effective, DIN-rail-mountable Ethernet switch for PROFINET IO, SIMATIC S7, and general industrial TCP/IP networks. The X008 occupies the entry tier of the SCALANCE X family, providing Siemens-grade build quality and industrial certifications without managed-switch complexity.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6GK5008-0BA00-1AB2 |
| Product Family | SCALANCE X008 |
| Switch Type | Unmanaged |
| Number of Ports | 8 × RJ45 (10/100 Mbps) |
| Transmission Rate | 10 Mbps / 100 Mbps (auto-negotiation) |
| Duplex Mode | Half / Full duplex (auto-sensing) |
| Supply Voltage | 24 V DC (18–32 V DC) |
| Power Consumption | Max. 3.5 W |
| Redundant Power Input | Yes (2 × terminal block) |
| Signaling Contact | 1 × fault relay (potential-free) |
| Mounting | DIN rail (35 mm) / wall mount |
| Protection Class | IP30 |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -40 °C to +80 °C |
| Relative Humidity | 10–95% (non-condensing) |
| Dimensions (W×H×D) | 60 × 125 × 75 mm |
| Weight | Approx. 700 g |
| Housing Material | Metal (die-cast zinc) |
| Country of Origin | Germany |
| Certifications | CE, UL, cUL, ATEX Zone 2, IECEx, GL, FM |
| EMC Standard | EN 61000-6-2 / EN 61000-6-4 |
| Vibration Resistance | IEC 60068-2-6 (5–150 Hz, 1 g) |
| Shock Resistance | IEC 60068-2-27 (15 g / 11 ms) |
Proven Application Environments
- PROFINET IO Networks: Connects SIMATIC S7-300/400/1200/1500 PLCs, ET 200 distributed I/O, and HMI panels in star or line topology.
- Machine Automation: OEM machine builders integrating servo drives, VFDs, and safety controllers requiring a compact, DIN-rail switch.
- Process Industry: Chemical, oil & gas, and water treatment plants where IP30 protection and wide temperature range are required.
- Automotive Manufacturing: Body shop and assembly line Ethernet segments with high EMC interference environments.
- Building Automation: HVAC, access control, and energy management systems requiring reliable field-level Ethernet.
- Panel Builder Applications: Control cabinet integration with minimal footprint and DIN rail mounting.
Engineering Advantages
- Zero Configuration: True plug-and-play — no IP address, no management interface required. Reduces commissioning time to minutes.
- Redundant 24 V DC Power: Dual power inputs with fault signaling relay ensure continuous operation even on power supply failure.
- Industrial-Grade EMC: Designed and tested to EN 61000-6-2 heavy industrial immunity standard — immune to conducted and radiated interference from VFDs and welding equipment.
- Compact Metal Housing: Die-cast zinc enclosure provides mechanical robustness and effective EMC shielding in a 60 mm wide form factor.
- Wide Temperature Range: -10 °C to +60 °C operating range covers most indoor industrial environments without additional cooling.
- SIEMENS Ecosystem Compatibility: Fully validated with SIMATIC, SINUMERIK, SIMOTION, and SINAMICS product families.
- Global Certifications: CE, UL, ATEX Zone 2, GL, and FM approvals support deployment across regulated industries worldwide.
System Architecture & Signal Flow
The 6GK5008-0BA00-1AB2 operates as a Layer 2 store-and-forward switch with an internal 1.6 Gbps switching fabric. All 8 RJ45 ports support auto-MDI/MDIX crossover detection, eliminating the need for crossover cables. The integrated fault relay (signaling contact) opens on power loss or internal fault, enabling integration with PLC digital inputs for supervisory monitoring. Typical deployment places the X008 at the machine or field level, aggregating device connections before uplink to a managed backbone switch (e.g., SCALANCE X208 or XC208).
Typical Topology: SIMATIC S7 PLC → SCALANCE X008 (6GK5008-0BA00-1AB2) → ET 200SP / Drives / HMI → Managed Backbone Switch → SCADA/DCS
Sourcing & Quality Verification
- All units sourced through authorized industrial automation distribution channels.
- Each unit inspected for physical integrity, label authenticity, and firmware/hardware revision consistency prior to shipment.
- Original Siemens packaging, documentation, and holographic labels preserved.
- Traceability records maintained per batch for quality audit purposes.
- Certificate of conformity available upon request for regulated procurement processes.
Procurement Process
- Confirm Part Number: Verify 6GK5008-0BA00-1AB2 matches your BOM and MLFB requirement.
- Request Quote: Contact support@konmask.com with quantity and required delivery date.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day.
- Inspection & Dispatch: Unit inspected, packed, and dispatched with tracking within 2–5 business days.
- After-Sales Support: Technical assistance available post-delivery for integration and commissioning queries.
Technical FAQ
Q: Is the 6GK5008-0BA00-1AB2 compatible with PROFINET IRT (Isochronous Real-Time)?
A: No. As an unmanaged switch, it supports PROFINET RT (Real-Time Class 1) but not IRT (Class 3), which requires managed switches with hardware timestamping such as SCALANCE XC-200 or XR-500 series.
Q: Can it be used in PROFINET ring topologies?
A: No. Ring redundancy (MRP/MRPD) requires managed switches. The X008 is suitable for star and line topologies only.
Q: What is the MAC address table size?
A: The X008 supports a MAC address table of 1,024 entries, sufficient for typical machine-level segments.
Q: Does it support SNMP or web-based management?
A: No management interface is provided. For SNMP/web management, consider SCALANCE X208 (6GK5208-0BA00-2AB2).
Q: What is the replacement/successor model?
A: The SCALANCE XB008 (6GK5008-0BA10-1AB2) is the current-generation successor with identical port count and improved diagnostics LED layout.
