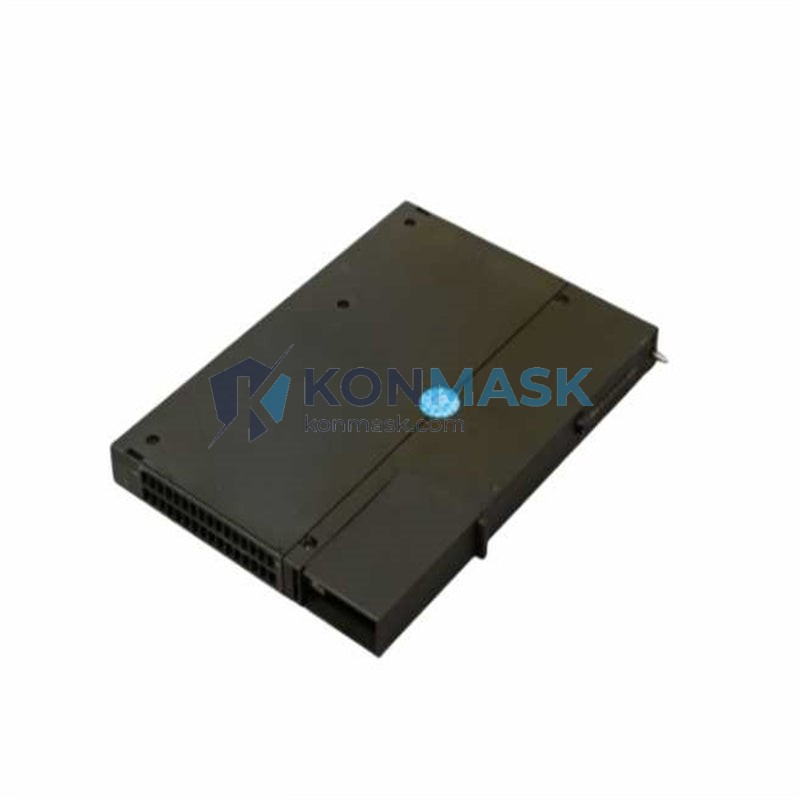

SIEMENS 6GK7443-1EX20-0XE0 Industrial Ethernet Communications Module – SIMATIC NET CP 443-1 EX
Imagine a large-scale automotive assembly line or a chemical processing plant where hundreds of PLCs, HMIs, SCADA servers, and field devices must exchange real-time data without interruption. When the communications backbone fails — even for seconds — production halts, alarms cascade, and unplanned downtime costs mount rapidly. The SIEMENS 6GK7443-1EX20-0XE0 CP 443-1 EX Communications Module is the component that prevents this scenario. It serves as the dedicated Industrial Ethernet gateway for the SIMATIC S7-400 controller family, offloading all network processing from the CPU and ensuring deterministic, high-throughput data exchange across the plant network.
Within the SIMATIC NET CP 443-1 product family, the 6GK7443-1EX20-0XE0 represents a mature, field-proven revision engineered for demanding industrial environments. Supporting 10/100 Mbit/s Industrial Ethernet with auto-negotiation and autocrossing, it integrates seamlessly into both legacy and modern network architectures. Globally, this module is a cornerstone of SIEMENS’ Industrial Ethernet strategy for large-scale process and discrete manufacturing automation, deployed across energy, automotive, pharmaceutical, and infrastructure sectors.
Technical Specifications
- Part Number: 6GK7443-1EX20-0XE0
- Product Family: SIMATIC NET CP 443-1 EX
- Interface: Industrial Ethernet (10/100 Mbit/s), RJ45
- Auto-Negotiation: Yes (10/100 Mbit/s, full/half duplex)
- Autocrossing (MDI/MDI-X): Yes
- Protocols Supported: ISO Transport, TCP/IP, UDP, S7 Communication, FETCH/WRITE, Open IE Communication
- Number of Connections: Up to 64 simultaneous connections
- Compatible Rack: SIMATIC S7-400 central rack / expansion rack
- Power Supply: Via S7-400 backplane bus
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +70 °C
- Degree of Protection: IP20
- Weight: Approx. 800 g
- Dimensions (W×H×D): Per S7-400 double-width module form factor
- Certifications: CE, UL, cULus, ATEX (refer to official SIEMENS datasheet for full certification list)
Note: All specifications are sourced from official SIEMENS documentation. Konmask.com does not fabricate or modify technical parameters.
Key Features & Benefits
- CPU Offloading: Dedicated communications processor handles all Ethernet tasks independently, freeing the S7-400 CPU for real-time control logic without network overhead.
- High Connection Density: Supports up to 64 simultaneous TCP/IP and ISO connections, enabling complex multi-node SCADA and MES architectures.
- Protocol Versatility: Native support for S7 Communication, FETCH/WRITE, and Open IE (TCP/UDP) allows integration with third-party systems, historians, and OPC servers.
- Auto-Negotiation & Autocrossing: Eliminates cabling errors and simplifies network topology changes — critical during plant expansions or retrofits.
- Proven Reliability: Designed to SIEMENS’ industrial-grade standards for continuous 24/7 operation in harsh electromagnetic environments.
- STEP 7 & TIA Portal Compatible: Fully configurable via SIEMENS engineering tools, reducing commissioning time and integration risk.
- Redundancy Support: Compatible with S7-400H redundant system configurations for high-availability applications.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and final assembly stations requiring high-speed PLC-to-SCADA data exchange.
- Chemical & Petrochemical: DCS-integrated process control networks where S7-400 PLCs communicate with safety systems and historian servers.
- Power Generation & Utilities: Substation automation, turbine control, and grid management systems demanding deterministic Ethernet communication.
- Pharmaceutical & Food & Beverage: Batch process control with MES integration, where audit-trail data must be reliably transmitted to enterprise systems.
- Water & Wastewater Treatment: Remote SCADA monitoring of pump stations and treatment processes over Industrial Ethernet infrastructure.
- Machine Tool & Packaging: High-speed production lines where cycle-time-critical data must be exchanged between S7-400 controllers and HMI panels.
System Integration & Compatible Parts
The 6GK7443-1EX20-0XE0 is designed for direct installation into the SIMATIC S7-400 rack system. Compatible and commonly paired components include:
- S7-400 CPUs: CPU 412, CPU 414, CPU 416, CPU 417 series
- S7-400 Power Supplies: PS 405, PS 407 series
- S7-400 Racks: UR1, UR2, UR2-H, CR2, CR3 series
- SIMATIC NET Switches: SCALANCE X series (e.g., X208, X216) for managed Industrial Ethernet topology
- SIMATIC NET Media Converters: For fiber-optic backbone integration
- OPC Servers: SIMATIC NET PC Software for OPC DA/UA connectivity to MES/ERP systems
- S7-400H Redundancy: Compatible with H-system configurations using redundant CP pairs
Our Quality Assurance Process
At Konmask.com, every SIEMENS module we supply undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Visual inspection of labeling, firmware version markings, and physical construction against known-genuine reference units.
- Functional Testing: Where applicable, modules are powered and communication interfaces are verified prior to dispatch.
- Traceability Documentation: Each unit is accompanied by sourcing documentation to support your incoming inspection process.
- Secure Packaging: Anti-static packaging with shock-absorbing materials to prevent transit damage to sensitive electronics.
- Post-Sale Support: Our technical team is available to assist with installation queries and compatibility confirmation.
How to Order
- Submit an Inquiry: Contact us via the inquiry form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice and confirm your order in writing.
- Shipment & Tracking: We arrange international shipping with full tracking and customs documentation support.
- After-Sales Support: Our engineers remain available post-delivery for technical assistance.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — SIEMENS, Rockwell, ABB, Schneider, and more — with deep technical expertise.
- Global Supply Network: Access to both new and surplus genuine stock from verified supply channels worldwide.
- B2B Inquiry-First Model: We serve OEMs, system integrators, MRO teams, and plant engineers with tailored quotations — no retail guesswork.
- Fast Response: Dedicated account managers ensure rapid quote turnaround, critical for unplanned downtime situations.
- Compliance-Ready Documentation: We provide the paperwork your procurement and quality teams require.
Frequently Asked Questions
Q: Is the 6GK7443-1EX20-0XE0 compatible with the SIMATIC S7-300 rack?
A: No. The CP 443-1 EX is designed exclusively for the SIMATIC S7-400 rack system. For S7-300 applications, the equivalent module is the CP 343-1 series (e.g., 6GK7343-1EX30-0XE0).
Q: Can this module be used in an S7-400H redundant system?
A: Yes. The 6GK7443-1EX20-0XE0 supports use in S7-400H high-availability configurations when paired with a redundant CP in the standby rack, subject to SIEMENS system configuration guidelines.
Q: What engineering software is required to configure this module?
A: The module is configurable via SIEMENS STEP 7 (v5.x) with the SIMATIC NET software package. It is also supported in TIA Portal environments via legacy integration. Refer to the SIEMENS product manual for version compatibility details.
Q: Does Konmask.com supply new or refurbished units?
A: We supply both new (factory-sealed) and tested surplus units depending on availability. The condition is clearly stated in your quotation. All units pass our quality verification process regardless of condition.
Q: What is the typical lead time for this part?
A: Lead time varies by stock availability. Please submit an inquiry for a real-time availability and lead time confirmation. We prioritize urgent MRO requests.
Q: Can you provide a datasheet or product manual?
A: Yes. Contact us at support@konmask.com and we will provide the official SIEMENS product documentation for the 6GK7443-1EX20-0XE0.
